To draw a Crown.

A crown is specified with the position of its centre, its inner/outer radius a minimum and maximum angle. The attributes of the outline line are given via TAttLine. The attributes of the fill area are given via TAttFill.

Example:

{

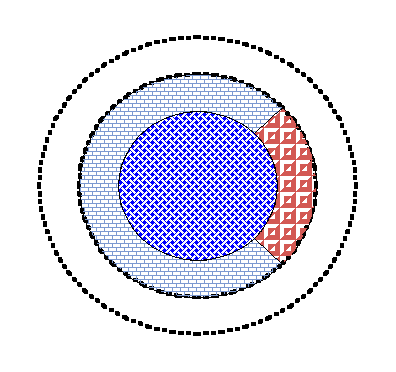

   TCanvas *c1 = new TCanvas("c1","c1",400,400);
   TCrown cr1(.5,.5,.3,.4);
   cr1.SetLineStyle(2);
   cr1.SetLineWidth(4);
   cr1.Draw();
   TCrown cr2(.5,.5,.2,.3,45,315);
   cr2.SetFillColor(38);
   cr2.SetFillStyle(3010);
   cr2.Draw();
   TCrown cr3(.5,.5,.2,.3,-45,45);
   cr3.SetFillColor(50);
   cr3.SetFillStyle(3025);
   cr3.Draw();
   TCrown cr4(.5,.5,.0,.2);
   cr4.SetFillColor(4);
   cr4.SetFillStyle(3008);
   cr4.Draw();
   return c1;
}

Definition at line 30 of file TCrown.h.

Public Member Functions
	TCrown ()

	TCrown (Double_t x1, Double_t y1, Double_t radin, Double_t radout, Double_t phimin=0, Double_t phimax=360)
	Crown normal constructor. More...

	TCrown (const TCrown &crown)
	Crown copy constructor. More...

virtual	~TCrown ()
	Crown default destructor. More...

void	Copy (TObject &crown) const
	Copy this crown to crown. More...

virtual Int_t	DistancetoPrimitive (Int_t px, Int_t py)
	Compute distance from point px,py to a crown. More...

virtual void	DrawCrown (Double_t x1, Double_t y1, Double_t radin, Double_t radout, Double_t phimin=0, Double_t phimax=360, Option_t *option="")
	Draw this crown with new coordinates. More...

virtual void	ExecuteEvent (Int_t event, Int_t px, Int_t py)
	Execute action corresponding to one event. More...

virtual void	Paint (Option_t *option="")
	Paint this crown with its current attributes. More...

virtual void	SavePrimitive (std::ostream &out, Option_t *option="")
	Save primitive as a C++ statement(s) on output stream out. More...

Public Member Functions inherited from TEllipse
	TEllipse ()

	TEllipse (Double_t x1, Double_t y1, Double_t r1, Double_t r2=0, Double_t phimin=0, Double_t phimax=360, Double_t theta=0)
	Ellipse normal constructor. More...

	TEllipse (const TEllipse &ellipse)
	Copy constructor. More...

virtual	~TEllipse ()
	Ellipse default destructor. More...

void	Copy (TObject &ellipse) const
	Copy this ellipse to ellipse. More...

virtual void	Draw (Option_t *option="")
	Draw this ellipse with its current attributes. More...

virtual void	DrawEllipse (Double_t x1, Double_t y1, Double_t r1, Double_t r2, Double_t phimin, Double_t phimax, Double_t theta, Option_t *option="")
	Draw this ellipse with new coordinates. More...

Double_t	GetX1 () const

Double_t	GetY1 () const

Double_t	GetR1 () const

Double_t	GetR2 () const

Double_t	GetPhimin () const

Double_t	GetPhimax () const

Double_t	GetTheta () const

Bool_t	GetNoEdges () const
	Return kTRUE if kNoEdges bit is set, kFALSE otherwise. More...

virtual void	ls (Option_t *option="") const
	List this ellipse with its attributes. More...

virtual void	PaintEllipse (Double_t x1, Double_t y1, Double_t r1, Double_t r2, Double_t phimin, Double_t phimax, Double_t theta, Option_t *option="")
	Draw this ellipse with new coordinates. More...

virtual void	Print (Option_t *option="") const
	Dump this ellipse with its attributes. More...

virtual void	SetNoEdges (Bool_t noEdges=kTRUE)
	if noEdges = kTRUE the lines connecting the center to the edges will not be drawn. More...

virtual void	SetPhimin (Double_t phi=0)

virtual void	SetPhimax (Double_t phi=360)

virtual void	SetR1 (Double_t r1)

virtual void	SetR2 (Double_t r2)

virtual void	SetTheta (Double_t theta=0)

virtual void	SetX1 (Double_t x1)

virtual void	SetY1 (Double_t y1)

virtual Rectangle_t	GetBBox ()
	Return the bounding Box of the Ellipse, currently not taking into account the rotating angle. More...

virtual TPoint	GetBBoxCenter ()
	Return the center of the Ellipse as TPoint in pixels. More...

virtual void	SetBBoxCenter (const TPoint &p)
	Set center of the Ellipse. More...

virtual void	SetBBoxCenterX (const Int_t x)
	Set X coordinate of the center of the Ellipse. More...

virtual void	SetBBoxCenterY (const Int_t y)
	Set Y coordinate of the center of the Ellipse. More...

virtual void	SetBBoxX1 (const Int_t x)
	Set left hand side of BoundingBox to a value (resize in x direction on left) More...

virtual void	SetBBoxX2 (const Int_t x)
	Set right hand side of BoundingBox to a value (resize in x direction on right) More...

virtual void	SetBBoxY1 (const Int_t y)
	Set top of BoundingBox to a value (resize in y direction on top) More...

virtual void	SetBBoxY2 (const Int_t y)
	Set bottom of BoundingBox to a value (resize in y direction on bottom) More...

Public Member Functions inherited from TObject
	TObject ()

	TObject (const TObject &object)
	TObject copy ctor. More...

TObject &	operator= (const TObject &rhs)
	TObject assignment operator. More...

virtual	~TObject ()
	TObject destructor. More...

virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad. More...

virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action. More...

virtual const char *	ClassName () const
	Returns name of class to which the object belongs. More...

virtual void	Clear (Option_t *="")

virtual TObject *	Clone (const char *newname="") const
	Make a clone of an object using the Streamer facility. More...

virtual Int_t	Compare (const TObject *obj) const
	Compare abstract method. More...

virtual void	Delete (Option_t *option="")
	Delete this object. More...

virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs. More...

virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current pad. More...

virtual void	Dump () const
	Dump contents of object on stdout. More...

virtual void	Execute (const char method, const char params, Int_t *error=0)
	Execute method on this object with the given parameter string, e.g. More...

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=0)
	Execute method on this object with parameters stored in the TObjArray. More...

virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes. More...

virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes. More...

virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object. More...

virtual UInt_t	GetUniqueID () const
	Return the unique object id. More...

virtual const char *	GetName () const
	Returns name of object. More...

virtual const char *	GetIconName () const
	Returns mime type name of object. More...

virtual Option_t *	GetOption () const

virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py). More...

virtual const char *	GetTitle () const
	Returns title of object. More...

virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out. More...

virtual ULong_t	Hash () const
	Return hash value for this object. More...

virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname". More...

virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl. More...

virtual void	Inspect () const
	Dump contents of this object in a graphics canvas. More...

virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects). More...

virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory). More...

virtual Bool_t	IsSortable () const

Bool_t	IsOnHeap () const

Bool_t	IsZombie () const

virtual Bool_t	Notify ()
	This method must be overridden to handle object notification. More...

virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list. More...

virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory. More...

virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list. More...

virtual void	SaveAs (const char filename="", Option_t option="") const
	Save this object in the file specified by filename. More...

virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object. More...

virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id. More...

virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked. More...

virtual Int_t	Write (const char *name=0, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory. More...

virtual Int_t	Write (const char *name=0, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory. More...

void *	operator new (size_t sz)

void *	operator new[] (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz, void *vp)

void	operator delete (void *ptr)
	Operator delete. More...

void	operator delete[] (void *ptr)
	Operator delete []. More...

void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f. More...

void	SetBit (UInt_t f)

void	ResetBit (UInt_t f)

Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

void	InvertBit (UInt_t f)

virtual void	Info (const char method, const char msgfmt,...) const
	Issue info message. More...

virtual void	Warning (const char method, const char msgfmt,...) const
	Issue warning message. More...

virtual void	Error (const char method, const char msgfmt,...) const
	Issue error message. More...

virtual void	SysError (const char method, const char msgfmt,...) const
	Issue system error message. More...

virtual void	Fatal (const char method, const char msgfmt,...) const
	Issue fatal error message. More...

void	AbstractMethod (const char *method) const
	Use this method to implement an "abstract" method that you don't want to leave purely abstract. More...

void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary). More...

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete. More...

Public Member Functions inherited from TAttLine
	TAttLine ()
	AttLine default constructor. More...

	TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth)
	AttLine normal constructor. More...

virtual	~TAttLine ()
	AttLine destructor. More...

void	Copy (TAttLine &attline) const
	Copy this line attributes to a new TAttLine. More...

Int_t	DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
	Compute distance from point px,py to a line. More...

virtual Color_t	GetLineColor () const

virtual Style_t	GetLineStyle () const

virtual Width_t	GetLineWidth () const

virtual void	Modify ()
	Change current line attributes if necessary. More...

virtual void	ResetAttLine (Option_t *option="")
	Reset this line attributes to default values. More...

virtual void	SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
	Save line attributes as C++ statement(s) on output stream out. More...

virtual void	SetLineAttributes ()
	Invoke the DialogCanvas Line attributes. More...

virtual void	SetLineColor (Color_t lcolor)

virtual void	SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
	Set a transparent line color. More...

virtual void	SetLineStyle (Style_t lstyle)

virtual void	SetLineWidth (Width_t lwidth)

	ClassDef (TAttLine, 2)

Public Member Functions inherited from TAttFill
	TAttFill ()

	TAttFill (Color_t fcolor, Style_t fstyle)
	AttFill normal constructor. More...

virtual	~TAttFill ()
	AttFill destructor. More...

void	Copy (TAttFill &attfill) const
	Copy this fill attributes to a new TAttFill. More...

virtual Color_t	GetFillColor () const

virtual Style_t	GetFillStyle () const

virtual Bool_t	IsTransparent () const

virtual void	Modify ()
	Change current fill area attributes if necessary. More...

virtual void	ResetAttFill (Option_t *option="")
	Reset this fill attributes to default values. More...

virtual void	SaveFillAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1001)
	Save fill attributes as C++ statement(s) on output stream out. More...

virtual void	SetFillAttributes ()
	Invoke the DialogCanvas Fill attributes. More...

virtual void	SetFillColor (Color_t fcolor)

virtual void	SetFillColorAlpha (Color_t fcolor, Float_t falpha)
	Set a transparent fill color. More...

virtual void	SetFillStyle (Style_t fstyle)

Public Member Functions inherited from TAttBBox2D
virtual	~TAttBBox2D ()

	ClassDef (TAttBBox2D, 0)

Additional Inherited Members
Public Types inherited from TEllipse
enum	{ kNoEdges = BIT(9) }

Public Types inherited from TObject
enum	EStatusBits { kCanDelete = BIT(0), kMustCleanup = BIT(3), kObjInCanvas = BIT(3), kIsReferenced = BIT(4), kHasUUID = BIT(5), kCannotPick = BIT(6), kNoContextMenu = BIT(8), kInvalidObject = BIT(13) }

enum	{ kIsOnHeap = 0x01000000, kNotDeleted = 0x02000000, kZombie = 0x04000000, kBitMask = 0x00ffffff }

enum	{ kSingleKey = BIT(0), kOverwrite = BIT(1), kWriteDelete = BIT(2) }

Static Public Member Functions inherited from TObject
static Long_t	GetDtorOnly ()
	Return destructor only flag. More...

static void	SetDtorOnly (void *obj)
	Set destructor only flag. More...

static Bool_t	GetObjectStat ()
	Get status of object stat flag. More...

static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable. More...

Protected Member Functions inherited from TObject
void	MakeZombie ()

virtual void	DoError (int level, const char location, const char fmt, va_list va) const
	Interface to ErrorHandler (protected). More...

Protected Attributes inherited from TEllipse
Double_t	fX1

Double_t	fY1

Double_t	fR1

Double_t	fR2

Double_t	fPhimin

Double_t	fPhimax

Double_t	fTheta

Protected Attributes inherited from TAttLine
Color_t	fLineColor

Style_t	fLineStyle

Width_t	fLineWidth

Protected Attributes inherited from TAttFill
Color_t	fFillColor

Style_t	fFillStyle

#include <TCrown.h>

Inheritance diagram for TCrown:

[legend]

Constructor & Destructor Documentation

TCrown::TCrown ( )

Referenced by DrawCrown().

TCrown::TCrown	(	Double_t	x1,
		Double_t	y1,
		Double_t	radin,
		Double_t	radout,
		Double_t	phimin = `0`,
		Double_t	phimax = `360`
	)

Crown normal constructor.

Parameters

[in]	x1,y1	coordinates of centre of crown
[in]	radin	inner crown radius
[in]	radout	outer crown radius
[in]	phimin	min angle in degrees (default is 0)
[in]	phimax	max angle in degrees (default is 360)

When a crown sector only is drawn, the lines connecting the center of the crown to the edges are drawn by default. One can specify the drawing option "only" to not draw these lines.

Definition at line 75 of file TCrown.cxx.

TCrown::TCrown ( const TCrown & crown )

Crown copy constructor.

Definition at line 83 of file TCrown.cxx.

TCrown::~TCrown ( )

virtual

Crown default destructor.

Definition at line 92 of file TCrown.cxx.

Member Function Documentation

void TCrown::Copy ( TObject & crown ) const

virtual

Copy this crown to crown.

Reimplemented from TObject.

Definition at line 99 of file TCrown.cxx.

Int_t TCrown::DistancetoPrimitive	(	Int_t	px,
		Int_t	py
	)

virtual

Compute distance from point px,py to a crown.

If crown is filled, return OK if we are inside otherwise, crown is found if near the crown edges.

Reimplemented from TEllipse.

Definition at line 111 of file TCrown.cxx.

void TCrown::DrawCrown	(	Double_t	x1,
		Double_t	y1,
		Double_t	radin,
		Double_t	radout,
		Double_t	phimin = `0`,
		Double_t	phimax = `360`,
		Option_t *	option = `""`
	)

virtual

Draw this crown with new coordinates.

Definition at line 157 of file TCrown.cxx.

void TCrown::ExecuteEvent	(	Int_t	event,
		Int_t	px,
		Int_t	py
	)

virtual

Execute action corresponding to one event.

For the time being TEllipse::ExecuteEvent is used.

Reimplemented from TEllipse.

Definition at line 172 of file TCrown.cxx.

void TCrown::Paint ( Option_t * option = "" )

virtual

Paint this crown with its current attributes.

Reimplemented from TEllipse.

Definition at line 181 of file TCrown.cxx.

Referenced by THistPainter::PaintColorLevels().

void TCrown::SavePrimitive	(	std::ostream &	out,
		Option_t *	option = `""`
	)

virtual

Save primitive as a C++ statement(s) on output stream out.

Reimplemented from TEllipse.

Definition at line 233 of file TCrown.cxx.
