TGeoScaledShape Class Reference

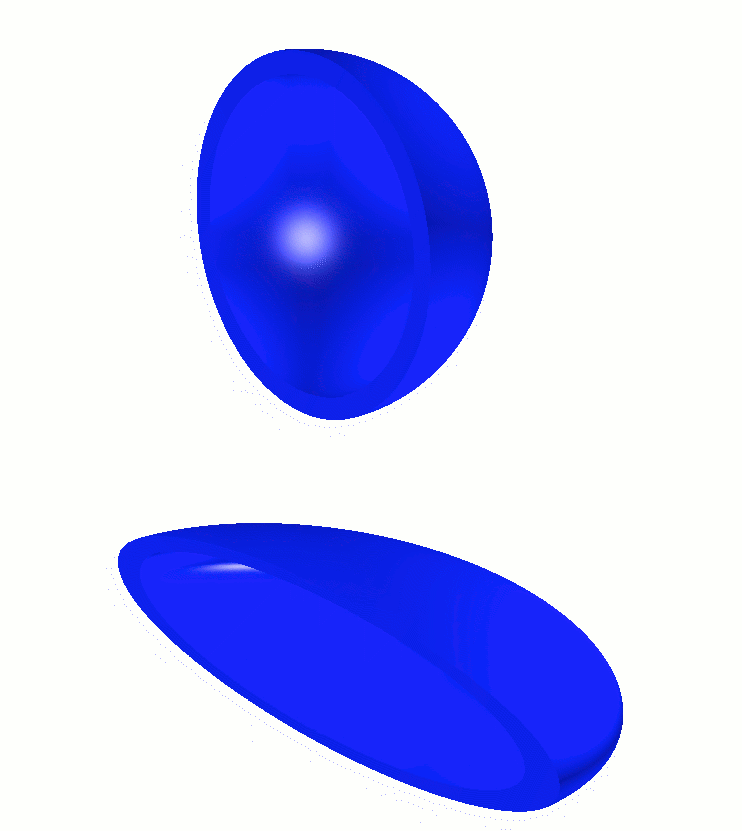

A shape scaled by a TGeoScale transformation.

Definition at line 20 of file TGeoScaledShape.h.

Public Member Functions

 TGeoScaledShape ()
 Default constructor. More...

 TGeoScaledShape (const char *name, TGeoShape *shape, TGeoScale *scale)
 Constructor. More...

 TGeoScaledShape (TGeoShape *shape, TGeoScale *scale)
 Constructor. More...

virtual ~TGeoScaledShape ()
 destructor More...

virtual Double_t Capacity () const
 Computes capacity of this shape [length^3]. More...

virtual void ComputeBBox ()
 Compute bounding box of the scaled shape. More...

virtual void ComputeNormal (const Double_t *point, const Double_t *dir, Double_t *norm)
 Compute normal to closest surface from POINT. More...

virtual void ComputeNormal_v (const Double_t *points, const Double_t *dirs, Double_t *norms, Int_t vecsize)
 Compute the normal for an array o points so that norm.dot.dir is positive Input: Arrays of point coordinates and directions + vector size Output: Array of normal directions. More...

virtual Bool_t Contains (const Double_t *point) const
 Test if point is inside the scaled shape. More...

virtual void Contains_v (const Double_t *points, Bool_t *inside, Int_t vecsize) const
 Check the inside status for each of the points in the array. More...

virtual Int_t DistancetoPrimitive (Int_t px, Int_t py)
 compute closest distance from point px,py to each vertex. Should not be called. More...

virtual Double_t DistFromInside (const Double_t *point, const Double_t *dir, Int_t iact=1, Double_t step=TGeoShape::Big(), Double_t *safe=0) const
 Compute distance from inside point to surface of the scaled shape. More...

virtual void DistFromInside_v (const Double_t *points, const Double_t *dirs, Double_t *dists, Int_t vecsize, Double_t *step) const
 Compute distance from array of input points having directions specified by dirs. Store output in dists. More...

virtual Double_t DistFromOutside (const Double_t *point, const Double_t *dir, Int_t iact=1, Double_t step=TGeoShape::Big(), Double_t *safe=0) const
 Compute distance from outside point to surface of the scaled shape. More...

virtual void DistFromOutside_v (const Double_t *points, const Double_t *dirs, Double_t *dists, Int_t vecsize, Double_t *step) const
 Compute distance from array of input points having directions specified by dirs. Store output in dists. More...

virtual TGeoVolumeDivide (TGeoVolume *voldiv, const char *divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step)
 Cannot divide assemblies. More...

virtual const TBuffer3DGetBuffer3D (Int_t reqSections, Bool_t localFrame) const
 Fills a static 3D buffer and returns a reference. More...

virtual TGeoShapeGetMakeRuntimeShape (TGeoShape *mother, TGeoMatrix *mat) const
 in case shape has some negative parameters, these has to be computed in order to fit the mother More...

virtual void GetMeshNumbers (Int_t &nvert, Int_t &nsegs, Int_t &npols) const
 Returns numbers of vertices, segments and polygons composing the shape mesh. More...

virtual Int_t GetNmeshVertices () const

TGeoScaleGetScale () const

TGeoShapeGetShape () const

virtual void InspectShape () const
 print shape parameters More...

virtual Bool_t IsAssembly () const
 Returns true if the scaled shape is an assembly. More...

virtual Bool_t IsCylType () const

virtual Bool_t IsReflected () const
 Check if the scale transformation is a reflection. More...

virtual TBuffer3DMakeBuffer3D () const
 Creates a TBuffer3D describing this shape. More...

virtual Double_t Safety (const Double_t *point, Bool_t in=kTRUE) const
 computes the closest distance from given point to this shape, according to option. More...

virtual void Safety_v (const Double_t *points, const Bool_t *inside, Double_t *safe, Int_t vecsize) const
 Compute safe distance from each of the points in the input array. More...

virtual void SavePrimitive (std::ostream &out, Option_t *option="")
 Save a primitive as a C++ statement(s) on output stream "out". More...

virtual void SetPoints (Double_t *points) const
 Mesh points for scaled shapes. More...

virtual void SetPoints (Float_t *points) const
 Mesh points for scaled shapes. More...

void SetScale (TGeoScale *scale)

virtual void SetSegsAndPols (TBuffer3D &buffer) const
 Fill TBuffer3D structure for segments and polygons. More...

- Public Member Functions inherited from TGeoBBox
 TGeoBBox ()
 Default constructor. More...

 TGeoBBox (const char *name, Double_t dx, Double_t dy, Double_t dz, Double_t *origin=0)
 Constructor with shape name. More...

 TGeoBBox (Double_t *param)
 Constructor based on the array of parameters. More...

 TGeoBBox (Double_t dx, Double_t dy, Double_t dz, Double_t *origin=0)
 Constructor where half-lengths are provided. More...

virtual ~TGeoBBox ()
 Destructor. More...

virtual Double_t Capacity () const
 Computes capacity of the shape in [length^3]. More...

virtual void ComputeBBox ()
 Compute bounding box - nothing to do in this case. More...

virtual void ComputeNormal (const Double_t *point, const Double_t *dir, Double_t *norm)
 Computes normal to closest surface from POINT. More...

virtual void ComputeNormal_v (const Double_t *points, const Double_t *dirs, Double_t *norms, Int_t vecsize)
 Compute the normal for an array o points so that norm.dot.dir is positive Input: Arrays of point coordinates and directions + vector size Output: Array of normal directions. More...

virtual Bool_t Contains (const Double_t *point) const
 Test if point is inside this shape. More...

virtual void Contains_v (const Double_t *points, Bool_t *inside, Int_t vecsize) const
 Check the inside status for each of the points in the array. More...

virtual Bool_t CouldBeCrossed (const Double_t *point, const Double_t *dir) const
 Decides fast if the bounding box could be crossed by a vector. More...

virtual Int_t DistancetoPrimitive (Int_t px, Int_t py)
 Compute closest distance from point px,py to each corner. More...

virtual Double_t DistFromInside (const Double_t *point, const Double_t *dir, Int_t iact=1, Double_t step=TGeoShape::Big(), Double_t *safe=0) const
 Compute distance from inside point to surface of the box. More...

virtual void DistFromInside_v (const Double_t *points, const Double_t *dirs, Double_t *dists, Int_t vecsize, Double_t *step) const
 Compute distance from array of input points having directions specified by dirs. Store output in dists. More...

virtual Double_t DistFromOutside (const Double_t *point, const Double_t *dir, Int_t iact=1, Double_t step=TGeoShape::Big(), Double_t *safe=0) const
 Compute distance from outside point to surface of the box. More...

virtual void DistFromOutside_v (const Double_t *points, const Double_t *dirs, Double_t *dists, Int_t vecsize, Double_t *step) const
 Compute distance from array of input points having directions specified by dirs. Store output in dists. More...

virtual TGeoVolumeDivide (TGeoVolume *voldiv, const char *divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step)
 Divide this box shape belonging to volume "voldiv" into ndiv equal volumes called divname, from start position with the given step. More...

virtual const char * GetAxisName (Int_t iaxis) const
 Returns name of axis IAXIS. More...

virtual Double_t GetAxisRange (Int_t iaxis, Double_t &xlo, Double_t &xhi) const
 Get range of shape for a given axis. More...

virtual void GetBoundingCylinder (Double_t *param) const
 Fill vector param[4] with the bounding cylinder parameters. More...

virtual const TBuffer3DGetBuffer3D (Int_t reqSections, Bool_t localFrame) const
 Fills a static 3D buffer and returns a reference. More...

virtual Int_t GetByteCount () const

virtual Double_t GetDX () const

virtual Double_t GetDY () const

virtual Double_t GetDZ () const

virtual Double_t GetFacetArea (Int_t index=0) const
 Get area in internal units of the facet with a given index. More...

virtual Int_t GetFittingBox (const TGeoBBox *parambox, TGeoMatrix *mat, Double_t &dx, Double_t &dy, Double_t &dz) const
 Fills real parameters of a positioned box inside this one. Returns 0 if successful. More...

virtual TGeoShapeGetMakeRuntimeShape (TGeoShape *mother, TGeoMatrix *mat) const
 In case shape has some negative parameters, these has to be computed in order to fit the mother. More...

virtual void GetMeshNumbers (Int_t &nvert, Int_t &nsegs, Int_t &npols) const
 Returns numbers of vertices, segments and polygons composing the shape mesh. More...

virtual Int_t GetNmeshVertices () const

virtual const Double_tGetOrigin () const

virtual Bool_t GetPointsOnFacet (Int_t index, Int_t npoints, Double_t *array) const
 Fills array with n random points located on the surface of indexed facet. More...

virtual Bool_t GetPointsOnSegments (Int_t npoints, Double_t *array) const
 Fills array with n random points located on the line segments of the shape mesh. More...

virtual void InspectShape () const
 Prints shape parameters. More...

virtual Bool_t IsCylType () const

virtual Bool_t IsNullBox () const

virtual Bool_t IsValidBox () const

virtual TBuffer3DMakeBuffer3D () const
 Creates a TBuffer3D describing this shape. More...

virtual Double_t Safety (const Double_t *point, Bool_t in=kTRUE) const
 Computes the closest distance from given point to this shape. More...

virtual void Safety_v (const Double_t *points, const Bool_t *inside, Double_t *safe, Int_t vecsize) const
 Compute safe distance from each of the points in the input array. More...

virtual void SavePrimitive (std::ostream &out, Option_t *option="")
 Save a primitive as a C++ statement(s) on output stream "out". More...

void SetBoxDimensions (Double_t dx, Double_t dy, Double_t dz, Double_t *origin=0)
 Set parameters of the box. More...

void SetBoxPoints (Double_t *points) const
 Fill box vertices to an array. More...

virtual void SetDimensions (Double_t *param)
 Set dimensions based on the array of parameters param[0] - half-length in x param[1] - half-length in y param[2] - half-length in z. More...

virtual void SetPoints (Double_t *points) const
 Fill box points. More...

virtual void SetPoints (Float_t *points) const
 Fill box points. More...

virtual void SetSegsAndPols (TBuffer3D &buffer) const
 Fills TBuffer3D structure for segments and polygons. More...

virtual void Sizeof3D () const

- Public Member Functions inherited from TGeoShape
 TGeoShape ()
 Default constructor. More...

 TGeoShape (const char *name)
 Default constructor. More...

virtual ~TGeoShape ()
 Destructor. More...

virtual void AfterStreamer ()

virtual Double_t Capacity () const =0

void CheckShape (Int_t testNo, Int_t nsamples=10000, Option_t *option="")
 Test for shape navigation methods. More...

virtual void ClearThreadData () const

virtual void ComputeBBox ()=0

virtual void ComputeNormal (const Double_t *point, const Double_t *dir, Double_t *norm)=0

virtual void ComputeNormal_v (const Double_t *, const Double_t *, Double_t *, Int_t)

virtual Bool_t Contains (const Double_t *point) const =0

virtual void Contains_v (const Double_t *, Bool_t *, Int_t) const

virtual Bool_t CouldBeCrossed (const Double_t *point, const Double_t *dir) const =0

virtual void CreateThreadData (Int_t)

virtual Int_t DistancetoPrimitive (Int_t px, Int_t py)=0
 Computes distance from point (px,py) to the object. More...

virtual Double_t DistFromInside (const Double_t *point, const Double_t *dir, Int_t iact=1, Double_t step=TGeoShape::Big(), Double_t *safe=0) const =0

virtual void DistFromInside_v (const Double_t *, const Double_t *, Double_t *, Int_t, Double_t *) const

virtual Double_t DistFromOutside (const Double_t *point, const Double_t *dir, Int_t iact=1, Double_t step=TGeoShape::Big(), Double_t *safe=0) const =0

virtual void DistFromOutside_v (const Double_t *, const Double_t *, Double_t *, Int_t, Double_t *) const

virtual TGeoVolumeDivide (TGeoVolume *voldiv, const char *divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step)=0

virtual void Draw (Option_t *option="")
 Draw this shape. More...

virtual void ExecuteEvent (Int_t event, Int_t px, Int_t py)
 Execute mouse actions on this shape. More...

virtual const char * GetAxisName (Int_t iaxis) const =0

virtual Double_t GetAxisRange (Int_t iaxis, Double_t &xlo, Double_t &xhi) const =0

virtual void GetBoundingCylinder (Double_t *param) const =0

virtual const TBuffer3DGetBuffer3D (Int_t reqSections, Bool_t localFrame) const
 Stub implementation to avoid forcing implementation at this stage. More...

virtual Int_t GetByteCount () const =0

virtual Int_t GetFittingBox (const TGeoBBox *parambox, TGeoMatrix *mat, Double_t &dx, Double_t &dy, Double_t &dz) const =0

Int_t GetId () const

virtual TGeoShapeGetMakeRuntimeShape (TGeoShape *mother, TGeoMatrix *mat) const =0

virtual void GetMeshNumbers (Int_t &, Int_t &, Int_t &) const

virtual const char * GetName () const
 Get the shape name. More...

virtual Int_t GetNmeshVertices () const

const char * GetPointerName () const
 Provide a pointer name containing uid. More...

virtual Bool_t GetPointsOnSegments (Int_t npoints, Double_t *array) const =0

virtual void InspectShape () const =0

void InvertShapeBit (UInt_t f)

virtual Bool_t IsAssembly () const

virtual Bool_t IsComposite () const

virtual Bool_t IsCylType () const =0

virtual Bool_t IsReflected () const

Bool_t IsRunTimeShape () const

Bool_t IsValid () const

virtual Bool_t IsValidBox () const =0

virtual Bool_t IsVecGeom () const

virtual TBuffer3DMakeBuffer3D () const

virtual void Paint (Option_t *option="")
 Paint this shape. More...

void ResetShapeBit (UInt_t f)

virtual Double_t Safety (const Double_t *point, Bool_t in=kTRUE) const =0

virtual void Safety_v (const Double_t *, const Bool_t *, Double_t *, Int_t) const

virtual void SetDimensions (Double_t *param)=0

void SetId (Int_t id)

virtual void SetPoints (Double_t *points) const =0

virtual void SetPoints (Float_t *points) const =0

void SetRuntime (Bool_t flag=kTRUE)

virtual void SetSegsAndPols (TBuffer3D &buff) const =0

void SetShapeBit (UInt_t f)

void SetShapeBit (UInt_t f, Bool_t set)
 Equivalent of TObject::SetBit. More...

Int_t ShapeDistancetoPrimitive (Int_t numpoints, Int_t px, Int_t py) const
 Returns distance to shape primitive mesh. More...

virtual void Sizeof3D () const =0

Bool_t TestShapeBit (UInt_t f) const

Int_t TestShapeBits (UInt_t f) const

- Public Member Functions inherited from TNamed
 TNamed ()

 TNamed (const char *name, const char *title)

 TNamed (const TNamed &named)
 TNamed copy ctor. More...

 TNamed (const TString &name, const TString &title)

virtual ~TNamed ()
 TNamed destructor. More...

virtual void Clear (Option_t *option="")
 Set name and title to empty strings (""). More...

virtual TObjectClone (const char *newname="") const
 Make a clone of an object using the Streamer facility. More...

virtual Int_t Compare (const TObject *obj) const
 Compare two TNamed objects. More...

virtual void Copy (TObject &named) const
 Copy this to obj. More...

virtual void FillBuffer (char *&buffer)
 Encode TNamed into output buffer. More...

virtual const char * GetName () const
 Returns name of object. More...

virtual const char * GetTitle () const
 Returns title of object. More...

virtual ULong_t Hash () const
 Return hash value for this object. More...

virtual Bool_t IsSortable () const

virtual void ls (Option_t *option="") const
 List TNamed name and title. More...

TNamedoperator= (const TNamed &rhs)
 TNamed assignment operator. More...

virtual void Print (Option_t *option="") const
 Print TNamed name and title. More...

virtual void SetName (const char *name)
 Set the name of the TNamed. More...

virtual void SetNameTitle (const char *name, const char *title)
 Set all the TNamed parameters (name and title). More...

virtual void SetTitle (const char *title="")
 Set the title of the TNamed. More...

virtual Int_t Sizeof () const
 Return size of the TNamed part of the TObject. More...

- Public Member Functions inherited from TObject
 TObject ()
 TObject constructor. More...

 TObject (const TObject &object)
 TObject copy ctor. More...

virtual ~TObject ()
 TObject destructor. More...

void AbstractMethod (const char *method) const
 Use this method to implement an "abstract" method that you don't want to leave purely abstract. More...

virtual void AppendPad (Option_t *option="")
 Append graphics object to current pad. More...

virtual void Browse (TBrowser *b)
 Browse object. May be overridden for another default action. More...

ULong_t CheckedHash ()
 Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object. More...

virtual const char * ClassName () const
 Returns name of class to which the object belongs. More...

virtual void Clear (Option_t *="")

virtual TObjectClone (const char *newname="") const
 Make a clone of an object using the Streamer facility. More...

virtual Int_t Compare (const TObject *obj) const
 Compare abstract method. More...

virtual void Copy (TObject &object) const
 Copy this to obj. More...

virtual void Delete (Option_t *option="")
 Delete this object. More...

virtual Int_t DistancetoPrimitive (Int_t px, Int_t py)
 Computes distance from point (px,py) to the object. More...

virtual void Draw (Option_t *option="")
 Default Draw method for all objects. More...

virtual void DrawClass () const
 Draw class inheritance tree of the class to which this object belongs. More...

virtual TObjectDrawClone (Option_t *option="") const
 Draw a clone of this object in the current selected pad for instance with: gROOT->SetSelectedPad(gPad). More...

virtual void Dump () const
 Dump contents of object on stdout. More...

virtual void Error (const char *method, const char *msgfmt,...) const
 Issue error message. More...

virtual void Execute (const char *method, const char *params, Int_t *error=0)
 Execute method on this object with the given parameter string, e.g. More...

virtual void Execute (TMethod *method, TObjArray *params, Int_t *error=0)
 Execute method on this object with parameters stored in the TObjArray. More...

virtual void ExecuteEvent (Int_t event, Int_t px, Int_t py)
 Execute action corresponding to an event at (px,py). More...

virtual void Fatal (const char *method, const char *msgfmt,...) const
 Issue fatal error message. More...

virtual TObjectFindObject (const char *name) const
 Must be redefined in derived classes. More...

virtual TObjectFindObject (const TObject *obj) const
 Must be redefined in derived classes. More...

virtual Option_tGetDrawOption () const
 Get option used by the graphics system to draw this object. More...

virtual const char * GetIconName () const
 Returns mime type name of object. More...

virtual const char * GetName () const
 Returns name of object. More...

virtual char * GetObjectInfo (Int_t px, Int_t py) const
 Returns string containing info about the object at position (px,py). More...

virtual Option_tGetOption () const

virtual const char * GetTitle () const
 Returns title of object. More...

virtual UInt_t GetUniqueID () const
 Return the unique object id. More...

virtual Bool_t HandleTimer (TTimer *timer)
 Execute action in response of a timer timing out. More...

virtual ULong_t Hash () const
 Return hash value for this object. More...

Bool_t HasInconsistentHash () const
 Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e. More...

virtual void Info (const char *method, const char *msgfmt,...) const
 Issue info message. More...

virtual Bool_t InheritsFrom (const char *classname) const
 Returns kTRUE if object inherits from class "classname". More...

virtual Bool_t InheritsFrom (const TClass *cl) const
 Returns kTRUE if object inherits from TClass cl. More...

virtual void Inspect () const
 Dump contents of this object in a graphics canvas. More...

void InvertBit (UInt_t f)

virtual Bool_t IsEqual (const TObject *obj) const
 Default equal comparison (objects are equal if they have the same address in memory). More...

virtual Bool_t IsFolder () const
 Returns kTRUE in case object contains browsable objects (like containers or lists of other objects). More...

R__ALWAYS_INLINE Bool_t IsOnHeap () const

virtual Bool_t IsSortable () const

R__ALWAYS_INLINE Bool_t IsZombie () const

virtual void ls (Option_t *option="") const
 The ls function lists the contents of a class on stdout. More...

void MayNotUse (const char *method) const
 Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary). More...

virtual Bool_t Notify ()
 This method must be overridden to handle object notification. More...

void Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
 Use this method to declare a method obsolete. More...

void operator delete (void *ptr)
 Operator delete. More...

void operator delete[] (void *ptr)
 Operator delete []. More...

voidoperator new (size_t sz)

voidoperator new (size_t sz, void *vp)

voidoperator new[] (size_t sz)

voidoperator new[] (size_t sz, void *vp)

TObjectoperator= (const TObject &rhs)
 TObject assignment operator. More...

virtual void Paint (Option_t *option="")
 This method must be overridden if a class wants to paint itself. More...

virtual void Pop ()
 Pop on object drawn in a pad to the top of the display list. More...

virtual void Print (Option_t *option="") const
 This method must be overridden when a class wants to print itself. More...

virtual Int_t Read (const char *name)
 Read contents of object with specified name from the current directory. More...

virtual void RecursiveRemove (TObject *obj)
 Recursively remove this object from a list. More...

void ResetBit (UInt_t f)

virtual void SaveAs (const char *filename="", Option_t *option="") const
 Save this object in the file specified by filename. More...

virtual void SavePrimitive (std::ostream &out, Option_t *option="")
 Save a primitive as a C++ statement(s) on output stream "out". More...

void SetBit (UInt_t f)

void SetBit (UInt_t f, Bool_t set)
 Set or unset the user status bits as specified in f. More...

virtual void SetDrawOption (Option_t *option="")
 Set drawing option for object. More...

virtual void SetUniqueID (UInt_t uid)
 Set the unique object id. More...

virtual void SysError (const char *method, const char *msgfmt,...) const
 Issue system error message. More...

R__ALWAYS_INLINE Bool_t TestBit (UInt_t f) const

Int_t TestBits (UInt_t f) const

virtual void UseCurrentStyle ()
 Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked. More...

virtual void Warning (const char *method, const char *msgfmt,...) const
 Issue warning message. More...

virtual Int_t Write (const char *name=0, Int_t option=0, Int_t bufsize=0)
 Write this object to the current directory. More...

virtual Int_t Write (const char *name=0, Int_t option=0, Int_t bufsize=0) const
 Write this object to the current directory. More...


Static Public Member Functions

static TGeoShapeMakeScaledShape (const char *name, TGeoShape *shape, TGeoScale *scale)
 Create a scaled shape starting from a non-scaled one. More...

- Static Public Member Functions inherited from TGeoBBox
static Bool_t AreOverlapping (const TGeoBBox *box1, const TGeoMatrix *mat1, const TGeoBBox *box2, const TGeoMatrix *mat2)
 Check if 2 positioned boxes overlap. More...

static Bool_t Contains (const Double_t *point, Double_t dx, Double_t dy, Double_t dz, const Double_t *origin)
 Static method to check if point[3] is located inside a box of having dx, dy, dz as half-lengths. More...

static Double_t DistFromInside (const Double_t *point, const Double_t *dir, Double_t dx, Double_t dy, Double_t dz, const Double_t *origin, Double_t stepmax=TGeoShape::Big())
 Compute distance from inside point to surface of the box. More...

static Double_t DistFromOutside (const Double_t *point, const Double_t *dir, Double_t dx, Double_t dy, Double_t dz, const Double_t *origin, Double_t stepmax=TGeoShape::Big())
 Compute distance from outside point to surface of the box. More...

- Static Public Member Functions inherited from TGeoShape
static Double_t Big ()

static Double_t ComputeEpsMch ()
 Compute machine round-off double precision error as the smallest number that if added to 1.0 is different than 1.0. More...

static Double_t DistToPhiMin (const Double_t *point, const Double_t *dir, Double_t s1, Double_t c1, Double_t s2, Double_t c2, Double_t sm, Double_t cm, Bool_t in=kTRUE)
 compute distance from point (inside phi) to both phi planes. Return minimum. More...

static Double_t EpsMch ()
 static function returning the machine round-off error More...

static TGeoMatrixGetTransform ()
 Returns current transformation matrix that applies to shape. More...

static Bool_t IsCloseToPhi (Double_t epsil, const Double_t *point, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
 True if point is closer than epsil to one of the phi planes defined by c1,s1 or c2,s2. More...

static Bool_t IsCrossingSemiplane (const Double_t *point, const Double_t *dir, Double_t cphi, Double_t sphi, Double_t &snext, Double_t &rxy)
 Compute distance from POINT to semiplane defined by PHI angle along DIR. More...

static Bool_t IsInPhiRange (const Double_t *point, Double_t phi1, Double_t phi2)
 Static method to check if a point is in the phi range (phi1, phi2) [degrees]. More...

static Bool_t IsSameWithinTolerance (Double_t a, Double_t b)
 Check if two numbers differ with less than a tolerance. More...

static Bool_t IsSegCrossing (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Double_t x3, Double_t y3, Double_t x4, Double_t y4)
 Check if segments (A,B) and (C,D) are crossing, where: A(x1,y1), B(x2,y2), C(x3,y3), D(x4,y4) More...

static void NormalPhi (const Double_t *point, const Double_t *dir, Double_t *norm, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
 Static method to compute normal to phi planes. More...

static Double_t SafetyPhi (const Double_t *point, Bool_t in, Double_t phi1, Double_t phi2)
 Static method to compute safety w.r.t a phi corner defined by cosines/sines of the angles phi1, phi2. More...

static Double_t SafetySeg (Double_t r, Double_t z, Double_t r1, Double_t z1, Double_t r2, Double_t z2, Bool_t outer)
 Compute distance from point of coordinates (r,z) to segment (r1,z1):(r2,z2) More...

static void SetTransform (TGeoMatrix *matrix)
 Set current transformation matrix that applies to shape. More...

static Double_t Tolerance ()

- Static Public Member Functions inherited from TObject
static Long_t GetDtorOnly ()
 Return destructor only flag. More...

static Bool_t GetObjectStat ()
 Get status of object stat flag. More...

static void SetDtorOnly (void *obj)
 Set destructor only flag. More...

static void SetObjectStat (Bool_t stat)
 Turn on/off tracking of objects in the TObjectTable. More...


Protected Attributes

TGeoScalefScale

TGeoShapefShape

- Protected Attributes inherited from TGeoBBox
Double_t fDX

Double_t fDY

Double_t fDZ

Double_t fOrigin [3]

- Protected Attributes inherited from TGeoShape
UInt_t fShapeBits

Int_t fShapeId

- Protected Attributes inherited from TNamed
TString fName

TString fTitle


Additional Inherited Members

- Public Types inherited from TGeoShape
enum  EShapeType {
  kBitMask32 = 0xffffffff , kGeoNoShape = 0 , kGeoBad = BIT(0) , kGeoRSeg = BIT(1) ,
  kGeoPhiSeg = BIT(2) , kGeoThetaSeg = BIT(3) , kGeoVisX = BIT(4) , kGeoVisY = BIT(5) ,
  kGeoVisZ = BIT(6) , kGeoRunTimeShape = BIT(7) , kGeoInvalidShape = BIT(8) , kGeoTorus = BIT(9) ,
  kGeoBox = BIT(10) , kGeoPara = BIT(11) , kGeoSph = BIT(12) , kGeoTube = BIT(13) ,
  kGeoTubeSeg = BIT(14) , kGeoCone = BIT(15) , kGeoConeSeg = BIT(16) , kGeoPcon = BIT(17) ,
  kGeoPgon = BIT(18) , kGeoArb8 = BIT(19) , kGeoEltu = BIT(20) , kGeoTrap = BIT(21) ,
  kGeoCtub = BIT(22) , kGeoTrd1 = BIT(23) , kGeoTrd2 = BIT(24) , kGeoComb = BIT(25) ,
  kGeoClosedShape = BIT(26) , kGeoXtru = BIT(27) , kGeoParaboloid = BIT(28) , kGeoHalfSpace = BIT(29) ,
  kGeoHype = BIT(30) , kGeoSavePrimitive = BIT(20)
}

- Public Types inherited from TObject
enum  {
  kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 ,
  kBitMask = 0x00ffffff
}

enum  { kSingleKey = BIT(0) , kOverwrite = BIT(1) , kWriteDelete = BIT(2) }

enum  EDeprecatedStatusBits { kObjInCanvas = BIT(3) }

enum  EStatusBits {
  kCanDelete = BIT(0) , kMustCleanup = BIT(3) , kIsReferenced = BIT(4) , kHasUUID = BIT(5) ,
  kCannotPick = BIT(6) , kNoContextMenu = BIT(8) , kInvalidObject = BIT(13)
}

- Protected Types inherited from TObject
enum  { kOnlyPrepStep = BIT(3) }

- Protected Member Functions inherited from TGeoBBox
virtual void FillBuffer3D (TBuffer3D &buffer, Int_t reqSections, Bool_t localFrame) const
 Fills the supplied buffer, with sections in desired frame See TBuffer3D.h for explanation of sections, frame etc. More...

- Protected Member Functions inherited from TGeoShape
virtual void FillBuffer3D (TBuffer3D &buffer, Int_t reqSections, Bool_t localFrame) const
 Fill the supplied buffer, with sections in desired frame See TBuffer3D.h for explanation of sections, frame etc. More...

Int_t GetBasicColor () const
 Get the basic color (0-7). More...

void SetOnBoundary (Bool_t)

void TransformPoints (Double_t *points, UInt_t NbPoints) const
 Tranform a set of points (LocalToMaster) More...

- Protected Member Functions inherited from TObject
virtual void DoError (int level, const char *location, const char *fmt, va_list va) const
 Interface to ErrorHandler (protected). More...

void MakeZombie ()


#include <TGeoScaledShape.h>

Inheritance diagram for TGeoScaledShape:
[legend]

Constructor & Destructor Documentation

◆ TGeoScaledShape() [1/3]

TGeoScaledShape::TGeoScaledShape ( )

Default constructor.

Definition at line 36 of file TGeoScaledShape.cxx.

◆ TGeoScaledShape() [2/3]

TGeoScaledShape::TGeoScaledShape ( const char *  name,
TGeoShape shape,
TGeoScale scale
)

Constructor.

Definition at line 46 of file TGeoScaledShape.cxx.

◆ TGeoScaledShape() [3/3]

TGeoScaledShape::TGeoScaledShape ( TGeoShape shape,
TGeoScale scale
)

Constructor.

Definition at line 59 of file TGeoScaledShape.cxx.

◆ ~TGeoScaledShape()

TGeoScaledShape::~TGeoScaledShape ( )
virtual

destructor

Definition at line 70 of file TGeoScaledShape.cxx.

Member Function Documentation

◆ Capacity()

Double_t TGeoScaledShape::Capacity ( ) const
virtual

Computes capacity of this shape [length^3].

Reimplemented from TGeoBBox.

Definition at line 77 of file TGeoScaledShape.cxx.

◆ ComputeBBox()

void TGeoScaledShape::ComputeBBox ( )
virtual

Compute bounding box of the scaled shape.

Reimplemented from TGeoBBox.

Definition at line 88 of file TGeoScaledShape.cxx.

◆ ComputeNormal()

void TGeoScaledShape::ComputeNormal ( const Double_t point,
const Double_t dir,
Double_t norm
)
virtual

Compute normal to closest surface from POINT.

Reimplemented from TGeoBBox.

Definition at line 112 of file TGeoScaledShape.cxx.

◆ ComputeNormal_v()

void TGeoScaledShape::ComputeNormal_v ( const Double_t points,
const Double_t dirs,
Double_t norms,
Int_t  vecsize
)
virtual

Compute the normal for an array o points so that norm.dot.dir is positive Input: Arrays of point coordinates and directions + vector size Output: Array of normal directions.

Reimplemented from TGeoBBox.

Definition at line 390 of file TGeoScaledShape.cxx.

◆ Contains()

Bool_t TGeoScaledShape::Contains ( const Double_t point) const
virtual

Test if point is inside the scaled shape.

Reimplemented from TGeoBBox.

Definition at line 127 of file TGeoScaledShape.cxx.

◆ Contains_v()

void TGeoScaledShape::Contains_v ( const Double_t points,
Bool_t inside,
Int_t  vecsize
) const
virtual

Check the inside status for each of the points in the array.

Input: Array of point coordinates + vector size Output: Array of Booleans for the inside of each point

Reimplemented from TGeoBBox.

Definition at line 380 of file TGeoScaledShape.cxx.

◆ DistancetoPrimitive()

Int_t TGeoScaledShape::DistancetoPrimitive ( Int_t  px,
Int_t  py
)
virtual

compute closest distance from point px,py to each vertex. Should not be called.

Reimplemented from TGeoBBox.

Definition at line 137 of file TGeoScaledShape.cxx.

◆ DistFromInside()

Double_t TGeoScaledShape::DistFromInside ( const Double_t point,
const Double_t dir,
Int_t  iact = 1,
Double_t  step = TGeoShape::Big(),
Double_t safe = 0
) const
virtual

Compute distance from inside point to surface of the scaled shape.

Reimplemented from TGeoBBox.

Definition at line 146 of file TGeoScaledShape.cxx.

◆ DistFromInside_v()

void TGeoScaledShape::DistFromInside_v ( const Double_t points,
const Double_t dirs,
Double_t dists,
Int_t  vecsize,
Double_t step
) const
virtual

Compute distance from array of input points having directions specified by dirs. Store output in dists.

Reimplemented from TGeoBBox.

Definition at line 398 of file TGeoScaledShape.cxx.

◆ DistFromOutside()

Double_t TGeoScaledShape::DistFromOutside ( const Double_t point,
const Double_t dir,
Int_t  iact = 1,
Double_t  step = TGeoShape::Big(),
Double_t safe = 0
) const
virtual

Compute distance from outside point to surface of the scaled shape.

Reimplemented from TGeoBBox.

Definition at line 164 of file TGeoScaledShape.cxx.

◆ DistFromOutside_v()

void TGeoScaledShape::DistFromOutside_v ( const Double_t points,
const Double_t dirs,
Double_t dists,
Int_t  vecsize,
Double_t step
) const
virtual

Compute distance from array of input points having directions specified by dirs. Store output in dists.

Reimplemented from TGeoBBox.

Definition at line 406 of file TGeoScaledShape.cxx.

◆ Divide()

TGeoVolume * TGeoScaledShape::Divide ( TGeoVolume voldiv,
const char *  divname,
Int_t  iaxis,
Int_t  ndiv,
Double_t  start,
Double_t  step
)
virtual

Cannot divide assemblies.

Reimplemented from TGeoBBox.

Definition at line 186 of file TGeoScaledShape.cxx.

◆ GetBuffer3D()

const TBuffer3D & TGeoScaledShape::GetBuffer3D ( Int_t  reqSections,
Bool_t  localFrame
) const
virtual

Fills a static 3D buffer and returns a reference.

Reimplemented from TGeoBBox.

Definition at line 196 of file TGeoScaledShape.cxx.

◆ GetMakeRuntimeShape()

TGeoShape * TGeoScaledShape::GetMakeRuntimeShape ( TGeoShape mother,
TGeoMatrix mat
) const
virtual

in case shape has some negative parameters, these has to be computed in order to fit the mother

Reimplemented from TGeoBBox.

Definition at line 220 of file TGeoScaledShape.cxx.

◆ GetMeshNumbers()

void TGeoScaledShape::GetMeshNumbers ( Int_t nvert,
Int_t nsegs,
Int_t npols
) const
virtual

Returns numbers of vertices, segments and polygons composing the shape mesh.

Reimplemented from TGeoBBox.

Definition at line 229 of file TGeoScaledShape.cxx.

◆ GetNmeshVertices()

virtual Int_t TGeoScaledShape::GetNmeshVertices ( ) const
inlinevirtual

Reimplemented from TGeoBBox.

Definition at line 53 of file TGeoScaledShape.h.

◆ GetScale()

TGeoScale * TGeoScaledShape::GetScale ( ) const
inline

Definition at line 55 of file TGeoScaledShape.h.

◆ GetShape()

TGeoShape * TGeoScaledShape::GetShape ( ) const
inline

Definition at line 54 of file TGeoScaledShape.h.

◆ InspectShape()

void TGeoScaledShape::InspectShape ( ) const
virtual

print shape parameters

Reimplemented from TGeoBBox.

Definition at line 237 of file TGeoScaledShape.cxx.

◆ IsAssembly()

Bool_t TGeoScaledShape::IsAssembly ( ) const
virtual

Returns true if the scaled shape is an assembly.

Reimplemented from TGeoShape.

Definition at line 248 of file TGeoScaledShape.cxx.

◆ IsCylType()

virtual Bool_t TGeoScaledShape::IsCylType ( ) const
inlinevirtual

Reimplemented from TGeoBBox.

Definition at line 58 of file TGeoScaledShape.h.

◆ IsReflected()

Bool_t TGeoScaledShape::IsReflected ( ) const
virtual

Check if the scale transformation is a reflection.

Reimplemented from TGeoShape.

Definition at line 256 of file TGeoScaledShape.cxx.

◆ MakeBuffer3D()

TBuffer3D * TGeoScaledShape::MakeBuffer3D ( ) const
virtual

Creates a TBuffer3D describing this shape.

Coordinates are in local reference frame.

Reimplemented from TGeoBBox.

Definition at line 265 of file TGeoScaledShape.cxx.

◆ MakeScaledShape()

TGeoShape * TGeoScaledShape::MakeScaledShape ( const char *  name,
TGeoShape shape,
TGeoScale scale
)
static

Create a scaled shape starting from a non-scaled one.

Definition at line 275 of file TGeoScaledShape.cxx.

◆ Safety()

Double_t TGeoScaledShape::Safety ( const Double_t point,
Bool_t  in = kTRUE
) const
virtual

computes the closest distance from given point to this shape, according to option.

The matching point on the shape is stored in spoint.

Reimplemented from TGeoBBox.

Definition at line 309 of file TGeoScaledShape.cxx.

◆ Safety_v()

void TGeoScaledShape::Safety_v ( const Double_t points,
const Bool_t inside,
Double_t safe,
Int_t  vecsize
) const
virtual

Compute safe distance from each of the points in the input array.

Input: Array of point coordinates, array of statuses for these points, size of the arrays Output: Safety values

Reimplemented from TGeoBBox.

Definition at line 416 of file TGeoScaledShape.cxx.

◆ SavePrimitive()

void TGeoScaledShape::SavePrimitive ( std::ostream &  out,
Option_t option = ""
)
virtual

Save a primitive as a C++ statement(s) on output stream "out".

Reimplemented from TGeoBBox.

Definition at line 321 of file TGeoScaledShape.cxx.

◆ SetPoints() [1/2]

void TGeoScaledShape::SetPoints ( Double_t points) const
virtual

Mesh points for scaled shapes.

Reimplemented from TGeoBBox.

Definition at line 342 of file TGeoScaledShape.cxx.

◆ SetPoints() [2/2]

void TGeoScaledShape::SetPoints ( Float_t points) const
virtual

Mesh points for scaled shapes.

Reimplemented from TGeoBBox.

Definition at line 356 of file TGeoScaledShape.cxx.

◆ SetScale()

void TGeoScaledShape::SetScale ( TGeoScale scale)
inline

Definition at line 65 of file TGeoScaledShape.h.

◆ SetSegsAndPols()

void TGeoScaledShape::SetSegsAndPols ( TBuffer3D buffer) const
virtual

Fill TBuffer3D structure for segments and polygons.

Reimplemented from TGeoBBox.

Definition at line 300 of file TGeoScaledShape.cxx.

Member Data Documentation

◆ fScale

TGeoScale* TGeoScaledShape::fScale
protected

Definition at line 25 of file TGeoScaledShape.h.

◆ fShape

TGeoShape* TGeoScaledShape::fShape
protected

Definition at line 24 of file TGeoScaledShape.h.

Libraries for TGeoScaledShape:
[legend]

The documentation for this class was generated from the following files:
