graph2dfit.C File Reference

Detailed Description

View in nbviewer Open in SWAN Fitting a TGraph2D

Minimizer is Minuit / Migrad
Chi2 = 4.25425e+06
NDf = 398
Edm = 1.32198e-12
NCalls = 55
p0 = 0.574556 +/- 0.109982
p1 = 1.72367 +/- 0.329947
(TCanvas *) 0x5644a486d290
#include <TMath.h>
#include <TGraph2D.h>
#include <TRandom.h>
#include <TStyle.h>
#include <TCanvas.h>
#include <TF2.h>
#include <TH1.h>
TCanvas* graph2dfit()
TCanvas *c = new TCanvas("c","Graph2D example",0,0,600,800);
Double_t rnd, x, y, z;
Double_t e = 0.3;
Int_t nd = 400;
Int_t np = 10000;
Double_t fl = 6;
TF2 *f2 = new TF2("f2","1000*(([0]*sin(x)/x)*([1]*sin(y)/y))+200",
TGraph2D *dt = new TGraph2D();
// Fill the 2D graph
Double_t zmax = 0;
for (Int_t N=0; N<nd; N++) {
// Generate a random number in [-e,e]
rnd = 2*r.Rndm()*e-e;
z = f2->Eval(x,y)*(1+rnd);
if (z>zmax) zmax = z;
Double_t hr = 350;
TH1D *h1 = new TH1D("h1",
"#splitline{Difference between Original}{#splitline{function and Function}{with noise}}",
100, -hr, hr);
TH1D *h2 = new TH1D("h2",
"#splitline{Difference between Original}{#splitline{function and Delaunay triangles}{interpolation}}",
100, -hr, hr);
TH1D *h3 = new TH1D("h3",
"#splitline{Difference between Original}{function and Minuit fit}",
500, -hr, hr);
TF2 *fit2 = (TF2*)dt->FindObject("f2");
for (Int_t N=0; N<np; N++) {
// Generate a random number in [-e,e]
rnd = 2*r.Rndm()*e-e;
z = f2->Eval(x,y)*(1+rnd);
z = dt->Interpolate(x,y);
z = fit2->Eval(x,y);

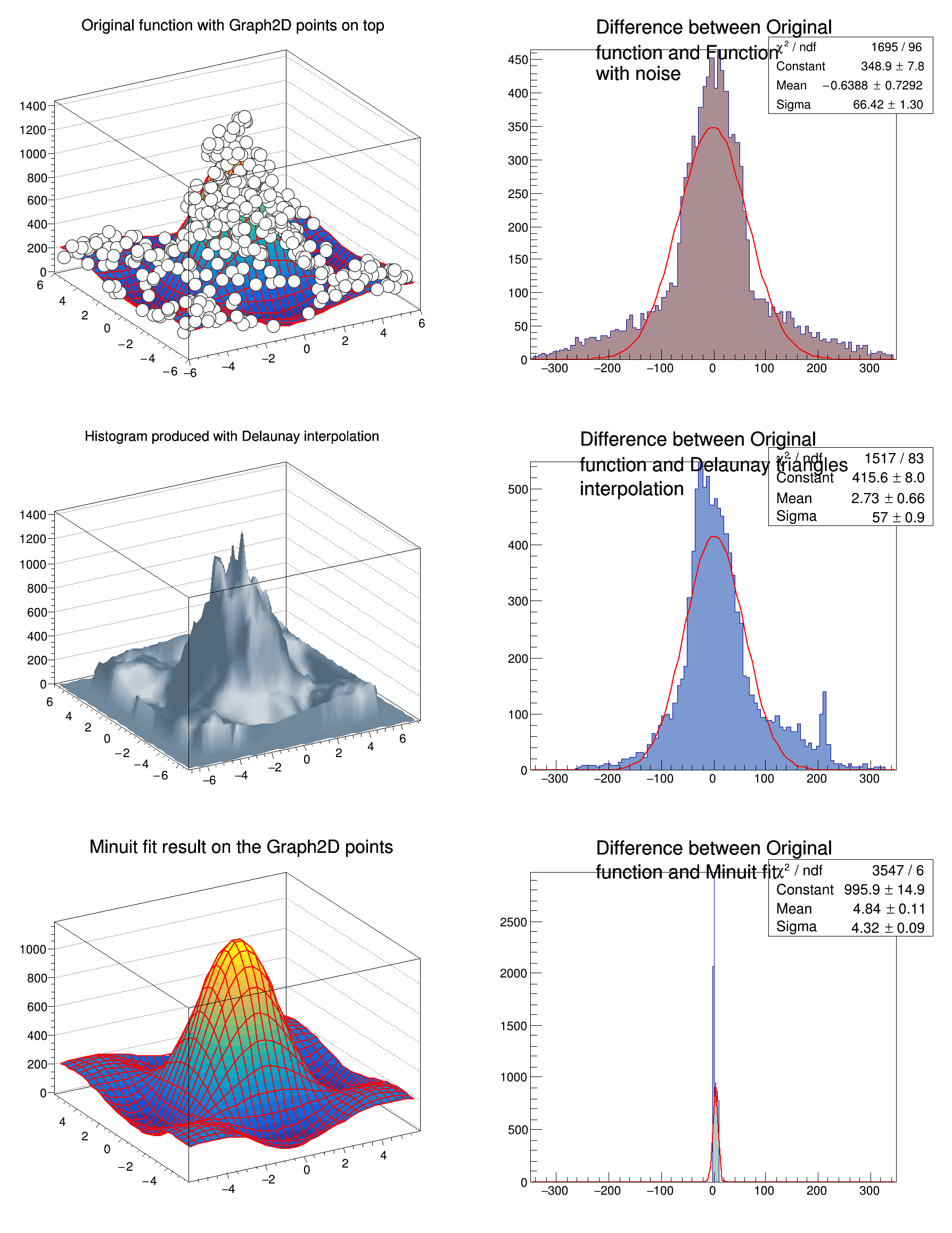

f2->SetTitle("Original function with Graph2D points on top");
dt->Draw("same p0");
dt->SetTitle("Histogram produced with Delaunay interpolation");
fit2->SetTitle("Minuit fit result on the Graph2D points");
c->cd(2); h1->Fit("gaus","Q") ; h1->Draw();
c->cd(4); h2->Fit("gaus","Q") ; h2->Draw();
c->cd(6); h3->Fit("gaus","Q") ; h3->Draw();
return c;
ROOT::R::TRInterface & r
Definition: Object.C:4
#define c(i)
Definition: RSha256.hxx:101
#define e(i)
Definition: RSha256.hxx:103
int Int_t
Definition: RtypesCore.h:45
double Double_t
Definition: RtypesCore.h:59
#define N
R__EXTERN TStyle * gStyle
Definition: TStyle.h:412
virtual void SetFillColor(Color_t fcolor)
Set the fill area color.
Definition: TAttFill.h:37
The Canvas class.
Definition: TCanvas.h:23
virtual void SetMaximum(Double_t maximum=-1111)
Set the maximum value along Y for this function In case the function is already drawn,...
Definition: TF1.cxx:3407
virtual void SetTitle(const char *title="")
Set function title if title has the form "fffffff;xxxx;yyyy", it is assumed that the function title i...
Definition: TF1.cxx:3562
virtual void SetParameters(const Double_t *params)
Definition: TF1.h:644
virtual Double_t Eval(Double_t x, Double_t y=0, Double_t z=0, Double_t t=0) const
Evaluate this function.
Definition: TF1.cxx:1434
A 2-Dim function with parameters.
Definition: TF2.h:29
virtual void GetRandom2(Double_t &xrandom, Double_t &yrandom, TRandom *rng=nullptr)
Return 2 random numbers following this function shape.
Definition: TF2.cxx:529
virtual void Draw(Option_t *option="")
Draw this function with its current attributes.
Definition: TF2.cxx:241
Graphics object made of three arrays X, Y and Z with the same number of points each.
Definition: TGraph2D.h:41
Double_t Interpolate(Double_t x, Double_t y)
Finds the z value at the position (x,y) thanks to the Delaunay interpolation.
Definition: TGraph2D.cxx:1302
virtual TFitResultPtr Fit(const char *formula, Option_t *option="", Option_t *goption="")
Fits this graph with function with name fname Predefined functions such as gaus, expo and poln are au...
Definition: TGraph2D.cxx:765
virtual TObject * FindObject(const char *name) const
search object named name in the list of functions
Definition: TGraph2D.cxx:741
void SetMargin(Double_t m=0.1)
Sets the extra space (in %) around interpolated area for the 2D histogram.
Definition: TGraph2D.cxx:1623
virtual void SetTitle(const char *title="")
Sets the 2D graph title.
Definition: TGraph2D.cxx:1800
virtual void SetPoint(Int_t point, Double_t x, Double_t y, Double_t z)
Sets point number n.
Definition: TGraph2D.cxx:1753
virtual void Draw(Option_t *option="P0")
Specific drawing options can be used to paint a TGraph2D:
Definition: TGraph2D.cxx:712
1-D histogram with a double per channel (see TH1 documentation)}
Definition: TH1.h:618
virtual TFitResultPtr Fit(const char *formula, Option_t *option="", Option_t *goption="", Double_t xmin=0, Double_t xmax=0)
Fit histogram with function fname.
Definition: TH1.cxx:3892
virtual Int_t Fill(Double_t x)
Increment bin with abscissa X by 1.
Definition: TH1.cxx:3350
virtual void Draw(Option_t *option="")
Draw this histogram with options.
Definition: TH1.cxx:3073
This is the base class for the ROOT Random number generators.
Definition: TRandom.h:27
void SetOptStat(Int_t stat=1)
The type of information printed in the histogram statistics box can be selected via the parameter mod...
Definition: TStyle.cxx:1589
void SetHistTopMargin(Double_t hmax=0.05)
Definition: TStyle.h:368
void SetOptFit(Int_t fit=1)
The type of information about fit parameters printed in the histogram statistics box can be selected ...
Definition: TStyle.cxx:1541
Double_t y[n]
Definition: legend1.C:17
Double_t x[n]
Definition: legend1.C:17
TH1F * h1
Definition: legend1.C:5
Olivier Couet

Definition in file graph2dfit.C.
