xyplot.C File Reference

Detailed Description

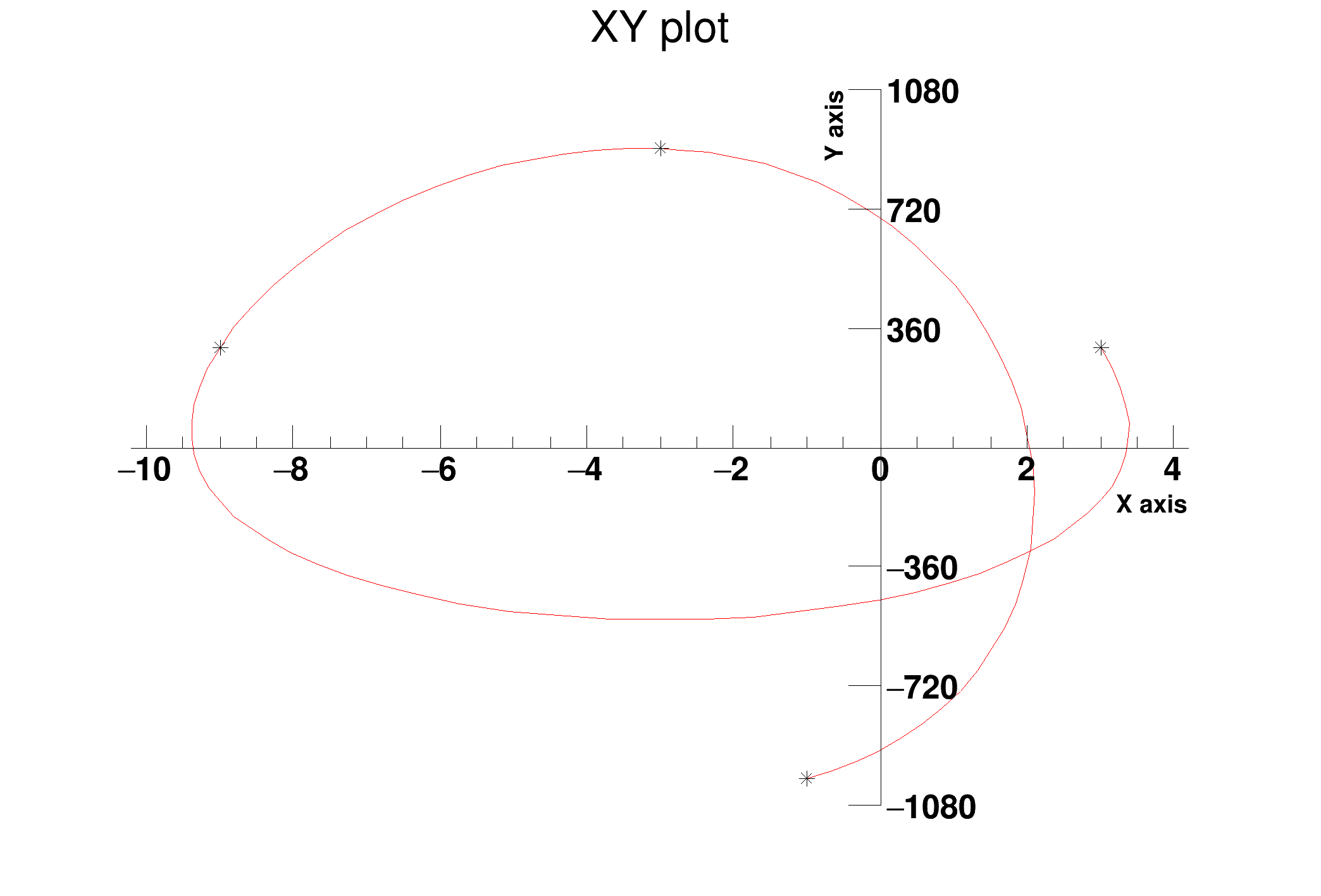

View in nbviewer Open in SWAN Example showing how to produce a plot with an orthogonal axis system centered at (0,0).

void xyplot()
TCanvas *c = new TCanvas("c","XY plot",200,10,700,500);
// Remove the frame
// Define and draw a curve the frame
const Int_t n = 4;
Double_t x[n] = {-1, -3, -9, 3};
Double_t y[n] = {-1000, 900, 300, 300};
TGraph* gr = new TGraph(n,x,y);
gr->SetTitle("XY plot");
// Remove the frame's axis
// Draw orthogonal axis system centered at (0,0).
// Draw the Y axis. Note the 4th label is erased with SetLabelAttributes
TGaxis *yaxis = new TGaxis(0, gPad->GetUymin(),
0, gPad->GetUymax(),
// Draw the Y-axis title.
TLatex *ytitle = new TLatex(-0.5,gPad->GetUymax(),"Y axis");
// Draw the X axis
TGaxis *xaxis = new TGaxis(gPad->GetUxmin(), 0,
gPad->GetUxmax(), 0,
// Draw the X axis title.
TLatex *xtitle = new TLatex(gPad->GetUxmax(),-200.,"X axis");
#define c(i)
Definition: RSha256.hxx:101
int Int_t
Definition: RtypesCore.h:45
double Double_t
Definition: RtypesCore.h:59
@ kRed
Definition: Rtypes.h:66
@ kWhite
Definition: Rtypes.h:65
#define gPad
Definition: TVirtualPad.h:287
virtual void SetAxisColor(Color_t color=1, Float_t alpha=1.)
Set color of the line axis and tick marks.
Definition: TAttAxis.cxx:162
virtual void SetLabelSize(Float_t size=0.04)
Set size of axis labels.
Definition: TAttAxis.cxx:203
virtual void SetTickLength(Float_t length=0.03)
Set tick mark length.
Definition: TAttAxis.cxx:279
virtual void SetLineColor(Color_t lcolor)
Set the line color.
Definition: TAttLine.h:40
virtual void SetTextAlign(Short_t align=11)
Set the text alignment.
Definition: TAttText.h:41
virtual void SetTextAngle(Float_t tangle=0)
Set the text angle.
Definition: TAttText.h:42
virtual void SetTextSize(Float_t tsize=1)
Set the text size.
Definition: TAttText.h:46
The Canvas class.
Definition: TCanvas.h:23
The axis painter class.
Definition: TGaxis.h:23
void ChangeLabel(Int_t labNum=0, Double_t labAngle=-1., Double_t labSize=-1., Int_t labAlign=-1, Int_t labColor=-1, Int_t labFont=-1, TString labText="")
Define new text attributes for the label number "labNum".
Definition: TGaxis.cxx:2572
A TGraph is an object made of two arrays X and Y with npoints each.
Definition: TGraph.h:41
virtual void SetMaximum(Double_t maximum=-1111)
Set the maximum of the graph.
Definition: TGraph.cxx:2266
virtual void SetTitle(const char *title="")
Change (i.e.
Definition: TGraph.cxx:2339
virtual void Draw(Option_t *chopt="")
Draw this graph with its current attributes.
Definition: TGraph.cxx:769
TH1F * GetHistogram() const
Returns a pointer to the histogram used to draw the axis Takes into account the two following cases.
Definition: TGraph.cxx:1491
virtual void SetMinimum(Double_t minimum=-1111)
Set the minimum of the graph.
Definition: TGraph.cxx:2275
TAxis * GetXaxis()
Get the behaviour adopted by the object about the statoverflows. See EStatOverflows for more informat...
Definition: TH1.h:320
TAxis * GetYaxis()
Definition: TH1.h:321
To draw Mathematical Formula.
Definition: TLatex.h:18
virtual void Draw(Option_t *option="")
Default Draw method for all objects.
Definition: TObject.cxx:197
Double_t y[n]
Definition: legend1.C:17
Double_t x[n]
Definition: legend1.C:17
const Int_t n
Definition: legend1.C:16
TGraphErrors * gr
Definition: legend1.C:25
Olivier Couet

Definition in file xyplot.C.
