ntpl008_import.C File Reference

Detailed Description

Example of converting data stored in a TTree into an RNTuple


// NOTE: The RNTuple classes are experimental at this point.
// Functionality, interface, and data format is still subject to changes.
// Do not use for real data!

// Until C++ runtime modules are universally used, we explicitly load the ntuple library.  Otherwise
// triggering autoloading from the use of templated types would require an exhaustive enumeration
// of "all" template instances in the LinkDef file.
R__LOAD_LIBRARY(ROOTNTupleUtil)

#include <ROOT/RNTuple.hxx>
#include <ROOT/RNTupleDS.hxx>
#include <ROOT/RNTupleImporter.hxx>

#include <TFile.h>
#include <TROOT.h>

// Import classes from experimental namespace for the time being.
using RNTuple = ROOT::Experimental::RNTuple;
using RNTupleImporter = ROOT::Experimental::RNTupleImporter;
using RNTupleReader = ROOT::Experimental::RNTupleReader;

// Input and output.
constexpr char const *kTreeFileName = "http://root.cern.ch/files/HiggsTauTauReduced/GluGluToHToTauTau.root";
constexpr char const *kTreeName = "Events";
constexpr char const *kNTupleFileName = "ntpl008_import.root";

void ntpl008_import()
{
   // RNTupleImporter appends keys to the output file; make sure a second run of the tutorial does not fail
   // with `Key 'Events' already exists in file ntpl008_import.root` by removing the output file.
   gSystem->Unlink(kNTupleFileName);

   // Use multiple threads to compress RNTuple data.
   ROOT::EnableImplicitMT();

   // Create a new RNTupleImporter object.
   auto importer = RNTupleImporter::Create(kTreeFileName, kTreeName, kNTupleFileName);

   // Begin importing.
   importer->Import();

   // Inspect the schema of the written RNTuple.
   auto file = std::unique_ptr<TFile>(TFile::Open(kNTupleFileName));
   if (!file || file->IsZombie()) {
      std::cerr << "cannot open " << kNTupleFileName << std::endl;
      return;
   }
   auto ntpl = file->Get<RNTuple>("Events");
   auto reader = RNTupleReader::Open(ntpl);
   reader->PrintInfo();

   auto df = ROOT::RDF::Experimental::FromRNTuple("Events", kNTupleFileName);

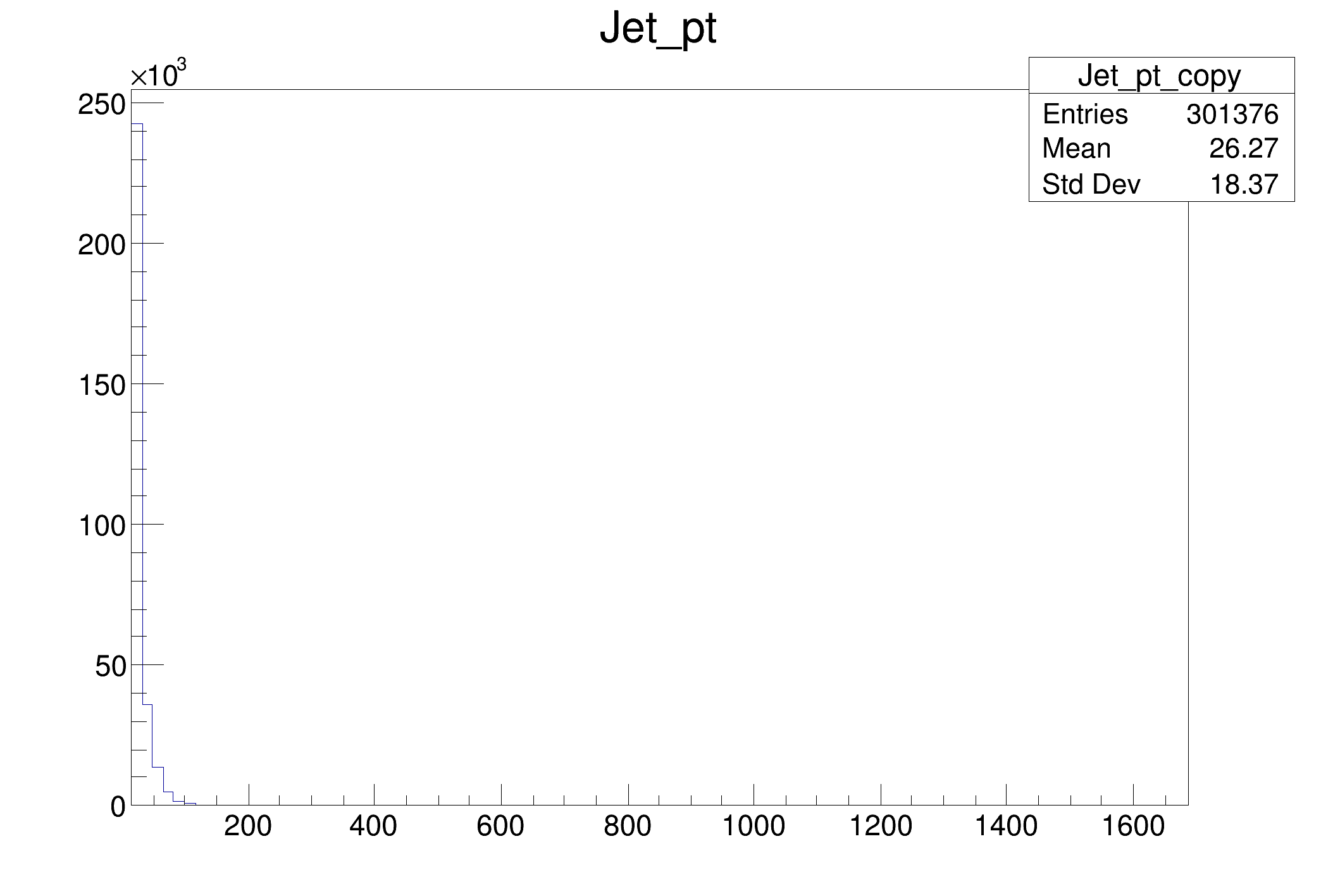

   df.Histo1D({"Jet_pt", "Jet_pt", 100, 0, 0}, "Jet_pt")->DrawCopy();
}

Date

December 2022

Author

The ROOT Team

Definition in file ntpl008_import.C.
