// @(#)root/histpainter:$Name: $:$Id: THistPainter.cxx,v 1.202 2004/12/06 16:44:08 brun Exp $
// Author: Rene Brun 26/08/99
/*************************************************************************
* Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
* All rights reserved. *
* *
* For the licensing terms see $ROOTSYS/LICENSE. *
* For the list of contributors see $ROOTSYS/README/CREDITS. *
*************************************************************************/
#include <stdlib.h>
#include <string.h>
#include <stdio.h>
#include <ctype.h>
#include "Riostream.h"
#include "TROOT.h"
#include "THistPainter.h"
#include "TH2.h"
#include "TF2.h"
#include "TF3.h"
#include "TPad.h"
#include "TPaveStats.h"
#include "TFrame.h"
#include "TLatex.h"
#include "TLine.h"
#include "TPolyLine.h"
#include "TPoints.h"
#include "TStyle.h"
#include "TGraph.h"
#include "TGaxis.h"
#include "TColor.h"
#include "TPainter3dAlgorithms.h"
#include "TGraphPainter.h"
#include "TGraphDelaunay.h"
#include "TView.h"
#include "TMath.h"
#include "TRandom.h"
#include "TObjArray.h"
#include "TVectorD.h"
#include "Hoption.h"
#include "Hparam.h"
#include "TPluginManager.h"
#include "TPaletteAxis.h"
#include "TCrown.h"
#include "TVirtualUtilPad.h"
//______________________________________________________________________________
// The histogram painter class
// ===========================
//
// Histograms are drawn via the THistPainter class. Each histogram has
// a pointer to its own painter (to be usable in a multithreaded program).
// When the canvas has to be redrawn, the Paint function of the objects
// in the pad is called. In case of histograms, TH1::Paint invokes directly
// THistPainter::Paint.
//
// See THistPainter::Paint for the list of drawing options
// and examples.
TH1 *gCurrentHist = 0;
Hoption_t Hoption;
Hparam_t Hparam;
const Int_t kNMAX = 2000;
const Double_t kHMAX = 1.05;
const Int_t kMAXCONTOUR = 104;
const UInt_t kCannotRotate = BIT(11);
ClassImp(THistPainter)
//______________________________________________________________________________
THistPainter::THistPainter()
{
// *-*-*-*-*-*-*-*-*Histogram default constructor*-*-*-*-*-*-*-*-*-*-*-*-*
// =============================
fH = 0;
fXaxis = 0;
fYaxis = 0;
fZaxis = 0;
fFunctions = 0;
fXbuf = 0;
fYbuf = 0;
fNcuts = 0;
fStack = 0;
fLego = 0;
fGraphPainter = 0;
}
//______________________________________________________________________________
THistPainter::~THistPainter()
{
// *-*-*-*-*-*-*-*-*Histogram default destructor*-*-*-*-*-*-*-*-*-*-*-*-*-*
// ============================
}
//______________________________________________________________________________
Int_t THistPainter::DistancetoPrimitive(Int_t px, Int_t py)
{
// *-*-*-*-*-*-*-*-*Compute distance from point px,py to a line*-*-*-*-*-*
// ===========================================
// Compute the closest distance of approach from point px,py to elements
// of an histogram.
// The distance is computed in pixels units.
//
// Algorithm:
// Currently, this simple model computes the distance from the mouse
// to the histogram contour only.
//
// *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
const Int_t big = 9999;
const Int_t kMaxDiff = 7;
Double_t x = gPad->AbsPixeltoX(px);
Double_t x1 = gPad->AbsPixeltoX(px+1);
Int_t puxmin = gPad->XtoAbsPixel(gPad->GetUxmin());
Int_t puymin = gPad->YtoAbsPixel(gPad->GetUymin());
Int_t puxmax = gPad->XtoAbsPixel(gPad->GetUxmax());
Int_t puymax = gPad->YtoAbsPixel(gPad->GetUymax());
Int_t curdist = big;
Int_t yxaxis, dyaxis,xyaxis, dxaxis;
Bool_t dsame;
TString doption = gPad->GetPadPointer()->GetDrawOption();
Double_t factor = 1;
if (fH->GetNormFactor() != 0) {
factor = fH->GetNormFactor()/fH->GetSumOfWeights();
}
// return if point is not in the histogram area
// If a 3-D view exists, check distance to axis
TView *view = gPad->GetView();
Int_t d1,d2,d3;
if (view) {
Double_t ratio;
d3 = view->GetDistancetoAxis(3, px, py, ratio);
if (d3 <= kMaxDiff) {gPad->SetSelected(fZaxis); return 0;}
d1 = view->GetDistancetoAxis(1, px, py, ratio);
if (d1 <= kMaxDiff) {gPad->SetSelected(fXaxis); return 0;}
d2 = view->GetDistancetoAxis(2, px, py, ratio);
if (d2 <= kMaxDiff) {gPad->SetSelected(fYaxis); return 0;}
if ( px > puxmin && px < puxmax && py > puymax && py < puymin) curdist = 1;
goto FUNCTIONS;
}
// check if point is close to an axis
doption.ToLower();
dsame = kFALSE;
if (doption.Contains("same")) dsame = kTRUE;
xyaxis = puxmin - Int_t((puxmax-puxmin)*fYaxis->GetLabelOffset());
dyaxis = Int_t(2*(puymin-puymax)*fYaxis->GetLabelSize());
if (px >= xyaxis-dyaxis && px <= xyaxis && py >puymax && py < puymin) {
if (!dsame) {
if (gPad->IsVertical()) gPad->SetSelected(fYaxis);
else gPad->SetSelected(fXaxis);
return 0;
}
}
yxaxis = puymin + Int_t((puymin-puymax)*fXaxis->GetLabelOffset());
if (yxaxis < puymin) yxaxis = puymin;
dxaxis = Int_t((puymin-puymax)*fXaxis->GetLabelSize());
if (py <= yxaxis+dxaxis && py >= yxaxis && px <puxmax && px > puxmin) {
if (!dsame) {
if (gPad->IsVertical()) gPad->SetSelected(fXaxis);
else gPad->SetSelected(fYaxis);
return 0;
}
}
// if object is 2-D or 3-D return this object
if (fH->GetDimension() == 2) {
Int_t delta2 = 5; //Give a margin of delta2 pixels to be in the 2-d area
if ( px > puxmin + delta2
&& px < puxmax - delta2
&& py > puymax + delta2
&& py < puymin - delta2) {curdist =1; goto FUNCTIONS;}
}
// point is inside histogram area. Find channel number
if (gPad->IsVertical()) {
Int_t bin = fXaxis->FindFixBin(gPad->PadtoX(x));
Int_t binsup = fXaxis->FindFixBin(gPad->PadtoX(x1));
Double_t binval = factor*fH->GetBinContent(bin);
Int_t pybin = gPad->YtoAbsPixel(gPad->YtoPad(binval));
if (binval == 0 && pybin < puymin) pybin = 10000;
// special case if more than one bin for the pixel
if (binsup-bin>1) {
Double_t binvalmin, binvalmax;
binvalmin=binval;
binvalmax=binval;
for (Int_t ibin=bin+1; ibin<binsup; ibin++) {
Double_t binvaltmp = factor*fH->GetBinContent(ibin);
if (binvalmin>binvaltmp) binvalmin=binvaltmp;
if (binvalmax<binvaltmp) binvalmax=binvaltmp;
}
Int_t pybinmin = gPad->YtoAbsPixel(gPad->YtoPad(binvalmax));
Int_t pybinmax = gPad->YtoAbsPixel(gPad->YtoPad(binvalmin));
if (py<pybinmax+kMaxDiff/2 && py>pybinmin-kMaxDiff/2) pybin = py;
}
if (TMath::Abs(py - pybin) <= kMaxDiff) return TMath::Abs(py - pybin);
} else {
Double_t y = gPad->AbsPixeltoY(py);
Double_t y1 = gPad->AbsPixeltoY(py+1);
Int_t bin = fXaxis->FindFixBin(gPad->PadtoY(y));
Int_t binsup = fXaxis->FindFixBin(gPad->PadtoY(y1));
Double_t binval = factor*fH->GetBinContent(bin);
Int_t pxbin = gPad->XtoAbsPixel(gPad->XtoPad(binval));
if (binval == 0 && pxbin > puxmin) pxbin = 10000;
// special case if more than one bin for the pixel
if (binsup-bin>1) {
Double_t binvalmin, binvalmax;
binvalmin=binval;
binvalmax=binval;
for (Int_t ibin=bin+1; ibin<binsup; ibin++) {
Double_t binvaltmp = factor*fH->GetBinContent(ibin);
if (binvalmin>binvaltmp) binvalmin=binvaltmp;
if (binvalmax<binvaltmp) binvalmax=binvaltmp;
}
Int_t pxbinmin = gPad->XtoAbsPixel(gPad->XtoPad(binvalmax));
Int_t pxbinmax = gPad->XtoAbsPixel(gPad->XtoPad(binvalmin));
if (px<pxbinmax+kMaxDiff/2 && px>pxbinmin-kMaxDiff/2) pxbin = px;
}
if (TMath::Abs(px - pxbin) <= kMaxDiff) return TMath::Abs(px - pxbin);
}
// Loop on the list of associated functions and user objects
FUNCTIONS:
TObject *f;
TIter next(fFunctions);
while ((f = (TObject*) next())) {
Int_t dist;
if (f->InheritsFrom(TF1::Class())) dist = f->DistancetoPrimitive(-px,py);
else dist = f->DistancetoPrimitive(px,py);
if (dist < kMaxDiff) {gPad->SetSelected(f); return dist;}
}
return curdist;
}
//______________________________________________________________________________
void THistPainter::DrawPanel()
{
// *-*-*-*-*Display a panel with all histogram drawing options*-*-*-*-*-*
// ==================================================
//
// See class TDrawPanelHist for example
gCurrentHist = fH;
if (!gPad) {
Error("DrawPanel", "need to draw histogram first");
return;
}
//The pad utility manager is required (a plugin)
TVirtualUtilPad *util = (TVirtualUtilPad*)gROOT->GetListOfSpecials()->FindObject("R__TVirtualUtilPad");
if (!util) {
TPluginHandler *h;
if ((h = gROOT->GetPluginManager()->FindHandler("TVirtualUtilPad"))) {
if (h->LoadPlugin() == -1)
return;
h->ExecPlugin(0);
util = (TVirtualUtilPad*)gROOT->GetListOfSpecials()->FindObject("R__TVirtualUtilPad");
}
}
util->DrawPanel(gPad,fH);
}
//______________________________________________________________________________
void THistPainter::ExecuteEvent(Int_t event, Int_t px, Int_t py)
{
// *-*-*-*-*-*-*-*-*Execute action corresponding to one event*-*-*-*
// =========================================
// This member function is called when a histogram is clicked with the locator
//
// If Left button clicked on the bin top value, then the content of this bin
// is modified according to the new position of the mouse when it is released.
//
// *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
static Int_t bin, px1, py1, px2, py2, pyold;
Double_t xlow, xup, ylow, binval, x, baroffset, barwidth, binwidth;
if (!gPad->IsEditable()) return;
// come here if we have a lego/surface in the pad
TView *view = gPad->GetView();
if (view && view->TestBit(kCannotRotate) == 0) {
view->ExecuteRotateView(event, px, py);
return;
}
Double_t factor = 1;
if (fH->GetNormFactor() != 0) {
factor = fH->GetNormFactor()/fH->GetSumOfWeights();
}
switch (event) {
case kButton1Down:
gVirtualX->SetLineColor(-1);
fH->TAttLine::Modify();
// No break !!!
case kMouseMotion:
if (Hoption.Bar) {
baroffset = fH->GetBarOffset();
barwidth = fH->GetBarWidth();
} else {
baroffset = 0;
barwidth = 1;
}
x = gPad->AbsPixeltoX(px);
bin = fXaxis->FindFixBin(gPad->PadtoX(x));
binwidth = fH->GetBinWidth(bin);
xlow = gPad->XtoPad(fH->GetBinLowEdge(bin) + baroffset*binwidth);
xup = gPad->XtoPad(xlow + barwidth*binwidth);
ylow = gPad->GetUymin();
px1 = gPad->XtoAbsPixel(xlow);
px2 = gPad->XtoAbsPixel(xup);
py1 = gPad->YtoAbsPixel(ylow);
py2 = py;
pyold = py;
if (gROOT->GetEditHistograms()) gPad->SetCursor(kArrowVer);
else gPad->SetCursor(kPointer);
break;
case kButton1Motion:
if (gROOT->GetEditHistograms()) {
gVirtualX->DrawBox(px1, py1, px2, py2,TVirtualX::kHollow); // Draw the old box
py2 += py - pyold;
gVirtualX->DrawBox(px1, py1, px2, py2,TVirtualX::kHollow); // Draw the new box
pyold = py;
}
break;
case kButton1Up:
if (gROOT->GetEditHistograms()) {
binval = gPad->PadtoY(gPad->AbsPixeltoY(py2))/factor;
fH->SetBinContent(bin,binval);
PaintInit(); // recalculate Hparam structure and recalculate range
}
// might resize pad pixmap so should be called before any paint routine
RecalculateRange();
gPad->Modified(kTRUE);
gVirtualX->SetLineColor(-1);
break;
case kButton1Locate:
ExecuteEvent(kButton1Down, px, py);
while (1) {
px = py = 0;
event = gVirtualX->RequestLocator(1, 1, px, py);
ExecuteEvent(kButton1Motion, px, py);
if (event != -1) { // button is released
ExecuteEvent(kButton1Up, px, py);
return;
}
}
}
}
//______________________________________________________________________________
void THistPainter::FitPanel()
{
// *-*-*-*-*Display a panel with all histogram fit options*-*-*-*-*-*
// ==============================================
//
// See class TFitPanel for example
gCurrentHist = fH;
if (!gPad) {
Error("FitPanel", "need to draw histogram first");
return;
}
//The pad utility manager is required (a plugin)
TVirtualUtilPad *util = (TVirtualUtilPad*)gROOT->GetListOfSpecials()->FindObject("R__TVirtualUtilPad");
if (!util) {
TPluginHandler *h;
if ((h = gROOT->GetPluginManager()->FindHandler("TVirtualUtilPad"))) {
if (h->LoadPlugin() == -1)
return;
h->ExecPlugin(0);
util = (TVirtualUtilPad*)gROOT->GetListOfSpecials()->FindObject("R__TVirtualUtilPad");
}
}
util->FitPanel(gPad,fH);
}
//______________________________________________________________________________
TList *THistPainter::GetContourList(Double_t contour) const
{
// Get a contour (as a list of TGraphs) using the Delaunay triangulation
TGraphDelaunay *dt;
// Check if fH contains a TGraphDelaunay
TList *hl = fH->GetListOfFunctions();
dt = (TGraphDelaunay*)hl->FindObject("TGraphDelaunay");
if (!dt) return 0;
gCurrentHist = fH;
if (!fGraphPainter) ((THistPainter*)this)->fGraphPainter = new TGraphPainter(dt);
return fGraphPainter->GetContourList(contour);
}
//______________________________________________________________________________
char *THistPainter::GetObjectInfo(Int_t px, Int_t py) const
{
// Redefines TObject::GetObjectInfo.
// Displays the histogram info (bin number, contents, integral up to bin
// corresponding to cursor position px,py
//
if (!gPad) return (char*)"";
static char info[64];
Double_t x = gPad->PadtoX(gPad->AbsPixeltoX(px));
Double_t y = gPad->PadtoY(gPad->AbsPixeltoY(py));
Double_t x1 = gPad->PadtoX(gPad->AbsPixeltoX(px+1));
const char *drawOption = fH->GetDrawOption();
Double_t xmin, xmax, uxmin,uxmax;
Double_t ymin, ymax, uymin,uymax;
if (fH->GetDimension() == 2) {
if (gPad->GetView() || strncmp(drawOption,"cont",4) == 0
|| strncmp(drawOption,"CONT",4) == 0) {
uxmin=gPad->GetUxmin();
uxmax=gPad->GetUxmax();
xmin = fXaxis->GetBinLowEdge(fXaxis->GetFirst());
xmax = fXaxis->GetBinUpEdge(fXaxis->GetLast());
x = xmin +(xmax-xmin)*(x-uxmin)/(uxmax-uxmin);
uymin=gPad->GetUymin();
uymax=gPad->GetUymax();
ymin = fYaxis->GetBinLowEdge(fYaxis->GetFirst());
ymax = fYaxis->GetBinUpEdge(fYaxis->GetLast());
y = ymin +(ymax-ymin)*(y-uymin)/(uymax-uymin);
}
}
Int_t binx,biny,binmin,binx1;
if (gPad->IsVertical()) {
binx = fXaxis->FindFixBin(x);
binmin = fXaxis->GetFirst();
binx1 = fXaxis->FindFixBin(x1);
// special case if more than 1 bin in x per pixel
if (binx1-binx>1 && fH->GetDimension() == 1) {
Double_t binval=fH->GetBinContent(binx);
Int_t binnear=binx;
for (Int_t ibin=binx+1; ibin<binx1; ibin++) {
Double_t binvaltmp = fH->GetBinContent(ibin);
if (TMath::Abs(y-binvaltmp) < TMath::Abs(y-binval)) {
binval=binvaltmp;
binnear=ibin;
}
}
binx = binnear;
}
} else {
x1 = gPad->PadtoY(gPad->AbsPixeltoY(py+1));
binx = fXaxis->FindFixBin(y);
binmin = fXaxis->GetFirst();
binx1 = fXaxis->FindFixBin(x1);
// special case if more than 1 bin in x per pixel
if (binx1-binx>1 && fH->GetDimension() == 1) {
Double_t binval=fH->GetBinContent(binx);
Int_t binnear=binx;
for (Int_t ibin=binx+1; ibin<binx1; ibin++) {
Double_t binvaltmp = fH->GetBinContent(ibin);
if (TMath::Abs(x-binvaltmp) < TMath::Abs(x-binval)) {
binval=binvaltmp;
binnear=ibin;
}
}
binx = binnear;
}
}
if (fH->GetDimension() == 1) {
Double_t integ = 0;
for (Int_t bin=binmin;bin<=binx;bin++) {integ += fH->GetBinContent(bin);}
sprintf(info,"(x=%g, y=%g, binx=%d, binc=%g, Sum=%g)",x,y,binx,fH->GetBinContent(binx),integ);
} else {
biny = fYaxis->FindFixBin(y);
sprintf(info,"(x=%g, y=%g, binx=%d, biny=%d, binc=%g)",x,y,binx,biny,fH->GetCellContent(binx,biny));
}
return info;
}
//______________________________________________________________________________
Bool_t THistPainter::IsInside(Int_t ix, Int_t iy)
{
// return kTRUE if the cell ix, iy is inside one of the graphical cuts
for (Int_t i=0;i<fNcuts;i++) {
Double_t x = fXaxis->GetBinCenter(ix);
Double_t y = fYaxis->GetBinCenter(iy);
if (fCutsOpt[i] > 0) {
if (!fCuts[i]->IsInside(x,y)) return kFALSE;
} else {
if (fCuts[i]->IsInside(x,y)) return kFALSE;
}
}
return kTRUE;
}
//______________________________________________________________________________
Bool_t THistPainter::IsInside(Double_t x, Double_t y)
{
// return kTRUE if the point x,y is inside one of the graphical cuts
for (Int_t i=0;i<fNcuts;i++) {
if (fCutsOpt[i] > 0) {
if (!fCuts[i]->IsInside(x,y)) return kFALSE;
} else {
if (fCuts[i]->IsInside(x,y)) return kFALSE;
}
}
return kTRUE;
}
//______________________________________________________________________________
Int_t THistPainter::MakeChopt(Option_t *choptin)
{
// *-*-*-*-*-*-*Decode string chopt and fill Hoption structure*-*-*-*-*-*-*
// ==============================================
char *l;
char chopt[128];
Int_t nch = strlen(choptin);
strcpy(chopt,choptin);
Hoption.Axis = Hoption.Bar = Hoption.Curve = Hoption.Error = 0;
Hoption.Hist = Hoption.Line = Hoption.Mark = Hoption.Fill = 0;
Hoption.Same = Hoption.Func = Hoption.Plus = Hoption.Scat = 0;
Hoption.Star = Hoption.Arrow = Hoption.Box = Hoption.Text = 0;
Hoption.Char = Hoption.Color = Hoption.Contour = Hoption.Logx = 0;
Hoption.Logy = Hoption.Logz = Hoption.Lego = Hoption.Surf = 0;
Hoption.Off = Hoption.Tri = 0;
Hoption.Proj = 0; // added EJB
// special 2-D options
Hoption.List = 0;
Hoption.Zscale = 0;
Hoption.FrontBox = 1;
Hoption.BackBox = 1;
Hoption.System = kCARTESIAN;
Hoption.HighRes = 0;
//check for graphical cuts
MakeCuts(chopt);
for (Int_t i=0;i<nch;i++) chopt[i] = toupper(chopt[i]);
if (fH->GetDimension() > 1) Hoption.Scat = 1;
if (!nch) Hoption.Hist = 1;
if (fFunctions->First()) Hoption.Func = 2;
if (fH->GetSumw2N()) Hoption.Error = 2;
l = strstr(chopt,"SAMES");
if (l) {
if (nch == 5) Hoption.Hist = 1;
Hoption.Same = 2;
strncpy(l," ",5);
}
l = strstr(chopt,"SAME");
if (l) {
if (nch == 4) Hoption.Hist = 1;
Hoption.Same = 1;
strncpy(l," ",4);
}

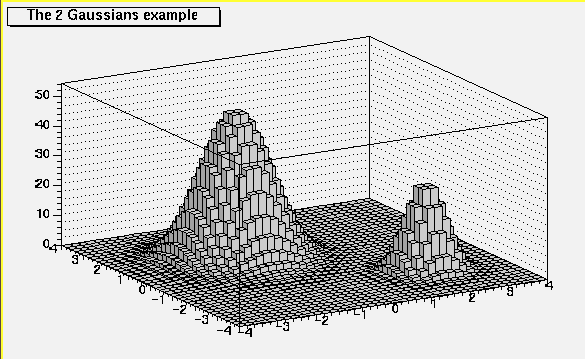

l = strstr(chopt,"LEGO");
if (l) {
Hoption.Scat = 0;
Hoption.Lego = 1; strncpy(l," ",4);
if (l[4] == '1') { Hoption.Lego = 11; l[4] = ' '; }
if (l[4] == '2') { Hoption.Lego = 12; l[4] = ' '; }
l = strstr(chopt,"FB"); if (l) { Hoption.FrontBox = 0; strncpy(l," ",2); }
l = strstr(chopt,"BB"); if (l) { Hoption.BackBox = 0; strncpy(l," ",2); }
}

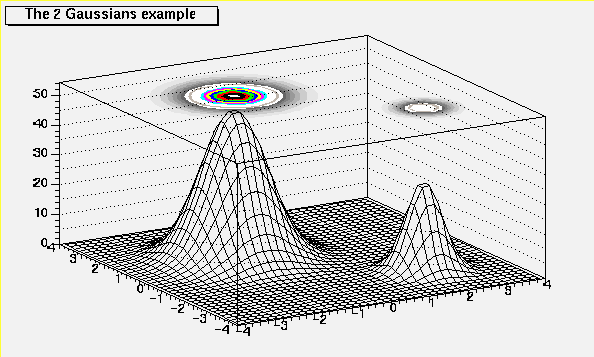

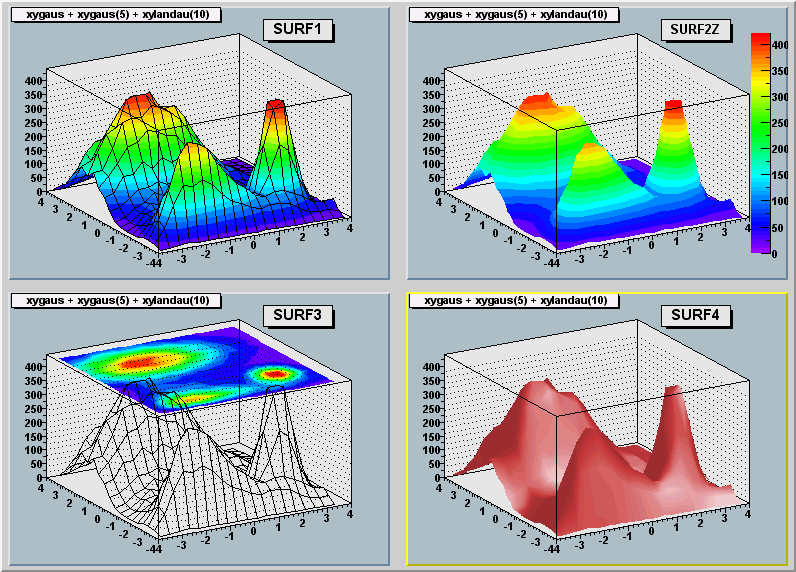

l = strstr(chopt,"SURF");
if (l) {
Hoption.Scat = 0;
Hoption.Surf = 1; strncpy(l," ",4);
if (l[4] == '1') { Hoption.Surf = 11; l[4] = ' '; }
if (l[4] == '2') { Hoption.Surf = 12; l[4] = ' '; }
if (l[4] == '3') { Hoption.Surf = 13; l[4] = ' '; }
if (l[4] == '4') { Hoption.Surf = 14; l[4] = ' '; }
if (l[4] == '5') { Hoption.Surf = 15; l[4] = ' '; }
if (l[4] == '6') { Hoption.Surf = 16; l[4] = ' '; }
l = strstr(chopt,"FB"); if (l) { Hoption.FrontBox = 0; strncpy(l," ",2); }
l = strstr(chopt,"BB"); if (l) { Hoption.BackBox = 0; strncpy(l," ",2); }
}
l = strstr(chopt,"TRI");
if (l) {
Hoption.Scat = 0;
Hoption.Tri = 1; strncpy(l," ",3);
l = strstr(chopt,"FB"); if (l) { Hoption.FrontBox = 0; strncpy(l," ",2); }
l = strstr(chopt,"BB"); if (l) { Hoption.BackBox = 0; strncpy(l," ",2); }
}
l = strstr(chopt,"LIST"); if (l) { Hoption.List = 1; strncpy(l," ",4);}
l = strstr(chopt,"CONT");
if (l) {
Hoption.Scat = 0;
Hoption.Contour = 1; strncpy(l," ",4);
if (l[4] == '1') { Hoption.Contour = 11; l[4] = ' '; }
if (l[4] == '2') { Hoption.Contour = 12; l[4] = ' '; }
if (l[4] == '3') { Hoption.Contour = 13; l[4] = ' '; }
if (l[4] == '4') { Hoption.Contour = 14; l[4] = ' '; }
if (l[4] == '5') { Hoption.Contour = 15; l[4] = ' '; }
}

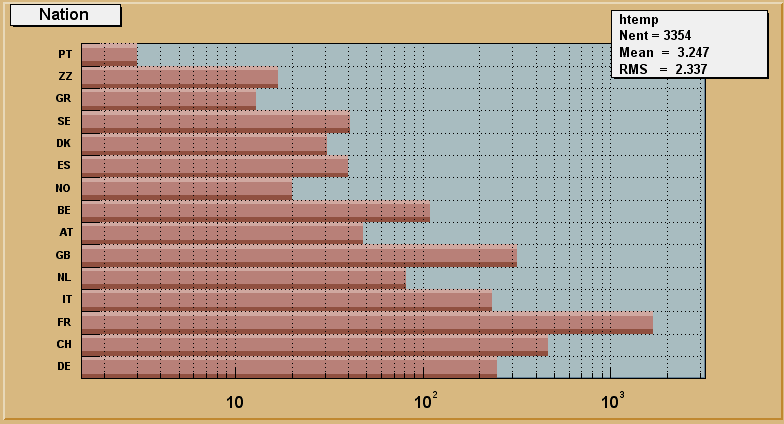

l = strstr(chopt,"HBAR");
if (l) {
Hoption.Hist = 0;
Hoption.Bar = 20; strncpy(l," ",4);
if (l[4] == '1') { Hoption.Bar = 21; l[4] = ' '; }
if (l[4] == '2') { Hoption.Bar = 22; l[4] = ' '; }
if (l[4] == '3') { Hoption.Bar = 23; l[4] = ' '; }
if (l[4] == '4') { Hoption.Bar = 24; l[4] = ' '; }
}

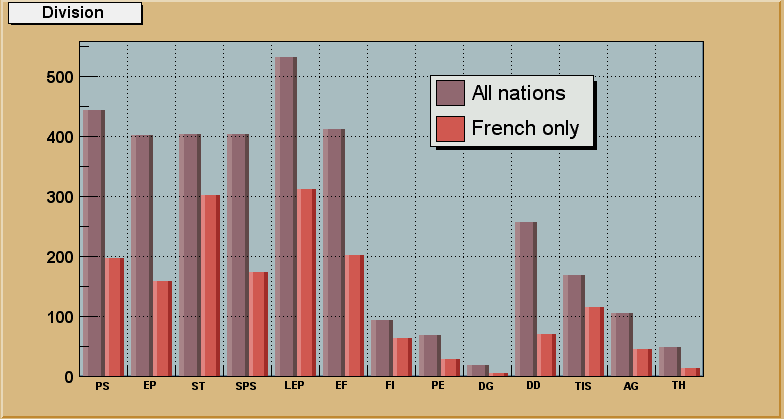

l = strstr(chopt,"BAR");
if (l) {
Hoption.Hist = 0;
Hoption.Bar = 10; strncpy(l," ",3);
if (l[3] == '1') { Hoption.Bar = 11; l[3] = ' '; }
if (l[3] == '2') { Hoption.Bar = 12; l[3] = ' '; }
if (l[3] == '3') { Hoption.Bar = 13; l[3] = ' '; }
if (l[3] == '4') { Hoption.Bar = 14; l[3] = ' '; }
}
l = strstr(chopt,"+-"); if (l) { Hoption.Plus = 2; strncpy(l," ",2); }
l = strstr(chopt,"-+"); if (l) { Hoption.Plus = 2; strncpy(l," ",2); }
l = strstr(chopt,"ARR" ); if (l) { Hoption.Arrow = 1; strncpy(l," ", 3); Hoption.Scat = 0; }

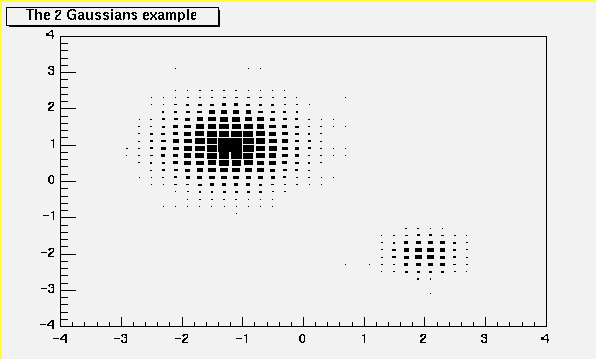

l = strstr(chopt,"BOX" ); if (l) { Hoption.Box = 1; strncpy(l," ", 3); Hoption.Scat = 0; }

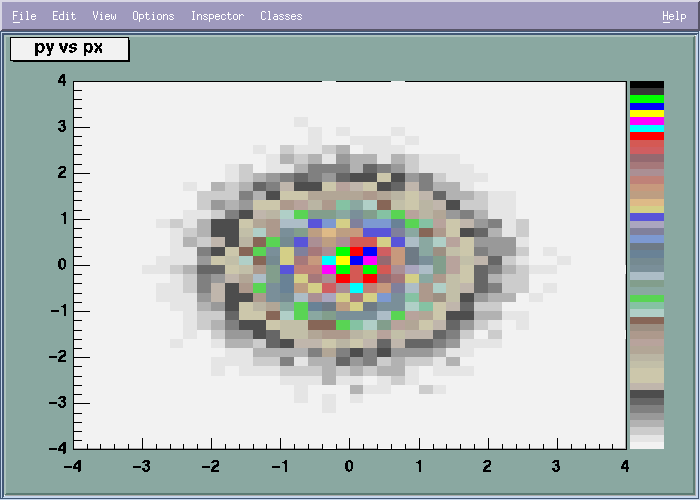

l = strstr(chopt,"COLZ"); if (l) { Hoption.Color = 2; strncpy(l," ",4); Hoption.Scat = 0; Hoption.Zscale = 1;}
l = strstr(chopt,"COL" ); if (l) { Hoption.Color = 1; strncpy(l," ", 3); Hoption.Scat = 0; }
l = strstr(chopt,"CHAR"); if (l) { Hoption.Char = 1; strncpy(l," ",4); Hoption.Scat = 0; }
l = strstr(chopt,"FUNC"); if (l) { Hoption.Func = 2; strncpy(l," ",4); Hoption.Hist = 0; }
l = strstr(chopt,"HIST"); if (l) { Hoption.Hist = 2; strncpy(l," ",4); Hoption.Func = 0; Hoption.Error = 0;}
l = strstr(chopt,"AXIS"); if (l) { Hoption.Axis = 1; strncpy(l," ",4); }
l = strstr(chopt,"AXIG"); if (l) { Hoption.Axis = 2; strncpy(l," ",4); }
l = strstr(chopt,"SCAT"); if (l) { Hoption.Scat = 1; strncpy(l," ",4); }

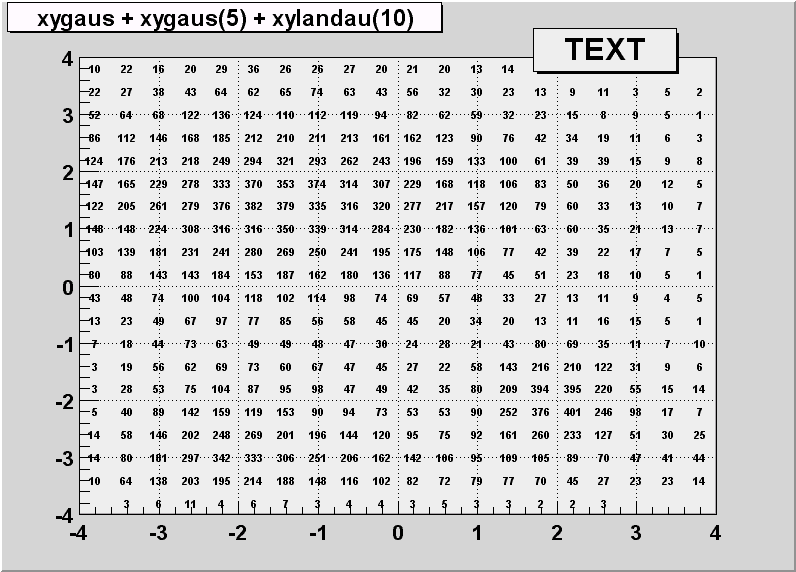

l = strstr(chopt,"TEXT");
if (l) {
Int_t angle;
if (sscanf(&l[4],"%d",&angle) > 0) {
if (angle < 0) angle=0;
if (angle > 90) angle=90;
Hoption.Text = 1000+angle;
} else {
Hoption.Text = 1;
}
strncpy(l," ",4);
Hoption.Scat = 0;
}
l = strstr(chopt,"POL"); if (l) { Hoption.System = kPOLAR; strncpy(l," ",3); }
l = strstr(chopt,"CYL"); if (l) { Hoption.System = kCYLINDRICAL; strncpy(l," ",3); }
l = strstr(chopt,"SPH"); if (l) { Hoption.System = kSPHERICAL; strncpy(l," ",3); }
l = strstr(chopt,"PSR"); if (l) { Hoption.System = kRAPIDITY; strncpy(l," ",3); }
// added EJB -->
l = strstr(chopt,"AITOFF");
if (l) {
Hoption.Proj = 1; strncpy(l," ",6); //Aitoff projection
}
l = strstr(chopt,"MERCATOR");
if (l) {
Hoption.Proj = 2; strncpy(l," ",8); //Mercator projection
}
l = strstr(chopt,"SINUSOIDAL");
if (l) {
Hoption.Proj = 3; strncpy(l," ",10); //Sinusoidal projection
}
l = strstr(chopt,"PARABOLIC");
if (l) {
Hoption.Proj = 4; strncpy(l," ",9); //Parabolic projection
}
if (Hoption.Proj > 0) {
Hoption.Scat = 0;
Hoption.Contour = 14;
}
// <-- added EJB
if (strstr(chopt,"A")) Hoption.Axis = -1;
if (strstr(chopt,"B")) Hoption.Bar = 1;
if (strstr(chopt,"C")) { Hoption.Curve =1; Hoption.Hist = -1;}
if (strstr(chopt,"F")) Hoption.Fill =1;
if (strstr(chopt,"][")) {Hoption.Off =1; Hoption.Hist =1;}
if (strstr(chopt,"F2")) Hoption.Fill =2;
if (strstr(chopt,"L")) { Hoption.Line =1; Hoption.Hist = -1;}
if (strstr(chopt,"P")) { Hoption.Mark =1; Hoption.Hist = -1;}
if (strstr(chopt,"Z")) Hoption.Zscale =1;
if (strstr(chopt,"*")) Hoption.Star =1;
if (strstr(chopt,"+")) Hoption.Plus =1;
if (strstr(chopt,"-")) Hoption.Plus =-1;
if (strstr(chopt,"H")) Hoption.Hist =2;
if (strstr(chopt,"P0")) Hoption.Mark =10;
if (strstr(chopt,"E")) {
if (fH->GetDimension() == 1) {
Hoption.Error =1;
if (strstr(chopt,"E0")) Hoption.Error =10;
if (strstr(chopt,"E1")) Hoption.Error =11;
if (strstr(chopt,"E2")) Hoption.Error =12;
if (strstr(chopt,"E3")) Hoption.Error =13;
if (strstr(chopt,"E4")) Hoption.Error =14;
} else {
if (Hoption.Error == 0) {
Hoption.Error = 100;
Hoption.Scat = 0;
}
}
}
if (strstr(chopt,"9")) Hoption.HighRes = 1;
if (Hoption.Surf == 15) {
if (Hoption.System == kPOLAR || Hoption.System == kCARTESIAN) {
Hoption.Surf = 13;
Warning("MakeChopt","option SURF5 is not supported in Cartesian and Polar modes");
}
}
//
// if (fSumw2.fN && !Hoption.Error) Hoption.Error = 2;
// Copy options from current style
Hoption.Logx = gPad->GetLogx();
Hoption.Logy = gPad->GetLogy();
Hoption.Logz = gPad->GetLogz();
// Check options incompatibilities
if (Hoption.Bar == 1) Hoption.Hist = -1;
if (Hoption.Same && Hoption.Plus) {
Error("MakeChopt", "select only one of the options S,+");
return 0;
}
if (Hoption.Plus) {
if (Hoption.Line || Hoption.Curve || Hoption.Text || Hoption.Mark) {
Error("MakeChopt", "options L,C,T,P are incompatible with options U and K");
if (Hoption.Hist && Hoption.Bar) return 0;
}
}
if (Hoption.Error || Hoption.Func || Hoption.Star) {
if (Hoption.Plus) {
Error("MakeChopt", "U, + options incompatible with errors/function");
return 0;
}
}
return 1;
}
//______________________________________________________________________________
Int_t THistPainter::MakeCuts(char *choptin)
{
// *-*-*-*-*-*-*Decode string chopt and fill Graphical cuts structure
// =====================================================
fNcuts = 0;
char *left = (char*)strchr(choptin,'[');
if (!left) return 0;
char *right = (char*)strchr(choptin,']');
if (!right) return 0;
Int_t nch = right-left;
if (nch < 2) return 0;
char *cuts = left+1;
*right = 0;
char *comma, *minus;
Int_t i;
while(1) {
comma = strchr(cuts,',');
if (comma) *comma = 0;
minus = strchr(cuts,'-');
if (minus) cuts = minus+1;
while (*cuts == ' ') cuts++;
Int_t nc = strlen(cuts);
while (cuts[nc-1] == ' ') {cuts[nc-1] = 0; nc--;}
TCutG *cut = (TCutG*)gROOT->GetListOfSpecials()->FindObject(cuts);
if (cut) {
fCuts[fNcuts] = cut;
fCutsOpt[fNcuts] = 1;
if (minus) fCutsOpt[fNcuts] = -1;
fNcuts++;
}
if (!comma) break;
cuts = comma+1;
}
for (i=0;i<=nch;i++) left[i] = ' ';
return fNcuts;
}
//______________________________________________________________________________
void THistPainter::Paint(Option_t *option)
{
// *-*-*-*-*-*-*Control routine to paint any kind of histograms*-*-*-*-*-*-*
// ===============================================
//
// When you call the Draw method of a histogram for the first time (TH1::Draw),
// it creates a THistPainter object and saves a pointer to painter as a
// data member of the histogram.
// The THistPainter class specializes in the drawing of histograms. It is
// separate from the histogram so that one can have histograms without
// the graphics overhead, for example in a batch program. The choice
// to give each histogram have its own painter rather than a central
// singleton painter, allows two histograms to be drawn in two threads
// without overwriting the painter's values.
//
// When a displayed histogram is filled again you do not have to call the Draw
// method again. The image is refreshed the next time the pad is updated.
// A pad is updated after one of these three actions:::Paint
// - a carriage control on the ROOT command line
// - a click inside the pad
// - a call to TPad::Update
//
// By default a call to TH1::Draw clears the pad of all objects before drawing the
// new image of the histogram. You can use the "SAME" option to leave the previous
// display intact and superimpose the new histogram. The same histogram can be
// drawn with different graphics options in different pads.
//
// When a displayed histogram is deleted, its image is automatically removed from the pad.
//
// To create a copy of the histogram when drawing it, you can use TH1::DrawClone. This
// will clone the histogram and allow you to change and delete the original one
// without affecting the clone.
//
// Setting the Style
// =================
// Histograms use the current style (gStyle). When you change the current style and
// would like to propagate the change to the histogram you can call TH1::UseCurrentStyle.
// You will need to call UseCurrentStyle on each histogram.
// When reading many histograms from a file and you wish to update them to the current
// style you can use gROOT::ForceStyle and all histograms read after this call
// will be updated to use the current style.
//
// The following options are supported on all types:
// =================================================
// "AXIS" : Draw only axis
// "HIST" : When an histogram has errors it is visualized by default with
// error bars. To visualize it without errors use the option HIST
// together with the required option (eg "hist same c")
// "SAME" : Superimpose on previous picture in the same pad
// "CYL" : Use Cylindrical coordinates
// "POL" : Use Polar coordinates
// "SPH" : Use Spherical coordinates
// "PSR" : Use PseudoRapidity/Phi coordinates
// "LEGO" : Draw a lego plot with hidden line removal
// "LEGO1" : Draw a lego plot with hidden surface removal
// "LEGO2" : Draw a lego plot using colors to show the cell contents
// "SURF" : Draw a surface plot with hidden line removal
// "SURF1" : Draw a surface plot with hidden surface removal
// "SURF2" : Draw a surface plot using colors to show the cell contents
// "SURF3" : same as SURF with in addition a contour view drawn on the top
// "SURF4" : Draw a surface using Gouraud shading
// "SURF5" : Same as SURF3 but only the colored contour is drawn. Used with
// option CYL, SPH or PSR it allows to draw colored contours on a
// sphere, a cylinder or a in pseudo rapidy space. In cartesian
// or polar coordinates, option SURF3 is used.
//
// The following options are supported for 1-D types:
// "AH" : Draw histogram, but not the axis labels and tick marks
// "][" : When this option is selected the first and last vertical lines
// : of the histogram are not drawn.
// "B" : Bar chart option
// "C" : Draw a smooth Curve througth the histogram bins
// "E" : Draw error bars
// "E0" : Draw error bars including bins with o contents
// "E1" : Draw error bars with perpendicular lines at the edges
// "E2" : Draw error bars with rectangles
// "E3" : Draw a fill area througth the end points of the vertical error bars
// "E4" : Draw a smoothed filled area through the end points of the error bars
// "L" : Draw a line througth the bin contents
// "P" : Draw current marker at each bin except empty bins
// "P0" : Draw current marker at each bin including empty bins
// "*H" : Draw histogram with a * at each bin
// "LF2" : Draw histogram like with option "L" but with a fill area.
// : Note that "L" draws also a fill area if the hist fillcolor is set
// : but the fill area corresponds to the histogram contour.
// "9" : Force histogram to be drawn in high resolution mode.
// : By default, the histogram is drawn in low resolution
// : in case the number of bins is greater than the number of pixels
// : in the current pad.
//
//
// The following options are supported for 2-D types:
// "ARR" : arrow mode. Shows gradient between adjacent cells
// "BOX" : a box is drawn for each cell with surface proportional to contents
// "COL" : a box is drawn for each cell with a color scale varying with contents
// "COLZ" : same as "COL". In addition the color palette is also drawn
// "CONT" : Draw a contour plot (same as CONT0)
// "CONT0" : Draw a contour plot using surface colors to distinguish contours
// "CONT1" : Draw a contour plot using line styles to distinguish contours
// "CONT2" : Draw a contour plot using the same line style for all contours
// "CONT3" : Draw a contour plot using fill area colors
// "CONT4" : Draw a contour plot using surface colors (SURF option at theta = 0)
// "CONT5" : (TGraph2D only) Draw a contour plot using Delaunay triangles
// "LIST" : Generate a list of TGraph objects for each contour
// "FB" : With LEGO or SURFACE, suppress the Front-Box
// "BB" : With LEGO or SURFACE, suppress the Back-Box
// "SCAT" : Draw a scatter-plot (default)
// "TEXT" : Draw bin contents as text
// "TEXTnn" : Draw bin contents as text at angle nn (0 < nn < 90)
// "[cutg]" : Draw only the sub-range selected by the TCutG named "cutg"
//
// Most options can be concatenated without spaces or commas, for example:
// h->Draw("E1 SAME");
//
// The options are not case sensitive:
// h->Draw("e1 same");
//
// The options "BOX", "COL" or "COLZ", use the color palette
// defined in the current style (see TStyle::SeTPaletteAxis)
//
// The options "CONT" or "SURF" or "LEGO" have by default 20 equidistant contour
// levels, you can change the number of levels with TH1::SetContour or
// TStyle::SetNumberContours.
//
// You can also set the default drawing option with TH1::SetOption. To see the current
// option use TH1::GetOption.
//
// Setting line, fill, marker, and text attributes
// =====================================
// The histogram classes inherit from the attribute classes:
// TAttLine, TAttFill, TAttMarker and TAttText.
// See the description of these classes for the list of options.
//
//
// Setting Tick marks on the histogram axis
// ========================================
// The TPad::SetTicks method specifies the type of tick marks on the axis.
//
// Assume tx = gPad->GetTickx() and ty = gPad->GetTicky().
//
// tx = 1 ; tick marks on top side are drawn (inside)
// tx = 2; tick marks and labels on top side are drawn
// ty = 1; tick marks on right side are drawn (inside)
// ty = 2; tick marks and labels on right side are drawn
// By default only the left Y axis and X bottom axis are drawn (tx = ty = 0)
//
// Use TPad::SetTicks(tx,ty) to set these options
// See also The TAxis functions to set specific axis attributes.
//
// In case multiple collor filled histograms are drawn on the same pad, the fill
// area may hide the axis tick marks. One can force a redraw of the axis
// over all the histograms by calling:
// gPad->RedrawAxis();
//
//
// Giving titles to the X, Y and Z axis
// =================================
// h->GetXaxis()->SetTitle("X axis title");
// h->GetYaxis()->SetTitle("Y axis title");
// The histogram title and the axis titles can be any TLatex string.
// The titles are part of the persistent histogram.
//
//

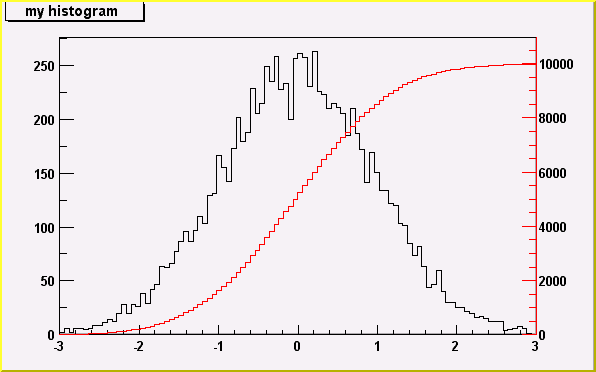

// Superimposing two histograms with different scales in the same pad
// ==================================================================
// The following script creates two histograms, the second histogram is
// the bins integral of the first one. It shows a procedure to
// draw the two histograms in the same pad and it draws the scale of
// the second histogram using a new vertical axis on the right side.
// (see also tutorial transpad.C for a variant of this example)
//
// void twoscales() {
// TCanvas *c1 = new TCanvas("c1","hists with different scales",600,400);
//
// //create/fill draw h1
// gStyle->SetOptStat(kFALSE);
// TH1F *h1 = new TH1F("h1","my histogram",100,-3,3);
// Int_t i;
// for (i=0;i<10000;i++) h1->Fill(gRandom->Gaus(0,1));
// h1->Draw();
// c1->Update();
//
// //create hint1 filled with the bins integral of h1
// TH1F *hint1 = new TH1F("hint1","h1 bins integral",100,-3,3);
// Float_t sum = 0;
// for (i=1;i<=100;i++) {
// sum += h1->GetBinContent(i);
// hint1->SetBinContent(i,sum);
// }
//
// //scale hint1 to the pad coordinates
// Float_t rightmax = 1.1*hint1->GetMaximum();
// Float_t scale = gPad->GetUymax()/rightmax;
// hint1->SetLineColor(kRed);
// hint1->Scale(scale);
// hint1->Draw("same");
//
// //draw an axis on the right side
// TGaxis *axis = new TGaxis(gPad->GetUxmax(),gPad->GetUymin(),
// gPad->GetUxmax(), gPad->GetUymax(),0,rightmax,510,"+L");
// axis->SetLineColor(kRed);
// axis->SetTextColor(kRed);
// axis->Draw();
// }
//
/*
*/
//
//
//
// Statistics Display
// ======================================
// The type of information shown in the histogram statistics box
// can be selected with gStyle->SetOptStat(mode).
//
// The mode has up to seven digits that can be set to on(1) or off(0).
//
// mode = iourmen (default = 0001111)
// n = 1; name of histogram is printed
// e = 1; number of entries printed
// m = 1; mean value printed
// r = 1; rms printed
// u = 1; number of underflows printed
// o = 1; number of overflows printed
// i = 1; integral of bins printed
//
// For example: gStyle->SetOptStat(11);
// displays only the name of histogram and the number of entries.
// For example: gStyle->SetOptStat(1101);
// displays the name of histogram, mean value and RMS.
// WARNING: never call SetOptStat(000111); but SetOptStat(1111), 0001111 will
// be taken as an octal number !!
// SetOptStat can also take any combination of letters IOURMEN as its argument.
// For example gStyle->SetOptStat("NE"), gStyle->SetOptStat("NMR") and
// gStyle->SetOptStat("RMEN") are equivalent to the examples above.
//
// When the histogram is drawn, a TPaveStats object is created and added
// to the list of functions of the histogram. If a TPaveStats object already
// exists in the histogram list of functions, the existing object is just
// updated with the current histogram parameters.
// With the option "same", the statistic box is not redrawn.
// With the option "sames", the statistic box is drawn. If it hiddes
// the previous statistics box, you can change its position
// with these lines (if h is the pointer to the histogram):
//
// Root > TPaveStats *st = (TPaveStats*)h->GetListOfFunctions()->FindObject("stats")
// Root > st->SetX1NDC(newx1); //new x start position
// Root > st->SetX2NDC(newx2); //new x end position
//
// To change the type of information for an histogram with an existing TPaveStats
// you should do: st->SetOptStat(mode) where mode has the same meaning than
// when calling gStyle->SetOptStat(mode) (see above).
//
// You can delete the stats box for a histogram TH1* h with h->SetStats(0)
// and activate it again with h->SetStats(1).
//
// Fit Statistics
// ==============
// You can change the statistics box to display the fit parameters with
// the TStyle::SetOptFit(mode) method. This mode has four digits.
// mode = pcev (default = 0111)
// v = 1; print name/values of parameters
// e = 1; print errors (if e=1, v must be 1)
// c = 1; print Chisquare/Number of degress of freedom
// p = 1; print Probability
//
// For example: gStyle->SetOptFit(1011);
// prints the fit probability, parameter names/values, and errors.
//
//
// The ERROR bars options
// ======================
// 'E' default. Shows only the error bars, not a marker
// 'E1' Small lines are drawn at the end of the error bars.
// 'E2' Error rectangles are drawn.
// 'E3' A filled area is drawn through the end points of the vertical error bars.
// '4' A smoothed filled area is drawn through the end points of the
// vertical error bars.
// 'E0' Draw also bins with null contents.
//
/*
*/
//
//
// The BAR options
// ===============
// When the option "bar" or "hbar" is specified, a bar chart is drawn.
// ----Vertical BAR chart: Options "bar","bar0","bar1","bar2","bar3","bar4"
// The bar is filled with the histogram fill color
// The left side of the bar is drawn with a light fill color
// The right side of the bar is drawn with a dark fill color
// The percentage of the bar drawn with either the light or dark color
// is 0 per cent for option "bar" or "bar0"
// is 10 per cent for option "bar1"
// is 20 per cent for option "bar2"
// is 30 per cent for option "bar3"
// is 40 per cent for option "bar4"
//
// Use TH1::SetBarWidth to control the bar width (default is the bin width)
// Use TH1::SetBarOffset to control the bar offset (default is 0)
// See example in $ROOTSYS/tutorials/hbars.C
//
/*
*/
//
//
// ----Horizontal BAR chart: Options "hbar","hbar0","hbar1","hbar2","hbar3","hbar4"
// An horizontal bar is drawn for each bin.
// The bar is filled with the histogram fill color
// The bottom side of the bar is drawn with a light fill color
// The top side of the bar is drawn with a dark fill color
// The percentage of the bar drawn with either the light or dark color
// is 0 per cent for option "hbar" or "hbar0"
// is 10 per cent for option "hbar1"
// is 20 per cent for option "hbar2"
// is 30 per cent for option "hbar3"
// is 40 per cent for option "hbar4"
//
// Use TH1::SetBarWidth to control the bar width (default is the bin width)
// Use TH1::SetBarOffset to control the bar offset (default is 0)
// See example in $ROOTSYS/tutorials/hbars.C
//
/*
*/
//
//
// The SCATter plot option (default for 2-D histograms)
// =======================
// For each cell (i,j) a number of points proportional to the cell content is drawn.
// A maximum of 500 points per cell are drawn. If the maximum is above 500
// contents are normalized to 500.
//
//
// The ARRow option. Shows gradient between adjacent cells
// ================
// For each cell (i,j) an arrow is drawn
// The orientation of the arrow follows the cell gradient
//
//
//
// The BOX option
// ==============
// For each cell (i,j) a box is drawn with surface proportional to contents
//
//
// The COLor option
// ==============
// For each cell (i,j) a box is drawn with a color proportional
// to the cell content.
// The color table used is defined in the current style (gStyle).
// The color palette in TStyle can be modified via TStyle::SeTPaletteAxis.
//
/*
*/
//
//
//
// The TEXT and TEXTnn Option
// ==========================
// For each bin the content is printed.
// The text attributes are:
// - text font = current TStyle font
// - text size = 0.02*padheight*markersize
// - text color= marker color
// "nn" is the angle used to draw the text (0 < nn < 90)
//
/*
*/
//
//
//
// The CONTour options
// ===================
// The following contour options are supported:
// "CONT" : Draw a contour plot (same as CONT0)
// "CONT0" : Draw a contour plot using surface colors to distinguish contours
// "CONT1" : Draw a contour plot using line styles to distinguish contours
// "CONT2" : Draw a contour plot using the same line style for all contours
// "CONT3" : Draw a contour plot using fill area colors
// "CONT4" : Draw a contour plot using surface colors (SURF option at theta = 0)
// "CONT5" : Draw a contour plot using Delaunay triangles
//
// The following options select the "CONT4" option and are usefull for
// skymaps or exposure maps. (see example in tutorial earth.C)
// "AITOFF" : Draw a contour via an AITOFF projection
// "MERCATOR" : Draw a contour via an Mercator projection
// "SINUSOIDAL" : Draw a contour via an Sinusoidal projection
// "PARABOLIC" : Draw a contour via an Parabolic projection
//
// The default number of contour levels is 20 equidistant levels and can
// be changed with TH1::SetContour or TStyle::SetNumberContours.
//
// When option "LIST" is specified together with option "CONT",
// the points used to draw the contours are saved in the TGraph object
// and are accessible in the following way:
//
// TObjArray *contours =
// gROOT->GetListOfSpecials()->FindObject("contours")
// Int_t ncontours = contours->GetSize();
// TList *list = (TList*)contours->At(i);
//
// Where i is a contour number, and list contains a list of TGraph objects.
// For one given contour, more than one disjoint polyline may be generated.
// The number of TGraphs per countour is given by list->GetSize().
// Here we show only the case to access the first graph in the list.
// TGraph *gr1 = (TGraph*)list->First();
//
//
/*
*/
//
//
//
//
// The LEGO options
// ================
// In a lego plot the cell contents are drawn as 3-d boxes, with
// the height of the box proportional to the cell content.
// A lego plot can be represented in several coordinate systems, the
// default system is Cartesian coordinates.
// Other possible coordinate systems are CYL,POL,SPH,PSR.
//
// "LEGO" : Draw a lego plot with hidden line removal
// "LEGO1" : Draw a lego plot with hidden surface removal
// "LEGO2" : Draw a lego plot using colors to show the cell contents
//
// See TStyle::SeTPaletteAxis to change the color palette.
// We suggest you use palette 1 with the call
// gStyle->SetColorPalette(1)
//
//
/*
*/
//
//
//
// The "SURFace" options
// =====================
// In a surface plot, cell contents are represented as a mesh.
// The height of the mesh is proportional to the cell content.
//
// A surface plot can be represented in several coordinate systems.
// The default is cartesian coordinates, and the other possible systems
// are CYL,POL,SPH,PSR.
//
// "SURF" : Draw a surface plot with hidden line removal
// "SURF1" : Draw a surface plot with hidden surface removal
// "SURF2" : Draw a surface plot using colors to show the cell contents
// "SURF3" : same as SURF with in addition a contour view drawn on the top
// "SURF4" : Draw a surface using Gouraud shading
//
// The following picture uses SURF1.
//
// See TStyle::SeTPaletteAxis to change the color palette.
// We suggest you use palette 1 with the call
// gStyle->SetColorPalette(1)
//
//
/*
*/
//
//
//
// Option "Z" : Adding the color palette on the right side of the pad
// ==================================================================
// When this option is specified, a color palette with an axis indicating
// the value of the corresponding color is drawn on the right side of
// the picture. In case, not enough space is left, you can increase the size
// of the right margin by calling TPad::SetRightMargin.
// The attributes used to display the palette axis values are taken from
// the Z axis of the object. For example, you can set the labels size
// on the palette axis via hist->GetZaxis()->SetLabelSize().
//
// Setting the color palette
// =========================
// You can set the color palette with TStyle::SeTPaletteAxis, eg
//
// gStyle->SeTPaletteAxis(ncolors,colors);
//
// For example the option "COL" draws a 2-D histogram with cells
// represented by a box filled with a color index which is a function
// of the cell content.
// If the cell content is N, the color index used will be the color number
// in colors[N],etc. If the maximum cell content is > ncolors, all
// cell contents are scaled to ncolors.
//
// if ncolors <= 0, a default palette (see below) of 50 colors is defined.
// This palette is recommended for pads, labels
//
// if ncolors == 1 && colors == 0, a pretty palette with a violet to red
// spectrum is created. We recommend you use this palette when drawing legos,
// surfaces or contours.
//
// if ncolors > 0 and colors == 0, the default palette is used
// with a maximum of ncolors.
//
// The default palette defines:
// index 0 to 9 : shades of grey
// index 10 to 19 : shades of brown
// index 20 to 29 : shades of blue
// index 30 to 39 : shades of red
// index 40 to 49 : basic colors
//
// The color numbers specified in the palette can be viewed by selecting
// the item "colors" in the "VIEW" menu of the canvas toolbar.
// The color'a red, green, and blue values can be changed via TColor::SetRGB.
//
// Drawing a sub-range of a 2-D histogram; the [cutg] option
// =========================================================
// Using a TCutG object, it is possible to draw a sub-range of a 2-D histogram.
// One must create a graphical cut (mouse or C++) and specify the name
// of the cut between [] in the Draw option.
// For example, with a TCutG named "cutg", one can call:
// myhist->Draw("surf1 [cutg]");
// To invert the cut, it is enough to put a "-" in front of its name:
// myhist->Draw("surf1 [-cutg]");
// It is possible to apply several cuts:
// myhist->Draw("surf1 [cutg1,cutg2]");
// See a complete example in the tutorial fit2a.C. This example produces
// the following picture:
//
//
/*
*/
//
//

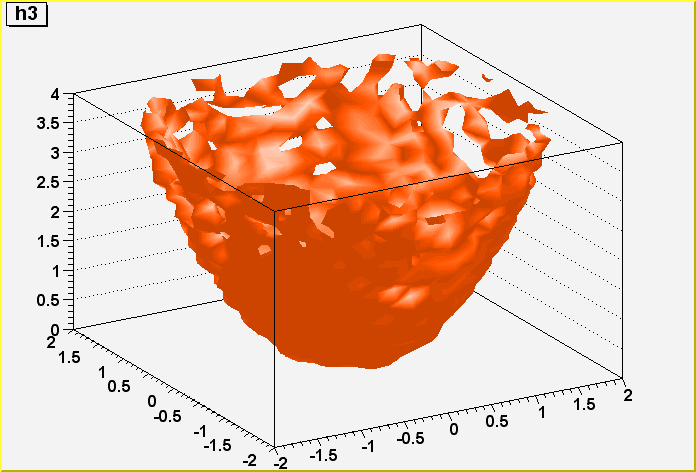

// Drawing options for 3-D histograms
// ==================================
// By default a 3-d scatter plot is drawn
// If option "BOX" is specified, a 3-D box with a volume proportional
// to the cell content is drawn.
//
//
//--------------------------------------------------------------------
if (fH->GetBuffer()) fH->BufferEmpty(-1);
gPad->SetVertical(kTRUE);
TH1 *oldhist = gCurrentHist;
gCurrentHist = fH;
TH1 *hsave = fH;
Double_t minsav = fH->GetMinimumStored();
if (!MakeChopt(option)) return; //check options and fill Hoption structure
fXbuf = new Double_t[kNMAX];
fYbuf = new Double_t[kNMAX];
if (fH->GetDimension() > 2) {
PaintH3(option);
fH->SetMinimum(minsav);
if (Hoption.Func) {
Hoption_t hoptsave = Hoption;
Hparam_t hparsave = Hparam;
PaintFunction(option);
SetHistogram(hsave);
Hoption = hoptsave;
Hparam = hparsave;
}
gCurrentHist = oldhist;
delete [] fXbuf; delete [] fYbuf;
return;
}
TView *view = gPad->GetView();
if (view) {
if (!Hoption.Lego && !Hoption.Surf && !Hoption.Tri) {
delete view;
gPad->SetView(0);
}
}
if (fH->GetDimension() > 1 || Hoption.Lego || Hoption.Surf) {
PaintTable(option);
fH->SetMinimum(minsav);
if (Hoption.Func) {
Hoption_t hoptsave = Hoption;
Hparam_t hparsave = Hparam;
PaintFunction(option);
SetHistogram(hsave);
Hoption = hoptsave;
Hparam = hparsave;
}
gCurrentHist = oldhist;
delete [] fXbuf; delete [] fYbuf;
return;
}
if (Hoption.Bar >= 20) {PaintBarH(option);
delete [] fXbuf; delete [] fYbuf;
return;
}
//fill Hparam structure with histo parameters
if (!PaintInit()) {
delete [] fXbuf; delete [] fYbuf;
return;
}
// Picture surround (if new page) and page number (if requested).
// Histogram surround (if not option "Same").
PaintFrame();
// -----
// Paint histogram axis only
Bool_t gridx = gPad->GetGridx();
Bool_t gridy = gPad->GetGridy();
if (Hoption.Axis > 0) {
if (Hoption.Axis > 1) PaintAxis(kTRUE); //axis with grid
else {
if (gridx) gPad->SetGridx(0);
if (gridy) gPad->SetGridy(0);
PaintAxis(kFALSE);
if (gridx) gPad->SetGridx(1);
if (gridy) gPad->SetGridy(1);
}
if (Hoption.Same ==1) Hoption.Same = 2;
goto paintstat;
}
if (gridx || gridy) PaintAxis(kTRUE); // Draw the grid only
// -----
// test for options BAR or HBAR
if (Hoption.Bar >= 10) {
PaintBar(option);
}
// -----
// do not draw histogram if error bars required
if (!Hoption.Error) {
if (Hoption.Hist) PaintHist(option);
}
// -----
// test for error bars or option E
if (Hoption.Error) {
PaintErrors(option);
if (Hoption.Hist == 2) PaintHist(option);
}
if (Hoption.Text) PaintText(option);
// test for associated function
if (Hoption.Func) {
Hoption_t hoptsave = Hoption;
Hparam_t hparsave = Hparam;
PaintFunction(option);
SetHistogram(hsave);
Hoption = hoptsave;
Hparam = hparsave;
}
if (gridx) gPad->SetGridx(0);
if (gridy) gPad->SetGridy(0);
PaintAxis(kFALSE);
if (gridx) gPad->SetGridx(1);
if (gridy) gPad->SetGridy(1);
PaintTitle(); // Draw histogram title
// Draw box with histogram statistics and/or fit parameters
paintstat:
if (Hoption.Same != 1 && !fH->TestBit(TH1::kNoStats)) { // bit set via TH1::SetStats
TIter next(fFunctions);
TObject *obj = 0;
while ((obj = next())) {
if (obj->InheritsFrom(TF1::Class())) break;
obj = 0;
}
PaintStat(gStyle->GetOptStat(),(TF1*)obj);
}
fH->SetMinimum(minsav);
gCurrentHist = oldhist;
delete [] fXbuf; fXbuf = 0;
delete [] fYbuf; fYbuf = 0;
}
//______________________________________________________________________________
void THistPainter::PaintArrows(Option_t *)
{
// *-*-*-*-*-*Control function to draw a table as an arrow plot*-*-*-*-*-*
// =================================================
//
// For each cell (i,j) an arrow is drawn
// The orientation of the arrow follows the cell gradient
//
/*
*/
//
//
// *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Style_t linesav = fH->GetLineStyle();
Width_t widthsav = fH->GetLineWidth();
fH->SetLineStyle(1);
fH->SetLineWidth(1);
fH->TAttLine::Modify();
Double_t dx, dy, si, co, anr, x1, x2, y1, y2, xc, yc, dxn, dyn;
Int_t ncx = Hparam.xlast - Hparam.xfirst + 1;
Int_t ncy = Hparam.ylast - Hparam.yfirst + 1;
Double_t xrg = gPad->GetUxmin();
Double_t yrg = gPad->GetUymin();
Double_t xln = gPad->GetUxmax() - xrg;
Double_t yln = gPad->GetUymax() - yrg;
Double_t cx = (xln/Double_t(ncx) -0.03)/2;
Double_t cy = (yln/Double_t(ncy) -0.03)/2;
Double_t dn = 1.E-30;
for (Int_t id=1;id<=2;id++) {
for (Int_t j=Hparam.yfirst; j<=Hparam.ylast;j++) {
for (Int_t i=Hparam.xfirst; i<=Hparam.xlast;i++) {
if (i == Hparam.xfirst) {
dx = fH->GetCellContent(i+1, j) - fH->GetCellContent(i, j);
} else if (i == Hparam.xlast) {
dx = fH->GetCellContent(i, j) - fH->GetCellContent(i-1, j);
} else {
dx = 0.5*(fH->GetCellContent(i+1, j) - fH->GetCellContent(i-1, j));
}
if (j == Hparam.yfirst) {
dy = fH->GetCellContent(i, j+1) - fH->GetCellContent(i, j);
} else if (j == Hparam.ylast) {
dy = fH->GetCellContent(i, j) - fH->GetCellContent(i, j-1);
} else {
dy = 0.5*(fH->GetCellContent(i, j+1) - fH->GetCellContent(i, j-1));
}
if (id == 1) {
dn = TMath::Max(dn, TMath::Abs(dx));
dn = TMath::Max(dn, TMath::Abs(dy));
} else if (id == 2) {
xc = xrg + xln*(Double_t(i - Hparam.xfirst+1)-0.5)/Double_t(ncx);
dxn = cx*dx/dn;
x1 = xc - dxn;
x2 = xc + dxn;
yc = yrg + yln*(Double_t(j - Hparam.yfirst+1)-0.5)/Double_t(ncy);
dyn = cy*dy/dn;
y1 = yc - dyn;
y2 = yc + dyn;
fXbuf[0] = x1;
fXbuf[1] = x2;
fYbuf[0] = y1;
fYbuf[1] = y2;
if (TMath::Abs(x2-x1) > 0.01 || TMath::Abs(y2-y1) > 0.01) {
anr = 0.005*.5*TMath::Sqrt(2/(dxn*dxn + dyn*dyn));
si = anr*(dxn + dyn);
co = anr*(dxn - dyn);
fXbuf[2] = x2 - si;
fYbuf[2] = y2 + co;
gPad->PaintPolyLine(3, fXbuf, fYbuf);
fXbuf[0] = x2;
fXbuf[1] = x2 - co;
fYbuf[0] = y2;
fYbuf[1] = y2 - si;
gPad->PaintPolyLine(2, fXbuf, fYbuf);
}
else {
gPad->PaintPolyLine(2, fXbuf, fYbuf);
}
}
}
}
}
if (Hoption.Zscale) PaintPalette();
fH->SetLineStyle(linesav);
fH->SetLineWidth(widthsav);
fH->TAttLine::Modify();
}
//______________________________________________________________________________
void THistPainter::PaintAxis(Bool_t drawGridOnly)
{
// *-*-*-*-*-*-*-*-*-*Draw axis of an histogram*-*-*-*-*-*-*-*-*-*-*-*-*
// =========================
//
// Assume tx = gPad->GetTickx() and ty = gPad->GetTicky()
// by default only the left Y axis and X bottom axis are drawn (tx = ty = 0)
// tx = 1 ; tick marks on top side are drawn (inside)
// tx = 2; tick marks and labels on top side are drawn
// ty = 1; tick marks on right side are drawn (inside)
// ty = 2; tick marks and labels on right side are drawn
// Use TPad::SetTicks(tx,ty) to set these options
if (Hoption.Same && Hoption.Axis <= 0) return;
static char chopt[10] = "";
Double_t gridl = 0;
Int_t ndiv, ndivx, ndivy, nx1, nx2,ndivsave;
Double_t umin, umax, uminsave, umaxsave;
Double_t axmin = gPad->GetUxmin();
Double_t axmax = gPad->GetUxmax();
Double_t aymin = gPad->GetUymin();
Double_t aymax = gPad->GetUymax();
char *cw = 0;
// X axis
ndivx = fXaxis->GetNdivisions();
ndivy = fYaxis->GetNdivisions();
if (ndivx > 1000) {
nx2 = ndivx/100;
nx1 = TMath::Max(1, ndivx%100);
ndivx = 100*nx2 + Int_t(Float_t(nx1)*gPad->GetAbsWNDC());
}
TGaxis axis;
axis.SetTextAngle(0);
axis.ImportAxisAttributes(fXaxis);
chopt[0] = 0;
strcat(chopt, "SDH");
if (ndivx < 0) strcat(chopt, "N");
if (gPad->GetGridx()) {
gridl = (aymax-aymin)/(gPad->GetY2() - gPad->GetY1());
strcat(chopt, "W");
}
if (Hoption.Logx) {
strcat(chopt, "G");
ndiv =TMath::Abs(ndivx);
umin = TMath::Power(10,axmin);
umax = TMath::Power(10,axmax);
} else {
ndiv =TMath::Abs(ndivx);
umin = axmin;
umax = axmax;
}
// Display axis as time
if (fXaxis->GetTimeDisplay()) {
strcat(chopt,"t");
if (strlen(fXaxis->GetTimeFormatOnly()) == 0) {
axis.SetTimeFormat(fXaxis->ChooseTimeFormat(Hparam.xmax-Hparam.xmin));
}
}
uminsave = umin;
umaxsave = umax;
ndivsave = ndiv;
axis.SetOption(chopt);
axis.PaintAxis(axmin, aymin,
axmax, aymin,
umin, umax, ndiv, chopt, gridl);
if (gPad->GetTickx()) {
strcat(chopt, "-");
if (gPad->GetTickx() < 2) strcat(chopt, "U");
if ((cw=strstr(chopt,"W"))) *cw='z';
axis.SetTitle("");
axis.PaintAxis(axmin, aymax,
axmax, aymax,
uminsave, umaxsave, ndivsave, chopt, gridl, drawGridOnly);
}
// Y axis
axis.ImportAxisAttributes(fYaxis);
chopt[0] = 0;
strcat(chopt, "SDH");
if (ndivy < 0) {
nx2 = ndivy/100;
nx1 = TMath::Max(1, ndivy%100);
// ndivy = 100*nx2 + Int_t(Float_t(nx1)*gPad->GetAbsHNDC());
strcat(chopt, "N");
}
if (gPad->GetGridy()) {
gridl = (axmax-axmin)/(gPad->GetX2() - gPad->GetX1());
strcat(chopt, "W");
}
if (Hoption.Logy) {
strcat(chopt, "G");
ndiv =TMath::Abs(ndivy);
umin = TMath::Power(10,aymin);
umax = TMath::Power(10,aymax);
} else {
ndiv =TMath::Abs(ndivy);
umin = aymin;
umax = aymax;
}
// Display axis as time
if (fYaxis->GetTimeDisplay()) {
strcat(chopt,"t");
if (strlen(fYaxis->GetTimeFormatOnly()) == 0) {
axis.SetTimeFormat(fYaxis->ChooseTimeFormat(Hparam.ymax-Hparam.ymin));
}
}
uminsave = umin;
umaxsave = umax;
ndivsave = ndiv;
axis.SetOption(chopt);
axis.PaintAxis(axmin, aymin,
axmin, aymax,
umin, umax, ndiv, chopt, gridl, drawGridOnly);
if (gPad->GetTicky()) {
if (gPad->GetTicky() < 2) {
strcat(chopt, "U");
axis.SetTickSize(-fYaxis->GetTickLength());
} else {
strcat(chopt, "+L");
}
if ((cw=strstr(chopt,"W"))) *cw='z';
axis.SetTitle("");
axis.PaintAxis(axmax, aymin,
axmax, aymax,
uminsave, umaxsave, ndivsave, chopt, gridl, drawGridOnly);
}
}
//______________________________________________________________________________
void THistPainter::PaintBar(Option_t *)
{
// Draw a bar chart in a normal pad.
// (see PaintBarH to draw a bar chart in a rotated pad)
// This function is called by THistPainter::Paint when the option "bar"
// has been specified.
//
// A vertical bar is drawn for each bin.
// The bar is filled with the histogram fill color
// The left side of the bar is drawn with a light fill color
// The right side of the bar is drawn with a dark fill color
// The percentage of the bar drawn with either the light or dark color
// is 0 per cent for option "bar" or "bar0"
// is 10 per cent for option "bar1"
// is 20 per cent for option "bar2"
// is 30 per cent for option "bar3"
// is 40 per cent for option "bar4"
//
// Use TH1::SetBarWidth to control the bar width (default is the bin width)
// Use TH1::SetBarOffset to control the bar offset (default is 0)
// See example in $ROOTSYS/tutorials/hbars.C
//
/*
*/
//
Int_t bar = Hoption.Bar - 10;
Double_t xmin,xmax,ymin,ymax,umin,umax,w;
Double_t offset = fH->GetBarOffset();
Double_t width = fH->GetBarWidth();
TBox box;
Int_t hcolor = fH->GetFillColor();
Int_t hstyle = fH->GetFillStyle();
box.SetFillColor(hcolor);
box.SetFillStyle(hstyle);
for (Int_t bin=fXaxis->GetFirst();bin<=fXaxis->GetLast();bin++) {
xmin = gPad->XtoPad(fXaxis->GetBinLowEdge(bin));
xmax = gPad->XtoPad(fXaxis->GetBinUpEdge(bin));
ymin = gPad->GetUymin();
ymax = gPad->YtoPad(fH->GetBinContent(bin));
if (ymax < 0) {
ymin = ymax;
ymax = TMath::Max(0.,gPad->GetUymin());
} else {
if (ymin < 0) ymin = 0;
}
if (ymax < gPad->GetUymin()) continue;
if (ymax > gPad->GetUymax()) ymax = gPad->GetUymax();
if (ymin < gPad->GetUymin()) ymin = gPad->GetUymin();
w = (xmax-xmin)*width;
xmin += offset*(xmax-xmin);
xmax = xmin + w;
if (bar < 1) {
box.PaintBox(xmin,ymin,xmax,ymax);
} else {
umin = xmin + bar*(xmax-xmin)/10.;
umax = xmax - bar*(xmax-xmin)/10.;
box.SetFillColor(hcolor+150); //bright
box.PaintBox(xmin,ymin,umin,ymax);
box.SetFillColor(hcolor);
box.PaintBox(umin,ymin,umax,ymax);
box.SetFillColor(hcolor+100); //dark
box.PaintBox(umax,ymin,xmax,ymax);
}
}
}
//______________________________________________________________________________
void THistPainter::PaintBarH(Option_t *)
{
// Draw a bar char in a rotated pad (X vertical, Y horizontal)
// (see PaintBar to draw a bar chart in a normal pad)
// This function is called by THistPainter::Paint when the option "hbar"
// has been specified.
//
// An horizontal bar is drawn for each bin.
// The bar is filled with the histogram fill color
// The bottom side of the bar is drawn with a light fill color
// The top side of the bar is drawn with a dark fill color
// The percentage of the bar drawn with either the light or dark color
// is 0 per cent for option "hbar" or "hbar0"
// is 10 per cent for option "hbar1"
// is 20 per cent for option "hbar2"
// is 30 per cent for option "hbar3"
// is 40 per cent for option "hbar4"
//
// Use TH1::SetBarWidth to control the bar width (default is the bin width)
// Use TH1::SetBarOffset to control the bar offset (default is 0)
// See example in $ROOTSYS/tutorials/hbars.C
//
/*
*/
//
gPad->SetVertical(kFALSE);
PaintInitH();
TAxis *xaxis = fXaxis;
TAxis *yaxis = fYaxis;
if (!strcmp(xaxis->GetName(),"xaxis")) {
fXaxis = yaxis;
fYaxis = xaxis;
}
PaintFrame();
PaintAxis(kFALSE);
Int_t bar = Hoption.Bar - 20;
Double_t xmin,xmax,ymin,ymax,umin,umax,w;
Double_t offset = fH->GetBarOffset();
Double_t width = fH->GetBarWidth();
TBox box;
Int_t hcolor = fH->GetFillColor();
Int_t hstyle = fH->GetFillStyle();
box.SetFillColor(hcolor);
box.SetFillStyle(hstyle);
for (Int_t bin=fYaxis->GetFirst();bin<=fYaxis->GetLast();bin++) {
ymin = gPad->YtoPad(fYaxis->GetBinLowEdge(bin));
ymax = gPad->YtoPad(fYaxis->GetBinUpEdge(bin));
xmin = gPad->GetUxmin();
xmax = gPad->XtoPad(fH->GetBinContent(bin));
if (xmax < 0) {
xmin = xmax;
xmax = TMath::Max(0.,gPad->GetUxmin());
} else {
if (xmin < 0) xmin = 0;
}
if (xmax < gPad->GetUxmin()) continue;
if (xmax > gPad->GetUxmax()) xmax = gPad->GetUxmax();
if (xmin < gPad->GetUxmin()) xmin = gPad->GetUxmin();
w = (ymax-ymin)*width;
ymin += offset*(ymax-ymin);
ymax = ymin + w;
if (bar < 1) {
box.PaintBox(xmin,ymin,xmax,ymax);
} else {
umin = ymin + bar*(ymax-ymin)/10.;
umax = ymax - bar*(ymax-ymin)/10.;
box.SetFillColor(hcolor+100); //dark
box.PaintBox(xmin,ymin,xmax,umin);
box.SetFillColor(hcolor);
box.PaintBox(xmin,umin,xmax,umax);
box.SetFillColor(hcolor+150); //bright
box.PaintBox(xmin,umax,xmax,ymax);
}
}
PaintTitle();
fXaxis = xaxis;
fYaxis = yaxis;
// Draw box with histogram statistics and/or fit parameters
if (Hoption.Same != 1 && !fH->TestBit(TH1::kNoStats)) { // bit set via TH1::SetStats
TIter next(fFunctions);
TObject *obj = 0;
while ((obj = next())) {
if (obj->InheritsFrom(TF1::Class())) break;
obj = 0;
}
PaintStat(gStyle->GetOptStat(),(TF1*)obj);
}
}
//______________________________________________________________________________
void THistPainter::PaintBoxes(Option_t *)
{
// *-*-*-*-*-*Control function to draw a table as a box plot*-*-*-*-*-*
// ==============================================
//
// For each cell (i,j) a box is drawn.
// The size of the box is proportional to the cell content.
//
/*
*/
//
//
// *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Style_t fillsav = fH->GetFillStyle();
if (fH->GetFillColor() == 0) fH->SetFillStyle(0);
fH->TAttLine::Modify();
fH->TAttFill::Modify();
Double_t z, xk,xstep, yk, ystep, xcent, ycent, xlow, xup, ylow, yup;
Double_t ux1 = gPad->PixeltoX(1);
Double_t ux0 = gPad->PixeltoX(0);
Double_t uy1 = gPad->PixeltoY(1);
Double_t uy0 = gPad->PixeltoY(0);
Double_t dxmin = 0.51*(gPad->PadtoX(ux1)-gPad->PadtoX(ux0));
Double_t dymin = 0.51*(gPad->PadtoY(uy0)-gPad->PadtoY(uy1));
Double_t zmin = Hparam.zmin;
Double_t zmax = Hparam.zmax;
// In case of option SAME, zmin and zmax values are taken from the
// first plotted 2D histogram.
if (Hoption.Same) {
TH2 *h2;
TIter next(gPad->GetListOfPrimitives());
while ((h2 = (TH2 *)next())) {
if (!h2->InheritsFrom(TH2::Class())) continue;
zmin = h2->GetMinimum();
zmax = h2->GetMaximum();
if (Hoption.Logz) {
zmax = TMath::Log10(zmax);
if (zmin <= 0) {
zmin = TMath::Log10(zmax*0.001);
} else {
zmin = TMath::Log10(zmin);
}
}
Double_t YMARGIN= 0.05;
Int_t maximum = 0;
Int_t minimum = 0;
if (fH->GetMaximumStored() != -1111) maximum = 1;
if (fH->GetMinimumStored() != -1111) minimum = 1;
if (!maximum) zmax += YMARGIN*(zmax-zmin);
if (!minimum) {
if (zmin >= 0) zmin = 0;
else zmin -= YMARGIN*(zmax-zmin);
}
break;
}
}
Double_t dz = zmax - zmin;
for (Int_t j=Hparam.yfirst; j<=Hparam.ylast;j++) {
yk = fYaxis->GetBinLowEdge(j);
ystep = fYaxis->GetBinWidth(j);
ycent = 0.5*ystep;
for (Int_t i=Hparam.xfirst; i<=Hparam.xlast;i++) {
Int_t bin = j*(fXaxis->GetNbins()+2) + i;
xk = fXaxis->GetBinLowEdge(i);
xstep = fXaxis->GetBinWidth(i);
if (!IsInside(xk+0.5*xstep,yk+0.5*ystep)) continue;
xcent = 0.5*xstep;
z = Hparam.factor*fH->GetBinContent(bin);
if (Hoption.Logz) {
if (z != 0) z = TMath::Log10(z);
else z = zmin;
}
if (z <= zmin) continue;
if (z > zmax) z = zmax;
xup = xcent*(z - zmin)/dz + xk + xcent;
xlow = 2*(xk + xcent) - xup;
if (xup-xlow < dxmin) xup = xlow+dxmin;
if (Hoption.Logx) {
if (xup > 0) xup = TMath::Log10(xup);
else continue;
if (xlow > 0) xlow = TMath::Log10(xlow);
else continue;
}
yup = ycent*(z - zmin)/dz + yk + ycent;
ylow = 2*(yk + ycent) - yup;
if (yup-ylow < dymin) yup = ylow+dymin;
if (Hoption.Logy) {
if (yup > 0) yup = TMath::Log10(yup);
else continue;
if (ylow > 0) ylow = TMath::Log10(ylow);
else continue;
}
if (xlow < gPad->GetUxmin()) continue;
if (ylow < gPad->GetUymin()) continue;
if (xup > gPad->GetUxmax()) continue;
if (yup > gPad->GetUymax()) continue;
gVirtualX->SetFillColor(fH->GetFillColor()); //is redefined in TPad::PaintBox
gPad->PaintBox(xlow, ylow, xup, yup);
}
}
if (Hoption.Zscale) PaintPalette();
fH->SetFillStyle(fillsav);
}
//______________________________________________________________________________
void THistPainter::PaintColorLevels(Option_t *)
{
// *-*-*-*-*-*Control function to draw a table as a color plot*-*-*-*-*-*
// ================================================
//
// For each cell (i,j) a box is drawn with a color proportional
// to the cell content.
// The color table used is defined in the current style (gStyle).
// The color palette in TStyle can be modified via TStyle::SeTPaletteAxis.
//
/*
*/
//
//
// *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Double_t z, zc, xk, xstep, yk, ystep, xlow, xup, ylow, yup;
Double_t zmin = fH->GetMinimum();
Double_t zmax = fH->GetMaximum();
if (Hoption.Logz) {
if (zmin > 0) {
zmin = TMath::Log10(zmin);
zmax = TMath::Log10(zmax);
} else {
return;
}
}
Double_t dz = zmax - zmin;
if (dz <= 0) return;
if (fH->GetMinimumStored() == -1111) {
Double_t YMARGIN = 0.05;
if (gStyle->GetHistMinimumZero()) {
if (zmin >= 0) zmin = 0;
else zmin -= YMARGIN*(zmax-zmin);
} else {
Double_t dzmin = YMARGIN*(zmax-zmin);
if (zmin >= 0 && (zmin-dzmin <= 0)) zmin = 0;
else zmin -= dzmin;
}
}
Style_t fillsav = fH->GetFillStyle();
Style_t colsav = fH->GetFillColor();
fH->SetFillStyle(1001);
fH->TAttFill::Modify();
// Initialize the levels on the Z axis
Int_t ncolors = gStyle->GetNumberOfColors();
Int_t ndiv = fH->GetContour();
if (ndiv == 0 ) {
ndiv = gStyle->GetNumberContours();
fH->SetContour(ndiv);
}
Int_t ndivz = TMath::Abs(ndiv);
if (fH->TestBit(TH1::kUserContour) == 0) fH->SetContour(ndiv);
Double_t scale = ndivz/dz;
Int_t color;
for (Int_t j=Hparam.yfirst; j<=Hparam.ylast;j++) {
yk = fYaxis->GetBinLowEdge(j);
ystep = fYaxis->GetBinWidth(j);
if (Hoption.System == kPOLAR && yk<0) yk= 2*TMath::Pi()+yk;
for (Int_t i=Hparam.xfirst; i<=Hparam.xlast;i++) {
Int_t bin = j*(fXaxis->GetNbins()+2) + i;
xk = fXaxis->GetBinLowEdge(i);
xstep = fXaxis->GetBinWidth(i);
if (!IsInside(xk+0.5*xstep,yk+0.5*ystep)) continue;
z = fH->GetBinContent(bin);
if (z == 0 && (zmin >= 0 || Hoption.Logz)) continue; // don't draw the empty bins for histograms with positive content
if (Hoption.Logz) {
if (z > 0) z = TMath::Log10(z);
else z = zmin;
}
if (z < zmin) continue;
xup = xk + xstep;
xlow = xk;
if (Hoption.Logx) {
if (xup > 0) xup = TMath::Log10(xup);
else continue;
if (xlow > 0) xlow = TMath::Log10(xlow);
else continue;
}
yup = yk + ystep;
ylow = yk;
if (Hoption.System != kPOLAR) {
if (Hoption.Logy) {
if (yup > 0) yup = TMath::Log10(yup);
else continue;
if (ylow > 0) ylow = TMath::Log10(ylow);
else continue;
}
if (xlow < gPad->GetUxmin()) xlow = gPad->GetUxmin();
if (ylow < gPad->GetUymin()) ylow = gPad->GetUymin();
if (xup > gPad->GetUxmax()) xup = gPad->GetUxmax();
if (yup > gPad->GetUymax()) yup = gPad->GetUymax();
}
if (fH->TestBit(TH1::kUserContour)) {
zc = fH->GetContourLevelPad(0);
if (z < zc) continue;
color = -1;
for (Int_t k=0; k<ndiv; k++) {
zc = fH->GetContourLevelPad(k);
if (z < zc) {
continue;
} else {
color++;
}
}
} else {
color = Int_t(0.01+(z-zmin)*scale);
}
Int_t theColor = Int_t((color+0.99)*Float_t(ncolors)/Float_t(ndivz));
if (theColor > ncolors-1) theColor = ncolors-1;
fH->SetFillColor(gStyle->GetColorPalette(theColor));
fH->TAttFill::Modify();
if (Hoption.System != kPOLAR) {
gPad->PaintBox(xlow, ylow, xup, yup);
} else {
TCrown crown(0,0,xlow,xup,ylow*TMath::RadToDeg(),yup*TMath::RadToDeg());
crown.SetFillColor(gStyle->GetColorPalette(theColor));
crown.Paint();
}
}
}
if (Hoption.Zscale) PaintPalette();
fH->SetFillStyle(fillsav);
fH->SetFillColor(colsav);
fH->TAttFill::Modify();
}
//______________________________________________________________________________
void THistPainter::PaintContour(Option_t *option)
{
// *-*-*-*-*-*Control function to draw a table as a contour plot*-*-*-*-*-*
// =================================================
// Hoption.Contour may have the following values:
// 1 The contour is drawn with filled colour levels. ("cont")
// 11 Use colour to distinguish contours. ("cont1")
// 12 Use line style to distinguish contours. ("cont2")
// 13 Line style and colour are the same for all contours. ("cont3")
// 14 Same as 1 but uses the "SURF" algorithm ("cont4")
// see also options "AITOFF","MERCATOR",etc below
// 15 Use Delaunay triangles to compute the contours
//
// When option "List" is specified together with option "cont",
// the points used to draw the contours are saved in the TGraph format
// and are accessible in the following way:
// TObjArray *contours =
// (TObjArray*)gROOT->GetListOfSpecials()->FindObject("contours")
// Int_t ncontours = contours->GetSize();
// TList *list = (TList*)contours->At(i); //where i is a contour number
// list contains a list of TGraph objects. For one given contour, more than
// one disjoint polyline may be generated. The number of TGraphs per
// countour is given by list->GetSize().
// Here we show only the case to access the first graph in the list.
// TGraph *gr1 = (TGraph*)list->First();
//
//
//
/*
*/
//
//
// This function is also called when one of the options below is called;
// skymaps or exposure maps. (see example in tutorial earth.C)
// "AITOFF" : Draw a contour via an AITOFF projection
// "MERCATOR" : Draw a contour via an Mercator projection
// "SINUSOIDAL" : Draw a contour via an Sinusoidal projection
// "PARABOLIC" : Draw a contour via an Parabolic projection
//
// The tutorial earth.C uses these 4 options and produce the following picture:
//
//
/*
*/
//
//
// *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Int_t i, j, count, ncontour, icol, n, lj, m, ix, jx, ljfill;
Int_t itars, mode, ir[4];
Double_t xsave, ysave, thesave,phisave,x[4], y[4], zc[4];
if (Hoption.Contour == 14) {
Hoption.Surf = 12;
thesave = gPad->GetTheta();
phisave = gPad->GetPhi();
gPad->SetPhi(0.0001);
gPad->SetTheta(89.99);
PaintSurface(option);
gPad->SetPhi(phisave);
gPad->SetTheta(thesave);
gPad->GetView()->SetBit(kCannotRotate); //tested in ExecuteEvent
return;
}
if (Hoption.Same) {
// If the contour is painted on a 3d plot, the contour lines are
// paint in 3d too.
TObject *obj;
TIter next(gPad->GetListOfPrimitives());
while ((obj=next())) {
if (strstr(obj->GetDrawOption(),"surf") ||
strstr(obj->GetDrawOption(),"lego") ||
strstr(obj->GetDrawOption(),"tri")) {
Hoption.Surf = 16;
PaintSurface(option);
return;
}
}
}
if (Hoption.Contour == 15) {
TGraphDelaunay *dt;
TList *hl = fH->GetListOfFunctions();
dt = (TGraphDelaunay*)hl->FindObject("TGraphDelaunay");
if (!dt) return;
if (!fGraphPainter) fGraphPainter = new TGraphPainter(dt);
fGraphPainter->Paint(option);
return;
}
gPad->SetBit(TGraph::kClipFrame);
Double_t *levels = new Double_t[2*kMAXCONTOUR];
Double_t *xarr = new Double_t[2*kMAXCONTOUR];
Double_t *yarr = new Double_t[2*kMAXCONTOUR];
Int_t *itarr = new Int_t[2*kMAXCONTOUR];
Int_t npmax = 0;
for (i=0;i<2*kMAXCONTOUR;i++) itarr[i] = 0;
ncontour = fH->GetContour();
if (ncontour == 0) {
ncontour = gStyle->GetNumberContours();
fH->SetContour(ncontour);
}
if (ncontour > kMAXCONTOUR) {
Warning("PaintContour", "maximum number of contours is %d, asked for %d",
kMAXCONTOUR, ncontour);
ncontour = kMAXCONTOUR-1;
}
if (fH->TestBit(TH1::kUserContour) == 0) fH->SetContour(ncontour);
for (i=0;i<ncontour;i++) levels[i] = fH->GetContourLevelPad(i);
//for (i=0;i<ncontour;i++)
// levels[i] = Hparam.zmin+(Hparam.zmax-Hparam.zmin)/ncontour*i;
Int_t linesav = fH->GetLineStyle();
Int_t colorsav = fH->GetLineColor();
Int_t fillsav = fH->GetFillColor();
if (Hoption.Contour == 13) {
fH->TAttLine::Modify();
}
TPolyLine **polys = 0;
TPolyLine *poly=0;
TObjArray *contours = 0;
TList *list = 0;
TGraph *graph = 0;
Int_t *np = 0;
if (Hoption.Contour == 1) {
np = new Int_t[ncontour];
for (i=0;i<ncontour;i++) np[i] = 0;
polys = new TPolyLine*[ncontour];
for (i=0;i<ncontour;i++) {
polys[i] = new TPolyLine(100);
}
if (Hoption.List == 1) {
contours = (TObjArray*)gROOT->GetListOfSpecials()->FindObject("contours");
if (contours) {
gROOT->GetListOfSpecials()->Remove(contours);
count = contours->GetSize();
for (i=0;i<count;i++) {
list = (TList*)contours->At(i);
if (list) list->Delete();
}
}
contours = new TObjArray(ncontour);
contours->SetName("contours");
gROOT->GetListOfSpecials()->Add(contours);
for (i=0;i<ncontour;i++) {
list = new TList();
contours->Add(list);
}
}
}
Int_t theColor;
Int_t ncolors = gStyle->GetNumberOfColors();
Int_t ndivz = TMath::Abs(ncontour);
Int_t k,ipoly;
for (j=Hparam.yfirst; j<Hparam.ylast; j++) {
y[0] = fYaxis->GetBinCenter(j);
y[1] = y[0];
y[2] = fYaxis->GetBinCenter(j+1);
y[3] = y[2];
for (i=Hparam.xfirst; i<Hparam.xlast; i++) {
zc[0] = fH->GetBinContent(i, j);
zc[1] = fH->GetBinContent(i+1, j);
zc[2] = fH->GetBinContent(i+1, j+1);
zc[3] = fH->GetBinContent(i, j+1);
if (!IsInside(fXaxis->GetBinCenter(i),fYaxis->GetBinCenter(j))) continue;
if (Hoption.Logz) {
if (zc[0] > 0) zc[0] = TMath::Log10(zc[0]);
else zc[0] = Hparam.zmin;
if (zc[1] > 0) zc[1] = TMath::Log10(zc[1]);
else zc[1] = Hparam.zmin;
if (zc[2] > 0) zc[2] = TMath::Log10(zc[2]);
else zc[2] = Hparam.zmin;
if (zc[3] > 0) zc[3] = TMath::Log10(zc[3]);
else zc[3] = Hparam.zmin;
}
for (k=0;k<4;k++) {
ir[k] = TMath::BinarySearch(ncontour,levels,zc[k]);
}
if (ir[0] != ir[1] || ir[1] != ir[2] || ir[2] != ir[3] || ir[3] != ir[0]) {
x[0] = fXaxis->GetBinCenter(i);
x[3] = x[0];
x[1] = fXaxis->GetBinCenter(i+1);
x[2] = x[1];
if (zc[0] <= zc[1]) n = 0; else n = 1;
if (zc[2] <= zc[3]) m = 2; else m = 3;
if (zc[n] > zc[m]) n = m;
n++;
lj=1;
for (ix=1;ix<=4;ix++) {
m = n%4 + 1;
ljfill = PaintContourLine(zc[n-1],ir[n-1],x[n-1],y[n-1],zc[m-1],
ir[m-1],x[m-1],y[m-1],&xarr[lj-1],&yarr[lj-1],&itarr[lj-1], levels);
lj += 2*ljfill;
n = m;
}
if (zc[0] <= zc[1]) n = 0; else n = 1;
if (zc[2] <= zc[3]) m = 2; else m = 3;
if (zc[n] > zc[m]) n = m;
n++;
lj=2;
for (ix=1;ix<=4;ix++) {
if (n == 1) m = 4;
else m = n-1;
ljfill = PaintContourLine(zc[n-1],ir[n-1],x[n-1],y[n-1],zc[m-1],
ir[m-1],x[m-1],y[m-1],&xarr[lj-1],&yarr[lj-1],&itarr[lj-1], levels);
lj += 2*ljfill;
n = m;
}
// Re-order endpoints
count = 0;
for (ix=1; ix<=lj-5; ix +=2) {
//count = 0;
while (itarr[ix-1] != itarr[ix]) {
xsave = xarr[ix];
ysave = yarr[ix];
itars = itarr[ix];
for (jx=ix; jx<=lj-5; jx +=2) {
xarr[jx] = xarr[jx+2];
yarr[jx] = yarr[jx+2];
itarr[jx] = itarr[jx+2];
}
xarr[lj-3] = xsave;
yarr[lj-3] = ysave;
itarr[lj-3] = itars;
if (count > 100) break;
count++;
}
}
if (count > 100) continue;
for (ix=1; ix<=lj-2; ix +=2) {
theColor = Int_t((itarr[ix-1]+0.99)*Float_t(ncolors)/Float_t(ndivz));
icol = gStyle->GetColorPalette(theColor);
if (Hoption.Contour == 11) {
fH->SetLineColor(icol);
}
if (Hoption.Contour == 12) {
mode = icol%5;
if (mode == 0) mode = 5;
fH->SetLineStyle(mode);
}
if (Hoption.Contour != 1) {
fH->TAttLine::Modify();
gPad->PaintPolyLine(2,&xarr[ix-1],&yarr[ix-1]);
continue;
}
ipoly = itarr[ix-1];
if (ipoly >=0 && ipoly <ncontour) {
poly = polys[ipoly];
poly->SetPoint(np[ipoly] ,xarr[ix-1],yarr[ix-1]);
poly->SetPoint(np[ipoly]+1,xarr[ix], yarr[ix]);
np[ipoly] += 2;
if (npmax < np[ipoly]) npmax = np[ipoly];
}
}
} // end of if (ir[0]
} //end of for (i
} //end of for (j
Double_t xmin,ymin;
Double_t *xp, *yp;
Int_t nadd,iminus,iplus;
Double_t *xx, *yy;
Int_t istart;
Int_t first = ncontour;
Int_t *polysort = 0;
Int_t ContListNb;
if (Hoption.Contour != 1) goto theEND;
//The 2 points line generated above are now sorted/merged to generate
//a list of consecutive points.
// If the option "List" has been specified, the list of points is saved
// in the form of TGraph objects in the ROOT list of special objects.
xmin = gPad->GetUxmin();
ymin = gPad->GetUymin();
xp = new Double_t[2*npmax];
yp = new Double_t[2*npmax];
polysort = new Int_t[ncontour];
//find first positive contour
for (ipoly=0;ipoly<ncontour;ipoly++) {
if (levels[ipoly] >= 0) {first = ipoly; break;}
}
//store negative contours from 0 to minimum, then all positive contours
k = 0;
for (ipoly=first-1;ipoly>=0;ipoly--) {polysort[k] = ipoly; k++;}
for (ipoly=first;ipoly<ncontour;ipoly++) {polysort[k] = ipoly; k++;}
// we can now draw sorted contours
ContListNb = 0;
for (k=0;k<ncontour;k++) {
ipoly = polysort[k];
if (np[ipoly] == 0) continue;
if (Hoption.List) list = (TList*)contours->At(ContListNb);
ContListNb++;
poly = polys[ipoly];
xx = poly->GetX();
yy = poly->GetY();
istart = 0;
while (1) {
iminus = npmax;
iplus = iminus+1;
xp[iminus]= xx[istart]; yp[iminus] = yy[istart];
xp[iplus] = xx[istart+1]; yp[iplus] = yy[istart+1];
xx[istart] = xmin; yy[istart] = ymin;
xx[istart+1] = xmin; yy[istart+1] = ymin;
while (1) {
nadd = 0;
for (i=2;i<np[ipoly];i+=2) {
if (xx[i] == xp[iplus] && yy[i] == yp[iplus]) {
iplus++;
xp[iplus] = xx[i+1]; yp[iplus] = yy[i+1];
xx[i] = xmin; yy[i] = ymin;
xx[i+1] = xmin; yy[i+1] = ymin;
nadd++;
}
if (xx[i+1] == xp[iminus] && yy[i+1] == yp[iminus]) {
iminus--;
xp[iminus] = xx[i]; yp[iminus] = yy[i];
xx[i] = xmin; yy[i] = ymin;
xx[i+1] = xmin; yy[i+1] = ymin;
nadd++;
}
}
if (nadd == 0) break;
}
theColor = Int_t((ipoly+0.99)*Float_t(ncolors)/Float_t(ndivz));
icol = gStyle->GetColorPalette(theColor);
if (ndivz > 1) fH->SetFillColor(icol);
fH->TAttFill::Modify();
gPad->PaintFillArea(iplus-iminus+1,&xp[iminus],&yp[iminus]);
if (Hoption.List) {
graph = new TGraph(iplus-iminus+1,&xp[iminus],&yp[iminus]);
graph->SetFillColor(icol);
graph->SetLineWidth(fH->GetLineWidth());
list->Add(graph);
}
//check if more points are left
istart = 0;
for (i=2;i<np[ipoly];i+=2) {
if (xx[i] != xmin && yy[i] != ymin) {
istart = i;
break;
}
}
if (istart == 0) break;
}
}
for (i=0;i<ncontour;i++) delete polys[i];
delete [] polys;
delete [] xp;
delete [] yp;
delete [] polysort;
theEND:
gPad->ResetBit(TGraph::kClipFrame);
if (Hoption.Zscale) PaintPalette();
fH->SetLineStyle(linesav);
fH->SetLineColor(colorsav);
fH->SetFillColor(fillsav);
delete [] xarr;
delete [] yarr;
delete [] itarr;
delete [] levels;
}
//______________________________________________________________________________
Int_t THistPainter::PaintContourLine(Double_t elev1, Int_t icont1, Double_t x1, Double_t y1,
Double_t elev2, Int_t icont2, Double_t x2, Double_t y2,
Double_t *xarr, Double_t *yarr, Int_t *itarr, Double_t *levels)
{
// *-*-*-*-*-*Fill the matrix XARR YARR for Contour Plot*-*-*-*-*-*-*-*
// ==========================================
//
Bool_t vert;
Double_t tlen, tdif, elev, diff, pdif, xlen;
Int_t n, i, icount;
if (x1 == x2) {
vert = kTRUE;
tlen = y2 - y1;
} else {
vert = kFALSE;
tlen = x2 - x1;
}
n = icont1 +1;
tdif = elev2 - elev1;
i = 0;
icount = 0;
while (n <= icont2 && i <= kMAXCONTOUR/2 -3) {
//elev = fH->GetContourLevel(n);
elev = levels[n];
diff = elev - elev1;
pdif = diff/tdif;
xlen = tlen*pdif;
if (vert) {
if (Hoption.Logx)
xarr[i] = TMath::Log10(x1);
else
xarr[i] = x1;
if (Hoption.Logy)
yarr[i] = TMath::Log10(y1 + xlen);
else
yarr[i] = y1 + xlen;
} else {
if (Hoption.Logx)
xarr[i] = TMath::Log10(x1 + xlen);
else
xarr[i] = x1 + xlen;
if (Hoption.Logy)
yarr[i] = TMath::Log10(y1);
else
yarr[i] = y1;
}
itarr[i] = n;
icount++;
i +=2;
n++;
}
return icount;
}
//______________________________________________________________________________
void THistPainter::PaintErrors(Option_t *)
{
// *-*-*-*-*-*-*-*-*Draw histogram error bars*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
//
// Draws error bars for the current histogram. The current polymarker
// is drawn at the centre of the errors according to CHOPT:
//
// ' ' Coordinates are expressed in histogram coordinates
// (of the last drawn histogram). Error bars are drawn.
// '1' Small lines are drawn at the end of the error bars.
// '2' Error rectangles are drawn.
// '3' A filled area is drawn through the end points of the vertical
// error bars.
// '4' A smoothed filled area is drawn through the end points of the
// vertical error bars.
// '0' Turn off the symbols clipping.
//
// Note that for all options, the line and fill attributes of the
// histogram are used for the errors or errors contours.
//
// Use gStyle->SetErrorX(dx) to control the size of the error along x.
// set dx = 0 to suppress the error along x.
//
// Use gStyle->SetEndErrorSize(np) to control the size of the lines
// at the end of the error bars (when option 1 is used).
// By default np=1. (np reprersents the number of pixels).
//
/*
*/
//
// *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
const Int_t BASEMARKER=8;
Double_t xp, yp, ex1, ex2, ey1, ey2;
Double_t delta;
Double_t s2x, s2y, bxsize, bysize, symbolsize, xerror, sbase;
Double_t xi1, xi2, xi3, xi4, yi1, yi2, yi3, yi4;
Double_t xmin, xmax, ymin, ymax;
Double_t logxmin = 0;
Double_t logymin = 0;
Int_t i, k, npoints, first, last, fixbin;
Int_t if1 = 0;
Int_t if2 = 0;
Int_t drawmarker, errormarker;
Int_t option0, option1, option2, option3, option4, optionE;
// _____________________________
Double_t *xline = 0;
Double_t *yline = 0;
option0 = option1 = option2 = option3 = option4 = optionE = 0;
if (Hoption.Error == 10) option0 = 1;
if (Hoption.Error == 11) option1 = 1;
if (Hoption.Error == 12) option2 = 1;
if (Hoption.Error == 13) option3 = 1;
if (Hoption.Error == 14) {option4 = 1; option3 = 1;}
if (option2+option3 == 0) optionE = 1;
if (Hoption.Error == 0) optionE = 0;
if (fXaxis->GetXbins()->fN) fixbin = 0;
else fixbin = 1;
errormarker = fH->GetMarkerStyle();
xerror = gStyle->GetErrorX();
symbolsize = fH->GetMarkerSize();
if (errormarker == 1) symbolsize = 0.01;
sbase = symbolsize*BASEMARKER;
// set the graphics attributes
fH->TAttLine::Modify();
fH->TAttFill::Modify();
fH->TAttMarker::Modify();
// set the first and last bin
Double_t factor = Hparam.factor;
first = Hparam.xfirst;
last = Hparam.xlast;
npoints = last - first +1;
xmin = gPad->GetUxmin();
xmax = gPad->GetUxmax();
ymin = gPad->GetUymin();
ymax = gPad->GetUymax();
if (option3) {
xline = new Double_t[2*npoints];
yline = new Double_t[2*npoints];
if (!xline || !yline) {
Error("PaintErrors", "too many points, out of memory");
return;
}
if1 = 1;
if2 = 2*npoints;
}
// compute the offset of the error bars due to the symbol size
s2x = gPad->PixeltoX(Int_t(0.5*sbase)) - gPad->PixeltoX(0);
s2y =-gPad->PixeltoY(Int_t(0.5*sbase)) + gPad->PixeltoY(0);
// compute size of the lines at the end of the error bars
Int_t dxend = Int_t(gStyle->GetEndErrorSize());
bxsize = gPad->PixeltoX(dxend) - gPad->PixeltoX(0);
bysize =-gPad->PixeltoY(dxend) + gPad->PixeltoY(0);
if (fixbin) {
if (Hoption.Logx) xp = TMath::Power(10,Hparam.xmin) + 0.5*Hparam.xbinsize;
else xp = Hparam.xmin + 0.5*Hparam.xbinsize;
}
else {
delta = fH->GetBinWidth(first);
xp = fH->GetBinLowEdge(first) + 0.5*delta;
}
// if errormarker = 0 or symbolsize = 0. no symbol is drawn
if (Hoption.Logx) logxmin = TMath::Power(10,Hparam.xmin);
if (Hoption.Logy) logymin = TMath::Power(10,Hparam.ymin);
// ---------------------- Loop over the points---------------------
for (k=first; k<=last; k++) {
// get the data
// xp = X position of the current point
// yp = Y position of the current point
// ex1 = Low X error
// ex2 = Up X error
// ey1 = Low Y error
// ey2 = Up Y error
// (xi,yi) = Error bars coordinates
if (Hoption.Logx) {
if (xp <= 0) goto L30;
if (xp < logxmin) goto L30;
if (xp > TMath::Power(10,xmax)) break;
} else {
if (xp < xmin) goto L30;
if (xp > xmax) break;
}
yp = factor*fH->GetBinContent(k);
if (fixbin) ex1 = xerror*Hparam.xbinsize;
else {
delta = fH->GetBinWidth(k);
ex1 = xerror*delta;
}
ey1 = factor*fH->GetBinError(k);
ex2 = ex1;
ey2 = ey1;
xi4 = xp;
xi3 = xp;
xi2 = xp + ex2;
xi1 = xp - ex1;
yi1 = yp;
yi2 = yp;
yi3 = yp - ey1;
yi4 = yp + ey2;
// take the LOG if necessary
if (Hoption.Logx) {
xi1 = TMath::Log10(TMath::Max(xi1,logxmin));
xi2 = TMath::Log10(TMath::Max(xi2,logxmin));
xi3 = TMath::Log10(TMath::Max(xi3,logxmin));
xi4 = TMath::Log10(TMath::Max(xi4,logxmin));
}
if (Hoption.Logy) {
yi1 = TMath::Log10(TMath::Max(yi1,logymin));
yi2 = TMath::Log10(TMath::Max(yi2,logymin));
yi3 = TMath::Log10(TMath::Max(yi3,logymin));
yi4 = TMath::Log10(TMath::Max(yi4,logymin));
}
// test if error bars are not outside the limits
// otherwise they are truncated
xi1 = TMath::Max(xi1,xmin);
xi2 = TMath::Min(xi2,xmax);
yi3 = TMath::Max(yi3,ymin);
yi4 = TMath::Min(yi4,ymax);
// test if the marker is on the frame limits. If "Yes", the
// marker will not be drawn and the error bars will be readjusted.
drawmarker = kTRUE;
if (!option0) { // <=====Please check
if (yi1 < ymin || yi1 > ymax) goto L30;
if (Hoption.Error != 0 && yp == 0 && ey1 <= 0) drawmarker = kFALSE;
}
if (!symbolsize || !errormarker) drawmarker = kFALSE;
// draw the error rectangles
if (option2) gPad->PaintBox(xi1,yi3,xi2,yi4);
// keep points for fill area drawing
if (option3) {
xline[if1-1] = xi3;
xline[if2-1] = xi3;
yline[if1-1] = yi4;
yline[if2-1] = yi3;
if1++;
if2--;
}
// draw the error bars
if (optionE && drawmarker) {
if (yi3 < yi1 - s2y) gPad->PaintLine(xi3,yi3,xi4,yi1 - s2y);
if (yi1 + s2y < yi4) gPad->PaintLine(xi3,yi1 + s2y,xi4,yi4);
//don't duplicate the horizontal line
if (Hoption.Hist != 2){
if (xi1 < xi3 - s2x) gPad->PaintLine(xi1,yi1,xi3 - s2x,yi2);
if (xi3 + s2x < xi2) gPad->PaintLine(xi3 + s2x,yi1,xi2,yi2);
}
}
if (optionE && !drawmarker && ey1 != 0) {
if (yi3 < yi4) gPad->PaintLine(xi3,yi3,xi4,yi4);
if (yi1 < yi4) gPad->PaintLine(xi3,yi1,xi4,yi4);
//don't duplicate the horizontal line
if (Hoption.Hist != 2){
if (xi1 < xi3) gPad->PaintLine(xi1,yi1,xi3,yi2);
if (xi3 < xi2) gPad->PaintLine(xi3,yi1,xi2,yi2);
}
}
// draw line at the end of the error bars
if (option1) {
if (yi3 < yi1-s2y) gPad->PaintLine(xi3 - bxsize,yi3,xi3 + bxsize,yi3);
if (yi4 > yi1+s2y) gPad->PaintLine(xi3 - bxsize,yi4,xi3 + bxsize,yi4);
if (xi1 < xi3-s2x) gPad->PaintLine(xi1,yi1 - bysize,xi1,yi1 + bysize);
if (xi2 > xi3+s2x) gPad->PaintLine(xi2,yi1 - bysize,xi2,yi1 + bysize);
}
// draw the marker
if (drawmarker) gPad->PaintPolyMarker(1, &xi3, &yi1);
L30:
if (fixbin) xp += Hparam.xbinsize;
else {
if (k < last) {
delta = fH->GetBinWidth(k+1);
xp = fH->GetBinLowEdge(k+1) + 0.5*delta;
}
}
} //end of for loop
// draw the filled area
if (option3) {
TGraph graph;
graph.SetLineStyle(fH->GetLineStyle());
graph.SetLineColor(fH->GetLineColor());
graph.SetLineWidth(fH->GetLineWidth());
graph.SetFillStyle(fH->GetFillStyle());
graph.SetFillColor(fH->GetFillColor());
Int_t logx = gPad->GetLogx();
Int_t logy = gPad->GetLogy();
gPad->SetLogx(0);
gPad->SetLogy(0);
// In some cases the number of points in the fill area is smaller than
// 2*npoints. In such cases the array xline and yline must be arranged
// before being plotted. The next loop does that.
if (if2 > npoints) {
for(i=1; i<if1 ;i++) {
xline[if1-2+i] = xline[if2-1+i];
yline[if1-2+i] = yline[if2-1+i];
}
npoints = if1-1;
}
if (option4) graph.PaintGraph(2*npoints,xline,yline,"FC");
else graph.PaintGraph(2*npoints,xline,yline,"F");
gPad->SetLogx(logx);
gPad->SetLogy(logy);
delete [] xline;
delete [] yline;
}
}
//______________________________________________________________________________
void THistPainter::Paint2DErrors(Option_t *)
{
// Draw 2D histograms errors
fH->TAttMarker::Modify();
fH->TAttLine::Modify();
// Define the 3D view
fXbuf[0] = Hparam.xmin;
fYbuf[0] = Hparam.xmax;
fXbuf[1] = Hparam.ymin;
fYbuf[1] = Hparam.ymax;
fXbuf[2] = Hparam.zmin;
fYbuf[2] = Hparam.zmax;
fLego = new TPainter3dAlgorithms(fXbuf, fYbuf);
TView *view = gPad->GetView();
if (!view) {
Error("Paint2DErrors", "no TView in current pad");
return;
}
Double_t thedeg = 90 - gPad->GetTheta();
Double_t phideg = -90 - gPad->GetPhi();
Double_t psideg = view->GetPsi();
Int_t irep;
view->SetView(phideg, thedeg, psideg, irep);
// Set color/style for back box
fLego->SetFillStyle(gPad->GetFrameFillStyle());
fLego->SetFillColor(gPad->GetFrameFillColor());
fLego->TAttFill::Modify();
Int_t backcolor = gPad->GetFrameFillColor();
if (Hoption.System != kCARTESIAN) backcolor = 0;
view->PadRange(backcolor);
fLego->SetFillStyle(fH->GetFillStyle());
fLego->SetFillColor(fH->GetFillColor());
fLego->TAttFill::Modify();
// Paint the Back Box if needed
if (Hoption.BackBox && !Hoption.Same) {
fLego->InitMoveScreen(-1.1,1.1);
fLego->DefineGridLevels(fZaxis->GetNdivisions()%100);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove1);
fLego->BackBox(90);
}
// Paint the Errors
Double_t x, ex, x1, x2;
Double_t y, ey, y1, y2;
Double_t z, ez, z1, z2;
Double_t temp1[3],temp2[3];
Double_t xyerror = gStyle->GetErrorX();
for (Int_t j=Hparam.yfirst; j<=Hparam.ylast;j++) {
y = fH->GetBinCenter(j);
ey = fYaxis->GetBinWidth(j)*xyerror;
y1 = y-ey;
y2 = y+ey;
if (Hoption.Logy) {
if (y > 0) y = TMath::Log10(y);
else continue;
if (y1 > 0) y1 = TMath::Log10(y1);
else y1 = Hparam.ymin;
if (y2 > 0) y2 = TMath::Log10(y2);
else y2 = Hparam.ymin;
}
for (Int_t i=Hparam.xfirst; i<=Hparam.xlast;i++) {
Int_t bin = fH->GetBin(i,j);
x = fH->GetBinCenter(i);
ex = fXaxis->GetBinWidth(i)*xyerror;
x1 = x-ex;
x2 = x+ex;
if (Hoption.Logx) {
if (x > 0) x = TMath::Log10(x);
else continue;
if (x1 > 0) x1 = TMath::Log10(x1);
else x1 = Hparam.xmin;
if (x2 > 0) x2 = TMath::Log10(x2);
else x2 = Hparam.xmin;
}
z = fH->GetBinContent(bin);
ez = fH->GetBinError(bin);
z1 = z-ez;
z2 = z+ez;
if (Hoption.Logz) {
if (z > 0) z = TMath::Log10(z);
else z = Hparam.zmin;
if (z1 > 0) z1 = TMath::Log10(z1);
else z1 = Hparam.zmin;
if (z2 > 0) z2 = TMath::Log10(z2);
else z2 = Hparam.zmin;
}
if (z <= Hparam.zmin) continue;
if (z > Hparam.zmax) z = Hparam.zmax;
temp1[0] = x1;
temp1[1] = y;
temp1[2] = z;
temp2[0] = x2;
temp2[1] = y;
temp2[2] = z;
gPad->PaintLine3D(temp1, temp2);
temp1[0] = x;
temp1[1] = y1;
temp1[2] = z;
temp2[0] = x;
temp2[1] = y2;
temp2[2] = z;
gPad->PaintLine3D(temp1, temp2);
temp1[0] = x;
temp1[1] = y;
temp1[2] = z1;
temp2[0] = x;
temp2[1] = y;
temp2[2] = z2;
gPad->PaintLine3D(temp1, temp2);
temp1[0] = x;
temp1[1] = y;
temp1[2] = z;
view->WCtoNDC(temp1, &temp2[0]);
gPad->PaintPolyMarker(1, &temp2[0], &temp2[1]);
}
}
// Paint the Front Box if needed
if (Hoption.FrontBox) {
fLego->InitMoveScreen(-1.1,1.1);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove2);
fLego->FrontBox(90);
}
// Paint the Axis if needed
if (!Hoption.Axis && !Hoption.Same) {
TGaxis *axis = new TGaxis();
PaintLegoAxis(axis, 90);
delete axis;
}
delete fLego; fLego = 0;
}
//______________________________________________________________________________
void THistPainter::PaintFrame()
{
// *-*-*-*-*-*-*-*Calculate range and clear pad (canvas)*-*-*-*-*-*-*-*-*-*
// ======================================
if (Hoption.Same) return;
RecalculateRange();
if (Hoption.Lego || Hoption.Surf || Hoption.Tri ||
Hoption.Contour == 14 || Hoption.Error >= 100) {
TObject *frame = gPad->FindObject("TFrame");
if (frame) gPad->GetListOfPrimitives()->Remove(frame);
return;
}
gPad->PaintPadFrame(Hparam.xmin,Hparam.ymin,Hparam.xmax,Hparam.ymax);
}
//______________________________________________________________________________
void THistPainter::PaintFunction(Option_t *)
{
// *-*-*-*-*-*-*-*-*Paint functions associated to an histogram*-*-*-*-*-*-*
// ==========================================
//
// An associated function is created by THistPainter::Fit. Note that more than
// on fitted function can be associated with one histogram (see THistPainter::Fit).
//
// A TF1 object can be added to the list of associated functions directly
// by a user without calling THistPainter::Fit.
// To add a new function to the list of associated functions, do
// h->GetListOfFunctions()->Add(f1);
// or
// h->GetListOfFunctions()->Add(f1,someoption);
// To retrieve a function by name from this list, do:
// TF1 *f1 = (TF1*)h->GetListOfFunctions()->FindObject(name);
// or
// TF1 *f1 = h->GetFunction(name);
//
TObjOptLink *lnk = (TObjOptLink*)fFunctions->FirstLink();
TObject *obj;
while (lnk) {
obj = lnk->GetObject();
TVirtualPad *padsave = gPad;
if (obj->InheritsFrom(TF1::Class())) {
if (obj->TestBit(TF1::kNotDraw) == 0) obj->Paint("lsame");
} else {
obj->Paint(lnk->GetOption());
}
lnk = (TObjOptLink*)lnk->Next();
padsave->cd();
}
}
//______________________________________________________________________________
void THistPainter::PaintHist(Option_t *)
{
// *-*-*-*-*-*-*-*Control routine to draw an histogram*-*-*-*-*-*-*-*-*-*-*
// ====================================
static char chopth[17];
Int_t htype, oldhtype;
Int_t i, j, first, last, nbins, fixbin;
Double_t c1, yb, y1, y2, ym1, ym2, yadd, ycur, ypre;
Double_t ync, ynext, ypc;
yb = ynext = 0;
strcpy(chopth, " ");
Double_t ymin = Hparam.ymin;
Double_t ymax = Hparam.ymax;
Double_t baroffset = fH->GetBarOffset();
Double_t barwidth = fH->GetBarWidth();
Double_t baroffsetsave = gStyle->GetBarOffset();
Double_t barwidthsave = gStyle->GetBarWidth();
gStyle->SetBarOffset(baroffset);
gStyle->SetBarWidth(barwidth);
// Create "LIFE" structure to keep current histogram status
first = Hparam.xfirst;
last = Hparam.xlast;
nbins = last - first + 1;
Double_t *keepx = 0;
Double_t *keepy = 0;
if (fXaxis->GetXbins()->fN) fixbin = 0;
else fixbin = 1;
if (!Hoption.Plus) {
if (fixbin) keepx = new Double_t[2];
else keepx = new Double_t[nbins+1];
keepy = new Double_t[nbins];
}
Double_t logymin = 0;
if (Hoption.Logy) logymin = TMath::Power(10,ymin);
// Loop on histogram bins
for (j=first; j<=last;j++) {
c1 = Hparam.factor*fH->GetBinContent(j);
if (TMath::Abs(ymax-ymin) > 0) {
if (Hoption.Logy) yb = TMath::Log10(TMath::Max(c1,.1*logymin));
else yb = c1;
}
yb = TMath::Max(yb, ymin);
yb = TMath::Min(yb, ymax);
if (Hoption.Plus) {
// compute y1, y2
y1 = keepy[j-first];
y2 = yb;
if (Hoption.Plus == 1 || Hoption.Plus == -1) {
if (Hoption.Logy)
y2 = TMath::Log10(TMath::Power(10,y1) + Hoption.Plus*TMath::Power(10,y2));
else
y2 = y1 +y2*Hoption.Plus;
}
// compute ym1, ym2
if (!Hoption.Bar) {
yadd = Hparam.factor*fH->GetBinContent(j);
if (Hoption.Logy) ycur = TMath::Power(10,keepy[j-first]);
else ycur = keepy[j-first];
if (j != last) {
ync = Hparam.factor*fH->GetBinContent(j+1);
if (Hoption.Logy) ycur = TMath::Power(10,keepy[j-first+1]);
else ycur = keepy[j-first+1];
}
else { ync = ynext = 0;}
if (j != first) {
ypc = Hparam.factor*fH->GetBinContent(j-1);
if (Hoption.Logy) ypre = TMath::Power(10,keepy[j-first]);
else ypre = keepy[j-first];
}
else { ypc = ypre = 0;}
if (Hoption.Plus == 1) {
ym1 = TMath::Max(TMath::Min(ycur+yadd,ypre),ycur);
ym2 = TMath::Max(TMath::Min(ycur+yadd,ynext+ync),ycur);
}
else if(Hoption.Plus == -1) {
ym1 = TMath::Max(TMath::Min(ycur-yadd,ypre),ycur);
ym2 = TMath::Max(TMath::Min(ycur-yadd,ynext-ync),ycur);
}
else {
if (ycur > yadd) { ym1 = TMath::Max(yadd,ypc); ym2 = TMath::Max(yadd,ync); }
else { ym1 = TMath::Min(yadd,ypc); ym2 = TMath::Min(yadd,ync); }
}
if (Hoption.Logy) {
if (ym1 > 0) ym1 = TMath::Log10(ym1);
if (ym2 > 0) ym2 = TMath::Log10(ym2);
}
}
// Compute X1 X2
if (Hoption.Logy && c1 <= 0) continue;
// Update the current plot
if (Hoption.Plus == 1 || Hoption.Plus == -1) keepy[j-first-1] = y2;
}
else {
keepy[j-first] = yb;
}
} // end of for loop
if (Hoption.Plus) return;
// Draw histogram according to value of FillStyle and FillColor
if (fixbin) { keepx[0] = Hparam.xmin; keepx[1] = Hparam.xmax; }
else {
for (i=0; i<=nbins; i++) keepx[i] = fXaxis->GetBinLowEdge(i+first);
}
// Prepare Fill area (systematic with option "Bar").
oldhtype = fH->GetFillStyle();
htype = oldhtype;
if (Hoption.Bar) {
if (htype == 0 || htype == 1000) htype = 1001;
}
Width_t lw = (Width_t)fH->GetLineWidth();
// Code option for GrapHist
if (Hoption.Line) chopth[0] = 'L';
if (Hoption.Star) chopth[1] = '*';
if (Hoption.Mark) chopth[2] = 'P';
if (Hoption.Mark == 10) chopth[3] = '0';
if (Hoption.Line || Hoption.Curve || Hoption.Hist || Hoption.Bar) {
if (Hoption.Curve) chopth[3] = 'C';
if (Hoption.Hist > 0) chopth[4] = 'H';
else if (Hoption.Bar) chopth[5] = 'B';
if (fH->GetFillColor() && htype) {
if (Hoption.Logy) {
chopth[6] = '1';
}
if (Hoption.Hist > 0 || Hoption.Curve || Hoption.Line) {
chopth[7] = 'F';
}
}
}
if (!fixbin && strlen(chopth)) {
chopth[8] = 'N';
}
if (Hoption.Fill == 2) strcat(chopth,"2");
if (Hoption.HighRes != 0) strcat(chopth,"9");
// Option LOGX
if (Hoption.Logx) {
chopth[9] = 'G';
chopth[10] = 'X';
if (fixbin) {
keepx[0] = TMath::Power(10,keepx[0]);
keepx[1] = TMath::Power(10,keepx[1]);
}
}
if (Hoption.Off) strcat(chopth,"][");
// Draw the histogram
TGraph graph;
graph.SetLineWidth(lw);
graph.SetLineStyle(fH->GetLineStyle());
graph.SetLineColor(fH->GetLineColor());
graph.SetFillStyle(htype);
graph.SetFillColor(fH->GetFillColor());
graph.SetMarkerStyle(fH->GetMarkerStyle());
graph.SetMarkerSize(fH->GetMarkerSize());
graph.SetMarkerColor(fH->GetMarkerColor());
if (!Hoption.Same) graph.ResetBit(TGraph::kClipFrame);
graph.PaintGrapHist(nbins, keepx, keepy ,chopth);
delete [] keepx;
delete [] keepy;
gStyle->SetBarOffset(baroffsetsave);
gStyle->SetBarWidth(barwidthsave);
htype=oldhtype;
}
//______________________________________________________________________________
void THistPainter::PaintH3(Option_t *option)
{
// *-*-*-*-*-*-*-*Control function to draw a 3-D histogram*-*-*-*-*-*-*-*-*
// ========================================
char *cmd;
if (fH->GetDrawOption() && strstr(fH->GetDrawOption(),"box")) {
cmd = Form("TMarker3DBox::PaintH3((TH1 *)0x%lx,\"%s\");",(Long_t)fH,option);
} else if (fH->GetDrawOption() && strstr(fH->GetDrawOption(),"iso")) {
PaintH3Iso();
return;
} else if (strstr(option,"tf3")) {
PaintTF3();
return;
} else {
cmd = Form("TPolyMarker3D::PaintH3((TH1 *)0x%lx,\"%s\");",(Long_t)fH,option);
}
gROOT->ProcessLine(cmd);
//Draw axis
if (Hoption.Same) return;
TView *view = gPad->GetView();
if (!view) return;
view->SetOutlineToCube();
view->GetOutline()->Paint(option);
Hoption.System = kCARTESIAN;
TGaxis *axis = new TGaxis();
PaintLegoAxis(axis,90);
delete axis;
//Draw title
PaintTitle();
}
//______________________________________________________________________________
Int_t THistPainter::PaintInit()
{
// *-*-*-*-*Compute histogram parameters used by the drawing routines*-*-*-*
// =========================================================
if (fH->GetDimension() > 1 || Hoption.Lego || Hoption.Surf) return 1;
static const char *where = "PaintInit";
Double_t YMARGIN = 0.05;
Int_t maximum = 0;
Int_t minimum = 0;
if (fH->GetMaximumStored() != -1111) maximum = 1;
if (fH->GetMinimumStored() != -1111) minimum = 1;
// Compute X axis parameters
Int_t last = fXaxis->GetLast();
Int_t first = fXaxis->GetFirst();
Hparam.xlowedge = fXaxis->GetBinLowEdge(first);
Hparam.xbinsize = fXaxis->GetBinWidth(first);
Hparam.xlast = last;
Hparam.xfirst = first;
Hparam.xmin = Hparam.xlowedge;
Hparam.xmax = fXaxis->GetBinLowEdge(last)+fXaxis->GetBinWidth(last);
// if log scale in X, replace xmin,max by the log
if (Hoption.Logx) {
if (Hparam.xlowedge <=0 ) {
Hparam.xlowedge = 0.1*Hparam.xbinsize;
Hparam.xmin = Hparam.xlowedge;
}
if (Hparam.xmin <=0 || Hparam.xmax <=0) {
Error(where, "cannot set X axis to log scale");
return 0;
}
Hparam.xfirst= fXaxis->FindFixBin(Hparam.xmin);
Hparam.xlast = fXaxis->FindFixBin(Hparam.xmax);
Hparam.xmin = TMath::Log10(Hparam.xmin);
Hparam.xmax = TMath::Log10(Hparam.xmax);
if (Hparam.xlast > last) Hparam.xlast = last;
if (Hparam.xfirst < first) Hparam.xfirst = first;
}
// Compute Y axis parameters
Double_t BIGP = TMath::Power(10,32);
Double_t ymax = -BIGP;
Double_t ymin = BIGP;
Double_t c1, e1;
Double_t xv[1];
Double_t fval;
Int_t i;
TObject *f;
TF1 *f1;
Stat_t allchan = 0;
Int_t NonNullErrors = 0;
TIter next(fFunctions);
for (i=first; i<=last;i++) {
c1 = fH->GetBinContent(i);
ymax = TMath::Max(ymax,c1);
if (Hoption.Logy) {
if (c1 > 0) ymin = TMath::Min(ymin,c1);
} else {
ymin = TMath::Min(ymin,c1);
}
if (Hoption.Error) {
e1 = fH->GetBinError(i);
if (e1 > 0) NonNullErrors++;
ymax = TMath::Max(ymax,c1+e1);
if (Hoption.Logy) {
if (c1-e1>0.01*TMath::Abs(c1)) ymin = TMath::Min(ymin,c1-e1);
} else {
ymin = TMath::Min(ymin,c1-e1);
}
}
if (Hoption.Func) {
xv[0] = fXaxis->GetBinCenter(i);
while ((f = (TObject*) next())) {
if (f->IsA() == TF1::Class()) {
f1 = (TF1*)f;
if (xv[0] < f1->GetXmin() || xv[0] > f1->GetXmax()) continue;
fval = f1->Eval(xv[0],0,0);
ymax = TMath::Max(ymax,fval);
if (Hoption.Logy) {
if (c1 > 0 && fval > 0.3*c1) ymin = TMath::Min(ymin,fval);
}
}
}
next.Reset();
}
allchan += c1;
}
if (!NonNullErrors) {
if (Hoption.Error) {
if (!Hoption.Mark && !Hoption.Line && !Hoption.Star && !Hoption.Curve) Hoption.Hist = 2;
Hoption.Error=0;
}
}
// Take into account maximum , minimum
if (Hoption.Logy && ymin <= 0) {
if (ymax >= 1) ymin = TMath::Max(.005,ymax*1e-10);
else ymin = 0.001*ymax;
}
Double_t xm = ymin;
if (maximum) ymax = fH->GetMaximumStored();
if (minimum) xm = fH->GetMinimumStored();
if (Hoption.Logy && xm <= 0) {
Error(where, "log scale requested with zero or negative argument (%f)", xm);
return 0;
}
else ymin = xm;
if (ymin >= ymax && !Hoption.Plus) {
if (Hoption.Logy) {
if (ymax > 0) ymin = 0.001*ymax;
else {
if (!Hoption.Same) Error(where, "log scale is requested but maximum is less or equal 0 (%f)", ymax);
return 0;
}
}
else {
if (ymin > 0) {
ymin = 0;
ymax *= 2;
} else if (ymin < 0) {
ymax = 0;
ymin *= 2;
} else {
ymin = -1;
ymax = 1;
}
}
}
// take into account normalization factor
Hparam.allchan = allchan;
Stat_t factor = allchan;
if (fH->GetNormFactor() > 0) factor = fH->GetNormFactor();
if (allchan) factor /= allchan;
if (factor == 0) factor = 1;
Hparam.factor = factor;
ymax = factor*ymax;
ymin = factor*ymin;
//just in case the norm factor is negative
// this may happen with a positive norm factor and a negative integral !
if (ymax < ymin) {
Double_t temp = ymax;
ymax = ymin;
ymin = temp;
}
// ----
// For log scales, histogram coordinates are LOG10(ymin) and
// LOG10(ymax). Final adjustment (if not option "Same"
// or "+" for ymax) of ymax and ymin for logarithmic scale, if
// Maximum and Minimum are not defined.
// ----
if (Hoption.Logy) {
if (ymin <=0 || ymax <=0) {
Error(where, "Cannot set Y axis to log scale");
return 0;
}
ymin = TMath::Log10(ymin);
if (!minimum) ymin += TMath::Log10(0.5);
ymax = TMath::Log10(ymax);
if (!maximum && !Hoption.Plus) ymax += TMath::Log10(2*(0.9/0.95));
if (!Hoption.Same) {
Hparam.ymin = ymin;
Hparam.ymax = ymax;
}
return 1;
}
// ----
// final adjustment of ymin for linear scale.
// if minimum is not set , then ymin is set to zero if >0
// or to ymin - margin if <0.
// ----
if (!minimum) {
if (gStyle->GetHistMinimumZero()) {
if (ymin >= 0) ymin = 0;
else ymin -= YMARGIN*(ymax-ymin);
} else {
Double_t dymin = YMARGIN*(ymax-ymin);
if (ymin >= 0 && (ymin-dymin <= 0)) ymin = 0;
else ymin -= dymin;
}
}
// ----
// final adjustment of YMAXI for linear scale (if not option "Same"):
// decrease histogram height to MAX% of allowed height if HMAXIM
// has not been called.
// ----
if (!maximum && !Hoption.Plus) {
ymax += YMARGIN*(ymax-ymin);
}
Hparam.ymin = ymin;
Hparam.ymax = ymax;
return 1;
}
//______________________________________________________________________________
Int_t THistPainter::PaintInitH()
{
// Compute histogram parameters used by the drawing routines
// for a rotated pad
static const char *where = "PaintInitH";
Double_t YMARGIN = 0.05;
Int_t maximum = 0;
Int_t minimum = 0;
if (fH->GetMaximumStored() != -1111) maximum = 1;
if (fH->GetMinimumStored() != -1111) minimum = 1;
// Compute X axis parameters
Int_t last = fXaxis->GetLast();
Int_t first = fXaxis->GetFirst();
Hparam.xlowedge = fXaxis->GetBinLowEdge(first);
Hparam.xbinsize = fXaxis->GetBinWidth(first);
Hparam.xlast = last;
Hparam.xfirst = first;
Hparam.ymin = Hparam.xlowedge;
Hparam.ymax = fXaxis->GetBinLowEdge(last)+fXaxis->GetBinWidth(last);
// if log scale in Y, replace ymin,max by the log
if (Hoption.Logy) {
if (Hparam.xlowedge <=0 ) {
Hparam.xlowedge = 0.1*Hparam.xbinsize;
Hparam.ymin = Hparam.xlowedge;
}
if (Hparam.ymin <=0 || Hparam.ymax <=0) {
Error(where, "cannot set Y axis to log scale");
return 0;
}
Hparam.xfirst= fXaxis->FindFixBin(Hparam.ymin);
Hparam.xlast = fXaxis->FindFixBin(Hparam.ymax);
Hparam.ymin = TMath::Log10(Hparam.ymin);
Hparam.ymax = TMath::Log10(Hparam.ymax);
if (Hparam.xlast > last) Hparam.xlast = last;
}
// Compute Y axis parameters
Double_t BIGP = TMath::Power(10,32);
Double_t xmax = -BIGP;
Double_t xmin = BIGP;
Double_t c1, e1;
Double_t xv[1];
Double_t fval;
Int_t i;
TObject *f;
TF1 *f1;
Stat_t allchan = 0;
TIter next(fFunctions);
for (i=first; i<=last;i++) {
c1 = fH->GetBinContent(i);
xmax = TMath::Max(xmax,c1);
xmin = TMath::Min(xmin,c1);
if (Hoption.Error) {
e1 = fH->GetBinError(i);
xmax = TMath::Max(xmax,c1+e1);
xmin = TMath::Min(xmin,c1-e1);
}
if (Hoption.Func) {
xv[0] = fXaxis->GetBinCenter(i);
while ((f = (TObject*) next())) {
if (f->IsA() == TF1::Class()) {
f1 = (TF1*)f;
if (xv[0] < f1->GetXmin() || xv[0] > f1->GetXmax()) continue;
fval = f1->Eval(xv[0],0,0);
xmax = TMath::Max(xmax,fval);
if (Hoption.Logy) {
if (fval > 0.3*c1) xmin = TMath::Min(xmin,fval);
}
}
}
next.Reset();
}
allchan += c1;
}
// Take into account maximum , minimum
if (Hoption.Logx && xmin <= 0) {
if (xmax >= 1) xmin = TMath::Max(.5,xmax*1e-10);
else xmin = 0.001*xmax;
}
Double_t xm = xmin;
if (maximum) xmax = fH->GetMaximumStored();
if (minimum) xm = fH->GetMinimumStored();
if (Hoption.Logx && xm <= 0) {
Error(where, "log scale requested with zero or negative argument (%f)", xm);
return 0;
}
else xmin = xm;
if (xmin >= xmax && !Hoption.Plus) {
if (Hoption.Logx) {
if (xmax > 0) xmin = 0.001*xmax;
else {
if (!Hoption.Same) Error(where, "log scale is requested but maximum is less or equal 0 (%f)", xmax);
return 0;
}
}
else {
if (xmin > 0) {
xmin = 0;
xmax *= 2;
} else if (xmin < 0) {
xmax = 0;
xmin *= 2;
} else {
xmin = -1;
xmax = 1;
}
}
}
// take into account normalization factor
Hparam.allchan = allchan;
Stat_t factor = allchan;
if (fH->GetNormFactor() > 0) factor = fH->GetNormFactor();
if (allchan) factor /= allchan;
if (factor == 0) factor = 1;
Hparam.factor = factor;
xmax = factor*xmax;
xmin = factor*xmin;
// ----
// For log scales, histogram coordinates are LOG10(ymin) and
// LOG10(ymax). Final adjustment (if not option "Same"
// or "+" for ymax) of ymax and ymin for logarithmic scale, if
// Maximum and Minimum are not defined.
// ----
if (Hoption.Logx) {
if (xmin <=0 || xmax <=0) {
Error(where, "Cannot set Y axis to log scale");
return 0;
}
xmin = TMath::Log10(xmin);
if (!minimum) xmin += TMath::Log10(0.5);
xmax = TMath::Log10(xmax);
if (!maximum && !Hoption.Plus) xmax += TMath::Log10(2*(0.9/0.95));
if (!Hoption.Same) {
Hparam.xmin = xmin;
Hparam.xmax = xmax;
}
return 1;
}
// ----
// final adjustment of ymin for linear scale.
// if minimum is not set , then ymin is set to zero if >0
// or to ymin - margin if <0.
// ----
if (!minimum) {
if (xmin >= 0) xmin = 0;
else xmin -= YMARGIN*(xmax-xmin);
}
// ----
// final adjustment of YMAXI for linear scale (if not option "Same"):
// decrease histogram height to MAX% of allowed height if HMAXIM
// has not been called.
// ----
if (!maximum && !Hoption.Plus) {
xmax += YMARGIN*(xmax-xmin);
}
Hparam.xmin = xmin;
Hparam.xmax = xmax;
return 1;
}
//______________________________________________________________________________
void THistPainter::PaintH3Iso()
{
// Control function to draw a 3d histogram with Iso Surfaces.
//
// Thanks to the function IsoSurface of the TPainter3dAlgorithms class, this
// function paints a Gouraud shaded 3d iso surface though a 3d histogram.
//
// This first implementation paint one surface at the value computed as follow:
// SumOfWeights/(NbinsX*NbinsY*NbinsZ)
//
// Example:
//
// #include "TH3.h"
// #include "TRandom.h"
//
// void hist3d() {
// TH3F *h3 = new TH3F("h3","h3",20,-2,2,20,-2,2,20,0,4);
// Double_t x, y, z;
// for (Int_t i=0;i<10000;i++) {
// gRandom->Rannor(x, y);
// z = x*x + y*y;
// h3->Fill(x,y,z);
// }
// h3->Draw("iso");
// }
//
//
/*
*/
//
const Double_t ydiff = 1;
const Double_t yligh1 = 10;
const Double_t qa = 0.15;
const Double_t qd = 0.15;
const Double_t qs = 0.8;
Double_t fmin, fmax;
Int_t i, irep;
Int_t nbcol = 28;
Int_t icol1 = 201;
Int_t ic1 = icol1;
Int_t ic2 = ic1+nbcol;
Int_t ic3 = ic2+nbcol;
TGaxis *axis = new TGaxis();
TAxis *xaxis = fH->GetXaxis();
TAxis *yaxis = fH->GetYaxis();
TAxis *zaxis = fH->GetZaxis();
Int_t nx = fH->GetNbinsX();
Int_t ny = fH->GetNbinsY();
Int_t nz = fH->GetNbinsZ();
Double_t *x = new Double_t[nx];
Double_t *y = new Double_t[ny];
Double_t *z = new Double_t[nz];
for ( i=0 ; i<nx ; i++) x[i] = xaxis->GetBinCenter(i+1);
for ( i=0 ; i<ny ; i++) y[i] = yaxis->GetBinCenter(i+1);
for ( i=0 ; i<nz ; i++) z[i] = zaxis->GetBinCenter(i+1);
fXbuf[0] = xaxis->GetBinLowEdge(xaxis->GetFirst());
fYbuf[0] = xaxis->GetBinUpEdge(xaxis->GetLast());
fXbuf[1] = yaxis->GetBinLowEdge(yaxis->GetFirst());
fYbuf[1] = yaxis->GetBinUpEdge(yaxis->GetLast());
fXbuf[2] = zaxis->GetBinLowEdge(zaxis->GetFirst());
fYbuf[2] = zaxis->GetBinUpEdge(zaxis->GetLast());
Double_t s[3];
s[0] = fH->GetSumOfWeights()/(fH->GetNbinsX()*fH->GetNbinsY()*fH->GetNbinsZ());
s[1] = 0.5*s[0];
s[2] = 1.5*s[0];
fLego = new TPainter3dAlgorithms(fXbuf, fYbuf);
TView *view = gPad->GetView();
if (!view) {
Error("PaintH3Iso", "no TView in current pad");
return;
}
Double_t thedeg = 90 - gPad->GetTheta();
Double_t phideg = -90 - gPad->GetPhi();
Double_t psideg = view->GetPsi();
view->SetView(phideg, thedeg, psideg, irep);
Double_t dcol = 0.5/Double_t(nbcol);
TColor *colref = gROOT->GetColor(fH->GetFillColor());
Float_t r, g, b, hue, light, satur;
colref->GetRGB(r,g,b);
TColor::RGBtoHLS(r,g,b,hue,light,satur);
TColor *acol;
for (Int_t col=0;col<nbcol;col++) {
acol = gROOT->GetColor(col+icol1);
TColor::HLStoRGB(hue, .4+col*dcol, satur, r, g, b);
acol->SetRGB(r, g, b);
}
fLego->InitMoveScreen(-1.1,1.1);
if (Hoption.BackBox) {
fLego->DefineGridLevels(fZaxis->GetNdivisions()%100);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove1);
fLego->BackBox(90);
}
fLego->LightSource(0, ydiff, 0, 0, 0, irep);
fLego->LightSource(1, yligh1, 1, 1, 1, irep);
fLego->SurfaceProperty(qa, qd, qs, 1, irep);
fmin = ydiff*qa;
fmax = ydiff*qa + (yligh1+0.1)*(qd+qs);
fLego->SetIsoSurfaceParameters(fmin, fmax, nbcol, ic1, ic2, ic3);
fLego->IsoSurface(1, s, nx, ny, nz, x, y, z, "BF");
if (Hoption.FrontBox) {
fLego->InitMoveScreen(-1.1,1.1);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove2);
fLego->FrontBox(90);
}
if (!Hoption.Axis && !Hoption.Same) PaintLegoAxis(axis, 90);
PaintTitle();
delete axis;
delete fLego; fLego = 0;
delete [] x;
delete [] y;
delete [] z;
}
//______________________________________________________________________________
void THistPainter::PaintLego(Option_t *)
{
// *-*-*-*-*-*Control function to draw a table as a lego plot*-*-*-*-*-*
// ===============================================
//
// In a lego plot, cell contents are represented as 3-d boxes.
// The height of the box is proportional to the cell content.
//
// A lego plot can be represented in several coordinate systems.
// Default system is Cartesian coordinates.
// Possible systems are CYL,POL,SPH,PSR.
//
// See THistPainter::Draw for the list of Lego options.
// See TPainter3dAlgorithms for more examples of lego options.
//
// See TStyle::SeTPaletteAxis to change the color palette.
// It is suggested to use palette 1 via the call
// gStyle->SetColorPalette(1)
//
//
/*
*/
//
//
// *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Int_t raster = 1;
if (Hparam.zmin == 0 && Hparam.zmax == 0) {Hparam.zmin = -1; Hparam.zmax = 1;}
Int_t nx = Hparam.xlast - Hparam.xfirst + 1;
Int_t ny = Hparam.ylast - Hparam.yfirst + 1;
Double_t zmin = Hparam.zmin;
Double_t zmax = Hparam.zmax;
Double_t xlab1 = Hparam.xmin;
Double_t xlab2 = Hparam.xmax;
Double_t ylab1 = Hparam.ymin;
Double_t ylab2 = Hparam.ymax;
Double_t dangle = 10*3.141592/180; //Delta angle for Rapidity option
Double_t deltaz = TMath::Abs(zmin);
if (deltaz == 0) deltaz = 1;
if (zmin >= zmax) {
zmin -= 0.5*deltaz;
zmax += 0.5*deltaz;
}
Double_t z1c = zmin;
Double_t z2c = zmin + (zmax-zmin)*kHMAX;
// Compute the lego limits and instantiate a lego object
fXbuf[0] = -1;
fYbuf[0] = 1;
fXbuf[1] = -1;
fYbuf[1] = 1;
if (Hoption.System == kPOLAR) {
fXbuf[2] = z1c;
fYbuf[2] = z2c;
} else if (Hoption.System == kCYLINDRICAL) {
if (Hoption.Logy) {
if (ylab1 > 0) fXbuf[2] = TMath::Log10(ylab1);
else fXbuf[2] = 0;
if (ylab2 > 0) fYbuf[2] = TMath::Log10(ylab2);
else fYbuf[2] = 0;
} else {
fXbuf[2] = ylab1;
fYbuf[2] = ylab2;
}
z1c = 0; z2c = 1;
} else if (Hoption.System == kSPHERICAL) {
fXbuf[2] = -1;
fYbuf[2] = 1;
z1c = 0; z2c = 1;
} else if (Hoption.System == kRAPIDITY) {
fXbuf[2] = -1/TMath::Tan(dangle);
fYbuf[2] = 1/TMath::Tan(dangle);
} else {
fXbuf[0] = xlab1;
fYbuf[0] = xlab2;
fXbuf[1] = ylab1;
fYbuf[1] = ylab2;
fXbuf[2] = z1c;
fYbuf[2] = z2c;
raster = 0;
}
//TView *view = gPad->GetView();
//if (view) {
// for (Int_t iv=0;iv<6;iv++) {
// fXbuf[iv] = view->GetRmin()[iv];
// fYbuf[iv] = view->GetRmax()[iv];
// }
//}
fLego = new TPainter3dAlgorithms(fXbuf, fYbuf, Hoption.System);
// Create axis object
TGaxis *axis = new TGaxis();
// Initialize the levels on the Z axis
Int_t ndiv = fH->GetContour();
if (ndiv == 0 ) {
ndiv = gStyle->GetNumberContours();
fH->SetContour(ndiv);
}
Int_t ndivz = TMath::Abs(ndiv);
if (fH->TestBit(TH1::kUserContour) == 0) fH->SetContour(ndiv);
// Initialize colors for the lighting model (option Lego1 only)
if (Hoption.Lego == 1) {
Color_t colormain = fH->GetLineColor();
fLego->SetColorMain(colormain,0);
}
if (Hoption.Lego == 11) {
Int_t nids = 1;
if (fStack) nids = fStack->GetSize();
TH1 *hid = fH;
for (Int_t id=0;id<=nids;id++) {
if (id > 0 && fStack) hid = (TH1*)fStack->At(id-1);
Color_t colormain = hid->GetFillColor();
if (colormain == 1) colormain = 17; //avoid drawing with black
Color_t colordark = colormain + 100;
fLego->SetColorMain(colormain,id);
fLego->SetColorDark(colordark,id);
if (id == 0) fLego->SetColorMain(colormain,-1); // Set Bottom color
if (id == nids) fLego->SetColorMain(colormain,99); // Set Top color
}
}
// Now ready to draw the lego plot
Int_t irep = 0;
TView *view = gPad->GetView();
if (!view) {
Error("PaintLego", "no TView in current pad");
return;
}
Double_t thedeg = 90 - gPad->GetTheta();
Double_t phideg = -90 - gPad->GetPhi();
Double_t psideg = view->GetPsi();
view->SetView(phideg, thedeg, psideg, irep);
fLego->SetLineColor(fH->GetLineColor());
fLego->SetFillStyle(fH->GetFillStyle());
// Set color/style for back box
fLego->SetFillStyle(gPad->GetFrameFillStyle());
fLego->SetFillColor(gPad->GetFrameFillColor());
fLego->TAttFill::Modify();
Int_t backcolor = gPad->GetFrameFillColor();
if (Hoption.System != kCARTESIAN) backcolor = 0;
view->PadRange(backcolor);
fLego->SetFillStyle(fH->GetFillStyle());
fLego->SetFillColor(fH->GetFillColor());
fLego->TAttFill::Modify();
fLego->DefineGridLevels(fZaxis->GetNdivisions()%100);
if (raster) fLego->InitRaster(-1.1,-1.1,1.1,1.1,1000,800);
else fLego->InitMoveScreen(-1.1,1.1);
if (Hoption.Lego == 11 || Hoption.Lego == 12) {
// fLego->SetLineColor(1);
if (Hoption.System == kCARTESIAN && Hoption.BackBox) {
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove1);
fLego->BackBox(90);
}
}
if (Hoption.Lego == 12) DefineColorLevels(ndivz);
fLego->SetLegoFunction(&TPainter3dAlgorithms::LegoFunction);
if (Hoption.Lego == 1) fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceRaster2);
if (Hoption.Lego == 11) fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMode3);
if (Hoption.Lego == 12) fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMode2);
if (Hoption.System == kPOLAR) {
if (Hoption.Lego == 1) fLego->LegoPolar(1,nx,ny,"FB");
if (Hoption.Lego == 11) fLego->LegoPolar(1,nx,ny,"BF");
if (Hoption.Lego == 12) fLego->LegoPolar(1,nx,ny,"BF");
} else if (Hoption.System == kCYLINDRICAL) {
if (Hoption.Lego == 1) fLego->LegoCylindrical(1,nx,ny,"FB");
if (Hoption.Lego == 11) fLego->LegoCylindrical(1,nx,ny,"BF");
if (Hoption.Lego == 12) fLego->LegoCylindrical(1,nx,ny,"BF");
} else if (Hoption.System == kSPHERICAL) {
if (Hoption.Lego == 1) fLego->LegoSpherical(0,1,nx,ny,"FB");
if (Hoption.Lego == 11) fLego->LegoSpherical(0,1,nx,ny,"BF");
if (Hoption.Lego == 12) fLego->LegoSpherical(0,1,nx,ny,"BF");
} else if (Hoption.System == kRAPIDITY) {
if (Hoption.Lego == 1) fLego->LegoSpherical(1,1,nx,ny,"FB");
if (Hoption.Lego == 11) fLego->LegoSpherical(1,1,nx,ny,"BF");
if (Hoption.Lego == 12) fLego->LegoSpherical(1,1,nx,ny,"BF");
} else {
if (Hoption.Lego == 1) {
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove2);
fLego->LegoCartesian(90,nx,ny,"FB");}
if (Hoption.Lego == 11) fLego->LegoCartesian(90,nx,ny,"BF");
if (Hoption.Lego == 12) fLego->LegoCartesian(90,nx,ny,"BF");
}
if (Hoption.Lego == 1 || Hoption.Lego == 11) {
fLego->SetLineColor(1);
if (Hoption.System == kCARTESIAN && Hoption.BackBox) {
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove1);
fLego->BackBox(90);
}
}
if (Hoption.System == kCARTESIAN) {
fLego->InitMoveScreen(-1.1,1.1);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove2);
if (Hoption.FrontBox) fLego->FrontBox(90);
}
if (!Hoption.Axis && !Hoption.Same) PaintLegoAxis(axis, 90);
if (Hoption.Zscale) PaintPalette(); // MOD MWH
delete axis;
delete fLego; fLego = 0;
}
//______________________________________________________________________________
void THistPainter::PaintLegoAxis(TGaxis *axis, Double_t ang)
{
// *-*-*-*-*Draw the axis for legos and surface plots*-*-*-*-*-*-*-*-*-*
// =========================================
//
static Double_t epsil = 0.001;
Double_t cosa, sina;
Double_t bmin, bmax;
Double_t r[24] /* was [3][8] */;
Int_t ndivx, ndivy, ndivz, i;
Double_t x1[3], x2[3], y1[3], y2[3], z1[3], z2[3], av[24] /* was [3][8] */;
static char chopax[8], chopay[8], chopaz[8];
Int_t ix1, ix2, iy1, iy2, iz1, iz2;
Double_t rad;
// ----------------------------------------------------------------------
TView *view = gPad->GetView();
if (!view) {
Error("PaintLegoAxis", "no TView in current pad");
return;
}
// in polar coordinates, draw a short line going from the external circle
// corresponding to r = 1 up to r = 1.1
if (Hoption.System == kPOLAR) {
r[0] = 1;
r[1] = 0;
r[2] = 0;
view->WCtoNDC(r, x1);
r[0] = 1.1;
r[1] = 0;
r[2] = 0;
view->WCtoNDC(r, x2);
gPad->PaintLine(x1[0],x1[1],x2[0],x2[1]);
return ;
}
if (Hoption.System != kCARTESIAN) return ;
rad = TMath::ATan(1.) * 4. /180.;
cosa = TMath::Cos(ang*rad);
sina = TMath::Sin(ang*rad);
view->AxisVertex(ang, av, ix1, ix2, iy1, iy2, iz1, iz2);
for (i = 1; i <= 8; ++i) {
r[i*3 - 3] = av[i*3 - 3] + av[i*3 - 2]*cosa;
r[i*3 - 2] = av[i*3 - 2]*sina;
r[i*3 - 1] = av[i*3 - 1];
}
view->WCtoNDC(&r[ix1*3 - 3], x1);
view->WCtoNDC(&r[ix2*3 - 3], x2);
view->WCtoNDC(&r[iy1*3 - 3], y1);
view->WCtoNDC(&r[iy2*3 - 3], y2);
view->WCtoNDC(&r[iz1*3 - 3], z1);
view->WCtoNDC(&r[iz2*3 - 3], z2);
view->SetAxisNDC(x1, x2, y1, y2, z1, z2);
Double_t *rmin = view->GetRmin();
Double_t *rmax = view->GetRmax();
// Initialize the axis options
if (x1[0] > x2[0]) strcpy(chopax, "SDH=+");
else strcpy(chopax, "SDH=-");
if (y1[0] > y2[0]) strcpy(chopay, "SDH=+");
else strcpy(chopay, "SDH=-");
strcpy(chopaz, "SDH+=");
// Option LOG is required ?
if (Hoption.Logx) strcat(chopax,"G");
if (Hoption.Logy) strcat(chopay,"G");
if (Hoption.Logz) strcat(chopaz,"G");
// Initialize the number of divisions. If the
// number of divisions is negative, option 'N' is required.
ndivx = fXaxis->GetNdivisions();
ndivy = fYaxis->GetNdivisions();
ndivz = fZaxis->GetNdivisions();
if (ndivx < 0) {
ndivx = TMath::Abs(ndivx);
strcat(chopax, "N");
}
if (ndivy < 0) {
ndivy = TMath::Abs(ndivy);
strcat(chopay, "N");
}
if (ndivz < 0) {
ndivz = TMath::Abs(ndivz);
strcat(chopaz, "N");
}
// Set Axis attributes.
// The variable SCALE rescales the VSIZ
// in order to have the same label size for all angles.
axis->SetLineWidth(1);
// X axis drawing
if (TMath::Abs(x1[0] - x2[0]) >= epsil || TMath::Abs(x1[1] - x2[1]) > epsil) {
axis->ImportAxisAttributes(fXaxis);
axis->SetLabelOffset(fXaxis->GetLabelOffset()+fXaxis->GetTickLength());
if (Hoption.Logx) {
bmin = TMath::Power(10, rmin[0]);
bmax = TMath::Power(10, rmax[0]);
} else {
bmin = rmin[0];
bmax = rmax[0];
}
// Option time display is required ?
if (fXaxis->GetTimeDisplay()) {
strcat(chopax,"t");
if (strlen(fXaxis->GetTimeFormatOnly()) == 0) {
axis->SetTimeFormat(fXaxis->ChooseTimeFormat(bmax-bmin));
} else {
axis->SetTimeFormat(fXaxis->GetTimeFormat());
}
}
axis->SetOption(chopax);
axis->PaintAxis(x1[0], x1[1], x2[0], x2[1], bmin, bmax, ndivx, chopax);
}
// Y axis drawing
if (TMath::Abs(y1[0] - y2[0]) >= epsil || TMath::Abs(y1[1] - y2[1]) > epsil) {
axis->ImportAxisAttributes(fYaxis);
axis->SetLabelOffset(fYaxis->GetLabelOffset()+fYaxis->GetTickLength());
//if (TMath::Abs(z1[0] - z2[0]) < epsil && TMath::Abs(z1[1] - z2[1]) < epsil) {
// strcpy(chopay, "SDH+=N");
//}
if (fH->GetDimension() < 2) {
strcpy(chopay, "V=+UN");
ndivy = 0;
}
if (TMath::Abs(y1[0] - y2[0]) < epsil) {
y2[0] = y1[0];
}
if (Hoption.Logy) {
bmin = TMath::Power(10, rmin[1]);
bmax = TMath::Power(10, rmax[1]);
} else {
bmin = rmin[1];
bmax = rmax[1];
}
// Option time display is required ?
if (fYaxis->GetTimeDisplay()) {
strcat(chopay,"t");
if (strlen(fYaxis->GetTimeFormatOnly()) == 0) {
axis->SetTimeFormat(fYaxis->ChooseTimeFormat(bmax-bmin));
} else {
axis->SetTimeFormat(fYaxis->GetTimeFormat());
}
}
axis->SetOption(chopay);
axis->PaintAxis(y1[0], y1[1], y2[0], y2[1], bmin, bmax, ndivy, chopay);
}
// Z axis drawing
if (TMath::Abs(z1[0] - z2[0]) >= 100*epsil || TMath::Abs(z1[1] - z2[1]) > 100*epsil) {
axis->ImportAxisAttributes(fZaxis);
if (Hoption.Logz) {
bmin = TMath::Power(10, rmin[2]);
bmax = TMath::Power(10, rmax[2]);
} else {
bmin = rmin[2];
bmax = rmax[2];
}
// Option time display is required ?
if (fZaxis->GetTimeDisplay()) {
strcat(chopaz,"t");
if (strlen(fZaxis->GetTimeFormatOnly()) == 0) {
axis->SetTimeFormat(fZaxis->ChooseTimeFormat(bmax-bmin));
} else {
axis->SetTimeFormat(fZaxis->GetTimeFormat());
}
}
axis->SetOption(chopaz);
axis->PaintAxis(z1[0], z1[1], z2[0], z2[1], bmin, bmax, ndivz, chopaz);
}
fH->SetLineStyle(1);
}
//______________________________________________________________________________
void THistPainter::PaintPalette()
{
// *-*-*-*-*-*Paint the color palette on the right side of the pad*-*-*-*-*
// ====================================================
TPaletteAxis *palette = (TPaletteAxis*)fFunctions->FindObject("palette");
TView *view = gPad->GetView();
if (palette) {
if (view) {
if (!palette->TestBit(TPaletteAxis::kHasView)) {
delete palette; palette = 0;
}
} else {
if (palette->TestBit(TPaletteAxis::kHasView)) {
delete palette; palette = 0;
}
}
}
if (!palette) {
Double_t xup = gPad->GetUxmax();
Double_t x2 = gPad->PadtoX(gPad->GetX2());
Double_t ymin = gPad->PadtoY(gPad->GetUymin());
Double_t ymax = gPad->PadtoY(gPad->GetUymax());
Double_t xr = 0.05*(gPad->GetX2() - gPad->GetX1());
Double_t xmin = gPad->PadtoX(xup +0.1*xr);
Double_t xmax = gPad->PadtoX(xup + xr);
if (xmax > x2) xmax = gPad->PadtoX(gPad->GetX2()-0.01*xr);
palette = new TPaletteAxis(xmin,ymin,xmax,ymax,fH);
fFunctions->Add(palette);
palette->Paint();
}
}
//______________________________________________________________________________
void THistPainter::PaintScatterPlot(Option_t *option)
{
// *-*-*-*-*-*Control function to draw a table as a scatter plot*-*-*-*-*
// ==================================================
//
// For each cell (i,j) a number of points proportional to the cell
// content is drawn.
// A maximum of kNMAX points per cell is drawn. If the maximum is above kNMAX
// contents are normalized to kNMAX. (kNMAX=2000)/
// if option is of the form "scat=ff", (eg scat=1.8, scat=1e-3), then
// ff is used as a scale factor to compute the number of dots.
// "scat=1" is the default.
//
/*
*/
//
//
// *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
fH->TAttMarker::Modify();
Int_t k, marker;
Double_t dz, z, xk,xstep, yk, ystep;
Double_t scale = 1;
Bool_t ltest = kFALSE;
Double_t zmax = fH->GetMaximum();
Double_t zmin = fH->GetMinimum();
if (zmin == 0 && zmax == 0) return;
if (zmin == zmax) {
zmax += 0.01*TMath::Abs(zmax);
zmin -= 0.01*TMath::Abs(zmin);
}
Int_t ncells = (Hparam.ylast-Hparam.yfirst)*(Hparam.xlast-Hparam.xfirst);
if (Hoption.Logz) {
if (zmin > 0) zmin = TMath::Log10(zmin);
else zmin = 0;
if (zmax > 0) zmax = TMath::Log10(zmax);
else zmax = 0;
if (zmin == 0 && zmax == 0) return;
dz = zmax - zmin;
scale = 100/dz;
if (ncells > 10000) scale /= 5;
ltest = kTRUE;
} else {
dz = zmax - zmin;
if (dz >= kNMAX || zmax < 1) {
scale = (kNMAX-1)/dz;
if (ncells > 10000) scale /= 5;
ltest = kTRUE;
}
}
if (fH->GetMinimumStored() == -1111) {
Double_t YMARGIN = 0.05;
if (gStyle->GetHistMinimumZero()) {
if (zmin >= 0) zmin = 0;
else zmin -= YMARGIN*(zmax-zmin);
} else {
Double_t dzmin = YMARGIN*(zmax-zmin);
if (zmin >= 0 && (zmin-dzmin <= 0)) zmin = 0;
else zmin -= dzmin;
}
}
TString opt = option;
opt.ToLower();
if (opt.Contains("scat=")) {
char optscat[100];
strcpy(optscat,opt.Data());
char *oscat = strstr(optscat,"scat=");
char *blank = strstr(oscat," "); if (blank) *blank = 0;
sscanf(oscat+5,"%lg",&scale);
}
UInt_t seedsave = gRandom->GetSeed();
gRandom->SetSeed();
marker=0;
for (Int_t j=Hparam.yfirst; j<=Hparam.ylast;j++) {
yk = fYaxis->GetBinLowEdge(j);
ystep = fYaxis->GetBinWidth(j);
for (Int_t i=Hparam.xfirst; i<=Hparam.xlast;i++) {
Int_t bin = j*(fXaxis->GetNbins()+2) + i;
xk = fXaxis->GetBinLowEdge(i);
xstep = fXaxis->GetBinWidth(i);
if (!IsInside(xk+0.5*xstep,yk+0.5*ystep)) continue;
z = fH->GetBinContent(bin);
if (z < zmin) z = zmin;
if (z > zmax) z = zmax;
if (Hoption.Logz) {
if (z > 0) z = TMath::Log10(z) - zmin;
} else {
z -= zmin;
}
if (z <= 0) continue;
k = Int_t(z*scale);
if (ltest) k++;
if (k > 0) {
for (Int_t loop=0; loop<k; loop++) {
if (k+marker >= kNMAX) {
gPad->PaintPolyMarker(marker, fXbuf, fYbuf);
marker=0;
}
fXbuf[marker] = (gRandom->Rndm(loop)*xstep) + xk;
fYbuf[marker] = (gRandom->Rndm(loop)*ystep) + yk;
if (Hoption.Logx){
if (fXbuf[marker] > 0) fXbuf[marker] = TMath::Log10(fXbuf[marker]);
else break;
}
if (Hoption.Logy){
if (fYbuf[marker] > 0) fYbuf[marker] = TMath::Log10(fYbuf[marker]);
else break;
}
if (fXbuf[marker] < gPad->GetUxmin()) break;
if (fYbuf[marker] < gPad->GetUymin()) break;
if (fXbuf[marker] > gPad->GetUxmax()) break;
if (fYbuf[marker] > gPad->GetUymax()) break;
marker++;
}
}
}
}
if (marker > 0) gPad->PaintPolyMarker(marker, fXbuf, fYbuf);
gRandom->SetSeed(seedsave);
if (Hoption.Zscale) PaintPalette();
}
//______________________________________________________________________________
void THistPainter::PaintStat(Int_t dostat, TF1 *fit)
{
// *-*-*-*-*-*-*-*-*-*Draw the statistics box*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
// =======================
// The type of information printed in the histogram statistics box
// can be selected via gStyle->SetOptStat(mode).
// The parameter mode can be = iourmen (default = 0001111)
// n = 1; name of histogram is printed
// e = 1; number of entries printed
// m = 1; mean value printed
// r = 1; rms printed
// u = 1; number of underflows printed
// o = 1; number of overflows printed
// i = 1; integral of bins printed
// Example: gStyle->SetOptStat(11);
// print only name of histogram and number of entries.
//
// The type of information about fit parameters printed in the histogram
// statistics box can be selected via gStyle->SetOptFit(mode).
// The parameter mode can be = pcev (default = 0111)
// v = 1; print name/values of parameters
// e = 1; print errors (if e=1, v must be 1)
// c = 1; print Chisquare/Number of degrees of freedom
// p = 1; print Probability
// When "v"=1 is specified, only the non-fixed parameters are shown.
// When "v"=2 all parameters are shown.
// Example: gStyle->SetOptFit(1011);
// print fit probability, parameter names/values and errors.
//
//
// When option "same" is specified, the statistic box is not drawn.
// Specify option "sames" to force painting statistics with option "same"
// When option "sames" is given, one can use the following technique
// to move a previous "stats" box to a new position
// Root > TPaveStats *st = (TPaveStats*)gPad->GetPrimitive("stats")
// Root > st->SetX1NDC(newx1); //new x start position
// Root > st->SetX2NDC(newx2); //new x end position
// Root > newhist->Draw("sames")
static char t[64];
Int_t dofit;
TPaveStats *stats = 0;
TIter next(fFunctions);
TObject *obj;
while ((obj = next())) {
if (obj->InheritsFrom(TPaveStats::Class())) {
stats = (TPaveStats*)obj;
break;
}
}
if (stats && dostat) {
dofit = stats->GetOptFit();
dostat = stats->GetOptStat();
} else {
dofit = gStyle->GetOptFit();
}
if (!dofit) fit = 0;
if (dofit == 1) dofit = 111;
if (dostat == 1) dostat = 1111;
Int_t print_name = dostat%10;
Int_t print_entries = (dostat/10)%10;
Int_t print_mean = (dostat/100)%10;
Int_t print_rms = (dostat/1000)%10;
Int_t print_under = (dostat/10000)%10;
Int_t print_over = (dostat/100000)%10;
Int_t print_integral= (dostat/1000000)%10;
Int_t nlines = print_name + print_entries + print_mean + print_rms + print_under + print_over + print_integral;
Int_t print_fval = dofit%10;
Int_t print_ferrors = (dofit/10)%10;
Int_t print_fchi2 = (dofit/100)%10;
Int_t print_fprob = (dofit/1000)%10;
Int_t nlinesf = print_fval + print_fchi2 + print_fprob;
if (fit) {
if (print_fval < 2) nlinesf += fit->GetNumberFreeParameters();
else nlinesf += fit->GetNpar();
}
if (fH->InheritsFrom("TProfile")) nlinesf += print_mean + print_rms;
// Pavetext with statistics
Bool_t done = kFALSE;
if (!dostat && !fit) {
if (stats) { delete stats; fFunctions->Remove(stats); }
return;
}
Double_t statw = gStyle->GetStatW();
if (fit) statw = 1.8*gStyle->GetStatW();
Double_t stath = (nlines+nlinesf)*gStyle->GetStatFontSize();
if (stath <= 0 || 3 == (gStyle->GetStatFont()%10)) {
stath = 0.25*nlines*gStyle->GetStatH();
}
if (stats) {
stats->Clear();
done = kTRUE;
} else {
stats = new TPaveStats(
gStyle->GetStatX()-statw,
gStyle->GetStatY()-stath,
gStyle->GetStatX(),
gStyle->GetStatY(),"brNDC");
stats->SetParent(fH);
stats->SetOptFit(dofit);
stats->SetOptStat(dostat);
stats->SetFillColor(gStyle->GetStatColor());
stats->SetFillStyle(gStyle->GetStatStyle());
stats->SetBorderSize(gStyle->GetStatBorderSize());
stats->SetTextFont(gStyle->GetStatFont());
if (gStyle->GetStatFont()%10 > 2)
stats->SetTextSize(gStyle->GetStatFontSize());
stats->SetFitFormat(gStyle->GetFitFormat());
stats->SetStatFormat(gStyle->GetStatFormat());
stats->SetName("stats");
stats->SetTextColor(gStyle->GetStatTextColor());
stats->SetTextAlign(12);
stats->SetBit(kCanDelete);
stats->SetBit(kMustCleanup);
}
if (print_name) stats->AddText(fH->GetName());
if (print_entries) {
if (fH->GetEntries() < 1e7) sprintf(t,"Entries = %-7d",Int_t(fH->GetEntries()));
else sprintf(t,"Entries = %14.7g",Float_t(fH->GetEntries()));
stats->AddText(t);
}
char textstats[50];
if (print_mean) {
sprintf(textstats,"Mean = %s%s","%",stats->GetStatFormat());
sprintf(t,textstats,fH->GetMean(1));
stats->AddText(t);
if(fH->InheritsFrom("TProfile")) {
sprintf(textstats,"Meany = %s%s","%",stats->GetStatFormat());
sprintf(t,textstats,fH->GetMean(2));
stats->AddText(t);
}
}
if (print_rms) {
sprintf(textstats,"RMS = %s%s","%",stats->GetStatFormat());
sprintf(t,textstats,fH->GetRMS(1));
stats->AddText(t);
if(fH->InheritsFrom("TProfile")) {
sprintf(textstats,"RMSy = %s%s","%",stats->GetStatFormat());
sprintf(t,textstats,fH->GetRMS(2));
stats->AddText(t);
}
}
if (print_under) {
sprintf(textstats,"Underflow = %s%s","%",stats->GetStatFormat());
sprintf(t,textstats,fH->GetBinContent(0));
stats->AddText(t);
}
if (print_over) {
sprintf(textstats,"Overflow = %s%s","%",stats->GetStatFormat());
sprintf(t,textstats,fH->GetBinContent(fXaxis->GetNbins()+1));
stats->AddText(t);
}
if (print_integral) {
sprintf(textstats,"Integral = %s%s","%",stats->GetStatFormat());
sprintf(t,textstats,fH->Integral());
stats->AddText(t);
}
// Draw Fit parameters
if (fit) {
Int_t ndf = fit->GetNDF();
sprintf(textstats,"#chi^{2} / ndf = %s%s / %d","%",stats->GetFitFormat(),ndf);
sprintf(t,textstats,(Float_t)fit->GetChisquare());
if (print_fchi2) stats->AddText(t);
if (print_fprob) {
sprintf(textstats,"Prob = %s%s","%",stats->GetFitFormat());
sprintf(t,textstats,(Float_t)TMath::Prob(fit->GetChisquare(),ndf));
stats->AddText(t);
}
if (print_fval || print_ferrors) {
Double_t parmin,parmax;
for (Int_t ipar=0;ipar<fit->GetNpar();ipar++) {
fit->GetParLimits(ipar,parmin,parmax);
if (print_fval < 2 && parmin*parmax != 0 && parmin >= parmax) continue;
if (print_ferrors) {
sprintf(textstats,"%-8s = %s%s #pm %s ",fit->GetParName(ipar), "%",stats->GetFitFormat(),
GetBestFormat(fit->GetParameter(ipar), fit->GetParError(ipar), stats->GetFitFormat()));
sprintf(t,textstats,(Float_t)fit->GetParameter(ipar)
,(Float_t)fit->GetParError(ipar));
} else {
sprintf(textstats,"%-8s = %s%s ",fit->GetParName(ipar),"%",stats->GetFitFormat());
sprintf(t,textstats,(Float_t)fit->GetParameter(ipar));
}
t[63] = 0;
stats->AddText(t);
}
}
}
if (!done) fFunctions->Add(stats);
stats->Paint();
}
//______________________________________________________________________________
void THistPainter::PaintStat2(Int_t dostat, TF1 *fit)
{
// Draw the statistics box for 2D histogram.
// The type of information printed in the histogram statistics box
// can be selected via gStyle->SetOptStat(mode).
// The parameter mode can be = ourmen (default = 001111)
// n = 1; name of histogram is printed
// e = 1; number of entries printed
// m = 1; mean value printed
// r = 1; rms printed
// u = 1; number of underflows printed
// o = 1; number of overflows printed
// i = 1; integral of bins printed
// Example: gStyle->SetOptStat(11);
// print only name of histogram and number of entries.
if (fH->GetDimension() != 2) return;
TH2 *h2 = (TH2*)fH;
static char t[64];
Int_t dofit;
TPaveStats *stats = 0;
TIter next(fFunctions);
TObject *obj;
while ((obj = next())) {
if (obj->InheritsFrom(TPaveStats::Class())) {
stats = (TPaveStats*)obj;
break;
}
}
if (stats && dostat) {
dofit = stats->GetOptFit();
dostat = stats->GetOptStat();
} else {
dofit = gStyle->GetOptFit();
}
if (dostat == 1) dostat = 1111;
Int_t print_name = dostat%10;
Int_t print_entries = (dostat/10)%10;
Int_t print_mean = (dostat/100)%10;
Int_t print_rms = (dostat/1000)%10;
Int_t print_under = (dostat/10000)%10;
Int_t print_over = (dostat/100000)%10;
Int_t print_integral= (dostat/1000000)%10;
Int_t nlines = print_name + print_entries + 2*print_mean + 2*print_rms + print_integral;
if (print_under || print_over) nlines += 3;
// Pavetext with statistics
if (!gStyle->GetOptFit()) fit = 0;
Bool_t done = kFALSE;
if (!dostat && !fit) {
if (stats) delete stats;
return;
}
Double_t statw = gStyle->GetStatW();
if (fit) statw = 1.8*gStyle->GetStatW();
Double_t stath = nlines*gStyle->GetStatFontSize();
if (stath <= 0 || 3 == (gStyle->GetStatFont()%10)) {
stath = 0.25*nlines*gStyle->GetStatH();
}
if (fit) stath += gStyle->GetStatH();
if (stats) {
stats->Clear();
done = kTRUE;
} else {
stats = new TPaveStats(
gStyle->GetStatX()-statw,
gStyle->GetStatY()-stath,
gStyle->GetStatX(),
gStyle->GetStatY(),"brNDC");
stats->SetParent(fH);
stats->SetOptFit(dofit);
stats->SetOptStat(dostat);
stats->SetFillColor(gStyle->GetStatColor());
stats->SetFillStyle(gStyle->GetStatStyle());
stats->SetBorderSize(gStyle->GetStatBorderSize());
stats->SetName("stats");
stats->SetTextColor(gStyle->GetStatTextColor());
stats->SetTextAlign(12);
stats->SetTextFont(gStyle->GetStatFont());
stats->SetFitFormat(gStyle->GetFitFormat());
stats->SetStatFormat(gStyle->GetStatFormat());
stats->SetBit(kCanDelete);
stats->SetBit(kMustCleanup);
}
if (print_name) stats->AddText(h2->GetName());
if (print_entries) {
if (h2->GetEntries() < 1e7) sprintf(t,"Entries = %-7d",Int_t(h2->GetEntries()));
else sprintf(t,"Entries = %14.7g",Float_t(h2->GetEntries()));
stats->AddText(t);
}
if (print_mean) {
sprintf(t,"Mean x = %6.4g",h2->GetMean(1));
stats->AddText(t);
sprintf(t,"Mean y = %6.4g",h2->GetMean(2));
stats->AddText(t);
}
if (print_rms) {
sprintf(t,"RMS x = %6.4g",h2->GetRMS(1));
stats->AddText(t);
sprintf(t,"RMS y = %6.4g",h2->GetRMS(2));
stats->AddText(t);
}
if (print_under || print_over) {
//get 3*3 under/overflows for 2d hist
Stat_t unov[9];
unov[0] = h2->Integral(0,h2->GetXaxis()->GetFirst()-1,h2->GetYaxis()->GetLast()+1,h2->GetYaxis()->GetNbins()+1);
unov[1] = h2->Integral(h2->GetXaxis()->GetFirst(),h2->GetXaxis()->GetLast(),h2->GetYaxis()->GetLast()+1,h2->GetYaxis()->GetNbins()+1);
unov[2] = h2->Integral(h2->GetXaxis()->GetLast()+1,h2->GetXaxis()->GetNbins()+1,h2->GetYaxis()->GetLast()+1,h2->GetYaxis()->GetNbins()+1);
unov[3] = h2->Integral(0,h2->GetXaxis()->GetFirst()-1,h2->GetYaxis()->GetFirst(),h2->GetYaxis()->GetLast());
unov[4] = h2->Integral(h2->GetXaxis()->GetFirst(),h2->GetXaxis()->GetLast(),h2->GetYaxis()->GetFirst(),h2->GetYaxis()->GetLast());
unov[5] = h2->Integral(h2->GetXaxis()->GetLast()+1,h2->GetXaxis()->GetNbins()+1,h2->GetYaxis()->GetFirst(),h2->GetYaxis()->GetLast());
unov[6] = h2->Integral(0,h2->GetXaxis()->GetFirst()-1,0,h2->GetYaxis()->GetFirst()-1);
unov[7] = h2->Integral(h2->GetXaxis()->GetFirst(),h2->GetXaxis()->GetLast(),0,h2->GetYaxis()->GetFirst()-1);
unov[8] = h2->Integral(h2->GetXaxis()->GetLast()+1,h2->GetXaxis()->GetNbins()+1,0,h2->GetYaxis()->GetFirst()-1);
sprintf(t, " %7d|%7d|%7d\n", (Int_t)unov[0], (Int_t)unov[1], (Int_t)unov[2]);
stats->AddText(t);
if (h2->GetEntries() < 1e7)
sprintf(t, " %7d|%7d|%7d\n", (Int_t)unov[3], (Int_t)unov[4], (Int_t)unov[5]);
else
sprintf(t, " %7d|%14.7g|%7d\n", (Int_t)unov[3], (Float_t)unov[4], (Int_t)unov[5]);
stats->AddText(t);
sprintf(t, " %7d|%7d|%7d\n", (Int_t)unov[6], (Int_t)unov[7], (Int_t)unov[8]);
stats->AddText(t);
}
if (print_integral) {
sprintf(t,"Integral = %6.4g",h2->Integral());
stats->AddText(t);
}
// Draw Fit parameters
if (fit) {
Int_t ndf = fit->GetNumberFitPoints() - fit->GetNpar();
sprintf(t,"#chi^{2} / ndf = %6.4g / %d",(Float_t)fit->GetChisquare(),ndf);
stats->AddText(t);
for (Int_t ipar=0;ipar<fit->GetNpar();ipar++) {
sprintf(t,"%-8s = %5.4g #pm %5.4g ",fit->GetParName(ipar)
,(Float_t)fit->GetParameter(ipar)
,(Float_t)fit->GetParError(ipar));
t[32] = 0;
stats->AddText(t);
}
}
if (!done) fFunctions->Add(stats);
stats->Paint();
}
//______________________________________________________________________________
void THistPainter::PaintSurface(Option_t *)
{
// *-*-*-*-*-*Control function to draw a table as a surface plot*-*-*-*-*-*
// ==================================================
//
// In a surface plot, cell contents are represented as a mesh.
// The height of the mesh is proportional to the cell content.
//
// A surface plot can be represented in several coordinate systems.
// Default system is Cartesian coordinates.
// Possible systems are CYL,POL,SPH,PSR.
//
// See THistPainter::Draw for a list of Surface options
// The following picture is generated with option SURF1.
//
// See TStyle::SeTPaletteAxis to change the color palette.
// It is suggested to use palette 1 via the call
// gStyle->SetColorPalette(1)
//
//
/*
*/
//
// The following picture is generated with option SURF3.
//
/*
*/
//
//
// *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
const Double_t ydiff = 1;
const Double_t yligh1 = 10;
const Double_t qa = 0.15;
const Double_t qd = 0.15;
const Double_t qs = 0.8;
Double_t fmin, fmax;
Int_t raster = 0;
Int_t irep = 0;
if (Hparam.zmin == 0 && Hparam.zmax == 0) {Hparam.zmin = -1; Hparam.zmax = 1;}
Int_t nx = Hparam.xlast - Hparam.xfirst;
Int_t ny = Hparam.ylast - Hparam.yfirst;
Double_t zmin = Hparam.zmin;
Double_t zmax = Hparam.zmax;
Double_t xlab1 = Hparam.xmin;
Double_t xlab2 = Hparam.xmax;
Double_t ylab1 = Hparam.ymin;
Double_t ylab2 = Hparam.ymax;
Double_t dangle = 10*3.141592/180; //Delta angle for Rapidity option
Double_t deltaz = TMath::Abs(zmin);
if (deltaz == 0) deltaz = 1;
if (zmin >= zmax) {
zmin -= 0.5*deltaz;
zmax += 0.5*deltaz;
}
Double_t z1c = zmin;
Double_t z2c = zmin + (zmax-zmin)*kHMAX;
// Compute the lego limits and instantiate a lego object
fXbuf[0] = -1;
fYbuf[0] = 1;
fXbuf[1] = -1;
fYbuf[1] = 1;
if (Hoption.System >= kPOLAR && (Hoption.Surf == 1 || Hoption.Surf == 13)) raster = 1;
if (Hoption.System == kPOLAR) {
fXbuf[2] = z1c;
fYbuf[2] = z2c;
} else if (Hoption.System == kCYLINDRICAL) {
if (Hoption.Logy) {
if (ylab1 > 0) fXbuf[2] = TMath::Log10(ylab1);
else fXbuf[2] = 0;
if (ylab2 > 0) fYbuf[2] = TMath::Log10(ylab2);
else fYbuf[2] = 0;
} else {
fXbuf[2] = ylab1;
fYbuf[2] = ylab2;
}
z1c = 0; z2c = 1;
} else if (Hoption.System == kSPHERICAL) {
fXbuf[2] = -1;
fYbuf[2] = 1;
z1c = 0; z2c = 1;
} else if (Hoption.System == kRAPIDITY) {
fXbuf[2] = -1/TMath::Tan(dangle);
fYbuf[2] = 1/TMath::Tan(dangle);
} else {
fXbuf[0] = xlab1;
fYbuf[0] = xlab2;
fXbuf[1] = ylab1;
fYbuf[1] = ylab2;
fXbuf[2] = z1c;
fYbuf[2] = z2c;
}
//TView *view = gPad->GetView();
//if (view && !gPad->IsModified()) {
// for (Int_t iv=0;iv<6;iv++) {
// fXbuf[iv] = view->GetRmin()[iv];
// fYbuf[iv] = view->GetRmax()[iv];
// }
//}
fLego = new TPainter3dAlgorithms(fXbuf, fYbuf, Hoption.System);
fLego->SetLineColor(fH->GetLineColor());
fLego->SetFillColor(fH->GetFillColor());
// Create axis object
TGaxis *axis = new TGaxis();
// Initialize the levels on the Z axis
Int_t ndiv = fH->GetContour();
if (ndiv == 0 ) {
ndiv = gStyle->GetNumberContours();
fH->SetContour(ndiv);
}
Int_t ndivz = TMath::Abs(ndiv);
if (fH->TestBit(TH1::kUserContour) == 0) fH->SetContour(ndiv);
if (Hoption.Surf == 13 || Hoption.Surf == 15) fLego->SetMesh(3);
if (Hoption.Surf == 12 || Hoption.Surf == 14) fLego->SetMesh(0);
// Close the surface in case of non cartesian coordinates.
if (Hoption.System != kCARTESIAN) {nx++; ny++;}
// Now ready to draw the surface plot
TView *view = gPad->GetView();
if (!view) {
Error("PaintSurface", "no TView in current pad");
return;
}
Double_t thedeg = 90 - gPad->GetTheta();
Double_t phideg = -90 - gPad->GetPhi();
Double_t psideg = view->GetPsi();
view->SetView(phideg, thedeg, psideg, irep);
// Set color/style for back box
fLego->SetFillStyle(gPad->GetFrameFillStyle());
fLego->SetFillColor(gPad->GetFrameFillColor());
fLego->TAttFill::Modify();
Int_t backcolor = gPad->GetFrameFillColor();
if (Hoption.System != kCARTESIAN) backcolor = 0;
view->PadRange(backcolor);
fLego->SetFillStyle(fH->GetFillStyle());
fLego->SetFillColor(fH->GetFillColor());
fLego->TAttFill::Modify();
// Draw the filled contour on top
Int_t icol1 = fH->GetFillColor();
Int_t Hoption35 = Hoption.Surf;
if (Hoption.Surf == 13 || Hoption.Surf == 15) {
DefineColorLevels(ndivz);
Hoption.Surf = 23;
fLego->SetSurfaceFunction(&TPainter3dAlgorithms::SurfaceFunction);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMode2);
if (Hoption.System == kPOLAR) fLego->SurfacePolar(1,nx,ny,"BF");
if (Hoption.System == kCYLINDRICAL) fLego->SurfaceCylindrical(1,nx,ny,"BF");
if (Hoption.System == kSPHERICAL) fLego->SurfaceSpherical(0,1,nx,ny,"BF");
if (Hoption.System == kRAPIDITY ) fLego->SurfaceSpherical(1,1,nx,ny,"BF");
if (Hoption.System == kCARTESIAN) fLego->SurfaceCartesian(90,nx,ny,"BF");
Hoption.Surf = Hoption35;
fLego->SetMesh(1);
}
if (raster) fLego->InitRaster(-1.1,-1.1,1.1,1.1,1000,800);
else fLego->InitMoveScreen(-1.1,1.1);
if (Hoption.Surf == 11 || Hoption.Surf == 12 || Hoption.Surf == 14) {
fLego->DefineGridLevels(fZaxis->GetNdivisions()%100);
fLego->SetLineColor(1);
if (Hoption.System == kCARTESIAN && Hoption.BackBox) {
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove1);
fLego->BackBox(90);
}
}
// Gouraud Shading surface
if (Hoption.Surf == 14) {
// Set light sources
fLego->LightSource(0, ydiff, 0,0,0,irep);
fLego->LightSource(1, yligh1 ,1,1,1,irep);
fLego->SurfaceProperty(qa, qd, qs, 1, irep);
fmin = ydiff*qa;
fmax = fmin + (yligh1+0.1)*(qd+qs);
Int_t nbcol = 28;
icol1 = 201;
Double_t dcol = 0.5/Double_t(nbcol);
TColor *colref = gROOT->GetColor(fH->GetFillColor());
Float_t r,g,b,hue,light,satur;
colref->GetRGB(r,g,b);
TColor::RGBtoHLS(r,g,b,hue,light,satur);
TColor *acol;
for (Int_t col=0;col<nbcol;col++) {
acol = gROOT->GetColor(col+icol1);
TColor::HLStoRGB(hue,.4+col*dcol,satur,r,g,b);
acol->SetRGB(r,g,b);
}
fLego->Spectrum(nbcol, fmin, fmax, icol1, 1, irep);
fLego->SetSurfaceFunction(&TPainter3dAlgorithms::GouraudFunction);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMode2);
if (Hoption.System == kPOLAR) fLego->SurfacePolar(1,nx,ny,"BF");
if (Hoption.System == kCYLINDRICAL) fLego->SurfaceCylindrical(1,nx,ny,"BF");
if (Hoption.System == kSPHERICAL) fLego->SurfaceSpherical(0,1,nx,ny,"BF");
if (Hoption.System == kRAPIDITY ) fLego->SurfaceSpherical(1,1,nx,ny,"BF");
if (Hoption.System == kCARTESIAN) fLego->SurfaceCartesian(90,nx,ny,"BF");
} else if (Hoption.Surf == 15) {
// The surface is not drawn in this case.
} else {
// Draw the surface
if (Hoption.Surf == 11 || Hoption.Surf == 12 || Hoption.Surf == 16) {
DefineColorLevels(ndivz);
} else {
fLego->DefineGridLevels(fZaxis->GetNdivisions()%100);
}
fLego->SetSurfaceFunction(&TPainter3dAlgorithms::SurfaceFunction);
if (Hoption.Surf == 1 || Hoption.Surf == 13) fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceRaster1);
if (Hoption.Surf == 11 || Hoption.Surf == 12) fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMode2);
if (Hoption.System == kPOLAR) {
if (Hoption.Surf == 1 || Hoption.Surf == 13) fLego->SurfacePolar(1,nx,ny,"FB");
if (Hoption.Surf == 11 || Hoption.Surf == 12) fLego->SurfacePolar(1,nx,ny,"BF");
} else if (Hoption.System == kCYLINDRICAL) {
if (Hoption.Surf == 1 || Hoption.Surf == 13) fLego->SurfaceCylindrical(1,nx,ny,"FB");
if (Hoption.Surf == 11 || Hoption.Surf == 12) fLego->SurfaceCylindrical(1,nx,ny,"BF");
} else if (Hoption.System == kSPHERICAL) {
if (Hoption.Surf == 1 || Hoption.Surf == 13) fLego->SurfaceSpherical(0,1,nx,ny,"FB");
if (Hoption.Surf == 11 || Hoption.Surf == 12) fLego->SurfaceSpherical(0,1,nx,ny,"BF");
} else if (Hoption.System == kRAPIDITY) {
if (Hoption.Surf == 1 || Hoption.Surf == 13) fLego->SurfaceSpherical(1,1,nx,ny,"FB");
if (Hoption.Surf == 11 || Hoption.Surf == 12) fLego->SurfaceSpherical(1,1,nx,ny,"BF");
} else {
if (Hoption.Surf == 1 || Hoption.Surf == 13) fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove1);
if (Hoption.Surf == 16) fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove3);
if (Hoption.Surf == 1 || Hoption.Surf == 13 || Hoption.Surf == 16) fLego->SurfaceCartesian(90,nx,ny,"FB");
if (Hoption.Surf == 11 || Hoption.Surf == 12) fLego->SurfaceCartesian(90,nx,ny,"BF");
}
}
if ((!Hoption.Same) &&
(Hoption.Surf == 1 || Hoption.Surf == 13 || Hoption.Surf == 16)) {
fLego->SetLineColor(1);
if (Hoption.System == kCARTESIAN && Hoption.BackBox) {
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove1);
fLego->BackBox(90);
}
}
if (Hoption.System == kCARTESIAN) {
fLego->InitMoveScreen(-1.1,1.1);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove2);
if (Hoption.FrontBox) fLego->FrontBox(90);
}
if (!Hoption.Axis && !Hoption.Same) PaintLegoAxis(axis, 90);
if (Hoption.Zscale) PaintPalette(); // MOD MWH
delete axis;
delete fLego; fLego = 0;
}
//______________________________________________________________________________
void THistPainter::PaintTriangles(Option_t *option)
{
// Control function to draw a table using Delaunay triangles
TGraphDelaunay *dt;
// Check if fH contains a TGraphDelaunay
TList *hl = fH->GetListOfFunctions();
dt = (TGraphDelaunay*)hl->FindObject("TGraphDelaunay");
if (!dt) return;
// If needed, create a TGraphPainter
if (!fGraphPainter) fGraphPainter = new TGraphPainter(dt);
// Define the 3D view
fXbuf[0] = Hparam.xmin;
fYbuf[0] = Hparam.xmax;
fXbuf[1] = Hparam.ymin;
fYbuf[1] = Hparam.ymax;
fXbuf[2] = Hparam.zmin;
fYbuf[2] = Hparam.zmax;
fLego = new TPainter3dAlgorithms(fXbuf, fYbuf);
TView *view = gPad->GetView();
if (!view) {
Error("PaintTriangles", "no TView in current pad");
return;
}
Double_t thedeg = 90 - gPad->GetTheta();
Double_t phideg = -90 - gPad->GetPhi();
Double_t psideg = view->GetPsi();
Int_t irep;
view->SetView(phideg, thedeg, psideg, irep);
// Set color/style for back box
fLego->SetFillStyle(gPad->GetFrameFillStyle());
fLego->SetFillColor(gPad->GetFrameFillColor());
fLego->TAttFill::Modify();
Int_t backcolor = gPad->GetFrameFillColor();
if (Hoption.System != kCARTESIAN) backcolor = 0;
view->PadRange(backcolor);
fLego->SetFillStyle(fH->GetFillStyle());
fLego->SetFillColor(fH->GetFillColor());
fLego->TAttFill::Modify();
// Paint the Back Box if needed
if (Hoption.BackBox && !Hoption.Same) {
fLego->InitMoveScreen(-1.1,1.1);
fLego->DefineGridLevels(fZaxis->GetNdivisions()%100);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove1);
fLego->BackBox(90);
}
// Paint the triangles
fGraphPainter->Paint(option);
// Paint the Front Box if needed
if (Hoption.FrontBox) {
fLego->InitMoveScreen(-1.1,1.1);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove2);
fLego->FrontBox(90);
}
// Paint the Axis if needed
if (!Hoption.Axis && !Hoption.Same) {
TGaxis *axis = new TGaxis();
PaintLegoAxis(axis, 90);
delete axis;
}
if (Hoption.Zscale) PaintPalette();
delete fLego; fLego = 0;
}
//______________________________________________________________________________
void THistPainter::DefineColorLevels(Int_t ndivz)
{
Int_t i, irep;
// Initialize the colour levels
if (ndivz >= 100) {
Warning("PaintSurface", "too many color levels, %d, reset to 8", ndivz);
ndivz = 8;
}
Double_t *funlevel = new Double_t[ndivz+1];
Int_t *colorlevel = new Int_t[ndivz+1];
Int_t theColor;
Int_t ncolors = gStyle->GetNumberOfColors();
for (i = 0; i < ndivz; ++i) {
funlevel[i] = fH->GetContourLevelPad(i);
theColor = Int_t((i+0.99)*Float_t(ncolors)/Float_t(ndivz));
colorlevel[i] = gStyle->GetColorPalette(theColor);
}
colorlevel[ndivz] = gStyle->GetColorPalette(ncolors-1);
fLego->ColorFunction(ndivz, funlevel, colorlevel, irep);
delete [] colorlevel;
delete [] funlevel;
}
//______________________________________________________________________________
void THistPainter::PaintTable(Option_t *option)
{
// *-*-*-*-*-*-*-*Control function to draw 2-D/3-D tables*-*-*-*-*-*-*-*
// =======================================
if (!TableInit()) return; //fill Hparam structure with histo parameters
PaintFrame();
//if palette option not specified, delete a possible existing palette
if (!Hoption.Zscale) {
delete fFunctions->FindObject("palette");
}
if (fH->GetEntries() != 0 && !Hoption.Axis) {
if (Hoption.Scat) PaintScatterPlot(option);
if (Hoption.Arrow) PaintArrows(option);
if (Hoption.Box) PaintBoxes(option);
if (Hoption.Color) PaintColorLevels(option);
if (Hoption.Contour) PaintContour(option);
if (Hoption.Text) PaintText(option);
if (Hoption.Error >= 100) Paint2DErrors(option);
}
if (Hoption.Lego) PaintLego(option);
if (Hoption.Surf && !Hoption.Contour) PaintSurface(option);
if (Hoption.Tri) PaintTriangles(option);
if (!Hoption.Lego && !Hoption.Surf &&
!Hoption.Tri && !(Hoption.Error >= 100)) PaintAxis(kFALSE); // Draw the axes
PaintTitle(); // Draw histogram title
// PaintFile(); // Draw Current File name corresp to current directory
// PaintDate(); // Draw date/time
TF1 *fit = 0;
TIter next(fFunctions);
TObject *obj;
while ((obj = next())) {
if (obj->InheritsFrom(TF1::Class())) {
fit = (TF1*)obj;
break;
}
}
if (Hoption.Same != 1) {
if (!fH->TestBit(TH1::kNoStats)) { // bit set via TH1::SetStats
PaintStat2(gStyle->GetOptStat(),fit);
}
}
}
//______________________________________________________________________________
void THistPainter::PaintText(Option_t *)
{
// Control function to draw a histogram with the bin values
//
// For each bin the content is printed.
//
// The text attributes are:
// - text font = current TStyle font
// - text size = 0.02*padheight*markersize
// - text color = marker color
//
// By default the format "g" is used. This format can be redefined
// by calling gStyle->SetPaintTextFormat
//
//
/*
*/
//
//
TText text;
text.SetTextFont(gStyle->GetTextFont());
text.SetTextColor(fH->GetMarkerColor());
text.SetTextSize(0.02*fH->GetMarkerSize());
Double_t x, y, z, angle = 0;
char value[50];
char format[32];
sprintf(format,"%s%s","%",gStyle->GetPaintTextFormat());
if (Hoption.Text >= 1000) angle = Hoption.Text-1000;
// 1D histograms
if (fH->GetDimension() == 1) {
if (Hoption.Text == 1) angle = 90;
text.SetTextAngle(angle);
text.SetTextAlign(11);
if (angle == 90) text.SetTextAlign(12);
if (angle == 0) text.SetTextAlign(21);
text.TAttText::Modify();
Double_t dt = 0.02*(gPad->GetY2()-gPad->GetY1());
for (Int_t i=Hparam.xfirst; i<=Hparam.xlast;i++) {
x = fH->GetXaxis()->GetBinCenter(i);
y = fH->GetBinContent(i);
sprintf(value,format,y);
if (Hoption.Logx) {
if (x > 0) x = TMath::Log10(x);
else continue;
}
if (Hoption.Logy) {
if (y > 0) y = TMath::Log10(y);
else continue;
}
if (y >= gPad->GetY2()) continue;
if (y <= gPad->GetY1()) continue;
gPad->PaintText(x,y+0.2*dt,value);
}
// 2D histograms
} else {
text.SetTextAlign(22);
if (Hoption.Text == 1) angle = 0;
text.SetTextAngle(angle);
text.TAttText::Modify();
for (Int_t j=Hparam.yfirst; j<=Hparam.ylast;j++) {
y = fYaxis->GetBinCenter(j);
if (Hoption.Logy) {
if (y > 0) y = TMath::Log10(y);
else continue;
}
for (Int_t i=Hparam.xfirst; i<=Hparam.xlast;i++) {
Int_t bin = j*(fXaxis->GetNbins()+2) + i;
x = fXaxis->GetBinCenter(i);
if (Hoption.Logx) {
if (x > 0) x = TMath::Log10(x);
else continue;
}
if (!IsInside(x,y)) continue;
z = fH->GetBinContent(bin);
if (z <= Hparam.zmin) continue;
sprintf(value,format,z);
gPad->PaintText(x,y,value);
}
}
}
}
//______________________________________________________________________________
void THistPainter::PaintTF3()
{
// Control function to draw a 3d implicit functions.
//
// Thanks to the function ImplicitFunction of the TPainter3dAlgorithms class,
// this function paints 3d representation of an implicit function.
//
// Example:
//
// TF3 *fun3 = new TF3("fun3","sin(x*x+y*y+z*z-36)",-2,2,-2,2,-2,2);
// fun3->Draw();
//
//
/*
*/
//
Int_t irep;
TGaxis *axis = new TGaxis();
TAxis *xaxis = fH->GetXaxis();
TAxis *yaxis = fH->GetYaxis();
TAxis *zaxis = fH->GetZaxis();
fXbuf[0] = xaxis->GetBinLowEdge(xaxis->GetFirst());
fYbuf[0] = xaxis->GetBinUpEdge(xaxis->GetLast());
fXbuf[1] = yaxis->GetBinLowEdge(yaxis->GetFirst());
fYbuf[1] = yaxis->GetBinUpEdge(yaxis->GetLast());
fXbuf[2] = zaxis->GetBinLowEdge(zaxis->GetFirst());
fYbuf[2] = zaxis->GetBinUpEdge(zaxis->GetLast());
fLego = new TPainter3dAlgorithms(fXbuf, fYbuf);
TView *view = gPad->GetView();
if (!view) {
Error("PaintTF3", "no TView in current pad");
return;
}
Double_t thedeg = 90 - gPad->GetTheta();
Double_t phideg = -90 - gPad->GetPhi();
Double_t psideg = view->GetPsi();
view->SetView(phideg, thedeg, psideg, irep);
fLego->InitMoveScreen(-1.1,1.1);
if (Hoption.BackBox) {
fLego->DefineGridLevels(fZaxis->GetNdivisions()%100);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove1);
fLego->BackBox(90);
}
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMode1);
fLego->ImplicitFunction(fXbuf, fYbuf, fH->GetNbinsX(),
fH->GetNbinsY(),
fH->GetNbinsZ(), "BF");
if (Hoption.FrontBox) {
fLego->InitMoveScreen(-1.1,1.1);
fLego->SetDrawFace(&TPainter3dAlgorithms::DrawFaceMove2);
fLego->FrontBox(90);
}
if (!Hoption.Axis && !Hoption.Same) PaintLegoAxis(axis, 90);
PaintTitle();
delete axis;
delete fLego; fLego = 0;
}
//______________________________________________________________________________
void THistPainter::PaintTitle()
{
// *-*-*-*-*-*-*-*-*-*Draw the histogram title*-*-*-*-*-*-*-*-*-*-*-*-*
// ========================
if (Hoption.Same) return;
if (fH->TestBit(TH1::kNoTitle)) return;
Int_t nt = strlen(fH->GetTitle());
TPaveText *title = 0;
TObject *obj;
TIter next(gPad->GetListOfPrimitives());
while ((obj = next())) {
if (!obj->InheritsFrom(TPaveText::Class())) continue;
title = (TPaveText*)obj;
if (strcmp(title->GetName(),"title")) {title = 0; continue;}
break;
}
if (nt == 0 || gStyle->GetOptTitle() <= 0) {
if (title) delete title;
return;
}
Double_t ht = gStyle->GetTitleH();
Double_t wt = gStyle->GetTitleW();
if (ht <= 0) ht = 1.1*gStyle->GetTitleFontSize();
if (ht <= 0) ht = 0.05;
if (wt <= 0) {
TLatex l;
l.SetTextSize(ht);
l.SetTitle(fH->GetTitle());
ht = 1.2*l.GetYsize()/(gPad->GetY2() - gPad->GetY1());
Double_t wndc = l.GetXsize()/(gPad->GetX2() - gPad->GetX1());
wt = TMath::Min(0.7, 0.02+wndc);
}
if (title) {
TText *t0 = (TText*)title->GetLine(0);
if (t0) {
if (!strcmp(t0->GetTitle(),fH->GetTitle())) return;
t0->SetTitle(fH->GetTitle());
if (wt > 0) title->SetX2NDC(title->GetX1NDC()+wt);
}
return;
}
TPaveText *ptitle = new TPaveText(
gStyle->GetTitleX(),
gStyle->GetTitleY()-ht,
gStyle->GetTitleX()+wt,
gStyle->GetTitleY(),"blNDC");
// box with the histogram title
ptitle->SetFillColor(gStyle->GetTitleFillColor());
ptitle->SetFillStyle(gStyle->GetTitleStyle());
ptitle->SetName("title");
ptitle->SetBorderSize(gStyle->GetTitleBorderSize());
ptitle->SetTextColor(gStyle->GetTitleTextColor());
ptitle->SetTextFont(gStyle->GetTitleFont(""));
if (gStyle->GetTitleFont("")%10 > 2)
ptitle->SetTextSize(gStyle->GetTitleFontSize());
ptitle->AddText(fH->GetTitle());
ptitle->SetBit(kCanDelete);
ptitle->Draw();
ptitle->Paint();
}
//______________________________________________________________________________
void THistPainter::ProcessMessage(const char *mess, const TObject *obj)
{
// Process message mess
if (!strcmp(mess,"SetF3")) {
TPainter3dAlgorithms::SetF3((TF3*)obj);
} else if (!strcmp(mess,"SetF3ClippingBoxOff")) {
TPainter3dAlgorithms::SetF3ClippingBoxOff();
} else if (!strcmp(mess,"SetF3ClippingBoxOn")) {
TVectorD &v = (TVectorD&)(*obj);
Double_t xclip = v(0);
Double_t yclip = v(1);
Double_t zclip = v(2);
TPainter3dAlgorithms::SetF3ClippingBoxOn(xclip,yclip,zclip);
}
}
//______________________________________________________________________________
Int_t THistPainter::ProjectAitoff2xy(Double_t l, Double_t b, Double_t &Al, Double_t &Ab)
{
// static function
// Convert Right Ascension, Declination to X,Y using an AITOFF projection.
// This procedure can be used to create an all-sky map in Galactic
// coordinates with an equal-area Aitoff projection. Output map
// coordinates are zero longitude centered.
// Also called Hammer-Aitoff projection (first presented by Ernst von Hammer in 1892)
// source: GMT
// code from Ernst-Jan Buis
Double_t x, y;
// while (l < -180.0) l += 360.0;
// while (l > 180.0) l -= 360.0;
Double_t alpha2 = (l/2)*TMath::DegToRad();
Double_t delta = b*TMath::DegToRad();
Double_t r2 = TMath::Sqrt(2.);
Double_t f = 2*r2/TMath::Pi();
Double_t cdec = TMath::Cos(delta);
Double_t denom = TMath::Sqrt(1. + cdec*TMath::Cos(alpha2));
x = cdec*TMath::Sin(alpha2)*2.*r2/denom;
y = TMath::Sin(delta)*r2/denom;
x *= TMath::RadToDeg()/f;
y *= TMath::RadToDeg()/f;
// x *= -1.; // for a skymap swap left<->right
Al = x;
Ab = y;
return 0;
}
//______________________________________________________________________________
Int_t THistPainter::ProjectMercator2xy(Double_t l, Double_t b, Double_t &Al, Double_t &Ab)
{
// static function
// Probably the most famous of the various map projections, the Mercator projection
// takes its name from Mercator who presented it in 1569. It is a cylindrical, conformal projection
// with no distortion along the equator.
// The Mercator projection has been used extensively for world maps in which the distortion towards
// the polar regions grows rather large, thus incorrectly giving the impression that, for example,
// Greenland is larger than South America. In reality, the latter is about eight times the size of
// Greenland. Also, the Former Soviet Union looks much bigger than Africa or South America. One may wonder
// whether this illusion has had any influence on U.S. foreign policy.' (Source: GMT)
// code from Ernst-Jan Buis
Al = l;
Double_t aid = TMath::Tan((TMath::PiOver2() + b*TMath::DegToRad())/2);
Ab = TMath::Log(aid);
return 0;
}
//______________________________________________________________________________
Int_t THistPainter::ProjectSinusoidal2xy(Double_t l, Double_t b, Double_t &Al, Double_t &Ab)
{
// static function
// code from Ernst-Jan Buis
Al = l*cos(b*TMath::DegToRad());
Ab = b;
return 0;
}
//______________________________________________________________________________
Int_t THistPainter::ProjectParabolic2xy(Double_t l, Double_t b, Double_t &Al, Double_t &Ab)
{
// static function
// code from Ernst-Jan Buis
Al = l*(2.*TMath::Cos(2*b*TMath::DegToRad()/3) - 1);
Ab = 180*TMath::Sin(b*TMath::DegToRad()/3);
return 0;
}
//______________________________________________________________________________
void THistPainter::RecalculateRange()
{
// *-*-*-*Recompute the histogram range following graphics operations*-*-*
// ===========================================================
if (Hoption.Same) return;
// Compute x,y range
Double_t xmin = Hparam.xmin;
Double_t xmax = Hparam.xmax;
Double_t ymin = Hparam.ymin;
Double_t ymax = Hparam.ymax;
// added EJB -->
Double_t xmin_aid, ymin_aid, xmax_aid, ymax_aid;
if (Hoption.Proj ==1) {
// TODO : check x range not lower than -180 and not higher than 180
THistPainter::ProjectAitoff2xy(Hparam.xmin, Hparam.ymin, xmin_aid, ymin_aid);
THistPainter::ProjectAitoff2xy(Hparam.xmin, Hparam.ymax, xmin, ymax_aid);
THistPainter::ProjectAitoff2xy(Hparam.xmax, Hparam.ymax, xmax_aid, ymax);
THistPainter::ProjectAitoff2xy(Hparam.xmax, Hparam.ymin, xmax, ymin);
if (xmin > xmin_aid) xmin = xmin_aid;
if (ymin > ymin_aid) ymin = ymin_aid;
if (xmax < xmax_aid) xmax = xmax_aid;
if (ymax < ymax_aid) ymax = ymax_aid;
if (Hparam.ymin<0 && Hparam.ymax>0) {
// there is an 'equator', check its range in the plot..
THistPainter::ProjectAitoff2xy(Hparam.xmin*0.9999, 0, xmin_aid, ymin_aid);
THistPainter::ProjectAitoff2xy(Hparam.xmax*0.9999, 0, xmax_aid, ymin_aid);
if (xmin >xmin_aid) xmin = xmin_aid;
if (xmax <xmax_aid) xmax = xmax_aid;
}
if (Hparam.xmin<0 && Hparam.xmax>0) {
THistPainter::ProjectAitoff2xy(0, Hparam.ymin, xmin_aid, ymin_aid);
THistPainter::ProjectAitoff2xy(0, Hparam.ymax, xmax_aid, ymax_aid);
if (ymin >ymin_aid) ymin = ymin_aid;
if (ymax <ymax_aid) ymax = ymax_aid;
}
} else if ( Hoption.Proj ==2) {
if (Hparam.ymin <= -90 | Hparam.ymax >=90) {
Warning("Mercator Projection", "Latitude out of range %f or %f", Hparam.ymin, Hparam.ymax);
Hoption.Proj = 0;
} else {
THistPainter::ProjectMercator2xy(Hparam.xmin, Hparam.ymin, xmin, ymin);
THistPainter::ProjectMercator2xy(Hparam.xmax, Hparam.ymax, xmax, ymax);
}
} else if (Hoption.Proj == 3) {
THistPainter::ProjectSinusoidal2xy(Hparam.xmin, Hparam.ymin, xmin_aid, ymin_aid);
THistPainter::ProjectSinusoidal2xy(Hparam.xmin, Hparam.ymax, xmin, ymax_aid);
THistPainter::ProjectSinusoidal2xy(Hparam.xmax, Hparam.ymax, xmax_aid, ymax);
THistPainter::ProjectSinusoidal2xy(Hparam.xmax, Hparam.ymin, xmax, ymin);
if (xmin > xmin_aid) xmin = xmin_aid;
if (ymin > ymin_aid) ymin = ymin_aid;
if (xmax < xmax_aid) xmax = xmax_aid;
if (ymax < ymax_aid) ymax = ymax_aid;
if (Hparam.ymin<0 && Hparam.ymax>0) {
THistPainter::ProjectSinusoidal2xy(Hparam.xmin, 0, xmin_aid, ymin_aid);
THistPainter::ProjectSinusoidal2xy(Hparam.xmax, 0, xmax_aid, ymin_aid);
if (xmin >xmin_aid) xmin = xmin_aid;
if (xmax <xmax_aid) xmax = xmax_aid;
}
if (Hparam.xmin<0 && Hparam.xmax>0) {
THistPainter::ProjectSinusoidal2xy(0,Hparam.ymin, xmin_aid, ymin_aid);
THistPainter::ProjectSinusoidal2xy(0, Hparam.ymax, xmax_aid, ymin_aid);
if (ymin >ymin_aid) ymin = ymin_aid;
if (ymax <ymax_aid) ymax = ymax_aid;
}
} else if (Hoption.Proj == 4) {
THistPainter::ProjectParabolic2xy(Hparam.xmin, Hparam.ymin, xmin_aid, ymin_aid);
THistPainter::ProjectParabolic2xy(Hparam.xmin, Hparam.ymax, xmin, ymax_aid);
THistPainter::ProjectParabolic2xy(Hparam.xmax, Hparam.ymax, xmax_aid, ymax);
THistPainter::ProjectParabolic2xy(Hparam.xmax, Hparam.ymin, xmax, ymin);
if (xmin > xmin_aid) xmin = xmin_aid;
if (ymin > ymin_aid) ymin = ymin_aid;
if (xmax < xmax_aid) xmax = xmax_aid;
if (ymax < ymax_aid) ymax = ymax_aid;
if (Hparam.ymin<0 && Hparam.ymax>0) {
THistPainter::ProjectParabolic2xy(Hparam.xmin, 0, xmin_aid, ymin_aid);
THistPainter::ProjectParabolic2xy(Hparam.xmax, 0, xmax_aid, ymin_aid);
if (xmin >xmin_aid) xmin = xmin_aid;
if (xmax <xmax_aid) xmax = xmax_aid;
}
if (Hparam.xmin<0 && Hparam.xmax>0) {
THistPainter::ProjectParabolic2xy(0, Hparam.ymin, xmin_aid, ymin_aid);
THistPainter::ProjectParabolic2xy(0, Hparam.ymax, xmax_aid, ymin_aid);
if (ymin >ymin_aid) ymin = ymin_aid;
if (ymax <ymax_aid) ymax = ymax_aid;
}
}
Hparam.xmin= xmin;
Hparam.xmax= xmax;
Hparam.ymin= ymin;
Hparam.ymax= ymax;
// <-- added EJB
Double_t dx = xmax-xmin;
Double_t dy = ymax-ymin;
Double_t dxr = dx/(1 - gPad->GetLeftMargin() - gPad->GetRightMargin());
Double_t dyr = dy/(1 - gPad->GetBottomMargin() - gPad->GetTopMargin());
// Range() could change the size of the pad pixmap and therefore should
// be called before the other paint routines
gPad->Range(xmin - dxr*gPad->GetLeftMargin(),
ymin - dyr*gPad->GetBottomMargin(),
xmax + dxr*gPad->GetRightMargin(),
ymax + dyr*gPad->GetTopMargin());
gPad->RangeAxis(xmin, ymin, xmax, ymax);
}
//______________________________________________________________________________
void THistPainter::SetHistogram(TH1 *h)
{
// set current histogram to h
if (h == 0) return;
// if (h == fH) return ; //what happens if the old fH has been deleted
//and h created at the same address
fH = h;
fXaxis = h->GetXaxis();
fYaxis = h->GetYaxis();
fZaxis = h->GetZaxis();
fFunctions = fH->GetListOfFunctions();
}
//______________________________________________________________________________
Int_t THistPainter::TableInit()
{
// *-*-*-*-*-*-*Initialize various options to draw tables*-*-*-*-*-*-*-*
// =========================================
static const char *where = "TableInit";
Int_t first, last;
Double_t YMARGIN= 0.05;
Double_t zmin, zmax;
Int_t maximum = 0;
Int_t minimum = 0;
if (fH->GetMaximumStored() != -1111) maximum = 1;
if (fH->GetMinimumStored() != -1111) minimum = 1;
// ----------------- Compute X axis parameters
first = fXaxis->GetFirst();
last = fXaxis->GetLast();
Hparam.xlast = last;
Hparam.xfirst = first;
Hparam.xlowedge = fXaxis->GetBinLowEdge(first);
Hparam.xbinsize = fXaxis->GetBinWidth(first);
Hparam.xmin = Hparam.xlowedge;
Hparam.xmax = fXaxis->GetBinLowEdge(last)+fXaxis->GetBinWidth(last);
// if log scale in X, replace xmin,max by the log
if (Hoption.Logx) {
// find the first edge of a bin that is > 0
if (Hparam.xlowedge <=0 ) {
Hparam.xlowedge = fXaxis->GetBinUpEdge(fXaxis->FindFixBin(0.01*Hparam.xbinsize));
Hparam.xmin = Hparam.xlowedge;
}
if (Hparam.xmin <=0 || Hparam.xmax <=0) {
Error(where, "cannot set X axis to log scale");
return 0;
}
Hparam.xfirst= fXaxis->FindFixBin(Hparam.xmin);
if (Hparam.xfirst < first) Hparam.xfirst = first;
Hparam.xlast = fXaxis->FindFixBin(Hparam.xmax);
if (Hparam.xlast > last) Hparam.xlast = last;
Hparam.xmin = TMath::Log10(Hparam.xmin);
Hparam.xmax = TMath::Log10(Hparam.xmax);
}
// ----------------- Compute Y axis parameters
first = fYaxis->GetFirst();
last = fYaxis->GetLast();
Hparam.ylast = last;
Hparam.yfirst = first;
Hparam.ylowedge = fYaxis->GetBinLowEdge(first);
Hparam.ybinsize = fYaxis->GetBinWidth(first);
if (!Hparam.ybinsize) Hparam.ybinsize = 1;
Hparam.ymin = Hparam.ylowedge;
Hparam.ymax = fYaxis->GetBinLowEdge(last)+fYaxis->GetBinWidth(last);
// if log scale in Y, replace ymin,max by the log
if (Hoption.Logy) {
if (Hparam.ylowedge <=0 ) {
Hparam.ylowedge = fYaxis->GetBinUpEdge(fYaxis->FindFixBin(0.01*Hparam.ybinsize));
Hparam.ymin = Hparam.ylowedge;
}
if (Hparam.ymin <=0 || Hparam.ymax <=0) {
Error(where, "cannot set Y axis to log scale");
return 0;
}
Hparam.yfirst= fYaxis->FindFixBin(Hparam.ymin);
if (Hparam.yfirst < first) Hparam.yfirst = first;
Hparam.ylast = fYaxis->FindFixBin(Hparam.ymax);
if (Hparam.ylast > last) Hparam.ylast = last;
Hparam.ymin = TMath::Log10(Hparam.ymin);
Hparam.ymax = TMath::Log10(Hparam.ymax);
}
// ----------------- Compute Z axis parameters
Double_t BIGP = TMath::Power(10,32);
zmax = -BIGP;
zmin = BIGP;
Double_t c1, e1;
Stat_t allchan = 0;
for (Int_t j=Hparam.yfirst; j<=Hparam.ylast;j++) {
for (Int_t i=Hparam.xfirst; i<=Hparam.xlast;i++) {
c1 = fH->GetCellContent(i,j);
zmax = TMath::Max(zmax,c1);
if (Hoption.Error) {
e1 = fH->GetCellError(i,j);
zmax = TMath::Max(zmax,c1+e1);
}
if (Hoption.Func) {
// f1 = GetCellFunction(i,j);
// zmax = TMath::Max(zmax,f1);
}
zmin = TMath::Min(zmin,c1);
allchan += c1;
}
}
// Take into account maximum , minimum
if (maximum) zmax = fH->GetMaximumStored();
if (minimum) zmin = fH->GetMinimumStored();
if (Hoption.Logz && zmax <= 0) {
if (!Hoption.Same) Error(where, "log scale is requested but maximum is less or equal 0 (%f)", zmax);
return 0;
}
if (zmin >= zmax && !Hoption.Plus) {
if (Hoption.Logz) {
if (zmax > 0) zmin = 0.001*zmax;
else {
if (!Hoption.Same) Error(where, "log scale is requested but maximum is less or equal 0 (%f)", zmax);
return 0;
}
}
// else {
// zmax = zmin + 1;
// zmin = zmin - 1;
// }
}
// take into account normalization factor
Hparam.allchan = allchan;
Stat_t factor = allchan;
if (fH->GetNormFactor() > 0) factor = fH->GetNormFactor();
if (allchan) factor /= allchan;
if (factor == 0) factor = 1;
Hparam.factor = factor;
zmax = factor*zmax;
zmin = factor*zmin;
c1 = zmax;
if (TMath::Abs(zmin) > TMath::Abs(c1)) c1 = zmin;
// ----
// For log scales, histogram coordinates are log10(ymin) and
// log10(ymax). Final adjustment (if not option "Same")
// or "+" for ymax) of ymax and ymin for logarithmic scale, if
// Maximum and Minimum are not defined.
// ----
if (Hoption.Logz) {
if (zmin <= 0) {
zmin = TMath::Min((Double_t)1, (Double_t)0.001*zmax);
fH->SetMinimum(zmin);
}
zmin = TMath::Log10(zmin);
if (!minimum) zmin += TMath::Log10(0.5);
zmax = TMath::Log10(zmax);
if (!maximum && !Hoption.Plus) zmax += TMath::Log10(2*(0.9/0.95));
goto LZMIN;
}
// ----
// final adjustment of YMAXI for linear scale (if not option "Same"):
// decrease histogram height to MAX% of allowed height if HMAXIM
// has not been called.
// MAX% is the value in percent which has been set in HPLSET
// (default is 90%).
// ----
if (!maximum && !Hoption.Plus) {
zmax += YMARGIN*(zmax-zmin);
}
// ----
// final adjustment of ymin for linear scale.
// if minimum is not set , then ymin is set to zero if >0
// or to ymin - YMARGIN if <0.
// ----
if (!minimum) {
if (gStyle->GetHistMinimumZero()) {
if (zmin >= 0) zmin = 0;
else zmin -= YMARGIN*(zmax-zmin);
} else {
Double_t dzmin = YMARGIN*(zmax-zmin);
if (zmin >= 0 && (zmin-dzmin <= 0)) zmin = 0;
else zmin -= dzmin;
}
}
LZMIN:
Hparam.zmin = zmin;
Hparam.zmax = zmax;
// Set bar offset and width
Hparam.baroffset = fH->GetBarOffset();
Hparam.barwidth = fH->GetBarWidth();
return 1;
}
//______________________________________________________________________________
const char * THistPainter::GetBestFormat(Double_t v, Double_t e, const char *f)
{
// This function returns the best format to print the error value (e)
// knowing the parameter value (v) and the format (f) used to print it.
static char ef[20];
char tf[20], tv[64];
// print v with the format f in tv.
sprintf(tf,"%s%s","%",f);
sprintf(tv,tf,v);
// Analyse tv.
TString sv = tv;
int ie = sv.Index("e");
int iE = sv.Index("E");
int id = sv.Index(".");
// v has been printed with the exponent notation.
// There is 2 cases, the exponent is positive or negative
if (ie >= 0 || iE >= 0) {
if (sv.Index("+") >= 0) {
if (e < 1) {
sprintf(ef,"%s.1f","%");
} else {
sprintf(ef,"%s.0f","%");
}
} else {
if (ie >= 0) {
sprintf(ef,"%s.%de","%",ie-id-1);
} else {
sprintf(ef,"%s.%dE","%",iE-id-1);
}
}
// The is not '.' in tv. e will be printed with one decimal digit.
} else if (id < 0) {
sprintf(ef,"%s.1f","%");
// There is a '.' in tv and no exponent notation. e's decimal part will
// have the same number of digits as v's one.
} else {
sprintf(ef,"%s.%df","%",sv.Length()-id-1);
}
return ef;
}
ROOT page - Class index - Class Hierarchy - Top of the page
This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
