TAttFill

class TAttFill

    public:

                      TAttFill()
                      TAttFill(Color_t fcolor, Style_t fstyle)
                      TAttFill(const TAttFill&)
              virtual ~TAttFill()
       static TClass* Class()
                 void Copy(TAttFill& attfill) const
      virtual Color_t GetFillColor() const
      virtual Style_t GetFillStyle() const
      virtual TClass* IsA() const
       virtual Bool_t IsTransparent() const
         virtual void Modify()
            TAttFill& operator=(const TAttFill&)
         virtual void ResetAttFill(Option_t* option = "")
         virtual void SaveFillAttributes(ofstream& out, const char* name, Int_t coldef = 1, Int_t stydef = 1001)
         virtual void SetFillAttributes()
         virtual void SetFillColor(Color_t fcolor)
         virtual void SetFillStyle(Style_t fstyle)
         virtual void ShowMembers(TMemberInspector& insp, char* parent)
         virtual void Streamer(TBuffer& b)
                 void StreamerNVirtual(TBuffer& b)

Data Members

    protected:

      Color_t fFillColor  fill area color
      Style_t fFillStyle  fill area style

Class Description

*-*-*-*-*-*-*-*-*-*-*-*-*Fill Area Attributes class*-*-*-*-*-*-*-*-*-*-*-*
*-*                      ==========================
*-*  Fill Area attributes are:
*-*    Fill Color
*-*    Fill Style
*-*
*-*  This class is used (in general by secondary inheritance)
*-*  by many other classes (graphics, histograms).
*-*

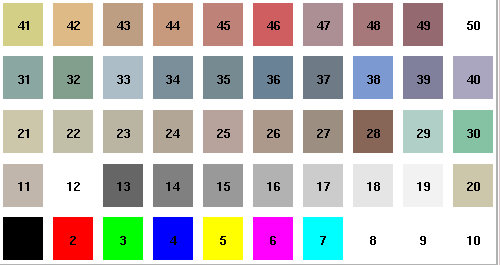

*-*  The following table shows the list of default colors.

  Conventions for fill styles:
    0    : hollow
    1001 : Solid
    2001 : hatch style
    3000+pattern_number (see below)
    4000 :the window is transparent.
    4000 to 4100 the window is 100% transparent to 100% opaque

  pattern_number can have any value from 1 to 25 (see table), or any value
 from 100 to 999. For the latest the numbering convention is the following:

            pattern_number = ijk      (FillStyle = 3ijk)

    i (1-9) : specify the space between each hatch
              1 = 1/2mm  9 = 6mm

    j (0-9) : specify angle between 0 and 90 degrees

              0 = 0
              1 = 10
              2 = 20
              3 = 30
              4 = 45
              5 = Not drawn
              6 = 60
              7 = 70
              8 = 80
              9 = 90

    k (0-9) : specify angle between 90 and 180 degrees
              0 = 180
              1 = 170
              2 = 160
              3 = 150
              4 = 135
              5 = Not drawn
              6 = 120
              7 = 110
              8 = 100
              9 = 90

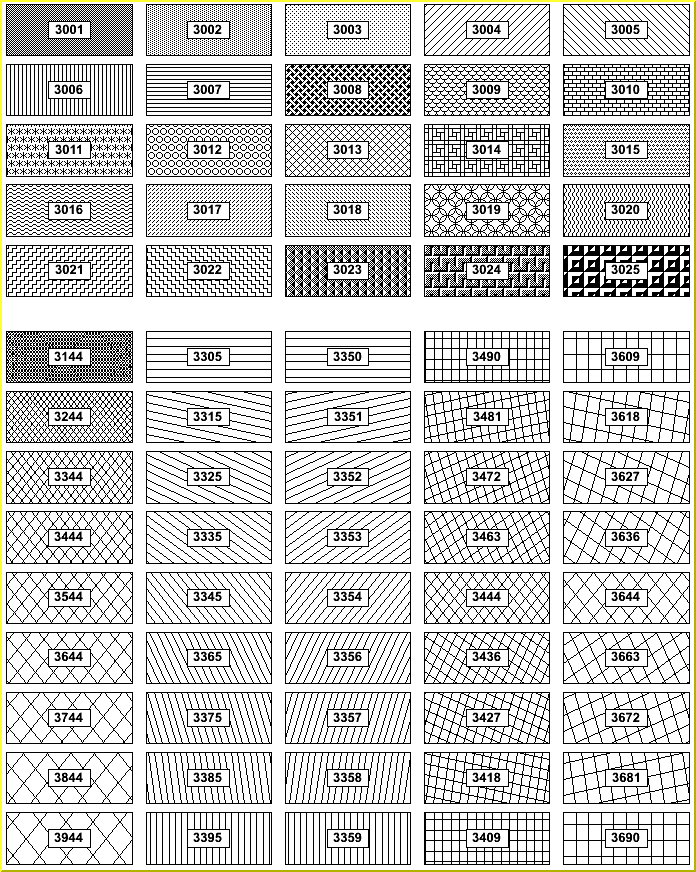

*-*  The following table shows the list of pattern styles.

*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*-*-*-*AttFill default constructor*-*-*-*-*-*-*-*-*-*-*-*
*-*                      ===========================
*-*  Default fill attributes are taking from the current style
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*-*-*-*AttFill normal constructor*-*-*-*-*-*-*-*-*-*-*-*
*-*                      ===========================
*-*    color Fill Color
*-*    style Fill Style
*-*
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*-*-*-*AttFill destructor*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                      =================

*-*-*-*-*-*-*-*-*Copy this fill attributes to a new attfill*-*-*-*-*-*-*-*-*
*-*              ==========================================

*-*-*-*-*-*-*-*Change current fill area attributes if necessary*-*-*-*-*-*-*
*-*            ================================================

*-*-*-*-*-*-*-*-*Reset this fill attributes to default values*-*-*-*-*-*-*
*-*              ============================================

 Save fill attributes as C++ statement(s) on output stream out

*-*-*-*-*-*-*-*-*Invoke the DialogCanvas Fill attributes*-*-*-*-*-*-*
*-*              =======================================

Inline Functions

            Color_t GetFillColor() const
            Style_t GetFillStyle() const
             Bool_t IsTransparent() const
               void SetFillColor(Color_t fcolor)
               void SetFillStyle(Style_t fstyle)
            TClass* Class()
            TClass* IsA() const
               void ShowMembers(TMemberInspector& insp, char* parent)
               void Streamer(TBuffer& b)
               void StreamerNVirtual(TBuffer& b)
           TAttFill TAttFill(const TAttFill&)
          TAttFill& operator=(const TAttFill&)
