library: libCore
#include "TStyle.h" |
TStyle
class description - source file - inheritance tree (.pdf)
public:
TStyle()
TStyle(const char* name, const char* title)
TStyle(const TStyle& style)
virtual ~TStyle()
Int_t AxisChoice(Option_t* axis) const
virtual void Browse(TBrowser* b)
static void BuildStyles()
virtual void cd()
static TClass* Class()
virtual void Copy(TObject& style) const
static Int_t CreateGradientColorTable(UInt_t Number, Double_t* Length, Double_t* Red, Double_t* Green, Double_t* Blue, UInt_t NColors)
virtual Int_t DistancetoPrimitive(Int_t px, Int_t py)
TAttText* GetAttDate()
Color_t GetAxisColor(Option_t* axis = "X") const
Float_t GetBarOffset() const
Float_t GetBarWidth() const
Int_t GetCanvasBorderMode() const
Width_t GetCanvasBorderSize() const
Color_t GetCanvasColor() const
Int_t GetCanvasDefH() const
Int_t GetCanvasDefW() const
Int_t GetCanvasDefX() const
Int_t GetCanvasDefY() const
Bool_t GetCanvasPreferGL() const
Int_t GetColorModelPS() const
Int_t GetColorPalette(Int_t i) const
Float_t GetDateX() const
Float_t GetDateY() const
Int_t GetDrawBorder() const
Float_t GetEndErrorSize() const
Float_t GetErrorX() const
const char* GetFitFormat() const
Int_t GetFrameBorderMode() const
Width_t GetFrameBorderSize() const
Color_t GetFrameFillColor() const
Style_t GetFrameFillStyle() const
Color_t GetFrameLineColor() const
Style_t GetFrameLineStyle() const
Width_t GetFrameLineWidth() const
Color_t GetFuncColor() const
Style_t GetFuncStyle() const
Width_t GetFuncWidth() const
Color_t GetGridColor() const
Style_t GetGridStyle() const
Width_t GetGridWidth() const
Int_t GetHatchesLineWidth() const
Double_t GetHatchesSpacing() const
const char* GetHeaderPS() const
Color_t GetHistFillColor() const
Style_t GetHistFillStyle() const
Color_t GetHistLineColor() const
Style_t GetHistLineStyle() const
Width_t GetHistLineWidth() const
Bool_t GetHistMinimumZero() const
Color_t GetLabelColor(Option_t* axis = "X") const
Style_t GetLabelFont(Option_t* axis = "X") const
Float_t GetLabelOffset(Option_t* axis = "X") const
Float_t GetLabelSize(Option_t* axis = "X") const
Width_t GetLegendBorderSize() const
Float_t GetLegoInnerR() const
Float_t GetLineScalePS() const
const char* GetLineStyleString(Int_t i = 1) const
Int_t GetNdivisions(Option_t* axis = "X") const
Int_t GetNumberContours() const
Int_t GetNumberOfColors() const
Int_t GetOptDate() const
Int_t GetOptFile() const
Int_t GetOptFit() const
Int_t GetOptLogx() const
Int_t GetOptLogy() const
Int_t GetOptLogz() const
Int_t GetOptStat() const
Int_t GetOptTitle() const
Int_t GetPadBorderMode() const
Width_t GetPadBorderSize() const
Float_t GetPadBottomMargin() const
Color_t GetPadColor() const
Bool_t GetPadGridX() const
Bool_t GetPadGridY() const
Float_t GetPadLeftMargin() const
Float_t GetPadRightMargin() const
Int_t GetPadTickX() const
Int_t GetPadTickY() const
Float_t GetPadTopMargin() const
const char* GetPaintTextFormat() const
void GetPaperSize(Float_t& xsize, Float_t& ysize)
Float_t GetScreenFactor() const
Int_t GetShowEditor() const
Int_t GetShowEventStatus() const
Int_t GetShowToolBar() const
Width_t GetStatBorderSize() const
Color_t GetStatColor() const
Style_t GetStatFont() const
Float_t GetStatFontSize() const
const char* GetStatFormat() const
Float_t GetStatH() const
Style_t GetStatStyle() const
Color_t GetStatTextColor() const
Float_t GetStatW() const
Float_t GetStatX() const
Float_t GetStatY() const
Int_t GetStripDecimals() const
Float_t GetTickLength(Option_t* axis = "X") const
Double_t GetTimeOffset() const
Int_t GetTitleAlign()
Width_t GetTitleBorderSize() const
Color_t GetTitleColor(Option_t* axis = "X") const
Color_t GetTitleFillColor() const
Style_t GetTitleFont(Option_t* axis = "X") const
Float_t GetTitleFontSize() const
Float_t GetTitleH() const
Float_t GetTitleOffset(Option_t* axis = "X") const
const char* GetTitlePS() const
Float_t GetTitleSize(Option_t* axis = "X") const
Style_t GetTitleStyle() const
Color_t GetTitleTextColor() const
Float_t GetTitleW() const
Float_t GetTitleX() const
Float_t GetTitleXOffset() const
Float_t GetTitleXSize() const
Float_t GetTitleY() const
Float_t GetTitleYOffset() const
Float_t GetTitleYSize() const
virtual TClass* IsA() const
Bool_t IsReading() const
TStyle& operator=(const TStyle&)
virtual void Paint(Option_t* option = "")
virtual void Reset(Option_t* option = "")
virtual void SavePrimitive(ofstream& out, Option_t*)
void SaveSource(const char* filename, Option_t* option = "0")
void SetAxisColor(Color_t color = 1, Option_t* axis = "X")
void SetBarOffset(Float_t baroff = 0.5)
void SetBarWidth(Float_t barwidth = 0.5)
void SetCanvasBorderMode(Int_t mode = 1)
void SetCanvasBorderSize(Width_t size = 1)
void SetCanvasColor(Color_t color = 19)
void SetCanvasDefH(Int_t h = 500)
void SetCanvasDefW(Int_t w = 700)
void SetCanvasDefX(Int_t topx = 10)
void SetCanvasDefY(Int_t topy = 10)
void SetCanvasPreferGL(Bool_t prefer = kTRUE)
void SetColorModelPS(Int_t c = 0)
void SetDateX(Float_t x = 0.01)
void SetDateY(Float_t y = 0.01)
void SetDrawBorder(Int_t drawborder = 1)
void SetEndErrorSize(Float_t np = 2)
void SetErrorX(Float_t errorx = 0.5)
void SetFitFormat(const char* format = "5.4g")
void SetFrameBorderMode(Int_t mode = 1)
void SetFrameBorderSize(Width_t size = 1)
void SetFrameFillColor(Color_t color = 1)
void SetFrameFillStyle(Style_t styl = 0)
void SetFrameLineColor(Color_t color = 1)
void SetFrameLineStyle(Style_t styl = 0)
void SetFrameLineWidth(Width_t width = 1)
void SetFuncColor(Color_t color = 1)
void SetFuncStyle(Style_t style = 1)
void SetFuncWidth(Width_t width = 4)
void SetGridColor(Color_t color = 0)
void SetGridStyle(Style_t style = 3)
void SetGridWidth(Width_t width = 1)
void SetHatchesLineWidth(Int_t l)
void SetHatchesSpacing(Double_t h)
void SetHeaderPS(const char* header)
void SetHistFillColor(Color_t color = 1)
void SetHistFillStyle(Style_t styl = 0)
void SetHistLineColor(Color_t color = 1)
void SetHistLineStyle(Style_t styl = 0)
void SetHistLineWidth(Width_t width = 1)
void SetHistMinimumZero(Bool_t zero = kTRUE)
void SetIsReading(Bool_t reading = kTRUE)
void SetLabelColor(Color_t color = 1, Option_t* axis = "X")
void SetLabelFont(Style_t font = 62, Option_t* axis = "X")
void SetLabelOffset(Float_t offset = 0.005, Option_t* axis = "X")
void SetLabelSize(Float_t size = 0.04, Option_t* axis = "X")
void SetLegendBorderSize(Width_t size = 4)
void SetLegoInnerR(Float_t rad = 0.5)
void SetLineScalePS(Float_t scale = 3)
void SetLineStyleString(Int_t i, const char* text)
void SetNdivisions(Int_t n = 510, Option_t* axis = "X")
void SetNumberContours(Int_t number = 20)
void SetOptDate(Int_t datefl = 1)
void SetOptFile(Int_t file = 1)
void SetOptFit(Int_t fit = 1)
void SetOptLogx(Int_t logx = 1)
void SetOptLogy(Int_t logy = 1)
void SetOptLogz(Int_t logz = 1)
void SetOptStat(Int_t stat = 1)
void SetOptStat(Option_t* stat)
void SetOptTitle(Int_t tit = 1)
void SetPadBorderMode(Int_t mode = 1)
void SetPadBorderSize(Width_t size = 1)
void SetPadBottomMargin(Float_t margin = 0.1)
void SetPadColor(Color_t color = 19)
void SetPadGridX(Bool_t gridx)
void SetPadGridY(Bool_t gridy)
void SetPadLeftMargin(Float_t margin = 0.1)
void SetPadRightMargin(Float_t margin = 0.1)
void SetPadTickX(Int_t tickx)
void SetPadTickY(Int_t ticky)
void SetPadTopMargin(Float_t margin = 0.1)
void SetPaintTextFormat(const char* format = "g")
void SetPalette(Int_t ncolors = 0, Int_t* colors = 0)
void SetPaperSize(TStyle::EPaperSize size)
void SetPaperSize(Float_t xsize = 20, Float_t ysize = 26)
void SetScreenFactor(Float_t factor = 1)
void SetStatBorderSize(Width_t size = 2)
void SetStatColor(Int_t color = 19)
void SetStatFont(Style_t font = 62)
void SetStatFontSize(Float_t size = 0)
void SetStatFormat(const char* format = "6.4g")
void SetStatH(Float_t h = 0.1)
void SetStatStyle(Style_t style = 1001)
void SetStatTextColor(Int_t color = 1)
void SetStatW(Float_t w = 0.19)
void SetStatX(Float_t x = 0)
void SetStatY(Float_t y = 0)
void SetStripDecimals(Bool_t strip = kTRUE)
void SetTickLength(Float_t length = 0.03, Option_t* axis = "X")
void SetTimeOffset(Double_t toffset)
void SetTitleAlign(Int_t a = 13)
void SetTitleBorderSize(Width_t size = 2)
void SetTitleColor(Color_t color = 1, Option_t* axis = "X")
void SetTitleFillColor(Color_t color = 1)
void SetTitleFont(Style_t font = 62, Option_t* axis = "X")
void SetTitleFontSize(Float_t size = 0)
void SetTitleH(Float_t h = 0)
void SetTitleOffset(Float_t offset = 1, Option_t* axis = "X")
void SetTitlePS(const char* pstitle)
void SetTitleSize(Float_t size = 0.02, Option_t* axis = "X")
void SetTitleStyle(Style_t style = 1001)
void SetTitleTextColor(Color_t color = 1)
void SetTitleW(Float_t w = 0)
void SetTitleX(Float_t x = 0)
void SetTitleXOffset(Float_t offset = 1)
void SetTitleXSize(Float_t size = 0.02)
void SetTitleY(Float_t y = 0.985)
void SetTitleYOffset(Float_t offset = 1)
void SetTitleYSize(Float_t size = 0.02)
virtual void ShowMembers(TMemberInspector& insp, char* parent)
virtual void Streamer(TBuffer& b)
void StreamerNVirtual(TBuffer& b)
void ToggleEditor()
void ToggleEventStatus()
void ToggleToolBar()
private:
TAttAxis fXaxis X axis attributes
TAttAxis fYaxis Y axis attributes
TAttAxis fZaxis Z axis attributes
Float_t fBarWidth width of bar for graphs
Float_t fBarOffset offset of bar for graphs
Int_t fColorModelPS PostScript color model: 0 = RGB, 1 = CMYK
Int_t fDrawBorder flag to draw border(=1) or not (0)
Int_t fOptLogx =1 if log scale in X
Int_t fOptLogy =1 if log scale in y
Int_t fOptLogz =1 if log scale in z
Int_t fOptDate =1 if date option is selected
Int_t fOptStat =1 if option Stat is selected
Int_t fOptTitle =1 if option Title is selected
Int_t fOptFile =1 if option File is selected
Int_t fOptFit =1 if option Fit is selected
Int_t fShowEventStatus Show event status panel
Int_t fShowEditor Show pad editor
Int_t fShowToolBar Show toolbar
Int_t fNumberContours default number of contours for 2-d plots
TAttText fAttDate canvas date attribute
Float_t fDateX X position of the date in the canvas (in NDC)
Float_t fDateY Y position of the date in the canvas (in NDC)
Float_t fEndErrorSize Size of lines at the end of error bars
Float_t fErrorX per cent of bin width for errors along X
Color_t fFuncColor function color
Style_t fFuncStyle function style
Width_t fFuncWidth function line width
Color_t fGridColor grid line color (if 0 use axis line color)
Style_t fGridStyle grid line style
Width_t fGridWidth grid line width
Width_t fLegendBorderSize TLegend box border size
Int_t fHatchesLineWidth hatches line width for hatch styles > 3100
Double_t fHatchesSpacing hatches spacing for hatch styles > 3100
Color_t fFrameFillColor pad frame fill color
Color_t fFrameLineColor pad frame line color
Style_t fFrameFillStyle pad frame fill style
Style_t fFrameLineStyle pad frame line style
Width_t fFrameLineWidth pad frame line width
Width_t fFrameBorderSize pad frame border size
Int_t fFrameBorderMode pad frame border mode
Color_t fHistFillColor histogram fill color
Color_t fHistLineColor histogram line color
Style_t fHistFillStyle histogram fill style
Style_t fHistLineStyle histogram line style
Width_t fHistLineWidth histogram line width
Bool_t fHistMinimumZero true if default minimum is 0, false if minimum is automatic
Bool_t fCanvasPreferGL if true, rendering in canvas is with GL
Color_t fCanvasColor canvas color
Width_t fCanvasBorderSize canvas border size
Int_t fCanvasBorderMode canvas border mode
Int_t fCanvasDefH default canvas height
Int_t fCanvasDefW default canvas width
Int_t fCanvasDefX default canvas top X position
Int_t fCanvasDefY default canvas top Y position
Color_t fPadColor pad color
Width_t fPadBorderSize pad border size
Int_t fPadBorderMode pad border mode
Float_t fPadBottomMargin pad bottom margin
Float_t fPadTopMargin pad top margin
Float_t fPadLeftMargin pad left margin
Float_t fPadRightMargin pad right margin
Bool_t fPadGridX true to get the grid along X
Bool_t fPadGridY true to get the grid along Y
Int_t fPadTickX =1 to set special pad ticks along X
Int_t fPadTickY =1 to set special pad ticks along Y
Float_t fPaperSizeX PostScript paper size along X
Float_t fPaperSizeY PostScript paper size along Y
Float_t fScreenFactor Multiplication factor for canvas size and position
Color_t fStatColor stat fill area color
Color_t fStatTextColor stat text color
Width_t fStatBorderSize border size of Stats PaveLabel
Style_t fStatFont font style of Stats PaveLabel
Float_t fStatFontSize font size in pixels for fonts with precision type 3
Style_t fStatStyle fill area style of Stats PaveLabel
TString fStatFormat Printing format for stats
Float_t fStatX X position of top right corner of stat box
Float_t fStatY Y position of top right corner of stat box
Float_t fStatW width of stat box
Float_t fStatH height of stat box
Bool_t fStripDecimals Strip decimals in axis labels
Int_t fTitleAlign title box alignment
Color_t fTitleColor title fill area color
Color_t fTitleTextColor title text color
Width_t fTitleBorderSize border size of Title PavelLabel
Style_t fTitleFont font style of Title PaveLabel
Float_t fTitleFontSize font size in pixels for fonts with precision type 3
Style_t fTitleStyle fill area style of title PaveLabel
Float_t fTitleX X position of top left corner of title box
Float_t fTitleY Y position of top left corner of title box
Float_t fTitleW width of title box
Float_t fTitleH height of title box
Float_t fLegoInnerR Inner radius for cylindrical legos
TArrayI fPalette Color palette
TString fLineStyle[30] String describing line style i (for postScript)
TString fHeaderPS User defined additional Postscript header
TString fTitlePS User defined Postscript file title
TString fFitFormat Printing format for fit parameters
TString fPaintTextFormat Printing format for TH2::PaintText
Float_t fLineScalePS Line scale factor when drawing lines on Postscript
Double_t fTimeOffset Time offset to the beginning of an axis
Bool_t fIsReading !Set to FALSE when userclass::UseCurrentStyle is called by the style manager
public:
static const TStyle::EPaperSize kA4
static const TStyle::EPaperSize kUSLetter
TStyle objects may be created to define special styles.
By default ROOT creates a default style that can be accessed via
the gStyle pointer.
This class includes functions to set the following object attributes.
- Canvas
- Pad
- Histogram axis
- Lines
- Fill areas
- Text
- Markers
- Functions
- Histogram Statistics and Titles
TStyle() :TNamed()
TStyle(const char *name, const char *title) : TNamed(name,title)
Create a new TStyle.
The following names are reserved to create special styles
-Default: the default style set in TStyle::Reset
-Plain: a black&white oriented style
-Bold:
-Video;
-Pub:
(see the definition of these styles below).
Note a side-effect of calling gStyle->SetFillColor(0). This is nearly
equivalent of selecting the "Plain" style.
Many graphics attributes may be set via the TStyle, see in particular
- TStyle::SetNdivisions
- TStyle::SetAxisColor
- TStyle::SetHeaderPS
- TStyle::SetTitlePS
- TStyle::SetLabelColor
- TStyle::SetLabelFont
- TStyle::SetLabelOffset
- TStyle::SetLabelSize
- TStyle::SetOptDate
- TStyle::SetLineStyleString
- TStyle::SetOptFit
- TStyle::SetOptStat
- TStyle::SetPaperSize
- TStyle::SetTickLength
- TStyle::SetTitleOffset
- TStyle::SetTitleSize
- TStyle::SetPalette
- TStyle::SetTimeOffset
- TStyle::SetStripDecimals
The current style is pointed by gStyle.
When calling myStyle->cd(), gStyle is set to myStyle.
One can also use gROOT to change the current style, eg
gROOT->SetStyle("Plain") will change the current style gStyle to the "Plain" style
See also TROOT::ForceStyle and TROOT::UseCurrentStyle
~TStyle()
TStyle(const TStyle &style) : TNamed(style), TAttLine(style), TAttFill(style), TAttMarker(style), TAttText(style)
void Browse(TBrowser *)
Browse the style object.
void BuildStyles()
create some standard styles
void cd()
Change current style
void Copy(TObject &obj) const
Int_t DistancetoPrimitive(Int_t /*px*/, Int_t /*py*/)
Function used by the TStyle manager when drawing a canvas showing the current style
void Reset(Option_t *opt)
Reset.
Int_t AxisChoice( Option_t *axis) const
Int_t GetNdivisions( Option_t *axis) const
Color_t GetAxisColor( Option_t *axis) const
Return the axis color number in the axis.
Int_t GetColorPalette(Int_t i) const
Return color number i in current palette.
Color_t GetLabelColor( Option_t *axis) const
Return the label color number in the axis.
Style_t GetLabelFont( Option_t *axis) const
Float_t GetLabelOffset( Option_t *axis) const
Float_t GetLabelSize( Option_t *axis) const
const char* GetLineStyleString(Int_t i) const
return line style string (used by PostScript).
See SetLineStyleString for more explanations
void GetPaperSize(Float_t &xsize, Float_t &ysize)
Set paper size for PostScript output
Float_t GetTickLength( Option_t *axis) const
Color_t GetTitleColor( Option_t *axis) const
Style_t GetTitleFont( Option_t *axis) const
Float_t GetTitleOffset( Option_t *axis) const
Float_t GetTitleSize( Option_t *axis) const
void Paint(Option_t *option)
show the options from the current style
if (gROOT->GetClass("TStyleManager")) gSystem->Load("libGed");
void SetColorModelPS(Int_t c)
Define the color model use by TPostScript and TPDF (RGB or CMYK).
CMY and CMYK models are subtractive color models unlike RGB which is an
additive. They are mainly used for printing purposes. CMY means Cyan Magenta
Yellow to convert RGB to CMY it is enough to do: C=1-R, M=1-G and Y=1-B.
CMYK has one more component K (black). The conversion from RGB to CMYK is:
Double_t Black = TMath::Min(TMath::Min(1-Red,1-Green),1-Blue);
Double_t Cyan = (1-Red-Black)/(1-Black);
Double_t Magenta = (1-Green-Black)/(1-Black);
Double_t Yellow = (1-Blue-Black)/(1-Black);
CMYK add the black component which allows to have a better quality for black
printing. PostScript and PDF support the CMYK model.
c = 0 means TPostScript and TPDF will use RGB color model (default)
c = 1 means TPostScript and TPDF will use CMYK color model
void SetHistMinimumZero(Bool_t zero)
if the argument zero=kTRUE the minimum value for the Y axis of 1-d histograms
is set to 0 if the minimum bin content is greater than 0 and TH1::SetMinimum
has not been called.
Otherwise the minimum is based on the minimum bin content.
void SetNdivisions(Int_t n, Option_t *axis)
Set the number of divisions to draw an axis.
ndiv : Number of divisions.
n = N1 + 100*N2 + 10000*N3
N1=number of primary divisions.
N2=number of secondary divisions.
N3=number of 3rd divisions.
e.g.:
nndi=0 --> no tick marks.
nndi=2 --> 2 divisions, one tick mark in the middle
of the axis.
axis specifies which axis ("x","y","z"), default = "x"
if axis="xyz" set all 3 axes
void SetAxisColor(Color_t color, Option_t *axis)
Set color to draw the axis line and tick marks.
axis specifies which axis ("x","y","z"), default = "x"
if axis="xyz" set all 3 axes
void SetEndErrorSize(Float_t np)
Set the size (in pixels) of the small lines drawn at the
end of the error bars (TH1 or TGraphErrors).
The default value is 2 pixels.
Set np=0 to remove these lines
void SetHeaderPS(const char *header)
Define a string to be inserted in the Postscript header
The string in header will be added to the Postscript file
immediatly following the %%Page line
For example, this string may contain special Postscript instructions like
200 200 translate
the following header string will print the string "my annotation" at the
bottom left corner of the page (outside the user area)
"gsave 100 -100 t 0 r 0 0 m /Helvetica-Bold findfont 56 sf 0 0 m ( my annotation ) show gr"
This information is used in TPostScript::Initialize
void SetIsReading(Bool_t reading)
Sets the fIsReading member to reading (default=kTRUE)
fIsReading (used via gStyle->IsReading()) can be used in
the functions myclass::UseCurrentStyle to read from the current style
or write to the current style
void SetTitlePS(const char *pstitle)
Define a string to be used in the %%Title of the Postscript files.
If this string is not defined, ROOT will use the canvas title.
void SetLabelColor(Color_t color, Option_t *axis)
Set axis labels color.
axis specifies which axis ("x","y","z"), default = "x"
if axis="xyz" set all 3 axes
void SetLabelFont(Style_t font, Option_t *axis)
Set font number used to draw axis labels.
font : Text font code = 10*fontnumber + precision
Font numbers must be between 1 and 14
precision = 1 fast hardware fonts (steps in the size)
precision = 2 scalable and rotatable hardware fonts
The default font number is 62.
axis specifies which axis ("x","y","z"), default = "x"
if axis="xyz" set all 3 axes
void SetLabelOffset(Float_t offset, Option_t *axis)
Set offset between axis and axis labels.
The offset is expressed as a percent of the pad height.
axis specifies which axis ("x","y","z"), default = "x"
if axis="xyz" set all 3 axes
void SetLabelSize(Float_t size, Option_t *axis)
Set size of axis labels. The size is expressed as a percent of the pad height.
axis specifies which axis ("x","y","z"), default = "x"
if axis="xyz" set all 3 axes
void SetLineStyleString(Int_t i, const char *text)
Set line style string using the PostScript convention.
A line is a suite of segments, each segment is described by the number of
pixels. The initial and alternating elements (second, fourth, and so on)
are the dashes, and the others spaces between dashes.
Default fixed line styles are pre-defined as:
linestyle 1 "[]" solid
linestyle 2 "[12 12]" dashed
linestyle 3 "[4 8]" dotted
linestyle 4 "[12 16 4 16]" dash-dotted

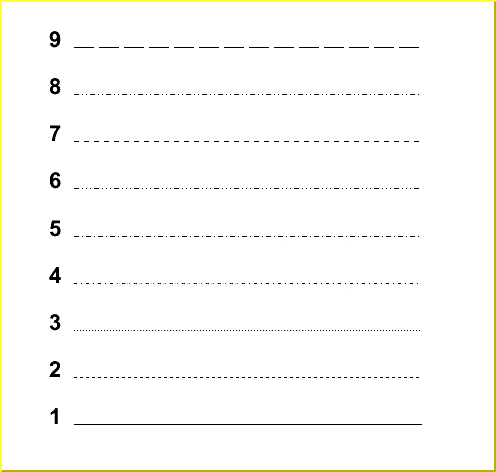

For example the following lines define the line style 5 to 9.
gStyle->SetLineStyleString(5,"20 12 4 12");
gStyle->SetLineStyleString(6,"20 12 4 12 4 12 4 12");
gStyle->SetLineStyleString(7,"20 20");
gStyle->SetLineStyleString(8,"20 12 4 12 4 12");
gStyle->SetLineStyleString(9,"80 20");
/*
*/
Note:
- Up to 30 different styles may be defined.
- The opening and closing brackets may be omitted
- It is recommended to use 4 as the smallest segment length and multiple of
4 for other lengths.
- The line style 1 to 10 are predefined. 1 to 4 cannot be changed.
void SetNumberContours(Int_t number)
set the default number of contour levels when drawing 2-d plots
void SetOptDate(Int_t optdate)
if optdate is non null, the current date/time will be printed in the canvas.
The position of the date string can be controlled by:
optdate = 10*format + mode
mode = 1 (default) date is printed in the bottom/left corner.
mode = 2 date is printed in the bottom/right corner.
mode = 3 date is printed in the top/right corner.
format = 0 (default) date has the format like: "Wed Sep 25 17:10:35 2002"
format = 1 date has the format like: "2002-09-25"
format = 2 date has the format like: "2002-09-25 17:10:35"
examples:
optdate = 1 date like "Wed Sep 25 17:10:35 2002" in the bottom/left corner.
optdate = 13 date like "2002-09-25" in the top/right corner.
The date position can also be controlled by:
gStyle->SetDateX(x); x in NDC
gStyle->SetDateY(y); y in NDC
The date text attributes can be changed with:
gStyle->GetAttDate()->SetTextFont(font=62);
gStyle->GetAttDate()->SetTextSize(size=0.025);
gStyle->GetAttDate()->SetTextAngle(angle=0);
gStyle->GetAttDate()->SetTextAlign(align=11);
gStyle->GetAttDate()->SetTextColor(color=1);
The current date attributes can be obtained via:
gStyle->GetAttDate()->GetTextxxxx();
When the date option is active, a text object is created when the pad
paint its list of primitives. The text object is named "DATE".
The DATE attributes can also be edited interactively (position
and attributes) via the normal context menu.
void SetOptFit(Int_t mode)
The type of information about fit parameters printed in the histogram
statistics box can be selected via the parameter mode.
The parameter mode can be = pcev (default = 0111)
v = 1; print name/values of parameters
e = 1; print errors (if e=1, v must be 1)
c = 1; print Chisquare/Number of degress of freedom
p = 1; print Probability
Example: gStyle->SetOptFit(1011);
print fit probability, parameter names/values and errors.
When "v"=1 is specified, only the non-fixed parameters are shown.
When "v"=2 all parameters are shown.
see also SetOptStat below.
void SetOptStat(Int_t mode)
The type of information printed in the histogram statistics box
can be selected via the parameter mode.
The parameter mode can be = iourmen (default = 0001111)
n = 1; name of histogram is printed
e = 1; number of entries printed
m = 1; mean value printed
m = 2; mean and mean error values printed
r = 1; rms printed
r = 2; rms and rms error printed
u = 1; number of underflows printed
o = 1; number of overflows printed
i = 1; integral of bins printed
s = 1; skewness printed
s = 2; skewness and skewness error printed
k = 1; kurtosis printed
k = 2; kurtosis and kurtosis error printed
Example: gStyle->SetOptStat(11);
print only name of histogram and number of entries.
gStyle->SetOptStat(1101); displays the name of histogram, mean value and RMS.
WARNING: never call SetOptStat(000111); but SetOptStat(1111), 0001111 will
be taken as an octal number !!
WARNING: SetOptStat(1) is taken as SetOptStat(1111) (for back compatibility
with older versions. If you want to print only the name of the histogram
call SetOptStat(1000000001).
NOTE that in case of 2-D histograms, when selecting just underflow (10000)
or overflow (100000), the stats box will show all combinations
of underflow/overflows and not just one single number!
void SetOptStat(Option_t *stat)
The parameter mode can be = IOURMEN
n : name of histogram is printed
e : number of entries printed
m : mean value printed
M : mean value mean error values printed
r : rms printed
R : rms and rms error printed
u : number of underflows printed
o : number of overflows printed
i : integral of bins printed
s : skewness printed
S : skewness and skewness error printed
k : kurtosis printed
K : kurtosis and kurtosis error printed
Example: gStyle->SetOptStat("ne");
print only name of histogram and number of entries.
gStyle->SetOptStat("n") print only the name of the histogram
gStyle->SetOptStat("nemr") is the default
void SetPaperSize(EPaperSize size)
Set paper size for PostScript output.
void SetPaperSize(Float_t xsize, Float_t ysize)
Set paper size for PostScript output.
The paper size is specified in centimeters. Default is 20x26.
See also TPad::Print
void SetTickLength(Float_t length, Option_t *axis)
set the tick marks length for an axis.
axis specifies which axis ("x","y","z"), default = "x"
if axis="xyz" set all 3 axes
void SetTitleColor(Color_t color, Option_t *axis)
if axis =="x" set the X axis title color
if axis =="y" set the Y axis title color
if axis =="z" set the Z axis title color
any other value of axis will set the pad title color
if axis="xyz" set all 3 axes
void SetTitleFont(Style_t font, Option_t *axis)
if axis =="x" set the X axis title font
if axis =="y" set the Y axis title font
if axis =="z" set the Z axis title font
any other value of axis will set the pad title font
if axis="xyz" set all 3 axes
void SetTitleOffset(Float_t offset, Option_t *axis)
Specify a parameter offset to control the distance between the axis
and the axis title.
offset = 1 means : use the default distance
offset = 1.2 means: the distance will be 1.2*(default distance)
offset = 0.8 means: the distance will be 0.8*(default distance)
axis specifies which axis ("x","y","z"), default = "x"
if axis="xyz" set all 3 axes
void SetTitleSize(Float_t size, Option_t *axis)
if axis =="x" set the X axis title size
if axis =="y" set the Y axis title size
if axis =="z" set the Z axis title size
any other value of axis will set the pad title size
if axis="xyz" set all 3 axes
Int_t CreateGradientColorTable(UInt_t Number, Double_t* Length,
Double_t* Red, Double_t* Green,
Double_t* Blue, UInt_t NColors)
STATIC function.
Linear gradient color table:
Red, Green and Blue are several RGB colors with values from 0.0 .. 1.0.
Their number is "Intervals".
Length is the length of the color interval between the RGB-colors:
Imaging the whole gradient goes from 0.0 for the first RGB color to 1.0
for the last RGB color, then each "Length"-entry in between stands for
the length of the intervall between the according RGB colors.
This definition is similar to the povray-definition of gradient
color tables.
In order to create a color table do the following:
Define the RGB Colors:
> UInt_t Number = 5;
> Double_t Red[5] = { 0.00, 0.09, 0.18, 0.09, 0.00 };
> Double_t Green[5] = { 0.01, 0.02, 0.39, 0.68, 0.97 };
> Double_t Blue[5] = { 0.17, 0.39, 0.62, 0.79, 0.97 };
Define the length of the (color)-interval between this points
> Double_t Stops[5] = { 0.00, 0.34, 0.61, 0.84, 1.00 };
i.e. the color interval between Color 2 and Color 3 is
0.79 - 0.62 => 17 % of the total palette area between these colors
Original code by Andreas Zoglauer <zog@mpe.mpg.de>
void SetPalette(Int_t ncolors, Int_t *colors)
The color palette is used by the histogram classes
(see TH1::Draw options).
For example TH1::Draw("col") draws a 2-D histogram with cells
represented by a box filled with a color CI function of the cell content.
if the cell content is N, the color CI used will be the color number
in colors[N],etc. If the maximum cell content is > ncolors, all
cell contents are scaled to ncolors.
if ncolors <= 0 a default palette (see below) of 50 colors is defined.
the colors defined in this palette are OK for coloring pads, labels
if ncolors == 1 && colors == 0, then
a Pretty Palette with a Spectrum Violet->Red is created.
It is recommended to use this Pretty palette when drawing legos,
surfaces or contours.
if ncolors > 50 and colors=0, the DeepSea palette is used.
(see TStyle::CreateGradientColorTable for more details)
if ncolors > 0 and colors = 0, the default palette is used
with a maximum of ncolors.
The default palette defines:
index 0->9 : grey colors from light to dark grey
index 10->19 : "brown" colors
index 20->29 : "blueish" colors
index 30->39 : "redish" colors
index 40->49 : basic colors
The color numbers specified in the palette can be viewed by selecting
the item "colors" in the "VIEW" menu of the canvas toolbar.
The color parameters can be changed via TColor::SetRGB.
void SetTimeOffset(Double_t toffset)
Change the time offset for time plotting.
Times are expressed in seconds. The corresponding numbers usually have 9
digits (or more if one takes into account fractions of seconds).
Thus, since it is very inconvenient to plot very large numbers on a scale,
one has to set an offset time that will be added to the axis begining,
in order to plot times correctly and conveniently. A convenient way to
set the time offset is to use TDatime::Convert().
void SetStripDecimals(Bool_t strip)
Set option to strip decimals when drawing axis labels.
By default, TGaxis::PaintAxis removes trailing 0s after a dot
in the axis labels. Ex: {0,0.5,1,1.5,2,2.5, etc}
If this function is called with strip=kFALSE, TGAxis::PaintAxis will
draw labels with the same number of digits after the dot
Ex: (0.0,0.5,1.0,1.5,2.0,2.5,etc}
void SaveSource(const char *filename, Option_t *option)
Save the current style in a C++ macro file.
void SavePrimitive(ofstream &out, Option_t *)
Save a main frame widget as a C++ statement(s) on output stream out.
Inline Functions
TAttText* GetAttDate()
Float_t GetBarOffset() const
Float_t GetBarWidth() const
Int_t GetDrawBorder() const
Float_t GetEndErrorSize() const
Float_t GetErrorX() const
Bool_t GetCanvasPreferGL() const
Color_t GetCanvasColor() const
Width_t GetCanvasBorderSize() const
Int_t GetCanvasBorderMode() const
Int_t GetCanvasDefH() const
Int_t GetCanvasDefW() const
Int_t GetCanvasDefX() const
Int_t GetCanvasDefY() const
Int_t GetColorModelPS() const
Float_t GetDateX() const
Float_t GetDateY() const
const char* GetFitFormat() const
Int_t GetHatchesLineWidth() const
Double_t GetHatchesSpacing() const
Width_t GetLegendBorderSize() const
Int_t GetNumberOfColors() const
Color_t GetPadColor() const
Width_t GetPadBorderSize() const
Int_t GetPadBorderMode() const
Float_t GetPadBottomMargin() const
Float_t GetPadTopMargin() const
Float_t GetPadLeftMargin() const
Float_t GetPadRightMargin() const
Bool_t GetPadGridX() const
Bool_t GetPadGridY() const
Int_t GetPadTickX() const
Int_t GetPadTickY() const
Color_t GetFuncColor() const
Style_t GetFuncStyle() const
Width_t GetFuncWidth() const
Color_t GetGridColor() const
Style_t GetGridStyle() const
Width_t GetGridWidth() const
Color_t GetFrameFillColor() const
Color_t GetFrameLineColor() const
Style_t GetFrameFillStyle() const
Style_t GetFrameLineStyle() const
Width_t GetFrameLineWidth() const
Width_t GetFrameBorderSize() const
Int_t GetFrameBorderMode() const
Color_t GetHistFillColor() const
Color_t GetHistLineColor() const
Style_t GetHistFillStyle() const
Style_t GetHistLineStyle() const
Width_t GetHistLineWidth() const
Bool_t GetHistMinimumZero() const
Float_t GetLegoInnerR() const
Int_t GetNumberContours() const
Int_t GetOptDate() const
Int_t GetOptFile() const
Int_t GetOptFit() const
Int_t GetOptStat() const
Int_t GetOptTitle() const
Int_t GetOptLogx() const
Int_t GetOptLogy() const
Int_t GetOptLogz() const
const char* GetPaintTextFormat() const
Int_t GetShowEventStatus() const
Int_t GetShowEditor() const
Int_t GetShowToolBar() const
Float_t GetScreenFactor() const
Color_t GetStatColor() const
Color_t GetStatTextColor() const
Width_t GetStatBorderSize() const
Style_t GetStatFont() const
Float_t GetStatFontSize() const
Style_t GetStatStyle() const
const char* GetStatFormat() const
Float_t GetStatX() const
Float_t GetStatY() const
Float_t GetStatW() const
Float_t GetStatH() const
Int_t GetStripDecimals() const
Double_t GetTimeOffset() const
Int_t GetTitleAlign()
Color_t GetTitleFillColor() const
Color_t GetTitleTextColor() const
Style_t GetTitleStyle() const
Float_t GetTitleFontSize() const
Width_t GetTitleBorderSize() const
Float_t GetTitleXOffset() const
Float_t GetTitleXSize() const
Float_t GetTitleYOffset() const
Float_t GetTitleYSize() const
Float_t GetTitleX() const
Float_t GetTitleY() const
Float_t GetTitleW() const
Float_t GetTitleH() const
const char* GetHeaderPS() const
const char* GetTitlePS() const
Float_t GetLineScalePS() const
Bool_t IsReading() const
void SetFitFormat(const char* format = "5.4g")
void SetHatchesLineWidth(Int_t l)
void SetHatchesSpacing(Double_t h)
void SetLineScalePS(Float_t scale = 3)
void SetLegoInnerR(Float_t rad = 0.5)
void SetScreenFactor(Float_t factor = 1)
void SetOptFile(Int_t file = 1)
void SetOptLogx(Int_t logx = 1)
void SetOptLogy(Int_t logy = 1)
void SetOptLogz(Int_t logz = 1)
void SetOptTitle(Int_t tit = 1)
void SetBarOffset(Float_t baroff = 0.5)
void SetBarWidth(Float_t barwidth = 0.5)
void SetDateX(Float_t x = 0.01)
void SetDateY(Float_t y = 0.01)
void SetErrorX(Float_t errorx = 0.5)
void SetCanvasPreferGL(Bool_t prefer = kTRUE)
void SetDrawBorder(Int_t drawborder = 1)
void SetCanvasColor(Color_t color = 19)
void SetCanvasBorderSize(Width_t size = 1)
void SetCanvasBorderMode(Int_t mode = 1)
void SetCanvasDefH(Int_t h = 500)
void SetCanvasDefW(Int_t w = 700)
void SetCanvasDefX(Int_t topx = 10)
void SetCanvasDefY(Int_t topy = 10)
void SetLegendBorderSize(Width_t size = 4)
void SetPadColor(Color_t color = 19)
void SetPadBorderSize(Width_t size = 1)
void SetPadBorderMode(Int_t mode = 1)
void SetPadBottomMargin(Float_t margin = 0.1)
void SetPadTopMargin(Float_t margin = 0.1)
void SetPadLeftMargin(Float_t margin = 0.1)
void SetPadRightMargin(Float_t margin = 0.1)
void SetPadGridX(Bool_t gridx)
void SetPadGridY(Bool_t gridy)
void SetPadTickX(Int_t tickx)
void SetPadTickY(Int_t ticky)
void SetFuncStyle(Style_t style = 1)
void SetFuncColor(Color_t color = 1)
void SetFuncWidth(Width_t width = 4)
void SetGridStyle(Style_t style = 3)
void SetGridColor(Color_t color = 0)
void SetGridWidth(Width_t width = 1)
void SetFrameFillColor(Color_t color = 1)
void SetFrameLineColor(Color_t color = 1)
void SetFrameFillStyle(Style_t styl = 0)
void SetFrameLineStyle(Style_t styl = 0)
void SetFrameLineWidth(Width_t width = 1)
void SetFrameBorderSize(Width_t size = 1)
void SetFrameBorderMode(Int_t mode = 1)
void SetHistFillColor(Color_t color = 1)
void SetHistLineColor(Color_t color = 1)
void SetHistFillStyle(Style_t styl = 0)
void SetHistLineStyle(Style_t styl = 0)
void SetHistLineWidth(Width_t width = 1)
void SetPaintTextFormat(const char* format = "g")
void SetStatColor(Int_t color = 19)
void SetStatTextColor(Int_t color = 1)
void SetStatStyle(Style_t style = 1001)
void SetStatBorderSize(Width_t size = 2)
void SetStatFont(Style_t font = 62)
void SetStatFontSize(Float_t size = 0)
void SetStatFormat(const char* format = "6.4g")
void SetStatX(Float_t x = 0)
void SetStatY(Float_t y = 0)
void SetStatW(Float_t w = 0.19)
void SetStatH(Float_t h = 0.1)
void SetTitleAlign(Int_t a = 13)
void SetTitleFillColor(Color_t color = 1)
void SetTitleTextColor(Color_t color = 1)
void SetTitleStyle(Style_t style = 1001)
void SetTitleFontSize(Float_t size = 0)
void SetTitleBorderSize(Width_t size = 2)
void SetTitleXOffset(Float_t offset = 1)
void SetTitleXSize(Float_t size = 0.02)
void SetTitleYOffset(Float_t offset = 1)
void SetTitleYSize(Float_t size = 0.02)
void SetTitleX(Float_t x = 0)
void SetTitleY(Float_t y = 0.985)
void SetTitleW(Float_t w = 0)
void SetTitleH(Float_t h = 0)
void ToggleEventStatus()
void ToggleEditor()
void ToggleToolBar()
TClass* Class()
TClass* IsA() const
void ShowMembers(TMemberInspector& insp, char* parent)
void Streamer(TBuffer& b)
void StreamerNVirtual(TBuffer& b)
TStyle& operator=(const TStyle&)
Author: Rene Brun 12/12/94
Last update: root/base:$Name: $:$Id: TStyle.cxx,v 1.62 2005/11/21 11:17:18 rdm Exp $
Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
ROOT page - Class index - Class Hierarchy - Top of the page
This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
