class Track: public TObject


                       Event and Track classes


  The Event class is a naive/simple example of an event structure.
     public:
        char           fType[20];
        char          *fEventName;         //run+event number in character format
        Int_t          fNtrack;
        Int_t          fNseg;
        Int_t          fNvertex;
        UInt_t         fFlag;
        Double32_t     fTemperature;
        Int_t          fMeasures[10];
        Double32_t     fMatrix[4][4];
        Double32_t    *fClosestDistance; //[fNvertex] indexed array!
        EventHeader    fEvtHdr;
        TClonesArray  *fTracks;
        TRefArray     *fHighPt;            //array of High Pt tracks only
        TRefArray     *fMuons;             //array of Muon tracks only
        TRef           fLastTrack;         //pointer to last track
        TRef           fHistoWeb;          //EXEC:GetHistoWeb reference to an histogram in a TWebFile
        TH1F          *fH;
        TBits          fTriggerBits;       //Bits triggered by this event.

   The EventHeader class has 3 data members (integers):
     public:
        Int_t          fEvtNum;
        Int_t          fRun;
        Int_t          fDate;


   The Event data member fTracks is a pointer to a TClonesArray.
   It is an array of a variable number of tracks per event.
   Each element of the array is an object of class Track with the members:
     private:
        Float_t      fPx;           //X component of the momentum
        Float_t      fPy;           //Y component of the momentum
        Float_t      fPz;           //Z component of the momentum
        Float_t      fRandom;       //A random track quantity
        Float_t      fMass2;        //The mass square of this particle
        Float_t      fBx;           //X intercept at the vertex
        Float_t      fBy;           //Y intercept at the vertex
        Float_t      fMeanCharge;   //Mean charge deposition of all hits of this track
        Float_t      fXfirst;       //X coordinate of the first point
        Float_t      fXlast;        //X coordinate of the last point
        Float_t      fYfirst;       //Y coordinate of the first point
        Float_t      fYlast;        //Y coordinate of the last point
        Float_t      fZfirst;       //Z coordinate of the first point
        Float_t      fZlast;        //Z coordinate of the last point
        Double32_t   fCharge;       //Charge of this track
        Double32_t   fVertex[3];    //Track vertex position
        Int_t        fNpoint;       //Number of points for this track
        Short_t      fValid;        //Validity criterion
        Int_t        fNsp;          //Number of points for this track with a special value
        Double32_t  *fPointValue;   //[fNsp] a special quantity for some point.
        TBits        fTriggerBits;  //Bits triggered by this track.

   An example of a batch program to use the Event/Track classes is given
   in this directory: MainEvent.
   Look also in the same directory at the following macros:
     - eventa.C  an example how to read the tree
     - eventb.C  how to read events conditionally

   During the processing of the event (optionally) also a large number
   of histograms can be filled. The creation and handling of the
   histograms is taken care of by the HistogramManager class.


Function Members (Methods)

public:
Track()
Track(const Track& orig)
Track(Float_t random)
virtual~Track()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidClear(Option_t* option = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() const
virtual TObject*TObject::DrawClone(Option_t* option = "") const
virtual voidTObject::Dump() const
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Float_tGetBx() const
Float_tGetBy() const
Double32_tGetCharge() const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
Float_tGetMass2() const
Float_tGetMeanCharge() const
Int_tGetN() const
virtual const char*TObject::GetName() const
Int_tGetNpoint() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
Double32_tGetPointValue(Int_t i = 0) const
Float_tGetPt() const
Float_tGetPx() const
Float_tGetPy() const
Float_tGetPz() const
Float_tGetRandom() const
virtual const char*TObject::GetTitle() const
TBits&GetTriggerBits()
virtual UInt_tTObject::GetUniqueID() const
Short_tGetValid() const
Double32_tGetVertex(Int_t i = 0)
Float_tGetXfirst() const
Float_tGetXlast() const
Float_tGetYfirst() const
Float_tGetYlast() const
Float_tGetZfirst() const
Float_tGetZlast() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() const
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
Track&operator=(const Track&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") const
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")
static voidTObject::SetDtorOnly(void* obj)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidSetValid(Int_t valid = 1)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
private:
Float16_tfBx[0,0,10] X intercept at the vertex
Float16_tfBy[0,0,10] Y intercept at the vertex
Double32_tfCharge[-1,1,2] Charge of this track
Float16_tfMass2[0,0,8] The mass square of this particle
Float_tfMeanChargeMean charge deposition of all hits of this track
Int_tfNpointNumber of points for this track
Int_tfNspNumber of points for this track with a special value
Double32_t*fPointValue[fNsp][0,3] a special quantity for some point.
Float_tfPxX component of the momentum
Float_tfPyY component of the momentum
Float_tfPzZ component of the momentum
Float_tfRandomA random track quantity
TBitsfTriggerBitsBits triggered by this track.
Short_tfValidValidity criterion
Double32_tfVertex[3][-30,30,16] Track vertex position
Float16_tfXfirstX coordinate of the first point
Float16_tfXlastX coordinate of the last point
Float16_tfYfirstY coordinate of the first point
Float16_tfYlastY coordinate of the last point
Float16_tfZfirstZ coordinate of the first point
Float16_tfZlastZ coordinate of the last point

Class Charts

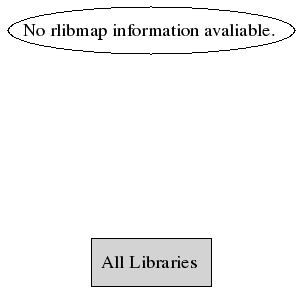

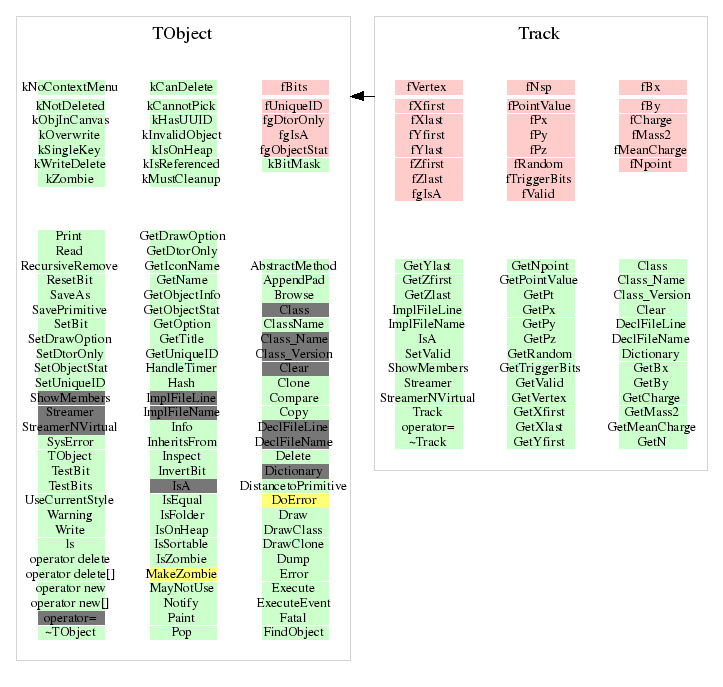

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

Track(const Track &orig)
 Copy a track object
Track(Float_t random)
 Create a track object.
 Note that in this example, data members do not have any physical meaning.
void Clear(Option_t* option = "")
Track()
{ fPointValue = 0; }
virtual ~Track()
{Clear();}
Float_t GetPx()
{ return fPx; }
Float_t GetPy()
{ return fPy; }
Float_t GetPz()
{ return fPz; }
Float_t GetPt()
{ return TMath::Sqrt(fPx*fPx + fPy*fPy); }
Float_t GetRandom()
{ return fRandom; }
Float_t GetBx()
{ return fBx; }
Float_t GetBy()
{ return fBy; }
Float_t GetMass2()
{ return fMass2; }
Float_t GetMeanCharge()
{ return fMeanCharge; }
Float_t GetXfirst()
{ return fXfirst; }
Float_t GetXlast()
{ return fXlast; }
Float_t GetYfirst()
{ return fYfirst; }
Float_t GetYlast()
{ return fYlast; }
Float_t GetZfirst()
{ return fZfirst; }
Float_t GetZlast()
{ return fZlast; }
Double32_t GetCharge()
{ return fCharge; }
Double32_t GetVertex(Int_t i = 0)
{return (i<3)?fVertex[i]:0;}
Int_t GetNpoint()
{ return fNpoint; }
TBits& GetTriggerBits()
{ return fTriggerBits; }
Short_t GetValid()
{ return fValid; }
void SetValid(Int_t valid = 1)
{ fValid = valid; }
Int_t GetN()
{ return fNsp; }
Double32_t GetPointValue(Int_t i = 0) const
{ return (i<fNsp)?fPointValue[i]:0; }
