class TRecorderRecording: public TRecorderState

 Represents state of TRecorder when recording events

Function Members (Methods)

public:
TRecorderRecording(const TRecorderRecording&)
static TClass*Class()
virtual TRecorder::ERecorderStateGetState() const
virtual TClass*IsA() const
virtual voidTRecorderState::ListCmd(const char*)
virtual voidTRecorderState::ListGui(const char*)
TRecorderRecording&operator=(const TRecorderRecording&)
virtual voidTRecorderState::Pause(TRecorder*)
voidRecordCmdEvent(const char* line)
voidRecordGuiCNEvent(Event_t* e)
voidRecordGuiEvent(Event_t* e, Window_t wid)
voidRegisterWindow(Window_t w)
virtual Bool_tTRecorderState::Replay(TRecorder*, const char*, Bool_t, TRecorder::EReplayModes)
virtual voidTRecorderState::ReplayStop(TRecorder*)
virtual voidTRecorderState::Resume(TRecorder*)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidTRecorderState::Start(TRecorder*, const char*, Option_t*, Window_t*, Int_t)
virtual voidStop(TRecorder* r, Bool_t guiCommand)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
protected:
TRecorderRecording(TRecorder* r, const char* filename, Option_t* option, Window_t* w, Int_t winCount)
voidTRecorderState::ChangeState(TRecorder* r, TRecorderState* s, Bool_t deletePreviousState)
Bool_tStartRecording()
private:
(unknown)()
voidCopyEvent(Event_t* e, Window_t wid)
Bool_tIsFiltered(Window_t id)
voidSetTypeOfConfigureNotify(Event_t* e)

Data Members

private:
TRecCmdEvent*fCmdEventThe newest commandline event to be stored in TTree
Bool_tfCmdEventPendingIndication if there is a still pending commandline event that should be stored.
TTree*fCmdTreeTTree with recorded commandline events
TFile*fFileROOT file to store recorded events in
Window_t*fFilteredIdsOnly when GUI for recorer is used: IDs of windows that creates that GUI.
Int_tfFilteredIdsCountOnly when GUI for recorder is used: Count of windows in GUI recorder
TRecGuiEvent*fGuiEventThe newest GUI event to be stored in TTree
TTree*fGuiTreeTTree with recorded GUI events
TRecorder*fRecorderReference to recorder (owner of this state) is kept in order to switch
Int_tfRegWinCounterCounter of registered ROOT windows.
TTimer*fTimerTimer used for recording
ULong64_tfWinThe newest registered window to be stored in TTree
TTree*fWinTreeTTree with registered windows

Class Charts

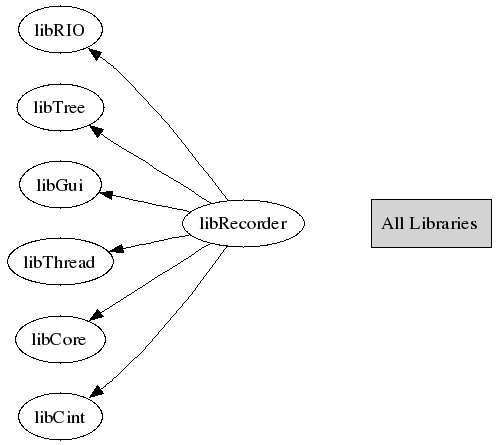

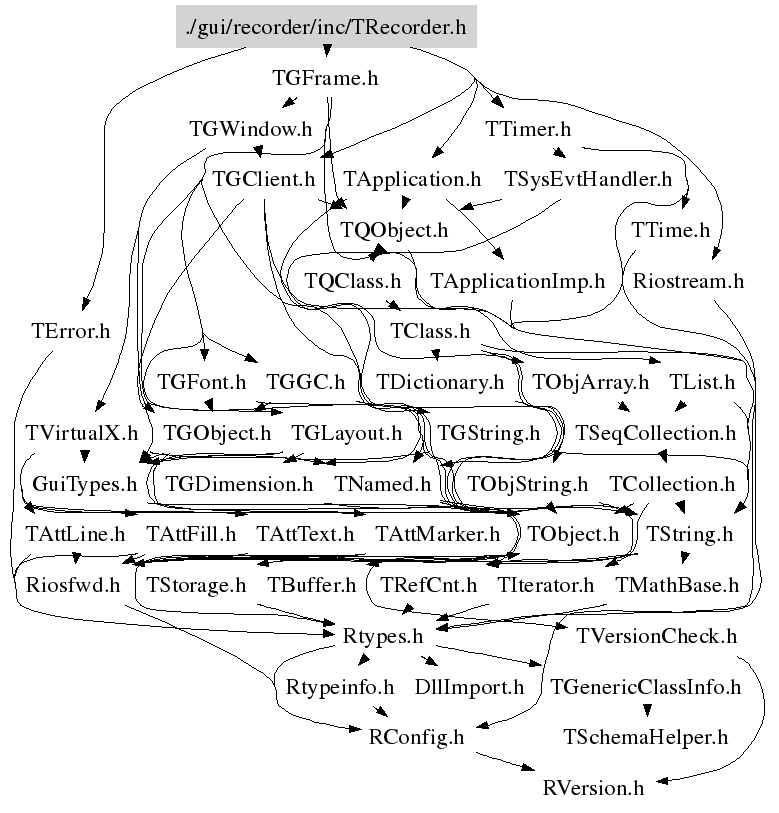

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TRecorderRecording(TRecorder* r, const char* filename, Option_t* option, Window_t* w, Int_t winCount)
 Initializes TRecorderRecording for recording
 What is allocated here is deleted in destructor
Bool_t StartRecording()
 Connects appropriate signals and slots in order to gain all registered windows and processed events in ROOT
 Starts the recording
void Stop(TRecorder* r, Bool_t guiCommand)
 Disconnects all slots and stopps recording.
void RegisterWindow(Window_t w)
 This method is called when RegisteredWindow(Window_t) is emitted from TGClient
void RecordCmdEvent(const char* line)
 Records commandline event (text and time) ans saves the previous commandline event
 This 1 event delay in saving ensures that the last commandline events 'TRecorder::Stop'
 will be not stored
void RecordGuiEvent(Event_t* e, Window_t wid)
 Records GUI Event_t *e different from kConfigureNotify (they are recorded in TRecorderRecording::RecordGuiCNEvent)

 It is called via signal-slot when an event is processed in TGClient::HandleEvent(Event_t *event)
 or in TGClient::HandleMaskEvent(Event_t *event, Window_t wid)

 If signal is emitted from TGClient::HandleEvent(Event_t *event), then wid = 0
void RecordGuiCNEvent(Event_t* e)
 Records GUI Event_t *e of type kConfigureNotify.
 It is called via signal-slot when an kConfigureNotify event is processed in TGFrame::HandleEvent
void CopyEvent(Event_t* e, Window_t wid)
 Copies all items of given event to fGuiEvent
Bool_t IsFiltered(Window_t id)
 Returns kTRUE if passed id belongs to window IDs of recorder GUI itself
void SetTypeOfConfigureNotify(Event_t* e)
 Sets type of kConfigureNotify event to one of EConfigureNotify

 On Linux paremeters of GUI event kConfigureNotify are different
 than parameters of the same event executed on Windows.
 Therefore we need to distinguish [on Linux], if the event is movement or resize event.
 On Windows, we do not need to distinguish them.
TRecorder::ERecorderState GetState()
 Gets current state of recorder
TRecorderRecording(TRecorder* r, const char* filename, Option_t* option, Window_t* w, Int_t winCount)

Author: Katerina Opocenska 11/09/2008
Last change: root/gui:$Id: TRecorder.h 26135 2008-11-11 09:37:55Z bellenot $
Last generated: 2008-11-11 12:38
