class TGeoVolumeEditor: public TGeoGedFrame


TGeoVolumeEditor


 Editor for geometry volumes and assemblies of volumes. Besides the volume
   name and line attributes, a TGeoVolume has the following editable categories
   split vertically by a shutter:
   - Properties: one can edit the shape and medium components from here. It is
   also possible to change the existing ones.
   - Daughters: the main category allowing defining, editing, removing or
   positioning daughter volumes inside the current edited volume. To add a
   daughter, one needs to select first a volume and a matrix. Currently no check
   is performed if the daughter volume creates an extrusion (illegal for tracking).
   To remove or change the position of an existing daughter, one should simply
   select the desired daughter from the combo box with the existing ones, then
   simply click the appropriate button.
   - Visualization: One can set the visibility of the volume and of its daughters,
   set the visibility depth and the view type. Selecting "All" will draw the
   volume and all visible daughters down to the selected level starting from the
   edited volume. Selecting "Leaves" will draw just the deepest daughters within
   the selected visibility level, without displaying the containers, while "Only"
   will just draw the edited volume.
   - Division: The category becomes active only if there are no daughters of the
   edited volume added by normal positioning (e.g. from <Daughters> category). The
   minimum allowed starting value for the selected division axis is automatically
   selected, while the dslicing step is set to 0 - meaning that only the number
   of slices matter.

Function Members (Methods)

public:
TGeoVolumeEditor(const TGWindow* p = 0, Int_t width = 140, Int_t height = 30, UInt_t options = kChildFrame, Pixel_t back = GetDefaultFrameBackground())
virtual~TGeoVolumeEditor()
voidTObject::AbstractMethod(const char* method) const
virtual Bool_tTGedFrame::AcceptModel(TObject*)
virtual voidTGFrame::Activate(Bool_t)
virtual voidActivateBaseClassEditors(TClass* cl)
virtual voidTGedFrame::AddExtraTab(TGedFrame::TGedSubFrame* sf)
virtual voidTGCompositeFrame::AddFrame(TGFrame* f, TGLayoutHints* l = 0)
voidTGFrame::AddInput(UInt_t emask)
virtual voidTObject::AppendPad(Option_t* option = "")
static Bool_tTQObject::AreAllSignalsBlocked()
Bool_tTQObject::AreSignalsBlocked() const
static Bool_tTQObject::BlockAllSignals(Bool_t b)
Bool_tTQObject::BlockSignals(Bool_t b)
virtual voidTObject::Browse(TBrowser* b)
virtual voidTGFrame::ChangeBackground(Pixel_t back)
virtual voidTQObject::ChangedBy(const char* method)SIGNAL
virtual voidTGCompositeFrame::ChangeOptions(UInt_t options)
virtual voidTGCompositeFrame::ChangeSubframesBackground(Pixel_t back)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTGCompositeFrame::Cleanup()
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
voidTQObject::CollectClassSignalLists(TList& list, TClass* cls)
virtual Int_tTObject::Compare(const TObject* obj) const
Bool_tTQObject::Connect(const char* signal, const char* receiver_class, void* receiver, const char* slot)
static Bool_tTQObject::Connect(TQObject* sender, const char* signal, const char* receiver_class, void* receiver, const char* slot)
static Bool_tTQObject::Connect(const char* sender_class, const char* signal, const char* receiver_class, void* receiver, const char* slot)
virtual voidTQObject::Connected(const char*)
Bool_tTGFrame::Contains(Int_t x, Int_t y) const
virtual voidTObject::Copy(TObject& object) const
virtual TGVerticalFrame*TGedFrame::CreateEditorTabSubFrame(const char* name)
virtual voidTGFrame::Delete(Option_t* = "")
virtual voidTGFrame::DeleteWindow()
virtual voidTQObject::Destroyed()SIGNAL
virtual voidTGWindow::DestroySubwindows()
virtual voidTGWindow::DestroyWindow()
Bool_tTQObject::Disconnect(const char* signal = 0, void* receiver = 0, const char* slot = 0)
static Bool_tTQObject::Disconnect(TQObject* sender, const char* signal = 0, void* receiver = 0, const char* slot = 0)
static Bool_tTQObject::Disconnect(const char* class_name, const char* signal, void* receiver = 0, const char* slot = 0)
virtual voidTQObject::Disconnected(const char*)
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
voidDoAddNode()
voidDoApplyDiv()
voidDoDivFromTo()
voidDoDivN()
voidDoDivName()
voidDoDivSelAxis()
voidDoDivStep()
voidDoEditMatrix()
voidDoEditMedium()
voidDoEditShape()
voidDoRaytrace()
voidDoRemoveNode()
voidDoSelectMatrix()
voidDoSelectMedium()
voidDoSelectShape()
voidDoSelectVolume()
voidDoViewAll()
voidDoViewLeaves()
voidDoViewOnly()
voidDoVisAuto()
voidDoVisDaughters()
voidDoVisLevel()
voidDoVisVolume()
voidDoVolumeName()
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTGFrame::DrawBorder()
virtual voidTGFrame::DrawClass() const
virtual TObject*TGFrame::DrawClone(Option_t* = "") const
virtual voidTGFrame::DrawCopy(Handle_t, Int_t, Int_t)
virtual voidTGFrame::Dump() const
voidTQObject::Emit(const char* signal)
voidTQObject::Emit(const char* signal, Long_t* paramArr)
voidTQObject::Emit(const char* signal, const char* params)
voidTQObject::Emit(const char* signal, Double_t param)
voidTQObject::Emit(const char* signal, Long_t param)
voidTQObject::Emit(const char* signal, Long64_t param)
voidTQObject::Emit(const char* signal, Bool_t param)
voidTQObject::Emit(const char* signal, Char_t param)
voidTQObject::Emit(const char* signal, UChar_t param)
voidTQObject::Emit(const char* signal, Short_t param)
voidTQObject::Emit(const char* signal, UShort_t param)
voidTQObject::Emit(const char* signal, Int_t param)
voidTQObject::Emit(const char* signal, UInt_t param)
voidTQObject::Emit(const char* signal, ULong_t param)
voidTQObject::Emit(const char* signal, ULong64_t param)
voidTQObject::Emit(const char* signal, Float_t param)
voidTQObject::EmitVA(const char* signal, Int_t nargs)
voidTQObject::EmitVA(const char* signal, Int_t nargs, va_list va)
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TGFrameElement*TGCompositeFrame::FindFrameElement(TGFrame* f) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual Pixel_tTGFrame::GetBackground() const
static const TGGC&TGFrame::GetBckgndGC()
static const TGGC&TGFrame::GetBlackGC()
static Pixel_tTGFrame::GetBlackPixel()
Int_tTGFrame::GetBorderWidth() const
TGClient*TGObject::GetClient() const
static Int_tTGWindow::GetCounter()
static Pixel_tTGFrame::GetDefaultFrameBackground()
virtual UInt_tTGCompositeFrame::GetDefaultHeight() const
static Pixel_tTGFrame::GetDefaultSelectedBackground()
virtual TGDimensionTGCompositeFrame::GetDefaultSize() const
virtual UInt_tTGCompositeFrame::GetDefaultWidth() const
virtual TDNDData*TGFrame::GetDNDData(Atom_t)
virtual Int_tTGFrame::GetDragType() const
virtual Option_t*TGedFrame::GetDrawOption() const
virtual Int_tTGFrame::GetDropType() const
static Long_tTObject::GetDtorOnly()
virtual UInt_tTGWindow::GetEditDisabled() const
UInt_tTGFrame::GetEventMask() const
TList*TGedFrame::GetExtraTabs()
virtual Pixel_tTGFrame::GetForeground() const
TGFrameElement*TGFrame::GetFrameElement() const
virtual TGFrame*TGCompositeFrame::GetFrameFromPoint(Int_t x, Int_t y)
TGedEditor*TGedFrame::GetGedEditor()
UInt_tTGFrame::GetHeight() const
static const TGGC&TGFrame::GetHilightGC()
virtual const char*TObject::GetIconName() const
Handle_tTGObject::GetId() const
virtual TGLayoutManager*TGCompositeFrame::GetLayoutManager() const
virtual TList*TGCompositeFrame::GetList() const
TList*TQObject::GetListOfClassSignals() const
TList*TQObject::GetListOfConnections() const
TList*TQObject::GetListOfSignals() const
virtual const TGWindow*TGWindow::GetMainFrame() const
UInt_tTGFrame::GetMaxHeight() const
UInt_tTGFrame::GetMaxWidth() const
UInt_tTGFrame::GetMinHeight() const
UInt_tTGFrame::GetMinWidth() const
TClass*TGedFrame::GetModelClass()
virtual const char*TGWindow::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual UInt_tTGFrame::GetOptions() const
const TGWindow*TGWindow::GetParent() const
Int_tTGedFrame::GetPriority()
static const TGGC&TGFrame::GetShadowGC()
TGDimensionTGFrame::GetSize() const
Int_tTGCompositeFrame::GetState(TGFrame* f) const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
static const TGGC&TGFrame::GetWhiteGC()
static Pixel_tTGFrame::GetWhitePixel()
UInt_tTGFrame::GetWidth() const
Int_tTGFrame::GetX() const
Int_tTGFrame::GetY() const
virtual Bool_tTGCompositeFrame::HandleButton(Event_t*)
virtual Bool_tTGFrame::HandleClientMessage(Event_t* event)
virtual Bool_tTGFrame::HandleColormapChange(Event_t*)
virtual Bool_tTGFrame::HandleConfigureNotify(Event_t* event)
virtual Bool_tTGCompositeFrame::HandleCrossing(Event_t*)
virtual Bool_tTGFrame::HandleDNDDrop(TDNDData*)
virtual Atom_tTGFrame::HandleDNDEnter(Atom_t*)
virtual Bool_tTGFrame::HandleDNDFinished()
virtual Bool_tTGFrame::HandleDNDLeave()
virtual Atom_tTGFrame::HandleDNDPosition(Int_t, Int_t, Atom_t, Int_t, Int_t)
virtual Bool_tTGCompositeFrame::HandleDoubleClick(Event_t*)
virtual Bool_tTGCompositeFrame::HandleDragDrop(TGFrame* frame, Int_t x, Int_t y, TGLayoutHints* lo)
virtual Bool_tTGCompositeFrame::HandleDragEnter(TGFrame*)
virtual Bool_tTGCompositeFrame::HandleDragLeave(TGFrame*)
virtual Bool_tTGCompositeFrame::HandleDragMotion(TGFrame*)
virtual Bool_tTGFrame::HandleEvent(Event_t* event)
virtual Bool_tTGWindow::HandleExpose(Event_t* event)
virtual Bool_tTGCompositeFrame::HandleFocusChange(Event_t*)
virtual Bool_tTGWindow::HandleIdleEvent(TGIdleHandler*)
virtual Bool_tTGCompositeFrame::HandleKey(Event_t*)
virtual Bool_tTGCompositeFrame::HandleMotion(Event_t*)
virtual Bool_tTGCompositeFrame::HandleSelection(Event_t*)
virtual Bool_tTGFrame::HandleSelectionClear(Event_t*)
virtual Bool_tTGFrame::HandleSelectionRequest(Event_t*)
virtual Bool_tTGWindow::HandleTimer(TTimer*)
virtual Bool_tTQObject::HasConnection(const char* signal_name) const
virtual ULong_tTGObject::Hash() const
virtual voidTGCompositeFrame::HideFrame(TGFrame* f)
virtual voidTQObject::HighPriority(const char* signal_name, const char* slot_name = 0)
virtual voidTGWindow::IconifyWindow()
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTGFrame::Inspect() const
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTGFrame::IsActive() const
Bool_tTGCompositeFrame::IsArranged(TGFrame* f) const
Bool_tTGCompositeFrame::IsArranged(TGFrameElement* ptr) const
virtual Bool_tTGCompositeFrame::IsComposite() const
Bool_tTGFrame::IsDNDSource() const
Bool_tTGFrame::IsDNDTarget() const
virtual Bool_tTGCompositeFrame::IsEditable() const
virtual Bool_tTGObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
virtual Bool_tTGCompositeFrame::IsLayoutBroken() const
virtual Bool_tTGWindow::IsMapped()
virtual Bool_tTGCompositeFrame::IsMapSubwindows() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTGCompositeFrame::IsVisible(TGFrame* f) const
Bool_tTGCompositeFrame::IsVisible(TGFrameElement* ptr) const
Bool_tTObject::IsZombie() const
virtual voidTGCompositeFrame::Layout()
static voidTQObject::LoadRQ_OBJECT()
virtual voidTGWindow::LowerWindow()
virtual voidTQObject::LowPriority(const char* signal_name, const char* slot_name = 0)
virtual voidTObject::ls(Option_t* option = "") const
virtual voidTGFrame::MapRaised()
virtual voidTGCompositeFrame::MapSubwindows()
virtual voidTGFrame::MapWindow()
voidTObject::MayNotUse(const char* method) const
virtual voidTQObject::Message(const char* msg)SIGNAL
virtual voidTGFrame::Move(Int_t x, Int_t y)
virtual voidTGFrame::MoveResize(Int_t x, Int_t y, UInt_t w = 0, UInt_t h = 0)
virtual Int_tTGCompositeFrame::MustCleanup() const
virtual Bool_tTObject::Notify()
virtual Int_tTQObject::NumberOfConnections() const
virtual Int_tTQObject::NumberOfSignals() const
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTGCompositeFrame::Print(Option_t* option = "") const
virtual voidTGFrame::ProcessedConfigure(Event_t* event)SIGNAL
virtual voidTGFrame::ProcessedEvent(Event_t* event)SIGNAL
virtual Bool_tTGCompositeFrame::ProcessMessage(Long_t, Long_t, Long_t)
virtual voidTGWindow::RaiseWindow()
virtual Int_tTObject::Read(const char* name)
virtual voidTGFrame::ReallyDelete()
virtual voidTObject::RecursiveRemove(TObject* obj)
virtual voidTGedFrame::Refresh(TObject* model)
virtual voidTGCompositeFrame::RemoveAll()
virtual voidTGCompositeFrame::RemoveFrame(TGFrame* f)
voidTGFrame::RemoveInput(UInt_t emask)
virtual voidTGFrame::ReparentWindow(const TGWindow* p, Int_t x = 0, Int_t y = 0)
virtual voidTGWindow::RequestFocus()
voidTObject::ResetBit(UInt_t f)
virtual voidTGFrame::Resize(TGDimension size)
virtual voidTGFrame::Resize(UInt_t w = 0, UInt_t h = 0)
virtual voidTGObject::SaveAs(const char* filename = "", Option_t* option = "") const
virtual voidTGCompositeFrame::SavePrimitive(ostream& out, Option_t* option = "")
virtual voidTGCompositeFrame::SavePrimitiveSubframes(ostream& out, Option_t* option = "")
voidTGFrame::SaveUserColor(ostream& out, Option_t*)
virtual voidTGFrame::SendMessage(const TGWindow* w, Long_t msg, Long_t parm1, Long_t parm2)
virtual voidTGeoGedFrame::SetActive(Bool_t active = kTRUE)
virtual voidTGFrame::SetBackgroundColor(Pixel_t back)
virtual voidTGWindow::SetBackgroundPixmap(Pixmap_t pixmap)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTGCompositeFrame::SetCleanup(Int_t mode = kLocalCleanup)
voidTGFrame::SetDNDSource(Bool_t onoff)
voidTGFrame::SetDNDTarget(Bool_t onoff)
virtual voidTGFrame::SetDragType(Int_t type)
virtual voidTGedFrame::SetDrawOption(Option_t* option = "")
virtual voidTGFrame::SetDropType(Int_t type)
static voidTObject::SetDtorOnly(void* obj)
virtual voidTGCompositeFrame::SetEditable(Bool_t on = kTRUE)
virtual voidTGCompositeFrame::SetEditDisabled(UInt_t on = 1)
virtual voidTGFrame::SetForegroundColor(Pixel_t)
voidTGFrame::SetFrameElement(TGFrameElement* fe)
virtual voidTGedFrame::SetGedEditor(TGedEditor* ed)
virtual voidTGFrame::SetHeight(UInt_t h)
virtual voidTGCompositeFrame::SetLayoutBroken(Bool_t on = kTRUE)
virtual voidTGCompositeFrame::SetLayoutManager(TGLayoutManager* l)
virtual voidTGCompositeFrame::SetMapSubwindows(Bool_t on)
virtual voidTGFrame::SetMaxHeight(UInt_t h)
virtual voidTGFrame::SetMaxWidth(UInt_t w)
virtual voidTGFrame::SetMinHeight(UInt_t h)
virtual voidTGFrame::SetMinWidth(UInt_t w)
virtual voidSetModel(TObject* obj)
voidTGedFrame::SetModelClass(TClass* mcl)
virtual voidTGWindow::SetName(const char* name)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidTGFrame::SetSize(const TGDimension& s)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidTGFrame::SetWidth(UInt_t w)
virtual voidTGWindow::SetWindowName(const char* name = 0)
virtual voidTGFrame::SetX(Int_t x)
virtual voidTGFrame::SetY(Int_t y)
virtual voidTGCompositeFrame::ShowFrame(TGFrame* f)
virtual voidShowMembers(TMemberInspector&)
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual Bool_tTGCompositeFrame::TranslateCoordinates(TGFrame* child, Int_t x, Int_t y, Int_t& fx, Int_t& fy)
virtual voidTGFrame::UnmapWindow()
virtual voidTGeoGedFrame::Update()
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
static Int_tTQObject::CheckConnectArgs(TQObject* sender, TClass* sender_class, const char* signal, TClass* receiver_class, const char* slot)
virtual voidConnectSignals2Slots()
static Bool_tTQObject::ConnectToClass(TQObject* sender, const char* signal, TClass* receiver_class, void* receiver, const char* slot)
static Bool_tTQObject::ConnectToClass(const char* sender_class, const char* signal, TClass* receiver_class, void* receiver, const char* slot)
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
virtual voidTGFrame::DoRedraw()
virtual voidTGFrame::Draw3dRectangle(UInt_t type, Int_t x, Int_t y, UInt_t w, UInt_t h)
static Time_tTGFrame::GetLastClick()
TStringTGFrame::GetOptionString() const
const TGResourcePool*TGFrame::GetResourcePool() const
virtual void*TGFrame::GetSender()
virtual const char*TQObject::GetSenderClassName() const
virtual voidTGedFrame::MakeTitle(const char* title)
voidTObject::MakeZombie()
TGWindow&TGWindow::operator=(const TGWindow& tgw)
virtual voidTGFrame::StartGuiBuilding(Bool_t on = kTRUE)

Data Members

protected:
TGTextButton*fAddNodeButton for adding a node
TGTextButton*fApplyDivButton for applying division settings
Bool_tTGedFrame::fAvoidSignalflag for executing slots
TGCheckButton*fBAutoCheck button for auto vis level
TGRadioButton*fBDiv[3]Radio for selecting division type
TGCheckButton*fBRaytraceRaytracing on/off
TGPictureButton*fBSelMatrixButton for selecting a matrix
TGPictureButton*fBSelMediumButton for selecting a medium
TGPictureButton*fBSelShapeButton for selecting a shape
TGPictureButton*fBSelVolumeButton for selecting a volume
TGRadioButton*fBView[3]Radio for selecting view options
TGCheckButton*fBVis[2]Buttons for setting vis. on/off
Pixel_tTGFrame::fBackgroundframe background color
Int_tTGFrame::fBorderWidthframe border width
TGShutter*fCategoriesCategories shutter
TGClient*TGObject::fClientConnection to display server
TGNumberEntry*fCopyNumberNode copy number
Int_tTGFrame::fDNDStateEDNDFlags
TGTextEntry*fDivNameDivision volume name text entry
TGNumberEntry*fEDivFromNumber entry for division start
TGNumberEntry*fEDivNNumber entry for division Nslices
TGNumberEntry*fEDivStepNumber entry for division step
TGNumberEntry*fEVisLevelNumber entry for visibility level
UInt_tTGWindow::fEditDisabledflags used for "guibuilding"
TGTextButton*fEditMatrixButton for editing the position of a daughter
TGTextButton*fEditMediumCheck button for medium editing
TGTextButton*fEditShapeCheck button for shape editing
UInt_tTGFrame::fEventMaskcurrenty active event mask
TList*TGedFrame::fExtraTabsaddtional tabs in ged editor
TGFrameElement*TGFrame::fFEpointer to frame element
TGedEditor*TGedFrame::fGedEditormanager of this frame
TGeoManager*fGeometrySelected geometry manager
UInt_tTGFrame::fHeightframe height
Handle_tTGObject::fIdX11/Win32 Window identifier
Bool_tTGedFrame::fInitinit flag for setting signals/slots
Bool_tfIsAssemblyFlag that the volume is an assembly
Bool_tfIsDividedFlag that the volume is divided
Bool_tfIsModifiedFlag that volume was modified
TGLabel*fLSelMatrixSelected matrix label
TGLabel*fLSelMediumSelected medium label
TGLabel*fLSelShapeSelected shape label
TGLabel*fLSelVolumeSelected volume label
Bool_tTGCompositeFrame::fLayoutBrokenno layout manager is used
TGLayoutManager*TGCompositeFrame::fLayoutManagerlayout manager
TList*TGCompositeFrame::fListcontainer of frame elements
TList*TQObject::fListOfConnections! list of connections to this object
TList*TQObject::fListOfSignals! list of signals from this object
Bool_tTGCompositeFrame::fMapSubwindowskTRUE - map subwindows
UInt_tTGFrame::fMaxHeightmaximal frame height
UInt_tTGFrame::fMaxWidthmaximal frame width
UInt_tTGFrame::fMinHeightminimal frame height
UInt_tTGFrame::fMinWidthminimal frame width
TClass*TGedFrame::fModelClassclass corresponding to instantiated GedFrame
Int_tTGCompositeFrame::fMustCleanupcleanup mode (see EFrameCleanup)
TStringTGWindow::fNamename of the window used in SavePrimitive()
Bool_tTGWindow::fNeedRedrawkTRUE if window needs to be redrawn
TGComboBox*fNodeListDaughters combo box
UInt_tTGFrame::fOptionsframe options
TVirtualPad*TGeoGedFrame::fPadselected pad, if exists
const TGWindow*TGWindow::fParentParent window
Int_tTGedFrame::fPrioritylocation in GedEditor
TGTextButton*fRemoveNodeButton for removing a daughter
TGeoMatrix*fSelectedMatrixSelected matrix
TGeoMedium*fSelectedMediumSelected medium
TGeoShape*fSelectedShapeSelected shape
TGeoVolume*fSelectedVolumeSelected volume
Bool_tTQObject::fSignalsBlocked! flag used for suppression of signals
TGTab*TGeoGedFrame::fTabtab of the ged-editor
TGeoTabManager*TGeoGedFrame::fTabMgrtab manager corresponding to ged-editor
TGeoVolume*fVolumeVolume object
TGTextEntry*fVolumeNameVolume name text entry
UInt_tTGFrame::fWidthframe width
Int_tTGFrame::fXframe x position
Int_tTGFrame::fYframe y position
static Bool_tTQObject::fgAllSignalsBlockedflag used for suppression of all signals
static const TGGC*TGFrame::fgBckgndGC
static const TGGC*TGFrame::fgBlackGC
static Pixel_tTGFrame::fgBlackPixel
static Int_tTGWindow::fgCountercounter of created windows in SavePrimitive
static Window_tTGFrame::fgDbw
static Int_tTGFrame::fgDbx
static Int_tTGFrame::fgDby
static Pixel_tTGFrame::fgDefaultFrameBackground
static TGLayoutHints*TGCompositeFrame::fgDefaultHintsdefault hints used by AddFrame()
static Pixel_tTGFrame::fgDefaultSelectedBackground
static const TGGC*TGFrame::fgHilightGC
static Bool_tTGFrame::fgInit
static UInt_tTGFrame::fgLastButton
static Time_tTGFrame::fgLastClick
static const TGGC*TGFrame::fgShadowGC
static UInt_tTGFrame::fgUserColor
static const TGGC*TGFrame::fgWhiteGC
static Pixel_tTGFrame::fgWhitePixel

Class Charts

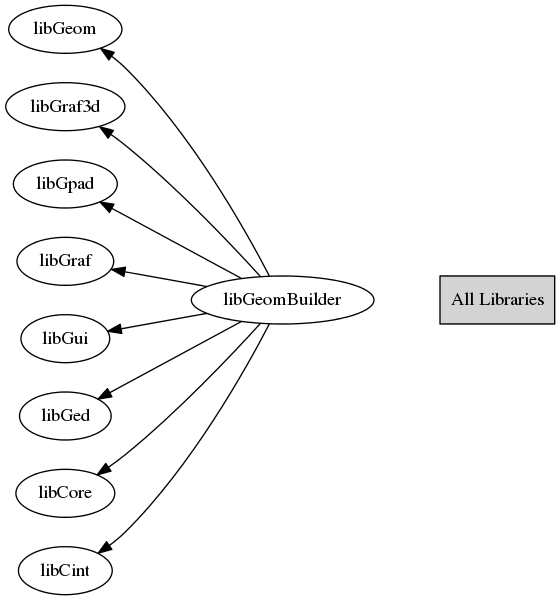

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TGeoVolumeEditor(const TGWindow* p = 0, Int_t width = 140, Int_t height = 30, UInt_t options = kChildFrame, Pixel_t back = GetDefaultFrameBackground())
 Constructor for volume editor.
~TGeoVolumeEditor()
 Destructor
void ConnectSignals2Slots()
 Connect signals to slots.
void SetModel(TObject* obj)
 Connect to the picked volume.
void ActivateBaseClassEditors(TClass* cl)
 Add editors to fGedFrame and exclude TLineEditor.
void DoVolumeName()
 Modify volume name.
void DoSelectShape()
 Select a new shape.
void DoSelectMedium()
 Select a new medium.
void DoSelectMatrix()
 Select a matrix for positioning.
void DoSelectVolume()
 Select a daughter volume.
void DoEditShape()
 Edit the shape of the volume.
void DoEditMedium()
 Edit the medium of the volume.
void DoEditMatrix()
 Edit the position of the selected node.
void DoAddNode()
 Add a daughter.
void DoRemoveNode()
 Remove a daughter.
void DoVisVolume()
 Slot for setting volume visible/invisible.
void DoVisDaughters()
 Slot for setting daughters visible/invisible.
void DoVisAuto()
 Slot for setting visibility depth auto.
void DoVisLevel()
 Slot for visibility level.
void DoViewAll()
 Slot for viewing volume and containers.
void DoViewLeaves()
 Slot for viewing last leaves only.
void DoViewOnly()
 Slot for viewing volume only.
void DoRaytrace()
 Slot for raytracing.
void DoDivName()
 Modify division name.
void DoDivSelAxis()
 Change division axis and preserve number of slices.
void DoDivFromTo()
 Handle division range modification.
void DoDivStep()
 Handle division step modification.
void DoDivN()
 Handle division N modification.
void DoApplyDiv()
 Apply current division settings
