df029_SQlitePlatformDistribution.C File Reference

Detailed Description

View in nbviewer Open in SWAN

In order to display the Platform Distribution of ROOT, we choose to create two TH1F histograms: one that includes all types of platforms, other filtering and classifying them. This procedure is using a lambda expression taking as parameter the values stored in the "Platform" column from the database. At the end, the histograms are filled with their specific demand regarding the platform's type.

void df029_SQlitePlatformDistribution() {
auto rdf = ROOT::RDF::MakeSqliteDataFrame( "http://root.cern/files/root_download_stats.sqlite", "SELECT * FROM accesslog;" );
TH1F hRootPlatform("hrootPlatform", "Platform Distribution", 7, 0, -1);
TH1F hShortRootPlatform("hShortRootPlatform", "Short Platform Distribution", 7, 0, -1);
auto fillRootPlatform = [&hRootPlatform, &hShortRootPlatform] ( const std::string &platform ) {
TString Platform = platform;
TString Platform_0(Platform(0,5));
TString Platform_1(Platform(0,6));
TString Platform_2(Platform(0,8));
if ( Platform.Contains("win32") ){
hShortRootPlatform.Fill(Platform_0,1);
} else if ( Platform.Contains("Linux") ){
hShortRootPlatform.Fill(Platform_0,1);
} else if ( Platform.Contains("source") ){
hShortRootPlatform.Fill(Platform_1,1);
} else if ( Platform.Contains("macosx64") ){
hShortRootPlatform.Fill(Platform_2,1);
} else if ( Platform.Contains("IRIX64") ){
hShortRootPlatform.Fill(Platform_1,1);
}
hRootPlatform.Fill(Platform,1);
};
rdf.Foreach( fillRootPlatform, { "Platform" } );
auto PlatformDistributionHistogram = new TCanvas();
hRootPlatform.GetXaxis()->LabelsOption("a");
hRootPlatform.LabelsDeflate("X");
hRootPlatform.DrawClone();

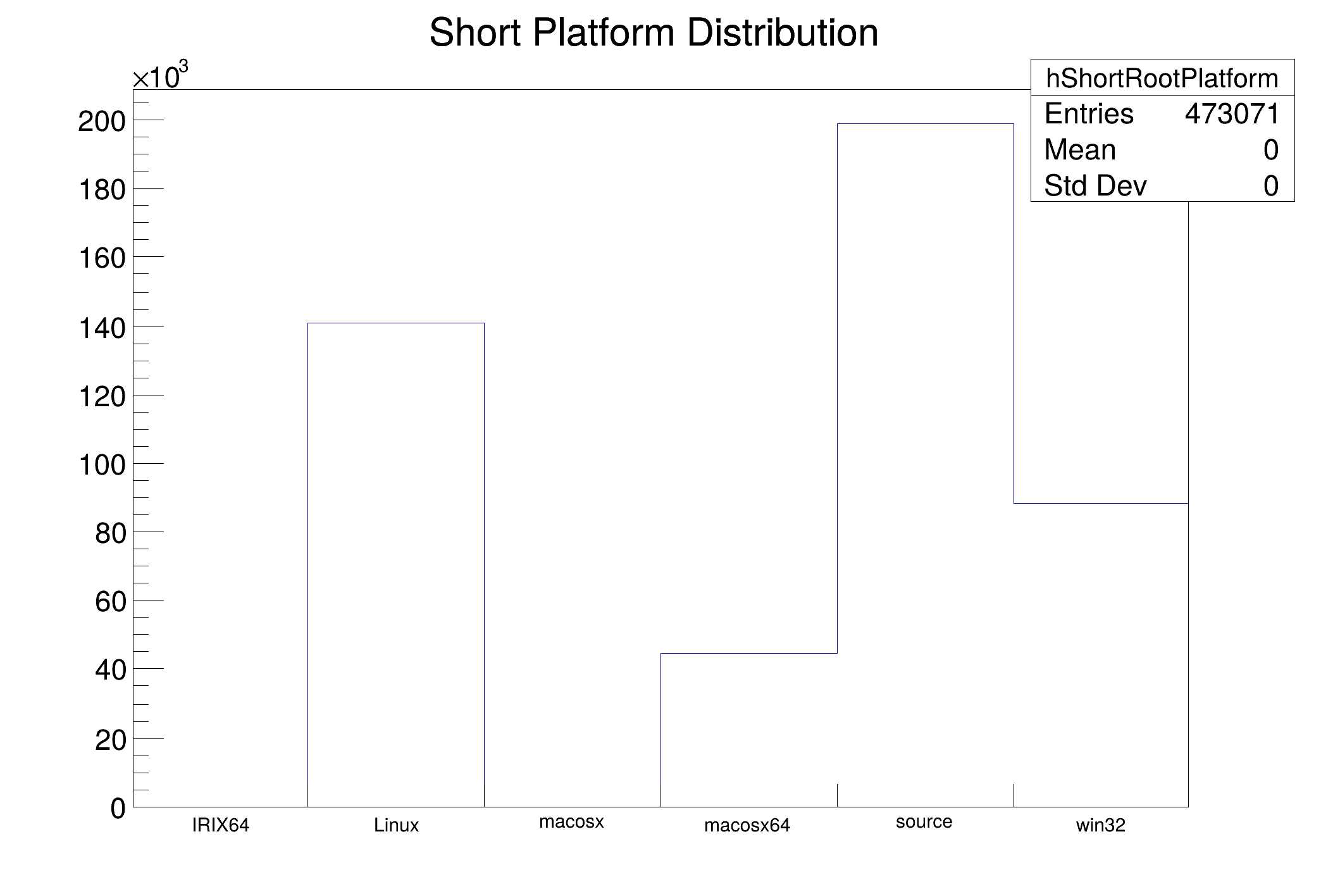

auto shortPlatformDistributionHistogram = new TCanvas();
hShortRootPlatform.GetXaxis()->LabelsOption("a");
hShortRootPlatform.LabelsDeflate("X");
hShortRootPlatform.DrawClone();
}
Date
August 2018
Author
Alexandra-Maria Dobrescu

Definition in file df029_SQlitePlatformDistribution.C.

ROOT::RDF::MakeSqliteDataFrame
RDataFrame MakeSqliteDataFrame(std::string_view fileName, std::string_view query)
Factory method to create a SQlite RDataFrame.
Definition: RSqliteDS.cxx:545
TString::Contains
Bool_t Contains(const char *pat, ECaseCompare cmp=kExact) const
Definition: TString.h:624
TString
Definition: TString.h:136
TCanvas
Definition: TCanvas.h:23
TH1F
1-D histogram with a float per channel (see TH1 documentation)}
Definition: TH1.h:572
