Implements curly or wavy arcs used to draw Feynman diagrams.

Amplitudes and wavelengths may be specified in the constructors, via commands or interactively from popup menus. The class make use of TCurlyLine by inheritance, ExecuteEvent methods are highly inspired from the methods used in TPolyLine and TArc. The picture below has been generated by the tutorial feynman.

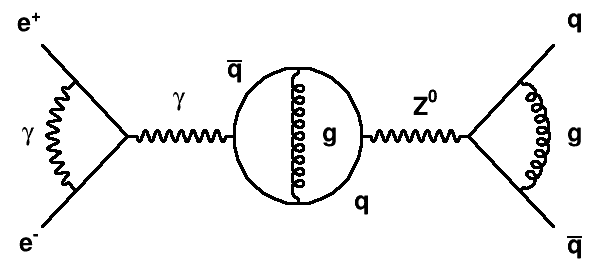

void feynman()
{
   TCanvas *c1 = new TCanvas("c1", "A canvas", 10,10, 600, 300);
   c1->Range(0, 0, 140, 60);
   Int_t linsav = gStyle->GetLineWidth();
   gStyle->SetLineWidth(3);
   TLatex t;
   t.SetTextAlign(22);
   t.SetTextSize(0.1);
   TLine * l;
   l = new TLine(10, 10, 30, 30); l->Draw();
   l = new TLine(10, 50, 30, 30); l->Draw();
   TCurlyArc *ginit = new TCurlyArc(30, 30, 12.5*sqrt(2), 135, 225);
   ginit->SetWavy();
   ginit->Draw();
   t.DrawLatex(7,6,"e^{-}");
   t.DrawLatex(7,55,"e^{+}");
   t.DrawLatex(7,30,"#gamma");
   TCurlyLine *gamma = new TCurlyLine(30, 30, 55, 30);
   gamma->SetWavy();
   gamma->Draw();
   t.DrawLatex(42.5,37.7,"#gamma");
   TArc *a = new TArc(70, 30, 15);
   a->Draw();
   t.DrawLatex(55, 45,"#bar{q}");
   t.DrawLatex(85, 15,"q");
   TCurlyLine *gluon = new TCurlyLine(70, 45, 70, 15);
   gluon->Draw();
   t.DrawLatex(77.5,30,"g");
   TCurlyLine *z0 = new TCurlyLine(85, 30, 110, 30);
   z0->SetWavy();
   z0->Draw();
   t.DrawLatex(100, 37.5,"Z^{0}");
   l = new TLine(110, 30, 130, 10); l->Draw();
   l = new TLine(110, 30, 130, 50); l->Draw();
   TCurlyArc *gluon1 = new TCurlyArc(110, 30, 12.5*sqrt(2), 315, 45);
   gluon1->Draw();
   t.DrawLatex(135,6,"#bar{q}");
   t.DrawLatex(135,55,"q");
   t.DrawLatex(135,30,"g");
   c1->Update();
   gStyle->SetLineWidth(linsav);
}

Definition at line 25 of file TCurlyArc.h.

Public Member Functions
	TCurlyArc ()

	TCurlyArc (Double_t x1, Double_t y1, Double_t rad, Double_t phimin, Double_t phimax, Double_t wl=.02, Double_t amp=.01)
	Create a new TCurlyArc with center (x1, y1) and radius rad. More...

virtual	~TCurlyArc ()

virtual void	Build ()
	Create a curly (Gluon) or wavy (Gamma) arc. More...

Int_t	DistancetoPrimitive (Int_t px, Int_t py)
	Compute distance from point px,py to an arc. More...

void	ExecuteEvent (Int_t event, Int_t px, Int_t py)
	Execute action corresponding to one event. More...

Double_t	GetRadius () const

Double_t	GetPhimin () const

Double_t	GetPhimax () const

virtual void	SetCenter (Double_t x1, Double_t y1)
	Set Curly Arc center. More...

virtual void	SetRadius (Double_t radius)
	Set Curly Arc radius. More...

virtual void	SetPhimin (Double_t phimin)
	Set Curly Arc minimum Phi. More...

virtual void	SetPhimax (Double_t phimax)
	Set Curly Arc maximum Phi. More...

virtual void	SavePrimitive (std::ostream &out, Option_t *="")
	Save primitive as a C++ statement(s) on output stream out. More...

virtual Rectangle_t	GetBBox ()
	Return the bounding Box of the Line. More...

virtual TPoint	GetBBoxCenter ()
	Return the center of the BoundingBox as TPoint in pixels. More...

virtual void	SetBBoxCenter (const TPoint &p)
	Set center of the BoundingBox. More...

virtual void	SetBBoxCenterX (const Int_t x)
	Set X coordinate of the center of the BoundingBox. More...

virtual void	SetBBoxCenterY (const Int_t y)
	Set Y coordinate of the center of the BoundingBox. More...

virtual void	SetBBoxX1 (const Int_t x)
	Set left hand side of BoundingBox to a value (resize in x direction on left) More...

virtual void	SetBBoxX2 (const Int_t x)
	Set right hand side of BoundingBox to a value (resize in x direction on right) More...

virtual void	SetBBoxY1 (const Int_t y)
	Set top of BoundingBox to a value (resize in y direction on top) More...

virtual void	SetBBoxY2 (const Int_t y)
	Set bottom of BoundingBox to a value (resize in y direction on bottom) More...
