Implements curly or wavy polylines used to draw Feynman diagrams.

Amplitudes and wavelengths may be specified in the constructors, via commands or interactively from popup menus. The class make use of TPolyLine by inheritance, ExecuteEvent methods are highly inspired from the methods used in TPolyLine and TArc. The picture below has been generated by the tutorial feynman.

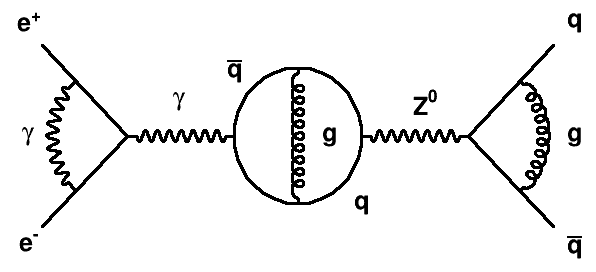

void feynman()
{
   TCanvas *c1 = new TCanvas("c1", "A canvas", 10,10, 600, 300);
   c1->Range(0, 0, 140, 60);
   Int_t linsav = gStyle->GetLineWidth();
   gStyle->SetLineWidth(3);
   TLatex t;
   t.SetTextAlign(22);
   t.SetTextSize(0.1);
   TLine * l;
   l = new TLine(10, 10, 30, 30); l->Draw();
   l = new TLine(10, 50, 30, 30); l->Draw();
   TCurlyArc *ginit = new TCurlyArc(30, 30, 12.5*sqrt(2), 135, 225);
   ginit->SetWavy();
   ginit->Draw();
   t.DrawLatex(7,6,"e^{-}");
   t.DrawLatex(7,55,"e^{+}");
   t.DrawLatex(7,30,"#gamma");
   TCurlyLine *gamma = new TCurlyLine(30, 30, 55, 30);
   gamma->SetWavy();
   gamma->Draw();
   t.DrawLatex(42.5,37.7,"#gamma");
   TArc *a = new TArc(70, 30, 15);
   a->Draw();
   t.DrawLatex(55, 45,"#bar{q}");
   t.DrawLatex(85, 15,"q");
   TCurlyLine *gluon = new TCurlyLine(70, 45, 70, 15);
   gluon->Draw();
   t.DrawLatex(77.5,30,"g");
   TCurlyLine *z0 = new TCurlyLine(85, 30, 110, 30);
   z0->SetWavy();
   z0->Draw();
   t.DrawLatex(100, 37.5,"Z^{0}");
   l = new TLine(110, 30, 130, 10); l->Draw();
   l = new TLine(110, 30, 130, 50); l->Draw();
   TCurlyArc *gluon1 = new TCurlyArc(110, 30, 12.5*sqrt(2), 315, 45);
   gluon1->Draw();
   t.DrawLatex(135,6,"#bar{q}");
   t.DrawLatex(135,55,"q");
   t.DrawLatex(135,30,"g");
   c1->Update();
   gStyle->SetLineWidth(linsav);
}

Definition at line 32 of file TCurlyLine.h.

Public Member Functions
	TCurlyLine ()

	TCurlyLine (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Double_t wl=.02, Double_t amp=.01)
	Create a new TCurlyLine with starting point (x1, y1), end point (x2,y2). More...

virtual	~TCurlyLine ()

virtual void	Build ()
	Create a curly (Gluon) or wavy (Gamma) line. More...

Int_t	DistancetoPrimitive (Int_t px, Int_t py)
	Compute distance from point px,py to a line. More...

void	ExecuteEvent (Int_t event, Int_t px, Int_t py)
	Execute action corresponding to one event. More...

Bool_t	GetCurly () const

Double_t	GetWaveLength () const

Double_t	GetAmplitude () const

Double_t	GetStartX () const

Double_t	GetEndX () const

Double_t	GetStartY () const

Double_t	GetEndY () const

virtual void	SetCurly ()
	Set curly. More...

virtual void	SetWavy ()
	Set wavy. More...

virtual void	SetWaveLength (Double_t WaveLength)
	Set wave length. More...

virtual void	SetAmplitude (Double_t x)
	Set amplitude. More...

virtual void	SetStartPoint (Double_t x1, Double_t y1)
	Set start point. More...

virtual void	SetEndPoint (Double_t x2, Double_t y2)
	Set end point. More...

virtual void	SavePrimitive (std::ostream &out, Option_t *="")
	Save primitive as a C++ statement(s) on output stream out. More...

virtual Rectangle_t	GetBBox ()
	Return the bounding Box of the CurlyLine. More...

virtual TPoint	GetBBoxCenter ()
	Return the center of the BoundingBox as TPoint in pixels. More...

virtual void	SetBBoxCenter (const TPoint &p)
	Set center of the BoundingBox. More...

virtual void	SetBBoxCenterX (const Int_t x)
	Set X coordinate of the center of the BoundingBox. More...

virtual void	SetBBoxCenterY (const Int_t y)
	Set Y coordinate of the center of the BoundingBox. More...

virtual void	SetBBoxX1 (const Int_t x)
	Set left hand side of BoundingBox to a value (resize in x direction on left) More...

virtual void	SetBBoxX2 (const Int_t x)
	Set right hands ide of BoundingBox to a value (resize in x direction on right) More...

virtual void	SetBBoxY1 (const Int_t y)
	Set top of BoundingBox to a value (resize in y direction on top) More...

virtual void	SetBBoxY2 (const Int_t y)
	Set bottom of BoundingBox to a value (resize in y direction on bottom) More...

Public Member Functions inherited from TPolyLine
	TPolyLine ()

	TPolyLine (Int_t n, Option_t *option="")
	PolyLine normal constructor without initialisation. More...

	TPolyLine (Int_t n, Float_t x, Float_t y, Option_t *option="")
	PolyLine normal constructor (single precision). More...

	TPolyLine (Int_t n, Double_t x, Double_t y, Option_t *option="")
	PolyLine normal constructor (double precision). More...

	TPolyLine (const TPolyLine &polyline)
	PolyLine copy constructor. More...

virtual	~TPolyLine ()
	PolyLine default destructor. More...

virtual void	Copy (TObject &polyline) const
	Copy this polyline to polyline. More...

virtual void	Draw (Option_t *option="")
	Draw this polyline with its current attributes. More...

virtual void	DrawPolyLine (Int_t n, Double_t x, Double_t y, Option_t *option="")
	Draw this polyline with new coordinates. More...

virtual Int_t	GetLastPoint () const

Int_t	GetN () const

Double_t *	GetX () const

Double_t *	GetY () const

Option_t *	GetOption () const

virtual void	ls (Option_t *option="") const
	List this polyline with its attributes. More...

virtual Int_t	Merge (TCollection *list)
	Merge polylines in the collection in this polyline. More...

virtual void	Paint (Option_t *option="")
	Paint this polyline with its current attributes. More...

virtual void	PaintPolyLine (Int_t n, Double_t x, Double_t y, Option_t *option="")
	Draw this polyline with new coordinates. More...

virtual void	PaintPolyLineNDC (Int_t n, Double_t x, Double_t y, Option_t *option="")
	Draw this polyline with new coordinates in NDC. More...

virtual void	Print (Option_t *option="") const
	Dump this polyline with its attributes. More...

virtual void	SetNDC (Bool_t isNDC=kTRUE)
	Set NDC mode on if isNDC = kTRUE, off otherwise. More...

virtual Int_t	SetNextPoint (Double_t x, Double_t y)
	Set point following LastPoint to x, y. More...

virtual void	SetOption (Option_t *option="")

virtual void	SetPoint (Int_t point, Double_t x, Double_t y)
	Set point number n to (x, y) If n is greater than the current size, the arrays are automatically extended. More...

virtual void	SetPolyLine (Int_t n)
	Resize this polyline to size n. More...

virtual void	SetPolyLine (Int_t n, Float_t x, Float_t y, Option_t *option="")
	Set new values for this polyline (single precision). More...

virtual void	SetPolyLine (Int_t n, Double_t x, Double_t y3, Option_t *option="")
	Set new values for this polyline (double precision). More...

virtual Int_t	Size () const

Public Member Functions inherited from TObject
	TObject ()

	TObject (const TObject &object)
	TObject copy ctor. More...

TObject &	operator= (const TObject &rhs)
	TObject assignment operator. More...

virtual	~TObject ()
	TObject destructor. More...

virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad. More...

virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action. More...

virtual const char *	ClassName () const
	Returns name of class to which the object belongs. More...

virtual void	Clear (Option_t *="")

virtual TObject *	Clone (const char *newname="") const
	Make a clone of an object using the Streamer facility. More...

virtual Int_t	Compare (const TObject *obj) const
	Compare abstract method. More...

virtual void	Delete (Option_t *option="")
	Delete this object. More...

virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs. More...

virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current pad. More...

virtual void	Dump () const
	Dump contents of object on stdout. More...

virtual void	Execute (const char method, const char params, Int_t *error=0)
	Execute method on this object with the given parameter string, e.g. More...

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=0)
	Execute method on this object with parameters stored in the TObjArray. More...

virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes. More...

virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes. More...

virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object. More...

virtual UInt_t	GetUniqueID () const
	Return the unique object id. More...

virtual const char *	GetName () const
	Returns name of object. More...

virtual const char *	GetIconName () const
	Returns mime type name of object. More...

virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py). More...

virtual const char *	GetTitle () const
	Returns title of object. More...

virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out. More...

virtual ULong_t	Hash () const
	Return hash value for this object. More...

virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname". More...

virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl. More...

virtual void	Inspect () const
	Dump contents of this object in a graphics canvas. More...

virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects). More...

virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory). More...

virtual Bool_t	IsSortable () const

Bool_t	IsOnHeap () const

Bool_t	IsZombie () const

virtual Bool_t	Notify ()
	This method must be overridden to handle object notification. More...

virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list. More...

virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory. More...

virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list. More...

virtual void	SaveAs (const char filename="", Option_t option="") const
	Save this object in the file specified by filename. More...

virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object. More...

virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id. More...

virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked. More...

virtual Int_t	Write (const char *name=0, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory. More...

virtual Int_t	Write (const char *name=0, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory. More...

void *	operator new (size_t sz)

void *	operator new[] (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz, void *vp)

void	operator delete (void *ptr)
	Operator delete. More...

void	operator delete[] (void *ptr)
	Operator delete []. More...

void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f. More...

void	SetBit (UInt_t f)

void	ResetBit (UInt_t f)

Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

void	InvertBit (UInt_t f)

virtual void	Info (const char method, const char msgfmt,...) const
	Issue info message. More...

virtual void	Warning (const char method, const char msgfmt,...) const
	Issue warning message. More...

virtual void	Error (const char method, const char msgfmt,...) const
	Issue error message. More...

virtual void	SysError (const char method, const char msgfmt,...) const
	Issue system error message. More...

virtual void	Fatal (const char method, const char msgfmt,...) const
	Issue fatal error message. More...

void	AbstractMethod (const char *method) const
	Use this method to implement an "abstract" method that you don't want to leave purely abstract. More...

void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary). More...

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete. More...

Public Member Functions inherited from TAttLine
	TAttLine ()
	AttLine default constructor. More...

	TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth)
	AttLine normal constructor. More...

virtual	~TAttLine ()
	AttLine destructor. More...

void	Copy (TAttLine &attline) const
	Copy this line attributes to a new TAttLine. More...

Int_t	DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
	Compute distance from point px,py to a line. More...

virtual Color_t	GetLineColor () const

virtual Style_t	GetLineStyle () const

virtual Width_t	GetLineWidth () const

virtual void	Modify ()
	Change current line attributes if necessary. More...

virtual void	ResetAttLine (Option_t *option="")
	Reset this line attributes to default values. More...

virtual void	SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
	Save line attributes as C++ statement(s) on output stream out. More...

virtual void	SetLineAttributes ()
	Invoke the DialogCanvas Line attributes. More...

virtual void	SetLineColor (Color_t lcolor)

virtual void	SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
	Set a transparent line color. More...

virtual void	SetLineStyle (Style_t lstyle)

virtual void	SetLineWidth (Width_t lwidth)

	ClassDef (TAttLine, 2)

Public Member Functions inherited from TAttFill
	TAttFill ()

	TAttFill (Color_t fcolor, Style_t fstyle)
	AttFill normal constructor. More...

virtual	~TAttFill ()
	AttFill destructor. More...

void	Copy (TAttFill &attfill) const
	Copy this fill attributes to a new TAttFill. More...

virtual Color_t	GetFillColor () const

virtual Style_t	GetFillStyle () const

virtual Bool_t	IsTransparent () const

virtual void	Modify ()
	Change current fill area attributes if necessary. More...

virtual void	ResetAttFill (Option_t *option="")
	Reset this fill attributes to default values. More...

virtual void	SaveFillAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1001)
	Save fill attributes as C++ statement(s) on output stream out. More...

virtual void	SetFillAttributes ()
	Invoke the DialogCanvas Fill attributes. More...

virtual void	SetFillColor (Color_t fcolor)

virtual void	SetFillColorAlpha (Color_t fcolor, Float_t falpha)
	Set a transparent fill color. More...

virtual void	SetFillStyle (Style_t fstyle)

Public Member Functions inherited from TAttBBox2D
virtual	~TAttBBox2D ()

	ClassDef (TAttBBox2D, 0)

Static Public Member Functions
static void	SetDefaultWaveLength (Double_t WaveLength)
	Set default wave length. More...

static void	SetDefaultAmplitude (Double_t Amplitude)
	Set default amplitude. More...

static void	SetDefaultIsCurly (Bool_t IsCurly)
	Set default "IsCurly". More...

static Double_t	GetDefaultWaveLength ()
	Get default wave length. More...

static Double_t	GetDefaultAmplitude ()
	Get default amplitude. More...

static Bool_t	GetDefaultIsCurly ()
	Get default "IsCurly". More...

Static Public Member Functions inherited from TObject
static Long_t	GetDtorOnly ()
	Return destructor only flag. More...

static void	SetDtorOnly (void *obj)
	Set destructor only flag. More...

static Bool_t	GetObjectStat ()
	Get status of object stat flag. More...

static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable. More...

Protected Attributes
Double_t	fX1

Double_t	fY1

Double_t	fX2

Double_t	fY2

Double_t	fWaveLength

Double_t	fAmplitude

Int_t	fNsteps

Bool_t	fIsCurly

Protected Attributes inherited from TPolyLine
Int_t	fN

Int_t	fLastPoint

Double_t *	fX

Double_t *	fY

TString	fOption

Protected Attributes inherited from TAttLine
Color_t	fLineColor

Style_t	fLineStyle

Width_t	fLineWidth

Protected Attributes inherited from TAttFill
Color_t	fFillColor

Style_t	fFillStyle

Static Protected Attributes
static Double_t	fgDefaultWaveLength = 0.02

static Double_t	fgDefaultAmplitude = 0.01

static Bool_t	fgDefaultIsCurly = kTRUE

Additional Inherited Members
Public Types inherited from TPolyLine
enum	{ kPolyLineNDC = BIT(14) }

Public Types inherited from TObject
enum	EStatusBits { kCanDelete = BIT(0), kMustCleanup = BIT(3), kObjInCanvas = BIT(3), kIsReferenced = BIT(4), kHasUUID = BIT(5), kCannotPick = BIT(6), kNoContextMenu = BIT(8), kInvalidObject = BIT(13) }

enum	{ kIsOnHeap = 0x01000000, kNotDeleted = 0x02000000, kZombie = 0x04000000, kBitMask = 0x00ffffff }

enum	{ kSingleKey = BIT(0), kOverwrite = BIT(1), kWriteDelete = BIT(2) }

Protected Member Functions inherited from TPolyLine
TPolyLine &	operator= (const TPolyLine &)
	assignment operator More...

Protected Member Functions inherited from TObject
void	MakeZombie ()

virtual void	DoError (int level, const char location, const char fmt, va_list va) const
	Interface to ErrorHandler (protected). More...

#include <TCurlyLine.h>

Inheritance diagram for TCurlyLine:

[legend]

Constructor & Destructor Documentation

TCurlyLine::TCurlyLine ( )

TCurlyLine::TCurlyLine	(	Double_t	x1,
		Double_t	y1,
		Double_t	x2,
		Double_t	y2,
		Double_t	wl = `.02`,
		Double_t	amp = `.01`
	)

Create a new TCurlyLine with starting point (x1, y1), end point (x2,y2).

The wavelength and amplitude are given in percent of the pad height.

Definition at line 63 of file TCurlyLine.cxx.

virtual TCurlyLine::~TCurlyLine ( )

inlinevirtual

Definition at line 53 of file TCurlyLine.h.

Member Function Documentation

void TCurlyLine::Build ( )

virtual

Create a curly (Gluon) or wavy (Gamma) line.

Reimplemented in TCurlyArc.

Definition at line 78 of file TCurlyLine.cxx.

Referenced by TCurlyArc::Build(), ExecuteEvent(), SetAmplitude(), SetCurly(), SetEndPoint(), SetStartPoint(), SetWaveLength(), SetWavy(), and TCurlyLine().

Int_t TCurlyLine::DistancetoPrimitive	(	Int_t	px,
		Int_t	py
	)

virtual

Compute distance from point px,py to a line.

Reimplemented from TPolyLine.

Definition at line 170 of file TCurlyLine.cxx.

void TCurlyLine::ExecuteEvent	(	Int_t	event,
		Int_t	px,
		Int_t	py
	)

virtual

Execute action corresponding to one event.

This member function is called when a TCurlyLine is clicked with the locator

If Left button clicked on one of the line end points, this point follows the cursor until button is released.

if Middle button clicked, the line is moved parallel to itself until the button is released.

Reimplemented from TPolyLine.

Definition at line 186 of file TCurlyLine.cxx.

Double_t TCurlyLine::GetAmplitude ( ) const

inline

Definition at line 59 of file TCurlyLine.h.

Referenced by TCurlyLineEditor::SetModel().

Rectangle_t TCurlyLine::GetBBox ( )

virtual

Return the bounding Box of the CurlyLine.

Implements TAttBBox2D.

Reimplemented in TCurlyArc.

Definition at line 465 of file TCurlyLine.cxx.

TPoint TCurlyLine::GetBBoxCenter ( )

virtual

Return the center of the BoundingBox as TPoint in pixels.

Implements TAttBBox2D.

Reimplemented in TCurlyArc.

Definition at line 489 of file TCurlyLine.cxx.

Bool_t TCurlyLine::GetCurly ( ) const

inline

Definition at line 57 of file TCurlyLine.h.

Referenced by TCurlyLineEditor::SetModel().

Double_t TCurlyLine::GetDefaultAmplitude ( )

static

Get default amplitude.

Definition at line 449 of file TCurlyLine.cxx.

Referenced by TCreatePrimitives::Line().

Bool_t TCurlyLine::GetDefaultIsCurly ( )

static

Get default "IsCurly".

Definition at line 457 of file TCurlyLine.cxx.

Double_t TCurlyLine::GetDefaultWaveLength ( )

static

Get default wave length.

Definition at line 441 of file TCurlyLine.cxx.

Referenced by TCreatePrimitives::Line().

Double_t TCurlyLine::GetEndX ( ) const

inline

Definition at line 61 of file TCurlyLine.h.

Referenced by TCurlyLineEditor::SetModel().

Double_t TCurlyLine::GetEndY ( ) const

inline

Definition at line 63 of file TCurlyLine.h.

Referenced by TCurlyLineEditor::SetModel().

Double_t TCurlyLine::GetStartX ( ) const

inline

Definition at line 60 of file TCurlyLine.h.

Referenced by TCurlyArcEditor::SetModel(), and TCurlyLineEditor::SetModel().

Double_t TCurlyLine::GetStartY ( ) const

inline

Definition at line 62 of file TCurlyLine.h.

Referenced by TCurlyArcEditor::SetModel(), and TCurlyLineEditor::SetModel().

Double_t TCurlyLine::GetWaveLength ( ) const

inline

Definition at line 58 of file TCurlyLine.h.

Referenced by TCurlyLineEditor::SetModel().

void TCurlyLine::SavePrimitive	(	std::ostream &	out,
		Option_t *	= `""`
	)

virtual

Save primitive as a C++ statement(s) on output stream out.

Reimplemented from TPolyLine.

Reimplemented in TCurlyArc.

Definition at line 341 of file TCurlyLine.cxx.

void TCurlyLine::SetAmplitude ( Double_t x )

virtual

Set amplitude.

Definition at line 388 of file TCurlyLine.cxx.

Referenced by TCurlyLineEditor::DoAmplitude().

void TCurlyLine::SetBBoxCenter ( const TPoint & p )

virtual

Set center of the BoundingBox.

Implements TAttBBox2D.

Reimplemented in TCurlyArc.

Definition at line 500 of file TCurlyLine.cxx.

void TCurlyLine::SetBBoxCenterX ( const Int_t x )

virtual

Set X coordinate of the center of the BoundingBox.

Implements TAttBBox2D.

Reimplemented in TCurlyArc.

Definition at line 530 of file TCurlyLine.cxx.

void TCurlyLine::SetBBoxCenterY ( const Int_t y )

virtual

Set Y coordinate of the center of the BoundingBox.

Implements TAttBBox2D.

Reimplemented in TCurlyArc.

Definition at line 546 of file TCurlyLine.cxx.

void TCurlyLine::SetBBoxX1 ( const Int_t x )

virtual

Set left hand side of BoundingBox to a value (resize in x direction on left)

Implements TAttBBox2D.

Reimplemented in TCurlyArc.

Definition at line 563 of file TCurlyLine.cxx.

void TCurlyLine::SetBBoxX2 ( const Int_t x )

virtual

Set right hands ide of BoundingBox to a value (resize in x direction on right)

Implements TAttBBox2D.

Reimplemented in TCurlyArc.

Definition at line 575 of file TCurlyLine.cxx.

void TCurlyLine::SetBBoxY1 ( const Int_t y )

virtual

Set top of BoundingBox to a value (resize in y direction on top)

Implements TAttBBox2D.

Reimplemented in TCurlyArc.

Definition at line 586 of file TCurlyLine.cxx.

void TCurlyLine::SetBBoxY2 ( const Int_t y )

virtual

Set bottom of BoundingBox to a value (resize in y direction on bottom)

Implements TAttBBox2D.

Reimplemented in TCurlyArc.

Definition at line 598 of file TCurlyLine.cxx.

void TCurlyLine::SetCurly ( )

virtual

Set curly.

Definition at line 361 of file TCurlyLine.cxx.

Referenced by TCurlyLineEditor::DoWavy().

void TCurlyLine::SetDefaultAmplitude ( Double_t Amplitude )

static

Set default amplitude.

Definition at line 425 of file TCurlyLine.cxx.

void TCurlyLine::SetDefaultIsCurly ( Bool_t IsCurly )

static

Set default "IsCurly".

Definition at line 433 of file TCurlyLine.cxx.

void TCurlyLine::SetDefaultWaveLength ( Double_t WaveLength )

static

Set default wave length.

Definition at line 417 of file TCurlyLine.cxx.

void TCurlyLine::SetEndPoint	(	Double_t	x2,
		Double_t	y2
	)

virtual

Set end point.

Definition at line 407 of file TCurlyLine.cxx.

Referenced by TCurlyLineEditor::DoEndXY(), ExecuteEvent(), TCreatePrimitives::Line(), SetBBoxCenter(), SetBBoxCenterX(), SetBBoxCenterY(), SetBBoxX1(), SetBBoxX2(), SetBBoxY1(), and SetBBoxY2().

void TCurlyLine::SetStartPoint	(	Double_t	x1,
		Double_t	y1
	)

virtual

Set start point.

Definition at line 397 of file TCurlyLine.cxx.

Referenced by TCurlyLineEditor::DoStartXY(), TCurlyArc::ExecuteEvent(), ExecuteEvent(), TCreatePrimitives::Line(), SetBBoxCenter(), SetBBoxCenterX(), SetBBoxCenterY(), SetBBoxX1(), SetBBoxX2(), SetBBoxY1(), and SetBBoxY2().

void TCurlyLine::SetWaveLength ( Double_t WaveLength )

virtual

Set wave length.

Definition at line 379 of file TCurlyLine.cxx.

Referenced by TCurlyLineEditor::DoWaveLength().

void TCurlyLine::SetWavy ( )

virtual

Set wavy.

Definition at line 370 of file TCurlyLine.cxx.

Referenced by TCurlyLineEditor::DoWavy().

Member Data Documentation

Double_t TCurlyLine::fAmplitude

protected

Definition at line 40 of file TCurlyLine.h.

Referenced by Build(), GetAmplitude(), TCurlyArc::SavePrimitive(), SavePrimitive(), SetAmplitude(), TCurlyArc::TCurlyArc(), and TCurlyLine().

Double_t TCurlyLine::fgDefaultAmplitude = 0.01

staticprotected

Definition at line 45 of file TCurlyLine.h.

Referenced by GetDefaultAmplitude(), and SetDefaultAmplitude().

Bool_t TCurlyLine::fgDefaultIsCurly = kTRUE

staticprotected

Definition at line 46 of file TCurlyLine.h.

Referenced by GetDefaultIsCurly(), SetDefaultIsCurly(), and TCurlyLine().

Double_t TCurlyLine::fgDefaultWaveLength = 0.02

staticprotected

Definition at line 44 of file TCurlyLine.h.

Referenced by GetDefaultWaveLength(), and SetDefaultWaveLength().

Bool_t TCurlyLine::fIsCurly

protected

Definition at line 42 of file TCurlyLine.h.

Referenced by Build(), GetCurly(), TCurlyArc::SavePrimitive(), SavePrimitive(), SetCurly(), SetWavy(), TCurlyArc::TCurlyArc(), and TCurlyLine().

Int_t TCurlyLine::fNsteps

protected

Definition at line 41 of file TCurlyLine.h.

Referenced by TCurlyArc::Build(), and Build().

Double_t TCurlyLine::fWaveLength

protected

Definition at line 39 of file TCurlyLine.h.

Referenced by Build(), GetWaveLength(), TCurlyArc::SavePrimitive(), SavePrimitive(), SetWaveLength(), TCurlyArc::TCurlyArc(), and TCurlyLine().

Double_t TCurlyLine::fX1

protected

Double_t TCurlyLine::fX2

protected

Definition at line 37 of file TCurlyLine.h.

Referenced by TCurlyArc::Build(), Build(), DistancetoPrimitive(), ExecuteEvent(), GetBBox(), GetBBoxCenter(), GetEndX(), SavePrimitive(), SetBBoxCenter(), SetBBoxCenterX(), SetBBoxCenterY(), SetBBoxX1(), SetBBoxX2(), SetBBoxY1(), SetBBoxY2(), SetEndPoint(), and TCurlyLine().

Double_t TCurlyLine::fY1

protected

Double_t TCurlyLine::fY2

protected

Definition at line 38 of file TCurlyLine.h.

Referenced by TCurlyArc::Build(), Build(), DistancetoPrimitive(), ExecuteEvent(), GetBBox(), GetBBoxCenter(), GetEndY(), SavePrimitive(), SetBBoxCenter(), SetBBoxCenterX(), SetBBoxCenterY(), SetBBoxX1(), SetBBoxX2(), SetBBoxY1(), SetBBoxY2(), SetEndPoint(), and TCurlyLine().

Collaboration diagram for TCurlyLine:

[legend]

The documentation for this class was generated from the following files:

graf2d/graf/inc/TCurlyLine.h
graf2d/graf/src/TCurlyLine.cxx

Public Member Functions

Static Public Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
