TDirectoryFile Class Reference

A ROOT file is structured in Directories (like a file system).

Each Directory has a list of Keys (see TKeys) and a list of objects in memory. A Key is a small object that describes the type and location of a persistent object in a file. The persistent object may be a directory.

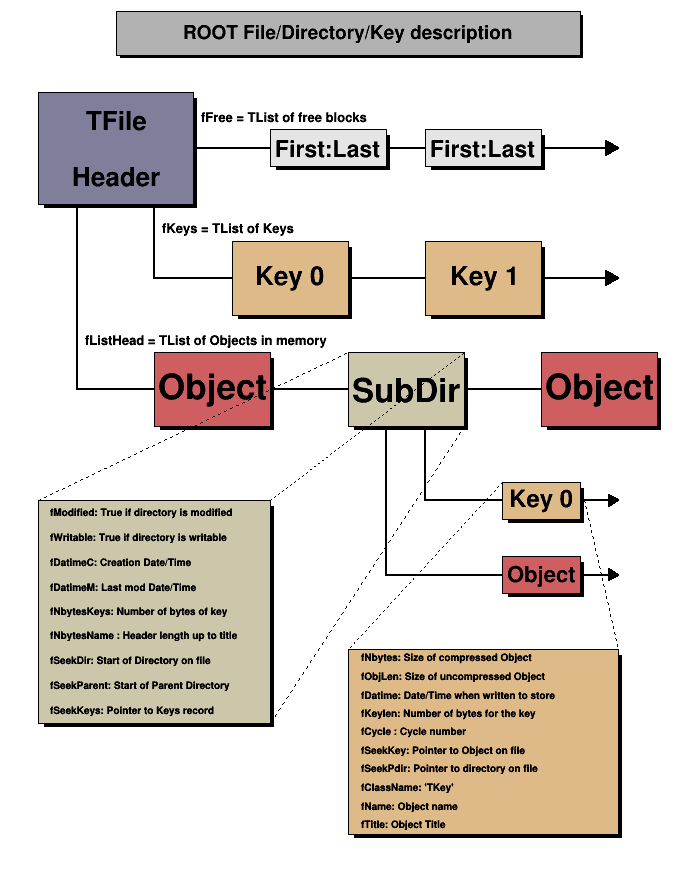

The structure of a file is shown in TFile::TFile

Definition at line 33 of file TDirectoryFile.h.

Public Types

enum  { kCloseDirectory = BIT(7) }

- Public Types inherited from TObject
enum  EStatusBits {
  kCanDelete = BIT(0), kMustCleanup = BIT(3), kObjInCanvas = BIT(3), kIsReferenced = BIT(4),
  kHasUUID = BIT(5), kCannotPick = BIT(6), kNoContextMenu = BIT(8), kInvalidObject = BIT(13)
}

enum  { kIsOnHeap = 0x01000000, kNotDeleted = 0x02000000, kZombie = 0x04000000, kBitMask = 0x00ffffff }

enum  { kSingleKey = BIT(0), kOverwrite = BIT(1), kWriteDelete = BIT(2) }


Public Member Functions

 TDirectoryFile ()

 TDirectoryFile (const char *name, const char *title, Option_t *option="", TDirectory *motherDir=0)
 Create a new TDirectoryFile. More...

virtual ~TDirectoryFile ()
 Destructor. More...

virtual void Append (TObject *obj, Bool_t replace=kFALSE)
 Append object to this directory. More...

void Add (TObject *obj, Bool_t replace=kFALSE)

Int_t AppendKey (TKey *key)
 Insert key in the linked list of keys of this directory. More...

virtual void Browse (TBrowser *b)
 Browse the content of the directory. More...

void Build (TFile *motherFile=0, TDirectory *motherDir=0)
 Initialise directory to defaults. More...

virtual TObjectCloneObject (const TObject *obj, Bool_t autoadd=kTRUE)
 Make a clone of an object using the Streamer facility. More...

virtual void Close (Option_t *option="")
 Delete all objects from memory and directory structure itself. More...

virtual void Copy (TObject &) const
 Copy this to obj. More...

virtual Bool_t cd (const char *path=0)
 Change current directory to "this" directory. More...

virtual void Delete (const char *namecycle="")
 Delete Objects or/and keys in a directory. More...

virtual void FillBuffer (char *&buffer)
 Encode directory header into output buffer. More...

virtual TKeyFindKey (const char *keyname) const
 Find key with name keyname in the current directory. More...

virtual TKeyFindKeyAny (const char *keyname) const
 Find key with name keyname in the current directory or its subdirectories. More...

virtual TObjectFindObjectAny (const char *name) const
 Find object by name in the list of memory objects of the current directory or its sub-directories. More...

virtual TObjectFindObjectAnyFile (const char *name) const
 Scan the memory lists of all files for an object with name. More...

virtual TObjectGet (const char *namecycle)
 Return pointer to object identified by namecycle. More...

virtual TDirectoryGetDirectory (const char *apath, Bool_t printError=false, const char *funcname="GetDirectory")
 Find a directory named "apath". More...

template<class T >
void GetObject (const char *namecycle, T *&ptr)

virtual voidGetObjectChecked (const char *namecycle, const char *classname)
 See documentation of TDirectoryFile::GetObjectCheck(const char *namecycle, const TClass *cl) More...

virtual voidGetObjectChecked (const char *namecycle, const TClass *cl)
 Return pointer to object identified by namecycle if and only if the actual object is a type suitable to be stored as a pointer to a "expectedClass" If expectedClass is null, no check is performed. More...

virtual voidGetObjectUnchecked (const char *namecycle)
 Return pointer to object identified by namecycle. More...

virtual Int_t GetBufferSize () const
 Return the buffer size to create new TKeys. More...

const TDatimeGetCreationDate () const

virtual TFileGetFile () const

virtual TKeyGetKey (const char *name, Short_t cycle=9999) const
 Return pointer to key with name,cycle. More...

virtual TListGetListOfKeys () const

const TDatimeGetModificationDate () const

virtual Int_t GetNbytesKeys () const

virtual Int_t GetNkeys () const

virtual Long64_t GetSeekDir () const

virtual Long64_t GetSeekParent () const

virtual Long64_t GetSeekKeys () const

Bool_t IsModified () const

Bool_t IsWritable () const

virtual void ls (Option_t *option="") const
 List Directory contents. More...

virtual TDirectorymkdir (const char *name, const char *title="")
 Create a sub-directory and return a pointer to the created directory. More...

virtual TFileOpenFile (const char *name, Option_t *option="", const char *ftitle="", Int_t compress=1, Int_t netopt=0)
 Interface to TFile::Open. More...

virtual void Purge (Short_t nkeep=1)
 Purge lowest key cycles in a directory. More...

virtual void ReadAll (Option_t *option="")
 Read objects from a ROOT file directory into memory. More...

virtual Int_t ReadKeys (Bool_t forceRead=kTRUE)
 Read the linked list of keys. More...

virtual Int_t ReadTObject (TObject *obj, const char *keyname)
 Read object with keyname from the current directory. More...

virtual void ResetAfterMerge (TFileMergeInfo *)
 Reset the TDirectory after its content has been merged into another Directory. More...

virtual void rmdir (const char *name)
 Removes subdirectory from the directory. More...

virtual void Save ()
 Save recursively all directory keys and headers. More...

virtual void SaveSelf (Bool_t force=kFALSE)
 Save Directory keys and header. More...

virtual Int_t SaveObjectAs (const TObject *obj, const char *filename="", Option_t *option="") const
 Save object in filename. More...

virtual void SetBufferSize (Int_t bufsize)
 Set the default buffer size when creating new TKeys. More...

void SetModified ()

void SetSeekDir (Long64_t v)

virtual void SetTRefAction (TObject *ref, TObject *parent)
 Find the action to be executed in the dictionary of the parent class and store the corresponding exec number into fBits. More...

void SetWritable (Bool_t writable=kTRUE)
 Set the new value of fWritable recursively. More...

virtual Int_t Sizeof () const
 Return the size in bytes of the directory header. More...

virtual Int_t Write (const char *name=0, Int_t opt=0, Int_t bufsize=0)
 Write all objects in memory to disk. More...

virtual Int_t Write (const char *name=0, Int_t opt=0, Int_t bufsize=0) const
 One can not save a const TDirectory object. More...

virtual Int_t WriteTObject (const TObject *obj, const char *name=0, Option_t *option="", Int_t bufsize=0)
 Write object obj to this directory. More...

virtual Int_t WriteObjectAny (const void *obj, const char *classname, const char *name, Option_t *option="", Int_t bufsize=0)
 Write object from pointer of class classname in this directory. More...

virtual Int_t WriteObjectAny (const void *obj, const TClass *cl, const char *name, Option_t *option="", Int_t bufsize=0)
 Write object of class with dictionary cl in this directory. More...

virtual void WriteDirHeader ()
 Overwrite the Directory header record. More...

virtual void WriteKeys ()
 Write Keys linked list on the file. More...

- Public Member Functions inherited from TDirectory
 TDirectory ()

 TDirectory (const char *name, const char *title, Option_t *option="", TDirectory *motherDir=0)
 Create a new Directory. More...

virtual ~TDirectory ()
 Destructor. More...

virtual void Clear (Option_t *option="")
 Delete all objects from a Directory list. More...

virtual void DeleteAll (Option_t *option="")
 Delete all objects from memory. More...

virtual void Draw (Option_t *option="")
 Fill Graphics Structure and Paint. More...

virtual TObjectFindObject (const char *name) const
 Find object by name in the list of memory objects. More...

virtual TObjectFindObject (const TObject *obj) const
 Find object in the list of memory objects. More...

template<class T >
void GetObject (const char *namecycle, T *&ptr)

virtual TListGetList () const

virtual TObjectGetMother () const

virtual TDirectoryGetMotherDir () const

virtual const char * GetPathStatic () const
 Returns the full path of the directory. More...

virtual const char * GetPath () const
 Returns the full path of the directory. More...

TUUID GetUUID () const

virtual Bool_t IsFolder () const
 Returns kTRUE in case object contains browsable objects (like containers or lists of other objects). More...

virtual void Paint (Option_t *option="")
 Paint all objects in the directory. More...

virtual void Print (Option_t *option="") const
 Print all objects in the directory. More...

virtual void pwd () const
 Print the path of the directory. More...

virtual TObjectRemove (TObject *)
 Remove an object from the in-memory list. More...

virtual void RecursiveRemove (TObject *obj)
 Recursively remove object from a Directory. More...

virtual void SetMother (TObject *mother)

virtual void SetName (const char *newname)
 Set the name for directory If the directory name is changed after the directory was written once, ROOT currently would NOT change the name of correspondent key in the mother directory. More...

template<class T >
Int_t WriteObject (const T *obj, const char *name, Option_t *option="", Int_t bufsize=0)

- Public Member Functions inherited from TNamed
 TNamed ()

 TNamed (const char *name, const char *title)

 TNamed (const TString &name, const TString &title)

 TNamed (const TNamed &named)

TNamedoperator= (const TNamed &rhs)
 TNamed assignment operator. More...

virtual ~TNamed ()

virtual TObjectClone (const char *newname="") const
 Make a clone of an object using the Streamer facility. More...

virtual Int_t Compare (const TObject *obj) const
 Compare two TNamed objects. More...

virtual const char * GetName () const
 Returns name of object. More...

virtual const char * GetTitle () const
 Returns title of object. More...

virtual ULong_t Hash () const
 Return hash value for this object. More...

virtual Bool_t IsSortable () const

virtual void SetNameTitle (const char *name, const char *title)
 Change (i.e. set) all the TNamed parameters (name and title). More...

virtual void SetTitle (const char *title="")
 Change (i.e. set) the title of the TNamed. More...

- Public Member Functions inherited from TObject
 TObject ()

 TObject (const TObject &object)
 TObject copy ctor. More...

TObjectoperator= (const TObject &rhs)
 TObject assignment operator. More...

virtual ~TObject ()
 TObject destructor. More...

virtual void AppendPad (Option_t *option="")
 Append graphics object to current pad. More...

virtual const char * ClassName () const
 Returns name of class to which the object belongs. More...

virtual Int_t DistancetoPrimitive (Int_t px, Int_t py)
 Computes distance from point (px,py) to the object. More...

virtual void DrawClass () const
 Draw class inheritance tree of the class to which this object belongs. More...

virtual TObjectDrawClone (Option_t *option="") const
 Draw a clone of this object in the current pad. More...

virtual void Dump () const
 Dump contents of object on stdout. More...

virtual void Execute (const char *method, const char *params, Int_t *error=0)
 Execute method on this object with the given parameter string, e.g. More...

virtual void Execute (TMethod *method, TObjArray *params, Int_t *error=0)
 Execute method on this object with parameters stored in the TObjArray. More...

virtual void ExecuteEvent (Int_t event, Int_t px, Int_t py)
 Execute action corresponding to an event at (px,py). More...

virtual Option_tGetDrawOption () const
 Get option used by the graphics system to draw this object. More...

virtual UInt_t GetUniqueID () const
 Return the unique object id. More...

virtual const char * GetIconName () const
 Returns mime type name of object. More...

virtual Option_tGetOption () const

virtual char * GetObjectInfo (Int_t px, Int_t py) const
 Returns string containing info about the object at position (px,py). More...

virtual Bool_t HandleTimer (TTimer *timer)
 Execute action in response of a timer timing out. More...

virtual Bool_t InheritsFrom (const char *classname) const
 Returns kTRUE if object inherits from class "classname". More...

virtual Bool_t InheritsFrom (const TClass *cl) const
 Returns kTRUE if object inherits from TClass cl. More...

virtual void Inspect () const
 Dump contents of this object in a graphics canvas. More...

virtual Bool_t IsEqual (const TObject *obj) const
 Default equal comparison (objects are equal if they have the same address in memory). More...

Bool_t IsOnHeap () const

Bool_t IsZombie () const

virtual Bool_t Notify ()
 This method must be overridden to handle object notification. More...

virtual void Pop ()
 Pop on object drawn in a pad to the top of the display list. More...

virtual Int_t Read (const char *name)
 Read contents of object with specified name from the current directory. More...

virtual void SaveAs (const char *filename="", Option_t *option="") const
 Save this object in the file specified by filename. More...

virtual void SavePrimitive (std::ostream &out, Option_t *option="")
 Save a primitive as a C++ statement(s) on output stream "out". More...

virtual void SetDrawOption (Option_t *option="")
 Set drawing option for object. More...

virtual void SetUniqueID (UInt_t uid)
 Set the unique object id. More...

virtual void UseCurrentStyle ()
 Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked. More...

voidoperator new (size_t sz)

voidoperator new[] (size_t sz)

voidoperator new (size_t sz, void *vp)

voidoperator new[] (size_t sz, void *vp)

void operator delete (void *ptr)
 Operator delete. More...

void operator delete[] (void *ptr)
 Operator delete []. More...

void SetBit (UInt_t f, Bool_t set)
 Set or unset the user status bits as specified in f. More...

void SetBit (UInt_t f)

void ResetBit (UInt_t f)

Bool_t TestBit (UInt_t f) const

Int_t TestBits (UInt_t f) const

void InvertBit (UInt_t f)

virtual void Info (const char *method, const char *msgfmt,...) const
 Issue info message. More...

virtual void Warning (const char *method, const char *msgfmt,...) const
 Issue warning message. More...

virtual void Error (const char *method, const char *msgfmt,...) const
 Issue error message. More...

virtual void SysError (const char *method, const char *msgfmt,...) const
 Issue system error message. More...

virtual void Fatal (const char *method, const char *msgfmt,...) const
 Issue fatal error message. More...

void AbstractMethod (const char *method) const
 Use this method to implement an "abstract" method that you don't want to leave purely abstract. More...

void MayNotUse (const char *method) const
 Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary). More...

void Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
 Use this method to declare a method obsolete. More...


Protected Member Functions

virtual void CleanTargets ()
 Clean the pointers to this object (gDirectory, TContext, etc.) More...

void Init (TClass *cl=0)
 Initialize the key associated with this directory (and the related data members. More...

- Protected Member Functions inherited from TDirectory
Bool_t cd1 (const char *path)
 flag to add histograms, graphs,etc to the directory More...

void FillFullPath (TString &buf) const
 Recursive method to fill full path for directory. More...

void RegisterContext (TContext *ctxt)
 Register a TContext pointing to this TDirectory object. More...

void UnregisterContext (TContext *ctxt)
 UnRegister a TContext pointing to this TDirectory object. More...

 TDirectory (const TDirectory &directory)
 Copy constructor. More...

void operator= (const TDirectory &)

- Protected Member Functions inherited from TObject
void MakeZombie ()

virtual void DoError (int level, const char *location, const char *fmt, va_list va) const
 Interface to ErrorHandler (protected). More...


Protected Attributes

Bool_t fModified
 True if directory has been modified. More...

Bool_t fWritable
 True if directory is writable. More...

TDatime fDatimeC
 Date and time when directory is created. More...

TDatime fDatimeM
 Date and time of last modification. More...

Int_t fNbytesKeys
 Number of bytes for the keys. More...

Int_t fNbytesName
 Number of bytes in TNamed at creation time. More...

Int_t fBufferSize
 Default buffer size to create new TKeys. More...

Long64_t fSeekDir
 Location of directory on file. More...

Long64_t fSeekParent
 Location of parent directory on file. More...

Long64_t fSeekKeys
 Location of Keys record on file. More...

TFilefFile
 Pointer to current file in memory. More...

TListfKeys
 Pointer to keys list in memory. More...

- Protected Attributes inherited from TDirectory
TObjectfMother

TListfList

TUUID fUUID

TString fPathBuffer

TContextfContext
 Buffer for GetPath() function. More...

- Protected Attributes inherited from TNamed
TString fName

TString fTitle


Private Member Functions

 TDirectoryFile (const TDirectoryFile &directory)
 Copy constructor. More...

void operator= (const TDirectoryFile &)


Additional Inherited Members

- Static Public Member Functions inherited from TDirectory
static void AddDirectory (Bool_t add=kTRUE)
 Sets the flag controlling the automatic add objects like histograms, TGraph2D, etc in memory. More...

static Bool_t AddDirectoryStatus ()
 Static function: see TDirectory::AddDirectory for more comments. More...

static TDirectory *& CurrentDirectory ()
 Return the current directory for the current thread. More...

static Bool_t Cd (const char *path)
 Change current directory to "path". More...

static void DecodeNameCycle (const char *namecycle, char *name, Short_t &cycle, const size_t namesize=0)
 Decode a namecycle "aap;2" into name "aap" and cycle "2". More...

static void EncodeNameCycle (char *buffer, const char *name, Short_t cycle)
 Encode the name and cycle into buffer like: "aap;2". More...

- Static Public Member Functions inherited from TObject
static Long_t GetDtorOnly ()
 Return destructor only flag. More...

static void SetDtorOnly (void *obj)
 Set destructor only flag. More...

static Bool_t GetObjectStat ()
 Get status of object stat flag. More...

static void SetObjectStat (Bool_t stat)
 Turn on/off tracking of objects in the TObjectTable. More...

- Static Protected Member Functions inherited from TDirectory
static Bool_t Cd1 (const char *path)
 Change current directory to "path". More...

- Static Protected Attributes inherited from TDirectory
static Bool_t fgAddDirectory = kTRUE
 Pointer to a list of TContext object pointing to this TDirectory. More...


#include <TDirectoryFile.h>

Inheritance diagram for TDirectoryFile:
[legend]

Member Enumeration Documentation

anonymous enum
Enumerator
kCloseDirectory

Definition at line 58 of file TDirectoryFile.h.

Constructor & Destructor Documentation

TDirectoryFile::TDirectoryFile ( const TDirectoryFile directory)
private

Copy constructor.

Definition at line 168 of file TDirectoryFile.cxx.

TDirectoryFile::TDirectoryFile ( )

Referenced by mkdir().

TDirectoryFile::TDirectoryFile ( const char *  name,
const char *  title,
Option_t classname = "",
TDirectory initMotherDir = 0
)

Create a new TDirectoryFile.

A new directory with a name and a title is created in the current directory. The directory header information is immediatly saved on the file A new key is added in the parent directory. When this constructor is called from a class directly derived from TDirectoryFile, the third argument, classname, MUST be specified. In this case, classname must be the name of the derived class.

Note that the directory name cannot contain slashes.

Definition at line 79 of file TDirectoryFile.cxx.

TDirectoryFile::~TDirectoryFile ( )
virtual

Destructor.

Definition at line 179 of file TDirectoryFile.cxx.

Member Function Documentation

void TDirectoryFile::Add ( TObject obj,
Bool_t  replace = kFALSE
)
inlinevirtual

Reimplemented from TDirectory.

Definition at line 64 of file TDirectoryFile.h.

Referenced by ClassImp().

void TDirectoryFile::Append ( TObject obj,
Bool_t  replace = kFALSE
)
virtual

Append object to this directory.

If replace is true: remove any existing objects with the same same (if the name is not ""

Reimplemented from TDirectory.

Definition at line 211 of file TDirectoryFile.cxx.

Referenced by Add(), and TTree::ChangeFile().

Int_t TDirectoryFile::AppendKey ( TKey key)
virtual

Insert key in the linked list of keys of this directory.

Reimplemented from TDirectory.

Definition at line 227 of file TDirectoryFile.cxx.

Referenced by TFile::Recover().

void TDirectoryFile::Browse ( TBrowser b)
virtual

Browse the content of the directory.

Reimplemented from TDirectory.

Definition at line 257 of file TDirectoryFile.cxx.

void TDirectoryFile::Build ( TFile motherFile = 0,
TDirectory motherDir = 0
)
virtual

Initialise directory to defaults.

Reimplemented from TDirectory.

Definition at line 302 of file TDirectoryFile.cxx.

Referenced by TDirectoryFile(), TFile::TFile(), TSQLFile::TSQLFile(), and TXMLFile::TXMLFile().

Bool_t TDirectoryFile::cd ( const char *  path = 0)
virtual

Change current directory to "this" directory.

Using path one can change the current directory to "path". The absolute path syntax is:

file.root:/dir1/dir2

where file.root is the file and /dir1/dir2 the desired subdirectory in the file. Relative syntax is relative to "this" directory. E.g: ../aa. Returns kTRUE in case of success.

Reimplemented from TDirectory.

Definition at line 336 of file TDirectoryFile.cxx.

Referenced by Browse(), RooWorkspace::cd(), TTree::ChangeFile(), TMVA::compareanapp(), TTreeCloner::CopyProcessIds(), TTree::Delete(), do_anadist(), do_anadist_ds(), do_anadist_plot(), TDSet::ExportFileList(), foam_demopers(), TSelEventGen::GenerateFiles(), TDSetElement::GetEntries(), TVirtualPacketizer::GetEntries(), TDSet::GetEntries(), TFile::Init(), TSQLFile::InitSqlDatabase(), TXMLFile::InitXmlFile(), TEventIter::LoadDir(), TMVA::TMVAGlob::OpenFile(), TProofBench::OpenOutFile(), TProof::PrepareInputDataFile(), TXMLFile::ReOpen(), TFile::ReOpen(), TSQLFile::ReOpen(), TProof::Retrieve(), TProof::SaveInputData(), TProof::SavePerfTree(), and SaveSelf().

void TDirectoryFile::CleanTargets ( )
protectedvirtual

Clean the pointers to this object (gDirectory, TContext, etc.)

Reimplemented from TDirectory.

Definition at line 346 of file TDirectoryFile.cxx.

Referenced by Close(), and ~TDirectoryFile().

TObject * TDirectoryFile::CloneObject ( const TObject obj,
Bool_t  autoadd = kTRUE
)
virtual

Make a clone of an object using the Streamer facility.

If the object derives from TNamed, this function is called by TNamed::Clone. TNamed::Clone uses the optional argument newname to set a new name to the newly created object.

If autoadd is true and if the object class has a DirectoryAutoAdd function, it will be called at the end of the function with the parameter gDirectory. This usually means that the object will be appended to the current ROOT directory.

Reimplemented from TDirectory.

Definition at line 369 of file TDirectoryFile.cxx.

void TDirectoryFile::Close ( Option_t option = "")
virtual

Delete all objects from memory and directory structure itself.

Reimplemented from TDirectory.

Reimplemented in TSQLFile, TFile, TNetFile, TXMLFile, and TParallelMergingFile.

Definition at line 535 of file TDirectoryFile.cxx.

Referenced by TXMLFile::Close(), TFile::Close(), and TSQLFile::Close().

virtual void TDirectoryFile::Copy ( TObject named) const
inlinevirtual

Copy this to obj.

Reimplemented from TDirectory.

Reimplemented in TFile.

Definition at line 70 of file TDirectoryFile.h.

void TDirectoryFile::Delete ( const char *  namecycle = "")
virtual

Delete Objects or/and keys in a directory.

Properties of the namecycle string:

  • namecycle has the format name;cycle
  • namecycle = "" is same as namecycle ="T*"
  • name = * means all
  • cycle = * means all cycles (memory and keys)
  • cycle = "" or cycle = 9999 ==> apply to a memory object When name=* use T* to delete subdirectories also

To delete one directory, you must specify the directory cycle, eg. file.Delete("dir1;1");

Examples:

Pattern Description
foo delete object named foo in memory
foo* delete all objects with a name starting with foo
foo;1 delete cycle 1 of foo on file
foo;* delete all cycles of foo on file and also from memory
*;2 delete all objects on file having the cycle 2
*;* delete all objects from memory and file
T*;* delete all objects from memory and file and all subdirectories

WARNING

If the key to be deleted contains special characters ("+","^","?", etc that have a special meaning for the regular expression parser (see TRegexp) then you must specify 2 backslash characters to escape the regular expression. For example, if the key to be deleted is namecycle = "C++", you must call

mydir.Delete("C\\+\\+"));

Reimplemented from TDirectory.

Reimplemented in TFile.

Definition at line 603 of file TDirectoryFile.cxx.

Referenced by TFile::Delete(), and rmdir().

void TDirectoryFile::FillBuffer ( char *&  buffer)
virtual

Encode directory header into output buffer.

Reimplemented from TNamed.

Reimplemented in TSQLFile, TFile, and TXMLFile.

Definition at line 706 of file TDirectoryFile.cxx.

Referenced by Init(), TFile::Init(), and WriteDirHeader().

TKey * TDirectoryFile::FindKey ( const char *  keyname) const
virtual

Find key with name keyname in the current directory.

Reimplemented from TDirectory.

Definition at line 732 of file TDirectoryFile.cxx.

TKey * TDirectoryFile::FindKeyAny ( const char *  keyname) const
virtual

Find key with name keyname in the current directory or its subdirectories.

NOTE: that If a key is found, the directory containing the key becomes the current directory

Reimplemented from TDirectory.

Definition at line 748 of file TDirectoryFile.cxx.

TObject * TDirectoryFile::FindObjectAny ( const char *  aname) const
virtual

Find object by name in the list of memory objects of the current directory or its sub-directories.

After this call the current directory is not changed. To automatically set the current directory where the object is found, use FindKeyAny(aname)->ReadObj().

Reimplemented from TDirectory.

Definition at line 788 of file TDirectoryFile.cxx.

TObject * TDirectoryFile::FindObjectAnyFile ( const char *  name) const
virtual

Scan the memory lists of all files for an object with name.

Reimplemented from TDirectory.

Definition at line 427 of file TDirectoryFile.cxx.

TObject * TDirectoryFile::Get ( const char *  namecycle)
virtual

Return pointer to object identified by namecycle.

Properties:

  • namecycle has the format name;cycle
  • name = * is illegal, cycle = * is illegal
  • cycle = "" or cycle = 9999 ==> apply to a memory object

Examples:

Pattern Explanation
foo get object named foo in memory if object is not in memory, try with highest cycle from file
foo;1 get cycle 1 of foo on file

The retrieved object should in principle derive from TObject. If not, the function TDirectoryFile::GetObject should be called. However, this function will still work for a non-TObject, provided that the calling application cast the return type to the correct type (which is the actual type of the object).

The GetObjectMethod

The method GetObject offers better protection and avoids the need for any cast:

MyClass *obj;
directory->GetObject("some object",obj);
if (obj) { ... the object exist and inherits from MyClass ... }

Very important note about inheritance

In case the class of this object derives from TObject but not as a first inheritance, one must use dynamic_cast<>().

Example 1 - Normal case:

class MyClass : public TObject, public AnotherClass

then on return, one can adopt a C style cast:

auto objPtr = (MyClass*)directory->Get("some object of MyClass");

Example 2 - Special case:

class MyClass : public AnotherClass, public TObject

then on return, one must do:

auto objPtr = dynamic_cast<MyClass*>(directory->Get("some object of MyClass"));

Of course, dynamic_cast<> can also be used in the example 1.

Reimplemented from TDirectory.

Definition at line 876 of file TDirectoryFile.cxx.

Referenced by TChain::AddFile(), TFileDrawMap::AnimateTree(), h1analysisTreeReader::Begin(), canvas_read(), canvas_write(), TGeoChecker::CheckBoundaryReference(), Classification(), TMVA::compareanapp(), TMVA::correlations(), TMVA::correlationsMultiClass(), do_anadist_ds(), TProofBench::DrawCPU(), TProofBench::DrawDataSet(), TProofBench::DrawEfficiency(), TMVA::DrawMLPoutputMovie(), TMVA::DrawNetworkMovie(), TFileDrawMap::DrawObject(), EventInfo(), fithist(), fitslicesy(), foam_demopers(), TMVA::get_var_names(), GetData(), TDataSetManagerFile::GetDataSet(), TEveManager::GetGeometry(), TProof::GetInputData(), TFileDrawMap::GetObject(), TProof::GetOutput(), TProofBench::GetPerfSpecs(), TFile::GetStreamerInfoList(), TParallelCoord::GetTree(), TProofLite::GetTreeHeader(), TProofPlayerSlave::HandleGetTreeHeader(), RooStats::HistFactory::HistFactoryNavigation::HistFactoryNavigation(), TGeoVolume::Import(), TGeoManager::Import(), TRecorderReplaying::Initialize(), TRecorderInactive::ListCmd(), TRecorderInactive::ListGui(), TEntryListFromFile::LoadList(), TChain::LoadTree(), memstatExample(), mlpHiggs(), TMVA::mvasMulticlass(), TMVA::mvaweights(), myfit(), TASPaletteEditor::Open(), open_session(), TMVA::paracoor(), plot(), TEntryListFromFile::Print(), TChain::Print(), TSelEventGen::Process(), TProof::Process(), TMVA::MethodPDEFoam::ReadClonedFoamFromFile(), TFile::ReadProcessID(), TMVA::MethodBase::ReadStateFromStream(), readTMatrix(), readTMatrixSym(), readTrackD(), readTrackD32(), TMVA::MethodKNN::ReadWeightsFromStream(), TMVA::MethodLikelihood::ReadWeightsFromStream(), TEntryList::Relocate(), TPoolProcessor< F >::RetrieveTree(), TMVA::rulevisCorr(), TEntryList::Scan(), TQueryResultManager::ScanPreviousQueries(), TTreeViewer::SetFile(), TMemStatShow::Show(), StockReturn(), tables_read(), TMVAClassification(), TMVAClassificationCategory(), TMVAClassificationCategoryApplication(), TProofPerfAnalysis::TProofPerfAnalysis(), tv3Read1(), tv3Read2(), TMVA::variables(), and TMVA::variablesMultiClass().

Int_t TDirectoryFile::GetBufferSize ( ) const
virtual

Return the buffer size to create new TKeys.

If the stored fBufferSize is null, the value returned is the average buffer size of objects in the file so far.

Reimplemented from TDirectory.

Definition at line 1050 of file TDirectoryFile.cxx.

Referenced by TXNetFile::ReadBuffers(), TXNetFile::SynchronizeCacheSize(), WriteObjectAny(), and WriteTObject().

const TDatime& TDirectoryFile::GetCreationDate ( ) const
inline

Definition at line 88 of file TDirectoryFile.h.

TDirectory * TDirectoryFile::GetDirectory ( const char *  apath,
Bool_t  printError = false,
const char *  funcname = "GetDirectory"
)
virtual

Find a directory named "apath".

It apath is null or empty, returns "this" directory. Otherwise use the name "apath" to find a directory. The absolute path syntax is:

file.root:/dir1/dir2

where file.root is the file and /dir1/dir2 the desired subdirectory in the file. Relative syntax is relative to "this" directory. E.g: ../aa. Returns 0 in case path does not exist. If printError is true, use Error with 'funcname' to issue an error message.

Reimplemented from TDirectory.

Definition at line 456 of file TDirectoryFile.cxx.

Referenced by TMVA::BDT(), TMVA::BDT_Reg(), Delete(), Get(), GetObjectChecked(), TEventIterTree::Load(), TFileMerger::MergeRecursive(), and ReadAll().

virtual TFile* TDirectoryFile::GetFile ( ) const
inlinevirtual

Reimplemented from TDirectory.

Definition at line 89 of file TDirectoryFile.h.

Referenced by Delete(), TFile::GetType(), Init(), Purge(), TDirectoryFile(), WriteDirHeader(), and WriteKeys().

TKey * TDirectoryFile::GetKey ( const char *  name,
Short_t  cycle = 9999
) const
virtual

Return pointer to key with name,cycle.

if cycle = 9999 returns highest cycle

Reimplemented from TDirectory.

Definition at line 1062 of file TDirectoryFile.cxx.

Referenced by FindKey(), mkdir(), WriteObjectAny(), and WriteTObject().

virtual TList* TDirectoryFile::GetListOfKeys ( ) const
inlinevirtual
const TDatime& TDirectoryFile::GetModificationDate ( ) const
inline

Definition at line 92 of file TDirectoryFile.h.

virtual Int_t TDirectoryFile::GetNbytesKeys ( ) const
inlinevirtual

Reimplemented from TDirectory.

Definition at line 93 of file TDirectoryFile.h.

virtual Int_t TDirectoryFile::GetNkeys ( ) const
inlinevirtual

Reimplemented from TDirectory.

Definition at line 94 of file TDirectoryFile.h.

Referenced by TFile::Init().

template<class T >
void TDirectoryFile::GetObject ( const char *  namecycle,
T *&  ptr
)
inline
void * TDirectoryFile::GetObjectChecked ( const char *  namecycle,
const char *  classname
)
virtual

See documentation of TDirectoryFile::GetObjectCheck(const char *namecycle, const TClass *cl)

Reimplemented from TDirectory.

Definition at line 953 of file TDirectoryFile.cxx.

Referenced by GetObject(), and GetObjectUnchecked().

void * TDirectoryFile::GetObjectChecked ( const char *  namecycle,
const TClass expectedClass
)
virtual

Return pointer to object identified by namecycle if and only if the actual object is a type suitable to be stored as a pointer to a "expectedClass" If expectedClass is null, no check is performed.

  • namecycle has the format name;cycle
  • name = * is illegal, cycle = * is illegal
  • cycle = "" or cycle = 9999 ==> apply to a memory object

Very important note

The calling application must cast the returned pointer to the type described by the 2 arguments (i.e. cl):

auto objPtr = (MyClass*)directory->GetObjectChecked("some object of MyClass","MyClass"));

Note: We recommend using the method TDirectoryFile::GetObject:

MyClass *obj = nullptr;
directory->GetObject("some object inheriting from MyClass",obj);
if (obj) { ... we found what we are looking for ... }

Reimplemented from TDirectory.

Definition at line 981 of file TDirectoryFile.cxx.

void * TDirectoryFile::GetObjectUnchecked ( const char *  namecycle)
virtual

Return pointer to object identified by namecycle.

The returned object may or may not derive from TObject.

  • namecycle has the format name;cycle
  • name = * is illegal, cycle = * is illegal
  • cycle = "" or cycle = 9999 ==> apply to a memory object

Very important note

The calling application must cast the returned object to the final type, e.g.

auto objPtr = (MyClass*)directory->GetObject("some object of MyClass");

Reimplemented from TDirectory.

Definition at line 945 of file TDirectoryFile.cxx.

virtual Long64_t TDirectoryFile::GetSeekDir ( ) const
inlinevirtual

Reimplemented from TDirectory.

Definition at line 95 of file TDirectoryFile.h.

Referenced by TKey::Create(), and Init().

virtual Long64_t TDirectoryFile::GetSeekKeys ( ) const
inlinevirtual

Reimplemented from TDirectory.

Definition at line 97 of file TDirectoryFile.h.

virtual Long64_t TDirectoryFile::GetSeekParent ( ) const
inlinevirtual

Reimplemented from TDirectory.

Definition at line 96 of file TDirectoryFile.h.

void TDirectoryFile::Init ( TClass cl = 0)
protected

Initialize the key associated with this directory (and the related data members.

Definition at line 138 of file TDirectoryFile.cxx.

Referenced by ResetAfterMerge(), and TDirectoryFile().

Bool_t TDirectoryFile::IsModified ( ) const
inlinevirtual

Reimplemented from TDirectory.

Definition at line 98 of file TDirectoryFile.h.

Bool_t TDirectoryFile::IsWritable ( ) const
inlinevirtual
void TDirectoryFile::ls ( Option_t option = "") const
virtual

List Directory contents.

Indentation is used to identify the directory tree Subdirectories are listed first, then objects in memory, then objects on the file

The option can has the following format: [-d |-m][<regexp>] Options:

  • -d: only list objects in the file
  • -m: only list objects in memory The <regexp> will be used to match the name of the objects. By default memory and disk objects are listed.

Reimplemented from TDirectory.

Reimplemented in TFile.

Definition at line 1091 of file TDirectoryFile.cxx.

Referenced by TFile::ls().

TDirectory * TDirectoryFile::mkdir ( const char *  name,
const char *  title = ""
)
virtual

Create a sub-directory and return a pointer to the created directory.

Returns 0 in case of error. Returns 0 if a directory with the same name already exists. Note that the directory name may be of the form "a/b/c" to create a hierarchy of directories. In this case, the function returns the pointer to the "a" directory if the operation is successful.

Reimplemented from TDirectory.

Definition at line 1155 of file TDirectoryFile.cxx.

Referenced by mkdir().

TFile * TDirectoryFile::OpenFile ( const char *  name,
Option_t option = "",
const char *  ftitle = "",
Int_t  compress = 1,
Int_t  netopt = 0
)
virtual

Interface to TFile::Open.

Reimplemented from TDirectory.

Definition at line 1140 of file TDirectoryFile.cxx.

void TDirectoryFile::operator= ( const TDirectoryFile )
private
void TDirectoryFile::Purge ( Short_t  nkeep = 1)
virtual

Purge lowest key cycles in a directory.

By default, only the highest cycle of a key is kept. Keys for which the "KEEP" flag has been set are not removed. See TKey::Keep().

Reimplemented from TDirectory.

Definition at line 1194 of file TDirectoryFile.cxx.

void TDirectoryFile::ReadAll ( Option_t opt = "")
virtual

Read objects from a ROOT file directory into memory.

If an object is already in memory, the memory copy is deleted and the object is again read from the file. If opt=="dirs", only subdirectories will be read If opt=="dirs*" complete directory tree will be read

Reimplemented from TDirectory.

Definition at line 1230 of file TDirectoryFile.cxx.

Int_t TDirectoryFile::ReadKeys ( Bool_t  forceRead = kTRUE)
virtual

Read the linked list of keys.

Every directory has a linked list (fKeys). This linked list has been written on the file via WriteKeys as a single data record.

It is interesting to call this function in the following situation. Assume another process1 is connecting this directory in Update mode

  • Process1 is adding/updating objects in this directory
  • You want to see the latest status from process1. Example Process1:
    obj1.Write();
    obj2.Write();
    gDirectory->SaveSelf();

Example Process2:

gDirectory->ReadKeys();
obj1->Draw();

This is an efficient way (without opening/closing files) to view the latest updates of a file being modified by another process as it is typically the case in a data acquisition system.

Reimplemented from TDirectory.

Definition at line 1283 of file TDirectoryFile.cxx.

Referenced by TFile::Init(), TKeyXML::ReadObj(), TKeySQL::ReadObj(), TKeyXML::ReadObjWithBuffer(), TKeySQL::ReadObjWithBuffer(), and TQueryResultManager::ScanPreviousQueries().

Int_t TDirectoryFile::ReadTObject ( TObject obj,
const char *  keyname
)
virtual

Read object with keyname from the current directory.

Read contents of object with specified name from the current directory. First the key with keyname is searched in the current directory, next the key buffer is deserialized into the object. The object must have been created before via the default constructor. See TObject::Write().

Reimplemented from TDirectory.

Definition at line 1369 of file TDirectoryFile.cxx.

void TDirectoryFile::ResetAfterMerge ( TFileMergeInfo info)
virtual

Reset the TDirectory after its content has been merged into another Directory.

This returns the TDirectoryFile object back to its state before any data has been written to the file. The object in the in-memory list are assumed to also have been reset.

Reimplemented in TMemFile.

Definition at line 1391 of file TDirectoryFile.cxx.

void TDirectoryFile::rmdir ( const char *  name)
virtual

Removes subdirectory from the directory.

When diredctory is deleted, all keys in all subdirectories will be read first and deleted from file (if exists) Equivalent call is Delete("name;*");

Reimplemented from TDirectory.

Definition at line 1437 of file TDirectoryFile.cxx.

void TDirectoryFile::Save ( )
virtual

Save recursively all directory keys and headers.

Reimplemented from TDirectory.

Definition at line 1449 of file TDirectoryFile.cxx.

Referenced by Close(), TFile::ReOpen(), and Save().

Int_t TDirectoryFile::SaveObjectAs ( const TObject obj,
const char *  filename = "",
Option_t option = ""
) const
virtual

Save object in filename.

If filename is 0 or "", a file with "objectname.root" is created. The name of the key is the object name. If the operation is successful, it returns the number of bytes written to the file otherwise it returns 0. By default a message is printed. Use option "q" to not print the message.

Reimplemented from TDirectory.

Definition at line 1477 of file TDirectoryFile.cxx.

void TDirectoryFile::SaveSelf ( Bool_t  force = kFALSE)
virtual

Save Directory keys and header.

If the directory has been modified (fModified set), write the keys and the directory header. This function assumes the cd is correctly set.

It is recommended to use this function in the following situation: Assume a process1 using a directory in Update mode

  • New objects or modified objects have been written to the directory.
  • You do not want to close the file.
  • You want your changes be visible from another process2 already connected to this directory in read mode.
  • Call this function.
  • In process2, use TDirectoryFile::ReadKeys to refresh the directory.

Reimplemented from TDirectory.

Definition at line 1513 of file TDirectoryFile.cxx.

Referenced by Save(), and Write().

void TDirectoryFile::SetBufferSize ( Int_t  bufsize)
virtual

Set the default buffer size when creating new TKeys.

See also TDirectoryFile::GetBufferSize

Reimplemented from TDirectory.

Definition at line 1534 of file TDirectoryFile.cxx.

Referenced by WriteTObject().

void TDirectoryFile::SetModified ( )
inlinevirtual

Reimplemented from TDirectory.

Definition at line 115 of file TDirectoryFile.h.

void TDirectoryFile::SetSeekDir ( Long64_t  v)
inlinevirtual
void TDirectoryFile::SetTRefAction ( TObject ref,
TObject parent
)
virtual

Find the action to be executed in the dictionary of the parent class and store the corresponding exec number into fBits.

This function searches a data member in the class of parent with an offset corresponding to this. If a comment "TEXEC:" is found in the comment field of the data member, the function stores the exec identifier of the exec statement following this keyword.

Reimplemented from TDirectory.

Definition at line 1549 of file TDirectoryFile.cxx.

void TDirectoryFile::SetWritable ( Bool_t  writable = kTRUE)
virtual

Set the new value of fWritable recursively.

Reimplemented from TDirectory.

Definition at line 1568 of file TDirectoryFile.cxx.

Referenced by TFile::Flush(), TXMLFile::ReOpen(), TFile::ReOpen(), TSQLFile::ReOpen(), SetWritable(), TSQLFile::TSQLFile(), TXMLFile::TXMLFile(), and TFile::WriteBuffer().

Int_t TDirectoryFile::Sizeof ( ) const
virtual

Return the size in bytes of the directory header.

Reimplemented from TDirectory.

Reimplemented in TSQLFile, TFile, and TXMLFile.

Definition at line 1591 of file TDirectoryFile.cxx.

Referenced by Init(), TFile::Init(), ReadKeys(), and WriteDirHeader().

Int_t TDirectoryFile::Write ( const char *  name = 0,
Int_t  opt = 0,
Int_t  bufsize = 0
)
virtual

Write all objects in memory to disk.

Loop on all objects in memory (including subdirectories). A new key is created in the keys linked list for each object. For allowed options see TObject::Write(). The directory header info is rewritten on the directory header record.

Reimplemented from TDirectory.

Reimplemented in TSQLFile, TFile, TXMLFile, and TParallelMergingFile.

Definition at line 1721 of file TDirectoryFile.cxx.

Referenced by Write(), and TFile::Write().

Int_t TDirectoryFile::Write ( const char *  name = 0,
Int_t  opt = 0,
Int_t  bufsize = 0
) const
virtual

One can not save a const TDirectory object.

Reimplemented from TDirectory.

Reimplemented in TSQLFile, TFile, TXMLFile, and TParallelMergingFile.

Definition at line 1741 of file TDirectoryFile.cxx.

void TDirectoryFile::WriteDirHeader ( )
virtual

Overwrite the Directory header record.

Reimplemented from TDirectory.

Definition at line 2023 of file TDirectoryFile.cxx.

Referenced by Delete(), Purge(), and SaveSelf().

void TDirectoryFile::WriteKeys ( )
virtual

Write Keys linked list on the file.

The linked list of keys (fKeys) is written as a single data record

Reimplemented from TDirectory.

Definition at line 2052 of file TDirectoryFile.cxx.

Referenced by Delete(), Purge(), and SaveSelf().

Int_t TDirectoryFile::WriteObjectAny ( const void obj,
const char *  classname,
const char *  name,
Option_t option = "",
Int_t  bufsize = 0
)
virtual

Write object from pointer of class classname in this directory.

obj may not derive from TObject. See TDirectoryFile::WriteTObject for comments

Very important note

The value passed as 'obj' needs to be from a pointer to the type described by classname. For example:

TopClass *top;
BottomClass *bottom;
top = bottom;

you can do:

directory->WriteObjectAny(top,"top","name of object");
directory->WriteObjectAny(bottom,"bottom","name of object");

BUT YOU CAN NOT DO the following since it will fail with multiple inheritance:

directory->WriteObjectAny(top,"bottom","name of object");

We STRONGLY recommend to use

TopClass *top = ....;
directory->WriteObject(top,"name of object")

See laso remarks in TDirectoryFile::WriteTObject

Reimplemented from TDirectory.

Definition at line 1904 of file TDirectoryFile.cxx.

Int_t TDirectoryFile::WriteObjectAny ( const void obj,
const TClass cl,
const char *  name,
Option_t option = "",
Int_t  bufsize = 0
)
virtual

Write object of class with dictionary cl in this directory.

obj may not derive from TObject To get the TClass* cl pointer, one can use

TClass *cl = TClass::GetClass("classname");

An alternative is to call the function WriteObjectAny above. see TDirectoryFile::WriteTObject for comments

Reimplemented from TDirectory.

Definition at line 1931 of file TDirectoryFile.cxx.

Int_t TDirectoryFile::WriteTObject ( const TObject obj,
const char *  name = 0,
Option_t option = "",
Int_t  bufsize = 0
)
virtual

Write object obj to this directory.

The data structure corresponding to this object is serialized. The corresponding buffer is written to this directory with an associated key with name "name".

Writing an object to a file involves the following steps:

  • Creation of a support TKey object in the directory. The TKey object creates a TBuffer object.
  • The TBuffer object is filled via the class::Streamer function.
  • If the file is compressed (default) a second buffer is created to hold the compressed buffer.
  • Reservation of the corresponding space in the file by looking in the TFree list of free blocks of the file.
  • The buffer is written to the file.

By default, the buffersize will be taken from the average buffer size of all objects written to the current file so far. Use TDirectoryFile::SetBufferSize to force a given buffer size.

If a name is specified, it will be the name of the key. If name is not given, the name of the key will be the name as returned by obj->GetName().

The option can be a combination of:

  • "SingleKey"
  • "Overwrite"
  • "WriteDelete" Using the "Overwrite" option a previous key with the same name is overwritten. The previous key is deleted before writing the new object. Using the "WriteDelete" option a previous key with the same name is deleted only after the new object has been written. This option is safer than kOverwrite but it is slower. The "SingleKey" option is only used by TCollection::Write() to write a container with a single key instead of each object in the container with its own key. An object is read from this directory via TDirectoryFile::Get. The function returns the total number of bytes written to the directory. It returns 0 if the object cannot be written.

WARNING: avoid special characters like '^','$','.' in the name as they are used by the regular expression parser (see TRegexp).

Reimplemented from TDirectory.

Definition at line 1791 of file TDirectoryFile.cxx.

Referenced by TFile::WriteProcessID(), and TMVA::MethodKNN::WriteWeightsToStream().

Member Data Documentation

Int_t TDirectoryFile::fBufferSize
protected

Default buffer size to create new TKeys.

Definition at line 42 of file TDirectoryFile.h.

Referenced by GetBufferSize(), SetBufferSize(), and TDirectoryFile().

TDatime TDirectoryFile::fDatimeC
protected
TDatime TDirectoryFile::fDatimeM
protected
TFile* TDirectoryFile::fFile
protected
TList* TDirectoryFile::fKeys
protected
Bool_t TDirectoryFile::fModified
protected

True if directory has been modified.

Definition at line 36 of file TDirectoryFile.h.

Referenced by AppendKey(), Build(), Delete(), IsModified(), Purge(), ResetAfterMerge(), SaveSelf(), SetModified(), TDirectoryFile(), and WriteDirHeader().

Int_t TDirectoryFile::fNbytesKeys
protected

Number of bytes for the keys.

Definition at line 40 of file TDirectoryFile.h.

Referenced by Build(), FillBuffer(), GetNbytesKeys(), TFile::Init(), ReadKeys(), TMemFile::ResetAfterMerge(), and ResetAfterMerge().

Int_t TDirectoryFile::fNbytesName
protected

Number of bytes in TNamed at creation time.

Definition at line 41 of file TDirectoryFile.h.

Referenced by FillBuffer(), Init(), TFile::Init(), ReadKeys(), ResetAfterMerge(), WriteDirHeader(), and TFile::WriteHeader().

Long64_t TDirectoryFile::fSeekDir
protected
Long64_t TDirectoryFile::fSeekKeys
protected

Location of Keys record on file.

Definition at line 45 of file TDirectoryFile.h.

Referenced by Build(), FillBuffer(), GetSeekKeys(), TFile::Init(), TFile::Map(), ReadKeys(), TMemFile::ResetAfterMerge(), ResetAfterMerge(), and WriteKeys().

Long64_t TDirectoryFile::fSeekParent
protected

Location of parent directory on file.

Definition at line 44 of file TDirectoryFile.h.

Referenced by Build(), FillBuffer(), GetSeekParent(), Init(), TFile::Init(), ReadKeys(), and ResetAfterMerge().

Bool_t TDirectoryFile::fWritable
protected
Collaboration diagram for TDirectoryFile:
[legend]

The documentation for this class was generated from the following files:
