benchmarks.C File Reference

Detailed Description

This macro run several tests and produces an benchmark report.


hsimple   : Real Time =   0.05 seconds Cpu Time =   0.05 seconds
(TFile *) 0x33fd1f0
hsum      : Real Time =   0.01 seconds Cpu Time =   0.01 seconds

Object statistics
class                         cnt    on heap     size    total size    heap size
================================================================================
TList                         135        134      104         14040        13936
TObjectTable                    1          1       32            32           32
TROOT                           1          0      728           728            0
TPluginManager                  1          1       40            40           40
THashTable                      2          2       72           144          144
TClassTable                     1          1       16            16           16
THashList                       1          1      112           112          112
TEnv                            1          1       56            56           56
TEnvRec                       147        147       96         14112        14112
TNamed                          1          1       64            64           64
TUnixSystem                     1          1      672           672          672
TOrdCollection                  4          4       72           288          288
--------------------------------------------------------------------------------
Total:                        296        294     2064         30304        29472
================================================================================

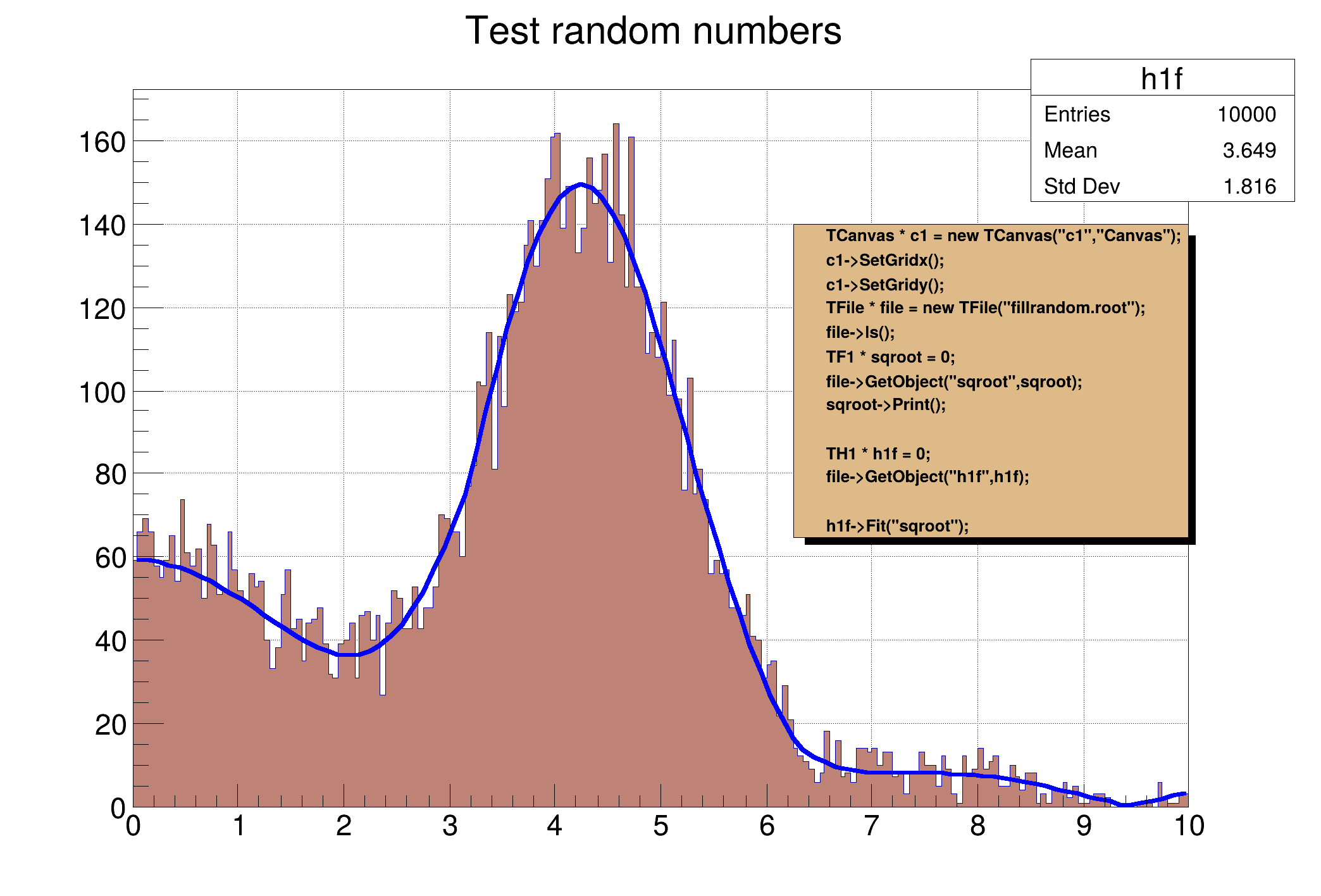

fillrandom: Real Time =   0.07 seconds Cpu Time =   0.07 seconds
TFile**     fillrandom.root
 TFile*     fillrandom.root
  KEY: TFormula   form1;1  abs(sin(x)/x)
  KEY: TF1  sqroot;1 x*gaus(0) + [3]*form1
  KEY: TH1F h1f;1 Test random numbers
Formula based function:     sqroot
               sqroot : x*gaus(0) + [3]*form1 Ndim= 1, Npar= 4, Number= 0
 Formula expression:
   x*[p0]*exp(-0.5*((x-[p1])/[p2])*((x-[p1])/[p2]))+[p3]*(abs(sin(x)/x))
****************************************
Minimizer is Minuit2 / Migrad
Chi2                      =      216.205
NDf                       =          190
Edm                       =  1.66144e-07
NCalls                    =          150
p0                        =      32.6914   +/-   0.540458
p1                        =      4.02242   +/-   0.0168826
p2                        =      0.98207   +/-   0.01292
p3                        =      64.7407   +/-   1.33511
fit1      : Real Time =   0.07 seconds Cpu Time =   0.07 seconds
TFile**     /github/home/ROOT-CI/build/tutorials/hsimple.root  Demo ROOT file with histograms
 TFile*     /github/home/ROOT-CI/build/tutorials/hsimple.root  Demo ROOT file with histograms
  KEY: TH1F hpx;1 This is the px distribution
  KEY: TH2F hpxpy;1  py vs px
  KEY: TProfile   hprof;1  Profile of pz versus px
  KEY: TNtuple ntuple;1 Demo ntuple
 i 0 0.000000 1.986693
 i 1 0.100000 2.955202
 i 2 0.200000 3.894183
 i 3 0.300000 4.794255
 i 4 0.400000 5.646425
 i 5 0.500000 6.442177
 i 6 0.600000 7.173561
 i 7 0.700000 7.833269
 i 8 0.800000 8.414710
 i 9 0.900000 8.912074
 i 10 1.000000 9.320391
 i 11 1.100000 9.635582
 i 12 1.200000 9.854497
 i 13 1.300000 9.974950
 i 14 1.400000 9.995736
 i 15 1.500000 9.916648
 i 16 1.600000 9.738476
 i 17 1.700000 9.463001
 i 18 1.800000 9.092974
 i 19 1.900000 8.632094
tornado   : Real Time =   0.00 seconds Cpu Time =   0.00 seconds
na49      : Real Time =   0.00 seconds Cpu Time =   0.01 seconds
geometry  : Real Time =   0.01 seconds Cpu Time =   0.01 seconds
na49view  : Real Time =   0.00 seconds Cpu Time =   0.00 seconds
****************************************
Minimizer is Linear / Migrad
Chi2                      =      16.5378
NDf                       =           68
p0                        =      1.04821   +/-   0.226552
p1                        =    0.0133784   +/-   0.0420448
p2                        =     0.956034   +/-   0.0245116
ntuple1   : Real Time =   0.11 seconds Cpu Time =   0.12 seconds
---------------ROOT 6.32.19 benchmarks summary--------------------
hsimple   : Real Time =   0.05 seconds Cpu Time =   0.05 seconds
hsum      : Real Time =   0.01 seconds Cpu Time =   0.01 seconds
fillrandom: Real Time =   0.07 seconds Cpu Time =   0.07 seconds
fit1      : Real Time =   0.07 seconds Cpu Time =   0.07 seconds
tornado   : Real Time =   0.00 seconds Cpu Time =   0.00 seconds
na49      : Real Time =   0.00 seconds Cpu Time =   0.01 seconds
geometry  : Real Time =   0.01 seconds Cpu Time =   0.01 seconds
na49view  : Real Time =   0.00 seconds Cpu Time =   0.00 seconds
ntuple1   : Real Time =   0.11 seconds Cpu Time =   0.12 seconds
TOTAL     : Real Time =   0.33 seconds Cpu Time =   0.34 seconds

---------------ROOT 6.32.19 benchmarks summary (in ROOTMARKS)-----
   For comparison, a Pentium IV 2.4Ghz is benchmarked at 600 ROOTMARKS
hsimple     = 3346.41 RealMARKS,  = 3360.00 CpuMARKS
hsum        = 7013.89 RealMARKS,  = 9000.00 CpuMARKS
fillrandom  =  174.90 RealMARKS,  =   85.71 CpuMARKS
fit1        =  334.71 RealMARKS,  =  257.14 CpuMARKS
tornado     = 83551.88 RealMARKS,  =     inf CpuMARKS
na49        = 286092.22 RealMARKS,  = 83400.00 CpuMARKS
geometry    = 8016.88 RealMARKS,  = 10800.00 CpuMARKS
na49view    = 10066.33 RealMARKS,  =     inf CpuMARKS
ntuple1     = 1594.58 RealMARKS,  = 1350.00 CpuMARKS

****************************************************
* Your machine is estimated at 5951.97 ROOTMARKS   *
****************************************************


TCanvas* bench1 = 0;

void bexec(TString &dir,const char *macro)
{
   if (gROOT->IsBatch()) printf("Processing benchmark: %s%s\n",dir.Data(),macro);
   TPaveText *summary = (TPaveText*)bench1->GetPrimitive("TPave");
   TText *tmacro = summary->GetLineWith(macro);
   if (tmacro) tmacro->SetTextColor(4);
   bench1->Modified(); bench1->Update();

   gROOT->Macro(Form("%s%s",dir.Data(),macro));

   TPaveText *summary2 = (TPaveText*)bench1->GetPrimitive("TPave");
   TText *tmacro2 = summary2->GetLineWith(macro);
   if (tmacro2) tmacro2->SetTextColor(2);
   bench1->Modified(); bench1->Update(); gSystem->ProcessEvents();

}

void benchmarks() {
   TString dir = gSystem->UnixPathName(__FILE__);
   dir.ReplaceAll("benchmarks.C","");
   dir.ReplaceAll("/./","/");
   dir.ReplaceAll("legacy","");
   bench1 = new TCanvas("bench1","Benchmarks Summary",-1000,50,200,500);
   TPaveText *summary = new TPaveText(0,0,1,1);
   summary->SetTextAlign(12);
   summary->SetTextSize(0.08);
   summary->Draw();

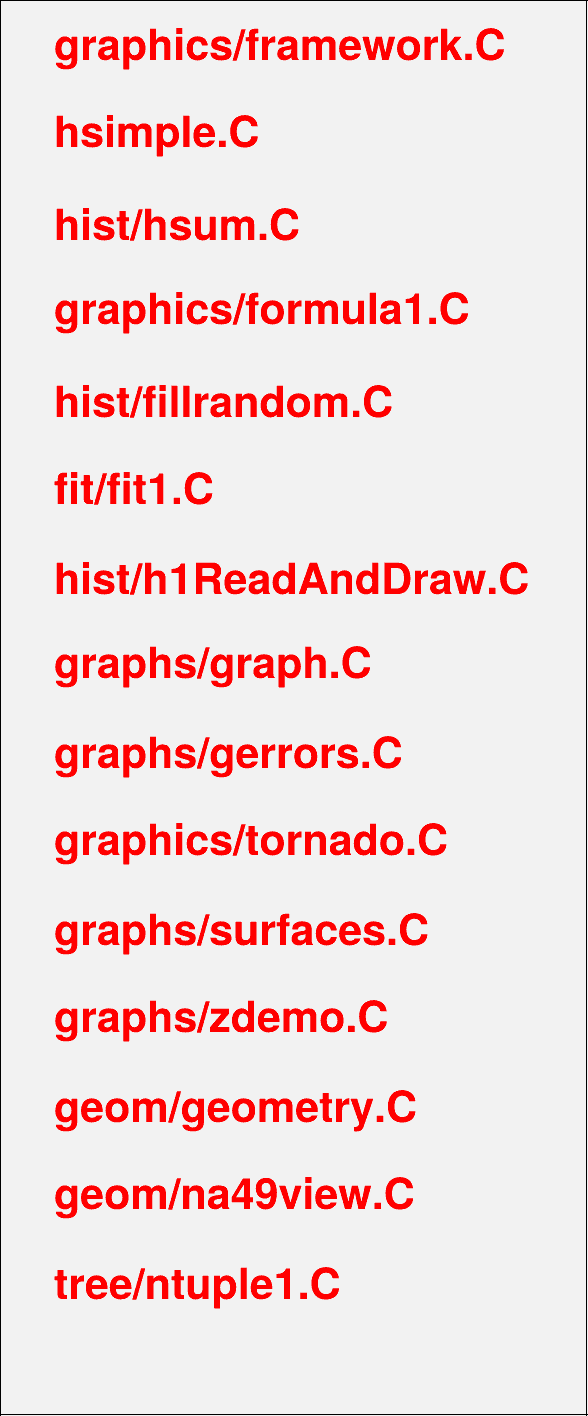

   summary->AddText("  graphics/framework.C");
   summary->AddText("  hsimple.C");
   summary->AddText("  hist/hsum.C");
   summary->AddText("  graphics/formula1.C");
   summary->AddText("  hist/fillrandom.C");
   summary->AddText("  fit/fit1.C");
   summary->AddText("  hist/h1ReadAndDraw.C");
   summary->AddText("  graphs/graph.C");
   summary->AddText("  graphs/gerrors.C");
   summary->AddText("  graphics/tornado.C");
   summary->AddText("  graphs/surfaces.C");
   summary->AddText("  graphs/zdemo.C");
   summary->AddText("  geom/geometry.C");
   summary->AddText("  geom/na49view.C");
   summary->AddText("  tree/ntuple1.C");
   summary->AddText("  ");
   bexec(dir,"graphics/framework.C");
   bexec(dir,"hsimple.C");
   bexec(dir,"hist/hsum.C");
   bexec(dir,"graphics/formula1.C");
   bexec(dir,"hist/fillrandom.C");
   bexec(dir,"fit/fit1.C");
   bexec(dir,"hist/h1ReadAndDraw.C");
   bexec(dir,"graphs/graph.C");
   bexec(dir,"graphs/gerrors.C");
   bexec(dir,"graphics/tornado.C");
   bexec(dir,"graphs/surfaces.C");
   bexec(dir,"graphs/zdemo.C");
   bexec(dir,"geom/geometry.C");
   bexec(dir,"geom/na49view.C");
   bexec(dir,"tree/ntuple1.C");
   bexec(dir,"legacy/rootmarks.C");
}

Author

Rene Brun

Definition in file benchmarks.C.
