class ROOT::Math::IBaseFunctionMultiDim


Documentation for the abstract class IBaseFunctionMultiDim.
Interface (abstract class) for generic functions objects of multi-dimension
Provides a method to evaluate the function given a vector of coordinate values,
by implementing operator() (const double *).
In addition it defines the interface for copying functions via the pure virtual method Clone()
and the interface for getting the function dimension via the NDim() method.
Derived classes must implement the pure private virtual method DoEval(const double *) for the
function evaluation in addition to NDim() and Clone().

@ingroup  CppFunctions

Function Members (Methods)


    This is an abstract class, constructors will not be documented.
    Look at the header to check for available constructors.

public:
virtual~IBaseFunctionMultiDim()
virtual ROOT::Math::IBaseFunctionMultiDim*Clone() const
virtual unsigned intNDim() const
doubleoperator()(const double* x) const
ROOT::Math::IBaseFunctionMultiDim&operator=(const ROOT::Math::IBaseFunctionMultiDim&)
private:
virtual doubleDoEval(const double* x) const

Class Charts

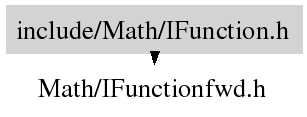

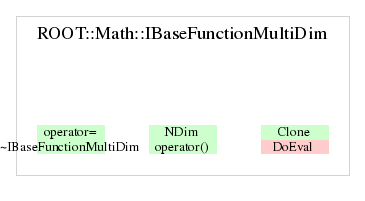

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

virtual ~IBaseFunctionMultiDim()
virtual destructor

{}
IBaseFunctionMultiDim * Clone()
Clone a function.
Each derived class must implement his version of the Clone method

unsigned int NDim()
Retrieve the dimension of the function

double operator()(const double* x) const
Evaluate the function at a point x[].
Use the pure virtual private method DoEval which must be implemented by the sub-classes

return DoEval(const double* x) const

Last update: root/mathcore:$Id: IFunction.h 21553 2007-12-21 10:55:46Z moneta $
Copyright (c) 2006 , LCG ROOT MathLib Team *

This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
