class TGenCollectionProxy: public TVirtualCollectionProxy


 Proxy around an arbitrary container, which implements basic
 functionality and iteration.

 In particular this is used to implement splitting and abstract
 element access of any container. Access to compiled code is necessary
 to implement the abstract iteration sequence and functionality like
 size(), clear(), resize(). resize() may be a void operation.

Function Members (Methods)

TGenCollectionProxy(const TGenCollectionProxy& copy)
TGenCollectionProxy(TGenCollectionProxy::Info_t typ, size_t iter_size)
TGenCollectionProxy(const ROOT::TCollectionProxyInfo& info, TClass* cl)
virtual void*Allocate(UInt_t n, Bool_t forceDelete)
virtual void*At(UInt_t idx)
virtual voidClear(const char* opt = "")
virtual voidCommit(void* env)
virtual voidTVirtualCollectionProxy::DeleteArray(void* p, Bool_t dtorOnly = kFALSE)
virtual voidTVirtualCollectionProxy::Destructor(void* p, Bool_t dtorOnly = kFALSE)
virtual TVirtualCollectionProxy*Generate() const
virtual TClass*GetCollectionClass()
virtual EDataTypeGetType()
virtual TClass*GetValueClass()
virtual Bool_tHasPointers() const
virtual void*TVirtualCollectionProxy::New() const
virtual void*TVirtualCollectionProxy::New(void* arena) const
virtual void*TVirtualCollectionProxy::NewArray(Int_t nElements) const
virtual void*TVirtualCollectionProxy::NewArray(Int_t nElements, void* arena) const
virtual voidoperator()(TBuffer& refBuffer, void* pObject)
TVirtualCollectionProxy&TVirtualCollectionProxy::operator=(const TVirtualCollectionProxy&)
char*TVirtualCollectionProxy::operator[](UInt_t idx) const
virtual voidPopProxy()
virtual voidPushProxy(void* objstart)
virtual voidResize(UInt_t n, Bool_t force_delete)
virtual voidSetValueClass(TClass* newcl)
virtual UInt_tSize() const
virtual UInt_tSizeof() const
virtual voidStreamer(TBuffer& refBuffer)
virtual voidStreamer(TBuffer& refBuffer, void* pObject, int siz)
voidCheckFunctions() const
virtual voidDeleteItem(Bool_t force, void* ptr) const
TGenCollectionProxy*Initialize() const
virtual TGenCollectionProxy*InitializeEx()

Data Members

TGenCollectionProxy::MethodfClearMethod cache for container accessors: clear container
TGenCollectionProxy::MethodfCollectMethod to collect objects from container
TGenCollectionProxy::MethodfConstructContainer accessors: block construct
TGenCollectionProxy::MethodfDestructContainer accessors: block destruct
ROOT::TCollectionProxyInfo::Environ<char[64]>*fEnvAddress of the currently proxied object
TGenCollectionProxy::MethodfFeedContainer accessors: block feed
TGenCollectionProxy::MethodfFirstContainer accessors: generic iteration: first
TGenCollectionProxy::Value*fKeyDescriptor of the key_type
stringfNameName of the class being proxied.
TGenCollectionProxy::MethodfNextContainer accessors: generic iteration: next
Bool_tfPointersFlag to indicate if containee has pointers (key or value)
vector<ROOT::TCollectionProxyInfo::Environ<char[64]>*,allocator<ROOT::TCollectionProxyInfo::Environ<char[64]>*> >fProxyKeptOptimization: Keep proxies once they were created
vector<ROOT::TCollectionProxyInfo::Environ<char[64]>*,allocator<ROOT::TCollectionProxyInfo::Environ<char[64]>*> >fProxyListStack of recursive proxies
TGenCollectionProxy::MethodfResizeContainer accessors: resize container
intfSTL_typeSTL container type
TGenCollectionProxy::MethodfSizeContainer accessors: size of container
type_info&fTypeinfoType information
TGenCollectionProxy::Value*fValDescriptor of the Value_type
intfValDiffOffset between two consecutive value_types (memory layout).
intfValOffsetOffset from key to value (in maps)
TGenCollectionProxy::Value*fValueDescriptor of the container value type

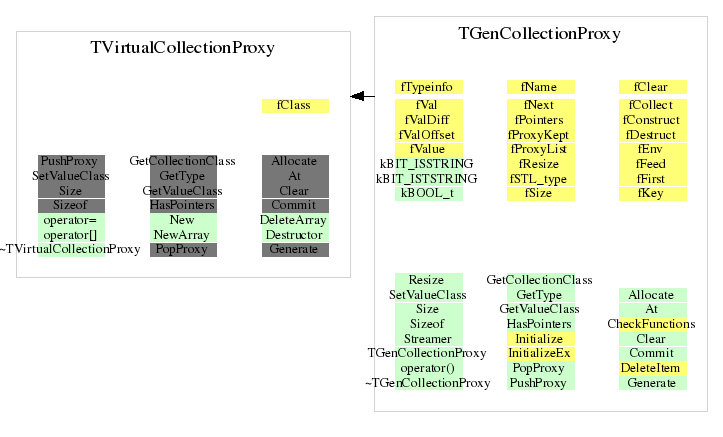

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

void DeleteItem(void* ptr)
 Delete individual item from STL container
s. Streamer(TBuffer& refBuffer)
s. Streamer(TBuffer& refBuffer)
TGenCollectionProxy* Initialize()
 Late initialization of collection proxy
TGenCollectionProxy* InitializeEx()
 Call to delete/destruct individual contained item.
void CheckFunctions()
 Allow to check function pointers.
TVirtualCollectionProxy* Generate()
 Virtual copy constructor.
TGenCollectionProxy(const TGenCollectionProxy& copy)
 Copy constructor.
TGenCollectionProxy(Info_t typ, size_t iter_size)
 Initializing constructor
TGenCollectionProxy(const ROOT::TCollectionProxyInfo &info, TClass *cl)
virtual ~TGenCollectionProxy()
 Standard destructor.
TClass * GetCollectionClass()
 Return a pointer to the TClass representing the container.
UInt_t Sizeof()
 Return the sizeof the collection object.
void PushProxy(void* objstart)
 Push new proxy environment.
void PopProxy()
 Pop old proxy environment.
Bool_t HasPointers()
 Return true if the content is of type 'pointer to'.
TClass * GetValueClass()
 Return a pointer to the TClass representing the content.
void SetValueClass(TClass* newcl)
 Set pointer to the TClass representing the content.
EDataType GetType()
 If the content is a simple numerical value, return its type (see TDataType).
void * At(UInt_t idx)
 Return the address of the value at index 'idx'.
void Clear(const char* opt = "")
 Clear the container.
void Resize(UInt_t n, Bool_t force_delete)
 Resize the container.
UInt_t Size()
 Return the current size of the container.
void* Allocate(UInt_t n, Bool_t forceDelete)
 Block allocation of containees.
void Commit(void* env)
 Block commit of containees.
void operator()(TBuffer& refBuffer, void* pObject)
 TClassStreamer I/O overload.

Author: Markus Frank 28/10/04
Last update: root/io:$Id: TGenCollectionProxy.h 20882 2007-11-19 11:31:26Z rdm $
Copyright (C) 1995-2004, Rene Brun and Fons Rademakers. *
