TMVA_RNN_Classification.C File Reference
Tutorials » TMVA tutorials

Detailed Description

View in nbviewer Open in SWAN TMVA Classification Example Using a Recurrent Neural Network

This is an example of using a RNN in TMVA. We do classification using a toy time dependent data set that is generated when running this example macro

Running with nthreads = 16
--- RNNClassification : Using input file: time_data_t10_d30.root
DataSetInfo : [dataset] : Added class "Signal"
: Add Tree sgn of type Signal with 10000 events
DataSetInfo : [dataset] : Added class "Background"
: Add Tree bkg of type Background with 10000 events
number of variables is 300
vars_time0[0],vars_time0[1],vars_time0[2],vars_time0[3],vars_time0[4],vars_time0[5],vars_time0[6],vars_time0[7],vars_time0[8],vars_time0[9],vars_time0[10],vars_time0[11],vars_time0[12],vars_time0[13],vars_time0[14],vars_time0[15],vars_time0[16],vars_time0[17],vars_time0[18],vars_time0[19],vars_time0[20],vars_time0[21],vars_time0[22],vars_time0[23],vars_time0[24],vars_time0[25],vars_time0[26],vars_time0[27],vars_time0[28],vars_time0[29],vars_time1[0],vars_time1[1],vars_time1[2],vars_time1[3],vars_time1[4],vars_time1[5],vars_time1[6],vars_time1[7],vars_time1[8],vars_time1[9],vars_time1[10],vars_time1[11],vars_time1[12],vars_time1[13],vars_time1[14],vars_time1[15],vars_time1[16],vars_time1[17],vars_time1[18],vars_time1[19],vars_time1[20],vars_time1[21],vars_time1[22],vars_time1[23],vars_time1[24],vars_time1[25],vars_time1[26],vars_time1[27],vars_time1[28],vars_time1[29],vars_time2[0],vars_time2[1],vars_time2[2],vars_time2[3],vars_time2[4],vars_time2[5],vars_time2[6],vars_time2[7],vars_time2[8],vars_time2[9],vars_time2[10],vars_time2[11],vars_time2[12],vars_time2[13],vars_time2[14],vars_time2[15],vars_time2[16],vars_time2[17],vars_time2[18],vars_time2[19],vars_time2[20],vars_time2[21],vars_time2[22],vars_time2[23],vars_time2[24],vars_time2[25],vars_time2[26],vars_time2[27],vars_time2[28],vars_time2[29],vars_time3[0],vars_time3[1],vars_time3[2],vars_time3[3],vars_time3[4],vars_time3[5],vars_time3[6],vars_time3[7],vars_time3[8],vars_time3[9],vars_time3[10],vars_time3[11],vars_time3[12],vars_time3[13],vars_time3[14],vars_time3[15],vars_time3[16],vars_time3[17],vars_time3[18],vars_time3[19],vars_time3[20],vars_time3[21],vars_time3[22],vars_time3[23],vars_time3[24],vars_time3[25],vars_time3[26],vars_time3[27],vars_time3[28],vars_time3[29],vars_time4[0],vars_time4[1],vars_time4[2],vars_time4[3],vars_time4[4],vars_time4[5],vars_time4[6],vars_time4[7],vars_time4[8],vars_time4[9],vars_time4[10],vars_time4[11],vars_time4[12],vars_time4[13],vars_time4[14],vars_time4[15],vars_time4[16],vars_time4[17],vars_time4[18],vars_time4[19],vars_time4[20],vars_time4[21],vars_time4[22],vars_time4[23],vars_time4[24],vars_time4[25],vars_time4[26],vars_time4[27],vars_time4[28],vars_time4[29],vars_time5[0],vars_time5[1],vars_time5[2],vars_time5[3],vars_time5[4],vars_time5[5],vars_time5[6],vars_time5[7],vars_time5[8],vars_time5[9],vars_time5[10],vars_time5[11],vars_time5[12],vars_time5[13],vars_time5[14],vars_time5[15],vars_time5[16],vars_time5[17],vars_time5[18],vars_time5[19],vars_time5[20],vars_time5[21],vars_time5[22],vars_time5[23],vars_time5[24],vars_time5[25],vars_time5[26],vars_time5[27],vars_time5[28],vars_time5[29],vars_time6[0],vars_time6[1],vars_time6[2],vars_time6[3],vars_time6[4],vars_time6[5],vars_time6[6],vars_time6[7],vars_time6[8],vars_time6[9],vars_time6[10],vars_time6[11],vars_time6[12],vars_time6[13],vars_time6[14],vars_time6[15],vars_time6[16],vars_time6[17],vars_time6[18],vars_time6[19],vars_time6[20],vars_time6[21],vars_time6[22],vars_time6[23],vars_time6[24],vars_time6[25],vars_time6[26],vars_time6[27],vars_time6[28],vars_time6[29],vars_time7[0],vars_time7[1],vars_time7[2],vars_time7[3],vars_time7[4],vars_time7[5],vars_time7[6],vars_time7[7],vars_time7[8],vars_time7[9],vars_time7[10],vars_time7[11],vars_time7[12],vars_time7[13],vars_time7[14],vars_time7[15],vars_time7[16],vars_time7[17],vars_time7[18],vars_time7[19],vars_time7[20],vars_time7[21],vars_time7[22],vars_time7[23],vars_time7[24],vars_time7[25],vars_time7[26],vars_time7[27],vars_time7[28],vars_time7[29],vars_time8[0],vars_time8[1],vars_time8[2],vars_time8[3],vars_time8[4],vars_time8[5],vars_time8[6],vars_time8[7],vars_time8[8],vars_time8[9],vars_time8[10],vars_time8[11],vars_time8[12],vars_time8[13],vars_time8[14],vars_time8[15],vars_time8[16],vars_time8[17],vars_time8[18],vars_time8[19],vars_time8[20],vars_time8[21],vars_time8[22],vars_time8[23],vars_time8[24],vars_time8[25],vars_time8[26],vars_time8[27],vars_time8[28],vars_time8[29],vars_time9[0],vars_time9[1],vars_time9[2],vars_time9[3],vars_time9[4],vars_time9[5],vars_time9[6],vars_time9[7],vars_time9[8],vars_time9[9],vars_time9[10],vars_time9[11],vars_time9[12],vars_time9[13],vars_time9[14],vars_time9[15],vars_time9[16],vars_time9[17],vars_time9[18],vars_time9[19],vars_time9[20],vars_time9[21],vars_time9[22],vars_time9[23],vars_time9[24],vars_time9[25],vars_time9[26],vars_time9[27],vars_time9[28],vars_time9[29],
prepared DATA LOADER
Factory : Booking method: ␛[1mTMVA_LSTM␛[0m
:
: Parsing option string:
: ... "!H:V:ErrorStrategy=CROSSENTROPY:VarTransform=None:WeightInitialization=XAVIERUNIFORM:ValidationSize=0.2:RandomSeed=1234:InputLayout=10|30:Layout=LSTM|10|30|10|0|1,RESHAPE|FLAT,DENSE|64|TANH,LINEAR:TrainingStrategy=LearningRate=1e-3,Momentum=0.0,Repetitions=1,ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,WeightDecay=1e-2,Regularization=None,MaxEpochs=20,Optimizer=ADAM,DropConfig=0.0+0.+0.+0.:Architecture=CPU"
: The following options are set:
: - By User:
: <none>
: - Default:
: Boost_num: "0" [Number of times the classifier will be boosted]
: Parsing option string:
: ... "!H:V:ErrorStrategy=CROSSENTROPY:VarTransform=None:WeightInitialization=XAVIERUNIFORM:ValidationSize=0.2:RandomSeed=1234:InputLayout=10|30:Layout=LSTM|10|30|10|0|1,RESHAPE|FLAT,DENSE|64|TANH,LINEAR:TrainingStrategy=LearningRate=1e-3,Momentum=0.0,Repetitions=1,ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,WeightDecay=1e-2,Regularization=None,MaxEpochs=20,Optimizer=ADAM,DropConfig=0.0+0.+0.+0.:Architecture=CPU"
: The following options are set:
: - By User:
: V: "True" [Verbose output (short form of "VerbosityLevel" below - overrides the latter one)]
: VarTransform: "None" [List of variable transformations performed before training, e.g., "D_Background,P_Signal,G,N_AllClasses" for: "Decorrelation, PCA-transformation, Gaussianisation, Normalisation, each for the given class of events ('AllClasses' denotes all events of all classes, if no class indication is given, 'All' is assumed)"]
: H: "False" [Print method-specific help message]
: InputLayout: "10|30" [The Layout of the input]
: Layout: "LSTM|10|30|10|0|1,RESHAPE|FLAT,DENSE|64|TANH,LINEAR" [Layout of the network.]
: ErrorStrategy: "CROSSENTROPY" [Loss function: Mean squared error (regression) or cross entropy (binary classification).]
: WeightInitialization: "XAVIERUNIFORM" [Weight initialization strategy]
: RandomSeed: "1234" [Random seed used for weight initialization and batch shuffling]
: ValidationSize: "0.2" [Part of the training data to use for validation. Specify as 0.2 or 20% to use a fifth of the data set as validation set. Specify as 100 to use exactly 100 events. (Default: 20%)]
: Architecture: "CPU" [Which architecture to perform the training on.]
: TrainingStrategy: "LearningRate=1e-3,Momentum=0.0,Repetitions=1,ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,WeightDecay=1e-2,Regularization=None,MaxEpochs=20,Optimizer=ADAM,DropConfig=0.0+0.+0.+0." [Defines the training strategies.]
: - Default:
: VerbosityLevel: "Default" [Verbosity level]
: CreateMVAPdfs: "False" [Create PDFs for classifier outputs (signal and background)]
: IgnoreNegWeightsInTraining: "False" [Events with negative weights are ignored in the training (but are included for testing and performance evaluation)]
: BatchLayout: "0|0|0" [The Layout of the batch]
: Will now use the CPU architecture with BLAS and IMT support !
Factory : Booking method: ␛[1mTMVA_DNN␛[0m
:
: Parsing option string:
: ... "!H:V:ErrorStrategy=CROSSENTROPY:VarTransform=None:WeightInitialization=XAVIER:RandomSeed=0:InputLayout=1|1|300:Layout=DENSE|64|TANH,DENSE|TANH|64,DENSE|TANH|64,LINEAR:TrainingStrategy=LearningRate=1e-3,Momentum=0.0,Repetitions=1,ConvergenceSteps=10,BatchSize=256,TestRepetitions=1,WeightDecay=1e-4,Regularization=None,MaxEpochs=20DropConfig=0.0+0.+0.+0.,Optimizer=ADAM:CPU"
: The following options are set:
: - By User:
: <none>
: - Default:
: Boost_num: "0" [Number of times the classifier will be boosted]
: Parsing option string:
: ... "!H:V:ErrorStrategy=CROSSENTROPY:VarTransform=None:WeightInitialization=XAVIER:RandomSeed=0:InputLayout=1|1|300:Layout=DENSE|64|TANH,DENSE|TANH|64,DENSE|TANH|64,LINEAR:TrainingStrategy=LearningRate=1e-3,Momentum=0.0,Repetitions=1,ConvergenceSteps=10,BatchSize=256,TestRepetitions=1,WeightDecay=1e-4,Regularization=None,MaxEpochs=20DropConfig=0.0+0.+0.+0.,Optimizer=ADAM:CPU"
: The following options are set:
: - By User:
: V: "True" [Verbose output (short form of "VerbosityLevel" below - overrides the latter one)]
: VarTransform: "None" [List of variable transformations performed before training, e.g., "D_Background,P_Signal,G,N_AllClasses" for: "Decorrelation, PCA-transformation, Gaussianisation, Normalisation, each for the given class of events ('AllClasses' denotes all events of all classes, if no class indication is given, 'All' is assumed)"]
: H: "False" [Print method-specific help message]
: InputLayout: "1|1|300" [The Layout of the input]
: Layout: "DENSE|64|TANH,DENSE|TANH|64,DENSE|TANH|64,LINEAR" [Layout of the network.]
: ErrorStrategy: "CROSSENTROPY" [Loss function: Mean squared error (regression) or cross entropy (binary classification).]
: WeightInitialization: "XAVIER" [Weight initialization strategy]
: RandomSeed: "0" [Random seed used for weight initialization and batch shuffling]
: Architecture: "CPU" [Which architecture to perform the training on.]
: TrainingStrategy: "LearningRate=1e-3,Momentum=0.0,Repetitions=1,ConvergenceSteps=10,BatchSize=256,TestRepetitions=1,WeightDecay=1e-4,Regularization=None,MaxEpochs=20DropConfig=0.0+0.+0.+0.,Optimizer=ADAM" [Defines the training strategies.]
: - Default:
: VerbosityLevel: "Default" [Verbosity level]
: CreateMVAPdfs: "False" [Create PDFs for classifier outputs (signal and background)]
: IgnoreNegWeightsInTraining: "False" [Events with negative weights are ignored in the training (but are included for testing and performance evaluation)]
: BatchLayout: "0|0|0" [The Layout of the batch]
: ValidationSize: "20%" [Part of the training data to use for validation. Specify as 0.2 or 20% to use a fifth of the data set as validation set. Specify as 100 to use exactly 100 events. (Default: 20%)]
: Will now use the CPU architecture with BLAS and IMT support !
Factory : Booking method: ␛[1mBDTG␛[0m
:
: the option NegWeightTreatment=InverseBoostNegWeights does not exist for BoostType=Grad
: --> change to new default NegWeightTreatment=Pray
: Building event vectors for type 2 Signal
: Dataset[dataset] : create input formulas for tree sgn
: Using variable vars_time0[0] from array expression vars_time0 of size 30
: Using variable vars_time1[0] from array expression vars_time1 of size 30
: Using variable vars_time2[0] from array expression vars_time2 of size 30
: Using variable vars_time3[0] from array expression vars_time3 of size 30
: Using variable vars_time4[0] from array expression vars_time4 of size 30
: Using variable vars_time5[0] from array expression vars_time5 of size 30
: Using variable vars_time6[0] from array expression vars_time6 of size 30
: Using variable vars_time7[0] from array expression vars_time7 of size 30
: Using variable vars_time8[0] from array expression vars_time8 of size 30
: Using variable vars_time9[0] from array expression vars_time9 of size 30
: Building event vectors for type 2 Background
: Dataset[dataset] : create input formulas for tree bkg
: Using variable vars_time0[0] from array expression vars_time0 of size 30
: Using variable vars_time1[0] from array expression vars_time1 of size 30
: Using variable vars_time2[0] from array expression vars_time2 of size 30
: Using variable vars_time3[0] from array expression vars_time3 of size 30
: Using variable vars_time4[0] from array expression vars_time4 of size 30
: Using variable vars_time5[0] from array expression vars_time5 of size 30
: Using variable vars_time6[0] from array expression vars_time6 of size 30
: Using variable vars_time7[0] from array expression vars_time7 of size 30
: Using variable vars_time8[0] from array expression vars_time8 of size 30
: Using variable vars_time9[0] from array expression vars_time9 of size 30
DataSetFactory : [dataset] : Number of events in input trees
:
:
: Number of training and testing events
: ---------------------------------------------------------------------------
: Signal -- training events : 8000
: Signal -- testing events : 2000
: Signal -- training and testing events: 10000
: Background -- training events : 8000
: Background -- testing events : 2000
: Background -- training and testing events: 10000
:
Factory : ␛[1mTrain all methods␛[0m
Factory : Train method: TMVA_LSTM for Classification
:
: Start of deep neural network training on CPU using MT, nthreads = 16
:
: ***** Deep Learning Network *****
DEEP NEURAL NETWORK: Depth = 4 Input = ( 10, 1, 30 ) Batch size = 100 Loss function = C
Layer 0 LSTM Layer: (NInput = 30, NState = 10, NTime = 10 ) Output = ( 100 , 10 , 10 )
Layer 1 RESHAPE Layer Input = ( 1 , 10 , 10 ) Output = ( 1 , 100 , 100 )
Layer 2 DENSE Layer: ( Input = 100 , Width = 64 ) Output = ( 1 , 100 , 64 ) Activation Function = Tanh
Layer 3 DENSE Layer: ( Input = 64 , Width = 1 ) Output = ( 1 , 100 , 1 ) Activation Function = Identity
: Using 12800 events for training and 3200 for testing
: Compute initial loss on the validation data
: Training phase 1 of 1: Optimizer ADAM Learning rate = 0.001 regularization 0 minimum error = 0.707278
: --------------------------------------------------------------
: Epoch | Train Err. Val. Err. t(s)/epoch t(s)/Loss nEvents/s Conv. Steps
: --------------------------------------------------------------
: Start epoch iteration ...
: 1 Minimum Test error found - save the configuration
: 1 | 0.682056 0.661451 3.56958 0.249102 3854.87 0
: 2 Minimum Test error found - save the configuration
: 2 | 0.63421 0.607607 3.80392 0.242423 3594 0
: 3 Minimum Test error found - save the configuration
: 3 | 0.581006 0.561926 3.70859 0.223274 3672.55 0
: 4 Minimum Test error found - save the configuration
: 4 | 0.537042 0.528655 3.63218 0.235754 3768.67 0
: 5 Minimum Test error found - save the configuration
: 5 | 0.499546 0.468546 3.55057 0.23795 3864.01 0
: 6 Minimum Test error found - save the configuration
: 6 | 0.4573 0.467911 3.44476 0.223701 3973.84 0
: 7 Minimum Test error found - save the configuration
: 7 | 0.440341 0.436533 3.49019 0.230406 3926.65 0
: 8 Minimum Test error found - save the configuration
: 8 | 0.427042 0.426022 3.57459 0.232748 3830.23 0
: 9 Minimum Test error found - save the configuration
: 9 | 0.416078 0.417822 3.57994 0.23247 3823.79 0
: 10 | 0.412039 0.421908 3.53127 0.231306 3878.83 1
: 11 | 0.404431 0.421532 3.61441 0.231418 3783.64 2
: 12 Minimum Test error found - save the configuration
: 12 | 0.402429 0.404533 3.61329 0.230163 3783.48 0
: 13 Minimum Test error found - save the configuration
: 13 | 0.399789 0.400479 3.49938 0.22712 3911.67 0
: 14 | 0.395597 0.416368 3.59254 0.225049 3801.05 1
: 15 | 0.396902 0.407813 3.48596 0.219215 3918.27 2
: 16 | 0.392109 0.419209 3.22432 0.217569 4257.09 3
: 17 Minimum Test error found - save the configuration
: 17 | 0.388437 0.395688 3.29893 0.215235 4150.87 0
: 18 | 0.385948 0.407977 3.19396 0.213871 4295.18 1
: 19 Minimum Test error found - save the configuration
: 19 | 0.384814 0.393749 3.27105 0.220652 4196.18 0
: 20 | 0.382444 0.399269 3.24672 0.213575 4220.04 1
:
: Elapsed time for training with 16000 events: 70.2 sec
: Evaluate deep neural network on CPU using batches with size = 100
:
TMVA_LSTM : [dataset] : Evaluation of TMVA_LSTM on training sample (16000 events)
: Elapsed time for evaluation of 16000 events: 1.1 sec
: Creating xml weight file: ␛[0;36mdataset/weights/TMVAClassification_TMVA_LSTM.weights.xml␛[0m
: Creating standalone class: ␛[0;36mdataset/weights/TMVAClassification_TMVA_LSTM.class.C␛[0m
Factory : Training finished
:
Factory : Train method: TMVA_DNN for Classification
:
: Start of deep neural network training on CPU using MT, nthreads = 16
:
: ***** Deep Learning Network *****
DEEP NEURAL NETWORK: Depth = 4 Input = ( 1, 1, 300 ) Batch size = 256 Loss function = C
Layer 0 DENSE Layer: ( Input = 300 , Width = 64 ) Output = ( 1 , 256 , 64 ) Activation Function = Tanh
Layer 1 DENSE Layer: ( Input = 64 , Width = 64 ) Output = ( 1 , 256 , 64 ) Activation Function = Tanh
Layer 2 DENSE Layer: ( Input = 64 , Width = 64 ) Output = ( 1 , 256 , 64 ) Activation Function = Tanh
Layer 3 DENSE Layer: ( Input = 64 , Width = 1 ) Output = ( 1 , 256 , 1 ) Activation Function = Identity
: Using 12800 events for training and 3200 for testing
: Compute initial loss on the validation data
: Training phase 1 of 1: Optimizer ADAM Learning rate = 0.001 regularization 0 minimum error = 0.953011
: --------------------------------------------------------------
: Epoch | Train Err. Val. Err. t(s)/epoch t(s)/Loss nEvents/s Conv. Steps
: --------------------------------------------------------------
: Start epoch iteration ...
: 1 Minimum Test error found - save the configuration
: 1 | 0.693727 0.69399 0.979002 0.0887422 14377.8 0
: 2 Minimum Test error found - save the configuration
: 2 | 0.678121 0.682753 0.99547 0.0897218 14132 0
: 3 Minimum Test error found - save the configuration
: 3 | 0.666919 0.667069 0.993656 0.0896874 14159.8 0
: 4 | 0.651265 0.667139 1.0039 0.0884799 13982.6 1
: 5 Minimum Test error found - save the configuration
: 5 | 0.663405 0.658211 0.978414 0.0894404 14398.6 0
: 6 | 0.657714 0.667911 0.986345 0.0891975 14267.4 1
: 7 | 0.648154 0.668206 0.982423 0.0882797 14315.4 2
: 8 Minimum Test error found - save the configuration
: 8 | 0.629271 0.62732 0.986405 0.0956825 14370.4 0
: 9 | 0.613643 0.631117 0.998638 0.0920602 14119 1
: 10 Minimum Test error found - save the configuration
: 10 | 0.59752 0.612386 1.00963 0.0924557 13955.8 0
: 11 | 0.593822 0.62116 1.00135 0.0930952 14092.9 1
: 12 Minimum Test error found - save the configuration
: 12 | 0.596021 0.594613 0.995516 0.0885746 14113.4 0
: 13 Minimum Test error found - save the configuration
: 13 | 0.555332 0.563527 0.985305 0.0900729 14298 0
: 14 | 0.559748 0.573403 0.990928 0.0882808 14180.5 1
: 15 | 0.542136 0.581011 1.00598 0.0915123 13997.2 2
: 16 Minimum Test error found - save the configuration
: 16 | 0.531983 0.553932 1.04412 0.0911025 13431 0
: 17 Minimum Test error found - save the configuration
: 17 | 0.527461 0.539856 1.03301 0.088255 13548.4 0
: 18 Minimum Test error found - save the configuration
: 18 | 0.51378 0.523447 1.02251 0.0894748 13718.7 0
: 19 | 0.502662 0.528188 1.0199 0.0879348 13734.4 1
: 20 | 0.524067 0.554196 1.05808 0.0891707 13210.8 2
:
: Elapsed time for training with 16000 events: 20.2 sec
: Evaluate deep neural network on CPU using batches with size = 256
:
TMVA_DNN : [dataset] : Evaluation of TMVA_DNN on training sample (16000 events)
: Elapsed time for evaluation of 16000 events: 0.468 sec
: Creating xml weight file: ␛[0;36mdataset/weights/TMVAClassification_TMVA_DNN.weights.xml␛[0m
: Creating standalone class: ␛[0;36mdataset/weights/TMVAClassification_TMVA_DNN.class.C␛[0m
Factory : Training finished
:
Factory : Train method: BDTG for Classification
:
BDTG : #events: (reweighted) sig: 8000 bkg: 8000
: #events: (unweighted) sig: 8000 bkg: 8000
: Training 100 Decision Trees ... patience please
: Elapsed time for training with 16000 events: 9.63 sec
BDTG : [dataset] : Evaluation of BDTG on training sample (16000 events)
: Elapsed time for evaluation of 16000 events: 0.0896 sec
: Creating xml weight file: ␛[0;36mdataset/weights/TMVAClassification_BDTG.weights.xml␛[0m
: Creating standalone class: ␛[0;36mdataset/weights/TMVAClassification_BDTG.class.C␛[0m
: data_RNN_CPU.root:/dataset/Method_BDT/BDTG
Factory : Training finished
:
: Ranking input variables (method specific)...
: No variable ranking supplied by classifier: TMVA_LSTM
: No variable ranking supplied by classifier: TMVA_DNN
BDTG : Ranking result (top variable is best ranked)
: --------------------------------------------
: Rank : Variable : Variable Importance
: --------------------------------------------
: 1 : vars_time9 : 3.148e-02
: 2 : vars_time8 : 3.099e-02
: 3 : vars_time8 : 3.042e-02
: 4 : vars_time7 : 3.019e-02
: 5 : vars_time7 : 2.918e-02
: 6 : vars_time9 : 2.882e-02
: 7 : vars_time8 : 2.735e-02
: 8 : vars_time6 : 2.724e-02
: 9 : vars_time6 : 2.665e-02
: 10 : vars_time9 : 2.605e-02
: 11 : vars_time7 : 2.553e-02
: 12 : vars_time7 : 2.523e-02
: 13 : vars_time8 : 2.465e-02
: 14 : vars_time9 : 2.380e-02
: 15 : vars_time6 : 2.356e-02
: 16 : vars_time8 : 2.188e-02
: 17 : vars_time7 : 2.174e-02
: 18 : vars_time9 : 2.111e-02
: 19 : vars_time5 : 2.072e-02
: 20 : vars_time5 : 2.048e-02
: 21 : vars_time8 : 2.021e-02
: 22 : vars_time0 : 1.989e-02
: 23 : vars_time0 : 1.922e-02
: 24 : vars_time6 : 1.865e-02
: 25 : vars_time6 : 1.828e-02
: 26 : vars_time5 : 1.808e-02
: 27 : vars_time9 : 1.747e-02
: 28 : vars_time7 : 1.731e-02
: 29 : vars_time8 : 1.623e-02
: 30 : vars_time9 : 1.606e-02
: 31 : vars_time0 : 1.490e-02
: 32 : vars_time7 : 1.432e-02
: 33 : vars_time8 : 1.423e-02
: 34 : vars_time8 : 1.376e-02
: 35 : vars_time7 : 1.361e-02
: 36 : vars_time8 : 1.285e-02
: 37 : vars_time5 : 1.226e-02
: 38 : vars_time6 : 1.130e-02
: 39 : vars_time5 : 1.125e-02
: 40 : vars_time7 : 1.061e-02
: 41 : vars_time6 : 1.040e-02
: 42 : vars_time6 : 1.038e-02
: 43 : vars_time0 : 1.004e-02
: 44 : vars_time8 : 9.920e-03
: 45 : vars_time9 : 9.790e-03
: 46 : vars_time6 : 9.140e-03
: 47 : vars_time9 : 8.933e-03
: 48 : vars_time9 : 8.172e-03
: 49 : vars_time6 : 8.118e-03
: 50 : vars_time9 : 7.961e-03
: 51 : vars_time7 : 7.678e-03
: 52 : vars_time7 : 7.514e-03
: 53 : vars_time6 : 7.409e-03
: 54 : vars_time8 : 7.016e-03
: 55 : vars_time9 : 6.814e-03
: 56 : vars_time9 : 6.740e-03
: 57 : vars_time4 : 6.726e-03
: 58 : vars_time8 : 6.408e-03
: 59 : vars_time8 : 5.347e-03
: 60 : vars_time5 : 5.301e-03
: 61 : vars_time1 : 4.800e-03
: 62 : vars_time7 : 4.285e-03
: 63 : vars_time1 : 3.541e-03
: 64 : vars_time0 : 0.000e+00
: 65 : vars_time0 : 0.000e+00
: 66 : vars_time0 : 0.000e+00
: 67 : vars_time0 : 0.000e+00
: 68 : vars_time0 : 0.000e+00
: 69 : vars_time0 : 0.000e+00
: 70 : vars_time0 : 0.000e+00
: 71 : vars_time0 : 0.000e+00
: 72 : vars_time0 : 0.000e+00
: 73 : vars_time0 : 0.000e+00
: 74 : vars_time0 : 0.000e+00
: 75 : vars_time0 : 0.000e+00
: 76 : vars_time0 : 0.000e+00
: 77 : vars_time0 : 0.000e+00
: 78 : vars_time0 : 0.000e+00
: 79 : vars_time0 : 0.000e+00
: 80 : vars_time0 : 0.000e+00
: 81 : vars_time0 : 0.000e+00
: 82 : vars_time0 : 0.000e+00
: 83 : vars_time0 : 0.000e+00
: 84 : vars_time0 : 0.000e+00
: 85 : vars_time0 : 0.000e+00
: 86 : vars_time0 : 0.000e+00
: 87 : vars_time0 : 0.000e+00
: 88 : vars_time0 : 0.000e+00
: 89 : vars_time0 : 0.000e+00
: 90 : vars_time1 : 0.000e+00
: 91 : vars_time1 : 0.000e+00
: 92 : vars_time1 : 0.000e+00
: 93 : vars_time1 : 0.000e+00
: 94 : vars_time1 : 0.000e+00
: 95 : vars_time1 : 0.000e+00
: 96 : vars_time1 : 0.000e+00
: 97 : vars_time1 : 0.000e+00
: 98 : vars_time1 : 0.000e+00
: 99 : vars_time1 : 0.000e+00
: 100 : vars_time1 : 0.000e+00
: 101 : vars_time1 : 0.000e+00
: 102 : vars_time1 : 0.000e+00
: 103 : vars_time1 : 0.000e+00
: 104 : vars_time1 : 0.000e+00
: 105 : vars_time1 : 0.000e+00
: 106 : vars_time1 : 0.000e+00
: 107 : vars_time1 : 0.000e+00
: 108 : vars_time1 : 0.000e+00
: 109 : vars_time1 : 0.000e+00
: 110 : vars_time1 : 0.000e+00
: 111 : vars_time1 : 0.000e+00
: 112 : vars_time1 : 0.000e+00
: 113 : vars_time1 : 0.000e+00
: 114 : vars_time1 : 0.000e+00
: 115 : vars_time1 : 0.000e+00
: 116 : vars_time1 : 0.000e+00
: 117 : vars_time1 : 0.000e+00
: 118 : vars_time2 : 0.000e+00
: 119 : vars_time2 : 0.000e+00
: 120 : vars_time2 : 0.000e+00
: 121 : vars_time2 : 0.000e+00
: 122 : vars_time2 : 0.000e+00
: 123 : vars_time2 : 0.000e+00
: 124 : vars_time2 : 0.000e+00
: 125 : vars_time2 : 0.000e+00
: 126 : vars_time2 : 0.000e+00
: 127 : vars_time2 : 0.000e+00
: 128 : vars_time2 : 0.000e+00
: 129 : vars_time2 : 0.000e+00
: 130 : vars_time2 : 0.000e+00
: 131 : vars_time2 : 0.000e+00
: 132 : vars_time2 : 0.000e+00
: 133 : vars_time2 : 0.000e+00
: 134 : vars_time2 : 0.000e+00
: 135 : vars_time2 : 0.000e+00
: 136 : vars_time2 : 0.000e+00
: 137 : vars_time2 : 0.000e+00
: 138 : vars_time2 : 0.000e+00
: 139 : vars_time2 : 0.000e+00
: 140 : vars_time2 : 0.000e+00
: 141 : vars_time2 : 0.000e+00
: 142 : vars_time2 : 0.000e+00
: 143 : vars_time2 : 0.000e+00
: 144 : vars_time2 : 0.000e+00
: 145 : vars_time2 : 0.000e+00
: 146 : vars_time2 : 0.000e+00
: 147 : vars_time2 : 0.000e+00
: 148 : vars_time3 : 0.000e+00
: 149 : vars_time3 : 0.000e+00
: 150 : vars_time3 : 0.000e+00
: 151 : vars_time3 : 0.000e+00
: 152 : vars_time3 : 0.000e+00
: 153 : vars_time3 : 0.000e+00
: 154 : vars_time3 : 0.000e+00
: 155 : vars_time3 : 0.000e+00
: 156 : vars_time3 : 0.000e+00
: 157 : vars_time3 : 0.000e+00
: 158 : vars_time3 : 0.000e+00
: 159 : vars_time3 : 0.000e+00
: 160 : vars_time3 : 0.000e+00
: 161 : vars_time3 : 0.000e+00
: 162 : vars_time3 : 0.000e+00
: 163 : vars_time3 : 0.000e+00
: 164 : vars_time3 : 0.000e+00
: 165 : vars_time3 : 0.000e+00
: 166 : vars_time3 : 0.000e+00
: 167 : vars_time3 : 0.000e+00
: 168 : vars_time3 : 0.000e+00
: 169 : vars_time3 : 0.000e+00
: 170 : vars_time3 : 0.000e+00
: 171 : vars_time3 : 0.000e+00
: 172 : vars_time3 : 0.000e+00
: 173 : vars_time3 : 0.000e+00
: 174 : vars_time3 : 0.000e+00
: 175 : vars_time3 : 0.000e+00
: 176 : vars_time3 : 0.000e+00
: 177 : vars_time3 : 0.000e+00
: 178 : vars_time4 : 0.000e+00
: 179 : vars_time4 : 0.000e+00
: 180 : vars_time4 : 0.000e+00
: 181 : vars_time4 : 0.000e+00
: 182 : vars_time4 : 0.000e+00
: 183 : vars_time4 : 0.000e+00
: 184 : vars_time4 : 0.000e+00
: 185 : vars_time4 : 0.000e+00
: 186 : vars_time4 : 0.000e+00
: 187 : vars_time4 : 0.000e+00
: 188 : vars_time4 : 0.000e+00
: 189 : vars_time4 : 0.000e+00
: 190 : vars_time4 : 0.000e+00
: 191 : vars_time4 : 0.000e+00
: 192 : vars_time4 : 0.000e+00
: 193 : vars_time4 : 0.000e+00
: 194 : vars_time4 : 0.000e+00
: 195 : vars_time4 : 0.000e+00
: 196 : vars_time4 : 0.000e+00
: 197 : vars_time4 : 0.000e+00
: 198 : vars_time4 : 0.000e+00
: 199 : vars_time4 : 0.000e+00
: 200 : vars_time4 : 0.000e+00
: 201 : vars_time4 : 0.000e+00
: 202 : vars_time4 : 0.000e+00
: 203 : vars_time4 : 0.000e+00
: 204 : vars_time4 : 0.000e+00
: 205 : vars_time4 : 0.000e+00
: 206 : vars_time4 : 0.000e+00
: 207 : vars_time5 : 0.000e+00
: 208 : vars_time5 : 0.000e+00
: 209 : vars_time5 : 0.000e+00
: 210 : vars_time5 : 0.000e+00
: 211 : vars_time5 : 0.000e+00
: 212 : vars_time5 : 0.000e+00
: 213 : vars_time5 : 0.000e+00
: 214 : vars_time5 : 0.000e+00
: 215 : vars_time5 : 0.000e+00
: 216 : vars_time5 : 0.000e+00
: 217 : vars_time5 : 0.000e+00
: 218 : vars_time5 : 0.000e+00
: 219 : vars_time5 : 0.000e+00
: 220 : vars_time5 : 0.000e+00
: 221 : vars_time5 : 0.000e+00
: 222 : vars_time5 : 0.000e+00
: 223 : vars_time5 : 0.000e+00
: 224 : vars_time5 : 0.000e+00
: 225 : vars_time5 : 0.000e+00
: 226 : vars_time5 : 0.000e+00
: 227 : vars_time5 : 0.000e+00
: 228 : vars_time5 : 0.000e+00
: 229 : vars_time5 : 0.000e+00
: 230 : vars_time5 : 0.000e+00
: 231 : vars_time6 : 0.000e+00
: 232 : vars_time6 : 0.000e+00
: 233 : vars_time6 : 0.000e+00
: 234 : vars_time6 : 0.000e+00
: 235 : vars_time6 : 0.000e+00
: 236 : vars_time6 : 0.000e+00
: 237 : vars_time6 : 0.000e+00
: 238 : vars_time6 : 0.000e+00
: 239 : vars_time6 : 0.000e+00
: 240 : vars_time6 : 0.000e+00
: 241 : vars_time6 : 0.000e+00
: 242 : vars_time6 : 0.000e+00
: 243 : vars_time6 : 0.000e+00
: 244 : vars_time6 : 0.000e+00
: 245 : vars_time6 : 0.000e+00
: 246 : vars_time6 : 0.000e+00
: 247 : vars_time6 : 0.000e+00
: 248 : vars_time6 : 0.000e+00
: 249 : vars_time6 : 0.000e+00
: 250 : vars_time7 : 0.000e+00
: 251 : vars_time7 : 0.000e+00
: 252 : vars_time7 : 0.000e+00
: 253 : vars_time7 : 0.000e+00
: 254 : vars_time7 : 0.000e+00
: 255 : vars_time7 : 0.000e+00
: 256 : vars_time7 : 0.000e+00
: 257 : vars_time7 : 0.000e+00
: 258 : vars_time7 : 0.000e+00
: 259 : vars_time7 : 0.000e+00
: 260 : vars_time7 : 0.000e+00
: 261 : vars_time7 : 0.000e+00
: 262 : vars_time7 : 0.000e+00
: 263 : vars_time7 : 0.000e+00
: 264 : vars_time7 : 0.000e+00
: 265 : vars_time7 : 0.000e+00
: 266 : vars_time7 : 0.000e+00
: 267 : vars_time7 : 0.000e+00
: 268 : vars_time8 : 0.000e+00
: 269 : vars_time8 : 0.000e+00
: 270 : vars_time8 : 0.000e+00
: 271 : vars_time8 : 0.000e+00
: 272 : vars_time8 : 0.000e+00
: 273 : vars_time8 : 0.000e+00
: 274 : vars_time8 : 0.000e+00
: 275 : vars_time8 : 0.000e+00
: 276 : vars_time8 : 0.000e+00
: 277 : vars_time8 : 0.000e+00
: 278 : vars_time8 : 0.000e+00
: 279 : vars_time8 : 0.000e+00
: 280 : vars_time8 : 0.000e+00
: 281 : vars_time8 : 0.000e+00
: 282 : vars_time8 : 0.000e+00
: 283 : vars_time8 : 0.000e+00
: 284 : vars_time9 : 0.000e+00
: 285 : vars_time9 : 0.000e+00
: 286 : vars_time9 : 0.000e+00
: 287 : vars_time9 : 0.000e+00
: 288 : vars_time9 : 0.000e+00
: 289 : vars_time9 : 0.000e+00
: 290 : vars_time9 : 0.000e+00
: 291 : vars_time9 : 0.000e+00
: 292 : vars_time9 : 0.000e+00
: 293 : vars_time9 : 0.000e+00
: 294 : vars_time9 : 0.000e+00
: 295 : vars_time9 : 0.000e+00
: 296 : vars_time9 : 0.000e+00
: 297 : vars_time9 : 0.000e+00
: 298 : vars_time9 : 0.000e+00
: 299 : vars_time9 : 0.000e+00
: 300 : vars_time9 : 0.000e+00
: --------------------------------------------
TH1.Print Name = TrainingHistory_TMVA_LSTM_trainingError, Entries= 0, Total sum= 9.01956
TH1.Print Name = TrainingHistory_TMVA_LSTM_valError, Entries= 0, Total sum= 9.065
TH1.Print Name = TrainingHistory_TMVA_DNN_trainingError, Entries= 0, Total sum= 11.9468
TH1.Print Name = TrainingHistory_TMVA_DNN_valError, Entries= 0, Total sum= 12.2094
Factory : === Destroy and recreate all methods via weight files for testing ===
:
: Reading weight file: ␛[0;36mdataset/weights/TMVAClassification_TMVA_LSTM.weights.xml␛[0m
: Reading weight file: ␛[0;36mdataset/weights/TMVAClassification_TMVA_DNN.weights.xml␛[0m
: Reading weight file: ␛[0;36mdataset/weights/TMVAClassification_BDTG.weights.xml␛[0m
nthreads = 16
Factory : ␛[1mTest all methods␛[0m
Factory : Test method: TMVA_LSTM for Classification performance
:
: Evaluate deep neural network on CPU using batches with size = 1000
:
TMVA_LSTM : [dataset] : Evaluation of TMVA_LSTM on testing sample (4000 events)
: Elapsed time for evaluation of 4000 events: 0.323 sec
Factory : Test method: TMVA_DNN for Classification performance
:
: Evaluate deep neural network on CPU using batches with size = 1000
:
TMVA_DNN : [dataset] : Evaluation of TMVA_DNN on testing sample (4000 events)
: Elapsed time for evaluation of 4000 events: 0.096 sec
Factory : Test method: BDTG for Classification performance
:
BDTG : [dataset] : Evaluation of BDTG on testing sample (4000 events)
: Elapsed time for evaluation of 4000 events: 0.0191 sec
Factory : ␛[1mEvaluate all methods␛[0m
Factory : Evaluate classifier: TMVA_LSTM
:
TMVA_LSTM : [dataset] : Loop over test events and fill histograms with classifier response...
:
: Evaluate deep neural network on CPU using batches with size = 1000
:
: Dataset[dataset] : variable plots are not produces ! The number of variables is 300 , it is larger than 200
Factory : Evaluate classifier: TMVA_DNN
:
TMVA_DNN : [dataset] : Loop over test events and fill histograms with classifier response...
:
: Evaluate deep neural network on CPU using batches with size = 1000
:
: Dataset[dataset] : variable plots are not produces ! The number of variables is 300 , it is larger than 200
Factory : Evaluate classifier: BDTG
:
BDTG : [dataset] : Loop over test events and fill histograms with classifier response...
:
: Dataset[dataset] : variable plots are not produces ! The number of variables is 300 , it is larger than 200
:

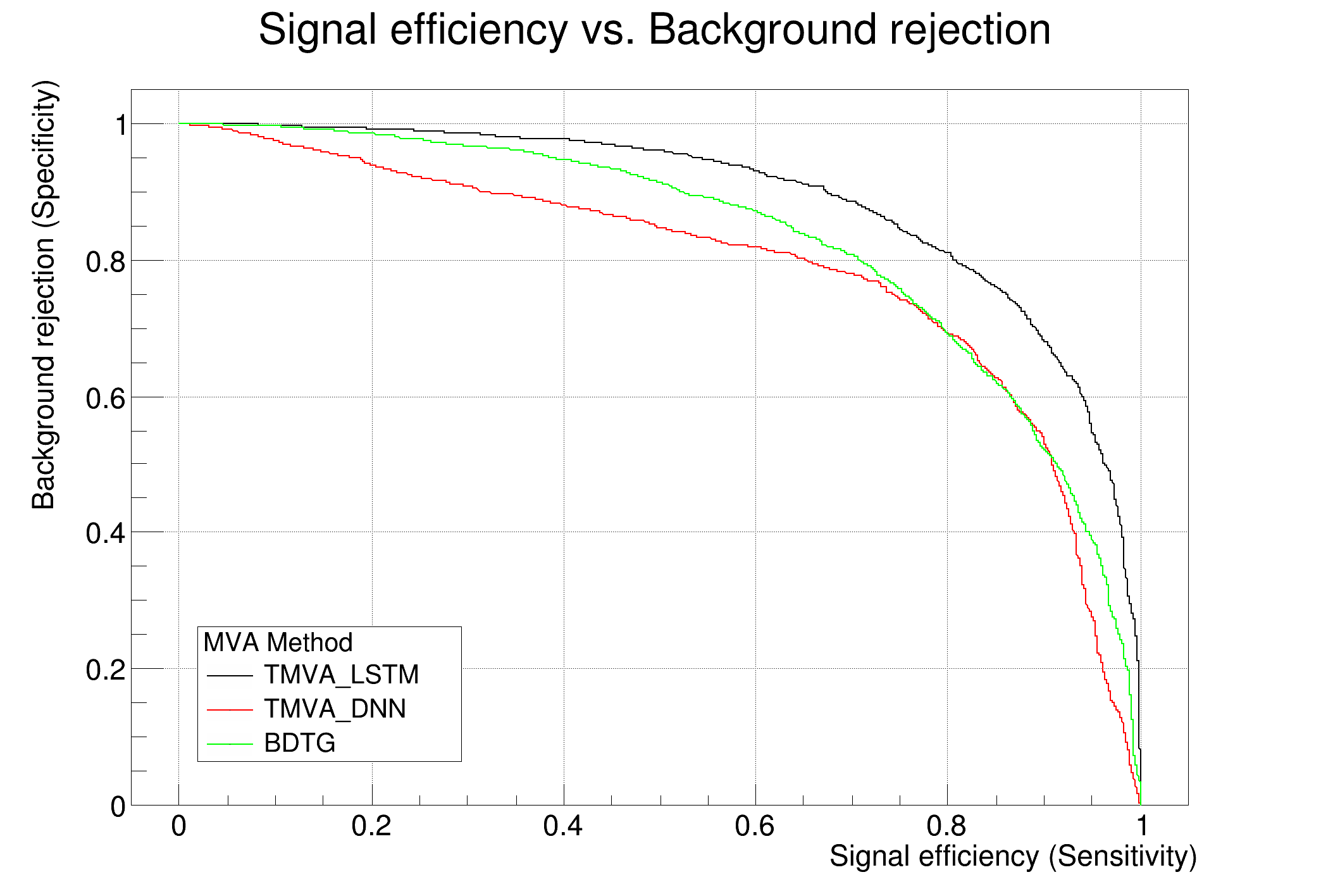

: Evaluation results ranked by best signal efficiency and purity (area)
: -------------------------------------------------------------------------------------------------------------------
: DataSet MVA
: Name: Method: ROC-integ
: dataset TMVA_LSTM : 0.891
: dataset TMVA_DNN : 0.839
: dataset BDTG : 0.831
: -------------------------------------------------------------------------------------------------------------------
:
: Testing efficiency compared to training efficiency (overtraining check)
: -------------------------------------------------------------------------------------------------------------------
: DataSet MVA Signal efficiency: from test sample (from training sample)
: Name: Method: @B=0.01 @B=0.10 @B=0.30
: -------------------------------------------------------------------------------------------------------------------
: dataset TMVA_LSTM : 0.232 (0.297) 0.672 (0.701) 0.891 (0.903)
: dataset TMVA_DNN : 0.081 (0.089) 0.543 (0.544) 0.823 (0.831)
: dataset BDTG : 0.158 (0.192) 0.523 (0.572) 0.794 (0.823)
: -------------------------------------------------------------------------------------------------------------------
:
Dataset:dataset : Created tree 'TestTree' with 4000 events
:
Dataset:dataset : Created tree 'TrainTree' with 16000 events
:
Factory : ␛[1mThank you for using TMVA!␛[0m
: ␛[1mFor citation information, please visit: http://tmva.sf.net/citeTMVA.html␛[0m
/***
# TMVA Classification Example Using a Recurrent Neural Network
This is an example of using a RNN in TMVA.
We do the classification using a toy data set containing a time series of data sample ntimes
and with dimension ndim that is generated when running the provided function `MakeTimeData (nevents, ntime, ndim)`
**/
#include<TROOT.h>
#include "TMVA/Factory.h"
#include "TMVA/DataLoader.h"
#include "TMVA/DataSetInfo.h"
#include "TMVA/Config.h"
#include "TMVA/MethodDL.h"
#include "TFile.h"
#include "TTree.h"
/// Helper function to generate the time data set
/// make some time data but not of fixed length.
/// use a poisson with mu = 5 and troncated at 10
///
void MakeTimeData(int n, int ntime, int ndim )
{
// const int ntime = 10;
// const int ndim = 30; // number of dim/time
TString fname = TString::Format("time_data_t%d_d%d.root", ntime, ndim);
std::vector<TH1 *> v1(ntime);
std::vector<TH1 *> v2(ntime);
int i = 0;
for (int i = 0; i < ntime; ++i) {
v1[i] = new TH1D(TString::Format("h1_%d", i), "h1", ndim, 0, 10);
v2[i] = new TH1D(TString::Format("h2_%d", i), "h2", ndim, 0, 10);
}
auto f1 = new TF1("f1", "gaus");
auto f2 = new TF1("f2", "gaus");
TTree sgn("sgn", "sgn");
TTree bkg("bkg", "bkg");
TFile f(fname, "RECREATE");
std::vector<std::vector<float>> x1(ntime);
std::vector<std::vector<float>> x2(ntime);
for (int i = 0; i < ntime; ++i) {
x1[i] = std::vector<float>(ndim);
x2[i] = std::vector<float>(ndim);
}
for (auto i = 0; i < ntime; i++) {
bkg.Branch(Form("vars_time%d", i), "std::vector<float>", &x1[i]);
sgn.Branch(Form("vars_time%d", i), "std::vector<float>", &x2[i]);
}
sgn.SetDirectory(&f);
bkg.SetDirectory(&f);
gRandom->SetSeed(0);
std::vector<double> mean1(ntime);
std::vector<double> mean2(ntime);
std::vector<double> sigma1(ntime);
std::vector<double> sigma2(ntime);
for (int j = 0; j < ntime; ++j) {
mean1[j] = 5. + 0.2 * sin(TMath::Pi() * j / double(ntime));
mean2[j] = 5. + 0.2 * cos(TMath::Pi() * j / double(ntime));
sigma1[j] = 4 + 0.3 * sin(TMath::Pi() * j / double(ntime));
sigma2[j] = 4 + 0.3 * cos(TMath::Pi() * j / double(ntime));
}
for (int i = 0; i < n; ++i) {
if (i % 1000 == 0)
std::cout << "Generating event ... " << i << std::endl;
for (int j = 0; j < ntime; ++j) {
auto h1 = v1[j];
auto h2 = v2[j];
h1->Reset();
h2->Reset();
f1->SetParameters(1, mean1[j], sigma1[j]);
f2->SetParameters(1, mean2[j], sigma2[j]);
h1->FillRandom("f1", 1000);
h2->FillRandom("f2", 1000);
for (int k = 0; k < ndim; ++k) {
// std::cout << j*10+k << " ";
x1[j][k] = h1->GetBinContent(k + 1) + gRandom->Gaus(0, 10);
x2[j][k] = h2->GetBinContent(k + 1) + gRandom->Gaus(0, 10);
}
}
// std::cout << std::endl;
sgn.Fill();
bkg.Fill();
if (n == 1) {
auto c1 = new TCanvas();
c1->Divide(ntime, 2);
for (int j = 0; j < ntime; ++j) {
c1->cd(j + 1);
v1[j]->Draw();
}
for (int j = 0; j < ntime; ++j) {
c1->cd(ntime + j + 1);
v2[j]->Draw();
}
gPad->Update();
}
}
if (n > 1) {
sgn.Write();
bkg.Write();
sgn.Print();
bkg.Print();
f.Close();
}
}
/// macro for performing a classification using a Recurrent Neural Network
/// @param use_type
/// use_type = 0 use Simple RNN network
/// use_type = 1 use LSTM network
/// use_type = 2 use GRU
/// use_type = 3 build 3 different networks with RNN, LSTM and GRU
void TMVA_RNN_Classification(int use_type = 1)
{
const int ninput = 30;
const int ntime = 10;
const int batchSize = 100;
const int maxepochs = 20;
int nTotEvts = 10000; // total events to be generated for signal or background
bool useKeras = true;
bool useTMVA_RNN = true;
bool useTMVA_DNN = true;
bool useTMVA_BDT = false;
std::vector<std::string> rnn_types = {"RNN", "LSTM", "GRU"};
std::vector<bool> use_rnn_type = {1, 1, 1};
if (use_type >=0 && use_type < 3) {
use_rnn_type = {0,0,0};
use_rnn_type[use_type] = 1;
}
bool useGPU = true; // use GPU for TMVA if available
#ifndef R__HAS_TMVAGPU
useGPU = false;
#ifndef R__HAS_TMVACPU
Warning("TMVA_RNN_Classification", "TMVA is not build with GPU or CPU multi-thread support. Cannot use TMVA Deep Learning for RNN");
useTMVA_RNN = false;
#endif
#endif
TString archString = (useGPU) ? "GPU" : "CPU";
bool writeOutputFile = true;
const char *rnn_type = "RNN";
#ifdef R__HAS_PYMVA
TMVA::PyMethodBase::PyInitialize();
#else
useKeras = false;
#endif
int num_threads = 0; // use by default all threads
// do enable MT running
if (num_threads >= 0) {
ROOT::EnableImplicitMT(num_threads);
if (num_threads > 0) gSystem->Setenv("OMP_NUM_THREADS", TString::Format("%d",num_threads));
}
else
gSystem->Setenv("OMP_NUM_THREADS", "1");
TMVA::Config::Instance();
std::cout << "Running with nthreads = " << ROOT::GetThreadPoolSize() << std::endl;
TString inputFileName = "time_data_t10_d30.root";
bool fileExist = !gSystem->AccessPathName(inputFileName);
// if file does not exists create it
if (!fileExist) {
MakeTimeData(nTotEvts,ntime, ninput);
}
auto inputFile = TFile::Open(inputFileName);
if (!inputFile) {
Error("TMVA_RNN_Classification", "Error opening input file %s - exit", inputFileName.Data());
return;
}
std::cout << "--- RNNClassification : Using input file: " << inputFile->GetName() << std::endl;
// Create a ROOT output file where TMVA will store ntuples, histograms, etc.
TString outfileName(TString::Format("data_RNN_%s.root", archString.Data()));
TFile *outputFile = nullptr;
if (writeOutputFile) outputFile = TFile::Open(outfileName, "RECREATE");
/**
## Declare Factory
Create the Factory class. Later you can choose the methods
whose performance you'd like to investigate.
The factory is the major TMVA object you have to interact with. Here is the list of parameters you need to
pass
- The first argument is the base of the name of all the output
weightfiles in the directory weight/ that will be created with the
method parameters
- The second argument is the output file for the training results
- The third argument is a string option defining some general configuration for the TMVA session.
For example all TMVA output can be suppressed by removing the "!" (not) in front of the "Silent" argument in
the option string
**/
// Creating the factory object
TMVA::Factory *factory = new TMVA::Factory("TMVAClassification", outputFile,
"!V:!Silent:Color:DrawProgressBar:Transformations=None:!Correlations:"
"AnalysisType=Classification:ModelPersistence");
TMVA::DataLoader *dataloader = new TMVA::DataLoader("dataset");
TTree *signalTree = (TTree *)inputFile->Get("sgn");
TTree *background = (TTree *)inputFile->Get("bkg");
const int nvar = ninput * ntime;
/// add variables - use new AddVariablesArray function
for (auto i = 0; i < ntime; i++) {
dataloader->AddVariablesArray(Form("vars_time%d", i), ninput);
}
dataloader->AddSignalTree(signalTree, 1.0);
dataloader->AddBackgroundTree(background, 1.0);
// check given input
auto &datainfo = dataloader->GetDataSetInfo();
auto vars = datainfo.GetListOfVariables();
std::cout << "number of variables is " << vars.size() << std::endl;
for (auto &v : vars)
std::cout << v << ",";
std::cout << std::endl;
int nTrainSig = 0.8 * nTotEvts;
int nTrainBkg = 0.8 * nTotEvts;
// build the string options for DataLoader::PrepareTrainingAndTestTree
TString prepareOptions = TString::Format("nTrain_Signal=%d:nTrain_Background=%d:SplitMode=Random:SplitSeed=100:NormMode=NumEvents:!V:!CalcCorrelations", nTrainSig, nTrainBkg);
// Apply additional cuts on the signal and background samples (can be different)
TCut mycuts = ""; // for example: TCut mycuts = "abs(var1)<0.5 && abs(var2-0.5)<1";
TCut mycutb = "";
dataloader->PrepareTrainingAndTestTree(mycuts, mycutb, prepareOptions);
std::cout << "prepared DATA LOADER " << std::endl;
/**
## Book TMVA recurrent models
Book the different types of recurrent models in TMVA (SimpleRNN, LSTM or GRU)
**/
if (useTMVA_RNN) {
for (int i = 0; i < 3; ++i) {
if (!use_rnn_type[i])
continue;
const char *rnn_type = rnn_types[i].c_str();
/// define the inputlayout string for RNN
/// the input data should be organize as following:
//// input layout for RNN: time x ndim
TString inputLayoutString = TString::Format("InputLayout=%d|%d", ntime, ninput);
/// Define RNN layer layout
/// it should be LayerType (RNN or LSTM or GRU) | number of units | number of inputs | time steps | remember output (typically no=0 | return full sequence
TString rnnLayout = TString::Format("%s|10|%d|%d|0|1", rnn_type, ninput, ntime);
/// add after RNN a reshape layer (needed top flatten the output) and a dense layer with 64 units and a last one
/// Note the last layer is linear because when using Crossentropy a Sigmoid is applied already
TString layoutString = TString("Layout=") + rnnLayout + TString(",RESHAPE|FLAT,DENSE|64|TANH,LINEAR");
/// Defining Training strategies. Different training strings can be concatenate. Use however only one
TString trainingString1 = TString::Format("LearningRate=1e-3,Momentum=0.0,Repetitions=1,"
"ConvergenceSteps=5,BatchSize=%d,TestRepetitions=1,"
"WeightDecay=1e-2,Regularization=None,MaxEpochs=%d,"
"Optimizer=ADAM,DropConfig=0.0+0.+0.+0.",
batchSize,maxepochs);
TString trainingStrategyString("TrainingStrategy=");
trainingStrategyString += trainingString1; // + "|" + trainingString2
/// Define the full RNN Noption string adding the final options for all network
TString rnnOptions("!H:V:ErrorStrategy=CROSSENTROPY:VarTransform=None:"
"WeightInitialization=XAVIERUNIFORM:ValidationSize=0.2:RandomSeed=1234");
rnnOptions.Append(":");
rnnOptions.Append(inputLayoutString);
rnnOptions.Append(":");
rnnOptions.Append(layoutString);
rnnOptions.Append(":");
rnnOptions.Append(trainingStrategyString);
rnnOptions.Append(":");
rnnOptions.Append(TString::Format("Architecture=%s", archString.Data()));
TString rnnName = "TMVA_" + TString(rnn_type);
factory->BookMethod(dataloader, TMVA::Types::kDL, rnnName, rnnOptions);
}
}
/**
## Book TMVA fully connected dense layer models
**/
if (useTMVA_DNN) {
// Method DL with Dense Layer
TString inputLayoutString = TString::Format("InputLayout=1|1|%d", ntime * ninput);
TString layoutString("Layout=DENSE|64|TANH,DENSE|TANH|64,DENSE|TANH|64,LINEAR");
// Training strategies.
TString trainingString1("LearningRate=1e-3,Momentum=0.0,Repetitions=1,"
"ConvergenceSteps=10,BatchSize=256,TestRepetitions=1,"
"WeightDecay=1e-4,Regularization=None,MaxEpochs=20"
"DropConfig=0.0+0.+0.+0.,Optimizer=ADAM");
TString trainingStrategyString("TrainingStrategy=");
trainingStrategyString += trainingString1; // + "|" + trainingString2
// General Options.
TString dnnOptions("!H:V:ErrorStrategy=CROSSENTROPY:VarTransform=None:"
"WeightInitialization=XAVIER:RandomSeed=0");
dnnOptions.Append(":");
dnnOptions.Append(inputLayoutString);
dnnOptions.Append(":");
dnnOptions.Append(layoutString);
dnnOptions.Append(":");
dnnOptions.Append(trainingStrategyString);
dnnOptions.Append(":");
dnnOptions.Append(archString);
TString dnnName = "TMVA_DNN";
factory->BookMethod(dataloader, TMVA::Types::kDL, dnnName, dnnOptions);
}
/**
## Book Keras recurrent models
Book the different types of recurrent models in Keras (SimpleRNN, LSTM or GRU)
**/
if (useKeras) {
for (int i = 0; i < 3; i++) {
if (use_rnn_type[i]) {
TString modelName = TString::Format("model_%s.h5", rnn_types[i].c_str());
TString trainedModelName = TString::Format("trained_model_%s.h5", rnn_types[i].c_str());
Info("TMVA_RNN_Classification", "Building recurrent keras model using a %s layer", rnn_types[i].c_str());
// create python script which can be executed
// create 2 conv2d layer + maxpool + dense
TMacro m;
m.AddLine("import keras");
m.AddLine("from keras.models import Sequential");
m.AddLine("from keras.optimizers import Adam");
m.AddLine("from keras.layers import Input, Dense, Dropout, Flatten, SimpleRNN, GRU, LSTM, Reshape, "
"BatchNormalization");
m.AddLine("");
m.AddLine("model = keras.models.Sequential() ");
m.AddLine("model.add(Reshape((10, 30), input_shape = (10*30, )))");
// add recurrent neural network depending on type / Use option to return the full output
if (rnn_types[i] == "LSTM")
m.AddLine("model.add(LSTM(units=10, return_sequences=True) )");
else if (rnn_types[i] == "GRU")
m.AddLine("model.add(GRU(units=10, return_sequences=True) )");
else
m.AddLine("model.add(SimpleRNN(units=10, return_sequences=True) )");
// m.AddLine("model.add(BatchNormalization())");
m.AddLine("model.add(Flatten())"); // needed if returning the full time output sequence
m.AddLine("model.add(Dense(64, activation = 'tanh')) ");
m.AddLine("model.add(Dense(2, activation = 'sigmoid')) ");
m.AddLine(
"model.compile(loss = 'binary_crossentropy', optimizer = Adam(lr = 0.001), metrics = ['accuracy'])");
m.AddLine(TString::Format("modelName = '%s'", modelName.Data()));
m.AddLine("model.save(modelName)");
m.AddLine("model.summary()");
m.SaveSource("make_rnn_model.py");
// execute
gSystem->Exec("python make_rnn_model.py");
if (gSystem->AccessPathName(modelName)) {
Warning("TMVA_RNN_Classification", "Error creating Keras recurrennt model file - Skip using Keras");
useKeras = false;
} else {
// book PyKeras method only if Keras model could be created
Info("TMVA_RNN_Classification", "Booking Keras %s model", rnn_types[i].c_str());
factory->BookMethod(dataloader, TMVA::Types::kPyKeras,
TString::Format("PyKeras_%s", rnn_types[i].c_str()),
TString::Format("!H:!V:VarTransform=None:FilenameModel=%s:"
"FilenameTrainedModel=%s:GpuOptions=allow_growth=True:"
"NumEpochs=%d:BatchSize=%d",
modelName.Data(), trainedModelName.Data(), maxepochs, batchSize));
}
}
}
}
// use BDT in case not using Keras or TMVA DL
if (!useKeras || !useTMVA_BDT)
useTMVA_BDT = true;
/**
## Book TMVA BDT
**/
if (useTMVA_BDT) {
factory->BookMethod(dataloader, TMVA::Types::kBDT, "BDTG",
"!H:!V:NTrees=100:MinNodeSize=2.5%:BoostType=Grad:Shrinkage=0.10:UseBaggedBoost:"
"BaggedSampleFraction=0.5:nCuts=20:"
"MaxDepth=2");
}
/// Train all methods
factory->TrainAllMethods();
std::cout << "nthreads = " << ROOT::GetThreadPoolSize() << std::endl;
// ---- Evaluate all MVAs using the set of test events
factory->TestAllMethods();
// ----- Evaluate and compare performance of all configured MVAs
factory->EvaluateAllMethods();
// check method
// plot ROC curve
auto c1 = factory->GetROCCurve(dataloader);
c1->Draw();
if (outputFile) outputFile->Close();
}
f
#define f(i)
Definition: RSha256.hxx:104
x2
static const double x2[5]
Definition: RooGaussKronrodIntegrator1D.cxx:364
x1
static const double x1[5]
Definition: RooGaussKronrodIntegrator1D.cxx:346
Info
void Info(const char *location, const char *msgfmt,...)
Error
void Error(const char *location, const char *msgfmt,...)
Warning
void Warning(const char *location, const char *msgfmt,...)
cos
double cos(double)
sin
double sin(double)
gRandom
R__EXTERN TRandom * gRandom
Definition: TRandom.h:62
Form
char * Form(const char *fmt,...)
gSystem
R__EXTERN TSystem * gSystem
Definition: TSystem.h:556
gPad
#define gPad
Definition: TVirtualPad.h:287
TCanvas
The Canvas class.
Definition: TCanvas.h:27
TCut
A specialized string object used for TTree selections.
Definition: TCut.h:25
TF1
1-Dim function class
Definition: TF1.h:210
TF1::SetParameters
virtual void SetParameters(const Double_t *params)
Definition: TF1.h:638
TFile
A ROOT file is a suite of consecutive data records (TKey instances) with a well defined format.
Definition: TFile.h:53
TFile::Open
static TFile * Open(const char *name, Option_t *option="", const char *ftitle="", Int_t compress=ROOT::RCompressionSetting::EDefaults::kUseCompiledDefault, Int_t netopt=0)
Create / open a file.
Definition: TFile.cxx:3942
TFile::Close
void Close(Option_t *option="") override
Close a file.
Definition: TFile.cxx:873
TH1D
1-D histogram with a double per channel (see TH1 documentation)}
Definition: TH1.h:614
TH1F::Reset
virtual void Reset(Option_t *option="")
Reset.
Definition: TH1.cxx:9562
TH1::FillRandom
virtual void FillRandom(const char *fname, Int_t ntimes=5000)
Fill histogram following distribution in function fname.
Definition: TH1.cxx:3445
TH1::GetBinContent
virtual Double_t GetBinContent(Int_t bin) const
Return content of bin number bin.
Definition: TH1.cxx:4907
TMVA::Config::Instance
static Config & Instance()
static function: returns TMVA instance
Definition: Config.cxx:107
TMVA::DataLoader::AddVariablesArray
void AddVariablesArray(const TString &expression, int size, char type='F', Double_t min=0, Double_t max=0)
user inserts discriminating array of variables in data set info in case input tree provides an array ...
Definition: DataLoader.cxx:505
TMVA::DataLoader::AddSignalTree
void AddSignalTree(TTree *signal, Double_t weight=1.0, Types::ETreeType treetype=Types::kMaxTreeType)
number of signal events (used to compute significance)
Definition: DataLoader.cxx:372
TMVA::DataLoader::PrepareTrainingAndTestTree
void PrepareTrainingAndTestTree(const TCut &cut, const TString &splitOpt)
prepare the training and test trees -> same cuts for signal and background
Definition: DataLoader.cxx:633
TMVA::DataLoader::AddBackgroundTree
void AddBackgroundTree(TTree *background, Double_t weight=1.0, Types::ETreeType treetype=Types::kMaxTreeType)
number of signal events (used to compute significance)
Definition: DataLoader.cxx:403
TMVA::DataLoader::GetDataSetInfo
DataSetInfo & GetDataSetInfo()
Definition: DataLoader.cxx:139
TMVA::DataSetInfo::GetListOfVariables
std::vector< TString > GetListOfVariables() const
returns list of variables
Definition: DataSetInfo.cxx:397
TMVA::Factory
This is the main MVA steering class.
Definition: Factory.h:81
TMVA::Factory::TrainAllMethods
void TrainAllMethods()
Iterates through all booked methods and calls training.
Definition: Factory.cxx:1093
TMVA::Factory::BookMethod
MethodBase * BookMethod(DataLoader *loader, TString theMethodName, TString methodTitle, TString theOption="")
Book a classifier or regression method.
Definition: Factory.cxx:345
TMVA::Factory::TestAllMethods
void TestAllMethods()
Evaluates all booked methods on the testing data and adds the output to the Results in the corresponi...
Definition: Factory.cxx:1244
TMVA::Factory::EvaluateAllMethods
void EvaluateAllMethods(void)
Iterates over all MVAs that have been booked, and calls their evaluation methods.
Definition: Factory.cxx:1349
TMVA::Factory::GetROCCurve
TGraph * GetROCCurve(DataLoader *loader, TString theMethodName, Bool_t setTitles=kTRUE, UInt_t iClass=0)
Argument iClass specifies the class to generate the ROC curve in a multiclass setting.
Definition: Factory.cxx:903
TMVA::PyMethodBase::PyInitialize
static void PyInitialize()
Initialize Python interpreter.
Definition: PyMethodBase.cxx:128
TMVA::Types::kPyKeras
@ kPyKeras
Definition: Types.h:105
TMVA::Types::kBDT
@ kBDT
Definition: Types.h:88
TMacro
Class supporting a collection of lines with C++ code.
Definition: TMacro.h:31
TRandom::Gaus
virtual Double_t Gaus(Double_t mean=0, Double_t sigma=1)
Samples a random number from the standard Normal (Gaussian) Distribution with the given mean and sigm...
Definition: TRandom.cxx:263
TRandom::SetSeed
virtual void SetSeed(ULong_t seed=0)
Set the random generator seed.
Definition: TRandom.cxx:597
TString
Basic string class.
Definition: TString.h:131
TString::Data
const char * Data() const
Definition: TString.h:364
TString::Format
static TString Format(const char *fmt,...)
Static method which formats a string using a printf style format descriptor and return a TString.
Definition: TString.cxx:2311
TSystem::Exec
virtual Int_t Exec(const char *shellcmd)
Execute a command.
Definition: TSystem.cxx:651
TSystem::AccessPathName
virtual Bool_t AccessPathName(const char *path, EAccessMode mode=kFileExists)
Returns FALSE if one can access a file using the specified access mode.
Definition: TSystem.cxx:1291
TSystem::Setenv
virtual void Setenv(const char *name, const char *value)
Set environment variable.
Definition: TSystem.cxx:1642
TTree
A TTree represents a columnar dataset.
Definition: TTree.h:78
c1
return c1
Definition: legend1.C:41
n
const Int_t n
Definition: legend1.C:16
h1
TH1F * h1
Definition: legend1.C:5
f1
TF1 * f1
Definition: legend1.C:11
ROOT::EnableImplicitMT
void EnableImplicitMT(UInt_t numthreads=0)
Enable ROOT's implicit multi-threading for all objects and methods that provide an internal paralleli...
Definition: TROOT.cxx:526
ROOT::GetThreadPoolSize
UInt_t GetThreadPoolSize()
Returns the size of ROOT's thread pool.
Definition: TROOT.cxx:564
TMath::Pi
constexpr Double_t Pi()
Definition: TMath.h:38
v2
@ v2
Definition: rootcling_impl.cxx:3627
v
@ v
Definition: rootcling_impl.cxx:3624
v1
@ v1
Definition: rootcling_impl.cxx:3626
m
auto * m
Definition: textangle.C:8
Author
Lorenzo Moneta

Definition in file TMVA_RNN_Classification.C.
