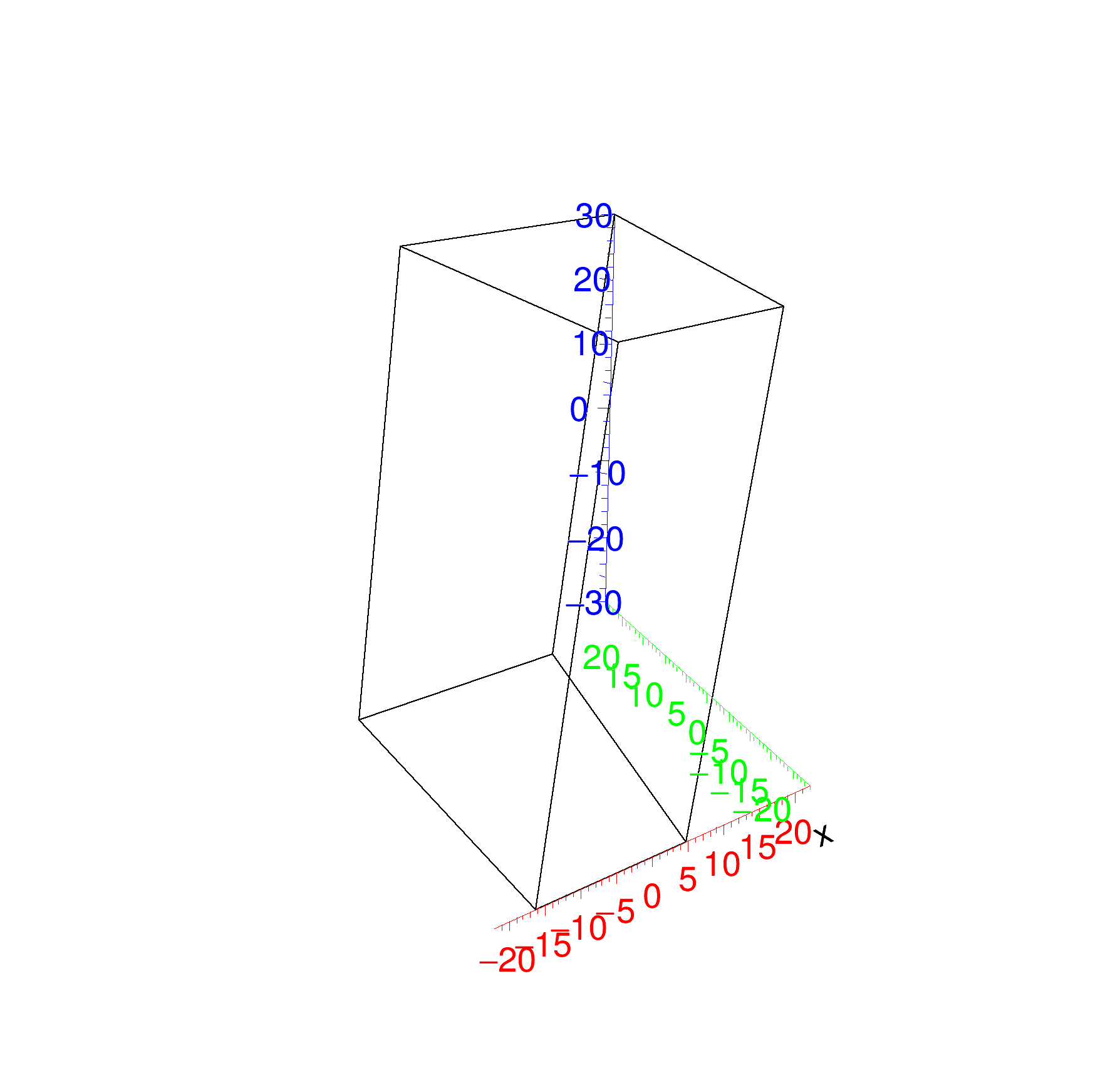

A general trapezoid.

A general trapezoid is one for which the faces perpendicular to z are trapezes but their centers are not necessary at the same x, y coordinates.

It has eleven parameters: the half length in z, the polar angles from the center of the face at low z to that at high z, H1 the half length in y at low z, LB1 the half length in x at low z and y low edge, LB2 the half length in x at low z and y high edge, **TH1** the angle with respect to the y axis from the center of low y edge to the center of the high y edge, and H2,LB2,LH2,TH2, the corresponding quantities at high z.

TGeoTrap(Double_t dz,Double_t theta,Double_t phi,
Double_t h1,Double_t bl1,Double_t tl1,Double_t alpha1,
Double_t h2,Double_t bl2,Double_t tl2,Double_t alpha2);

Definition at line 96 of file TGeoArb8.h.

Public Member Functions
	TGeoTrap ()
	Default ctor.

	TGeoTrap (const char *name, Double_t dz, Double_t theta, Double_t phi, Double_t h1, Double_t bl1, Double_t tl1, Double_t alpha1, Double_t h2, Double_t bl2, Double_t tl2, Double_t alpha2)
	Constructor with name.

	TGeoTrap (Double_t dz, Double_t theta, Double_t phi)
	Constructor providing just a range in Z, theta and phi.

	TGeoTrap (Double_t dz, Double_t theta, Double_t phi, Double_t h1, Double_t bl1, Double_t tl1, Double_t alpha1, Double_t h2, Double_t bl2, Double_t tl2, Double_t alpha2)
	Normal constructor.

	~TGeoTrap () override
	Destructor.

Double_t	DistFromInside (const Double_t point, const Double_t dir, Int_t iact=1, Double_t step=TGeoShape::Big(), Double_t *safe=nullptr) const override
	Compute distance from inside point to surface of the trapezoid.

void	DistFromInside_v (const Double_t points, const Double_t dirs, Double_t dists, Int_t vecsize, Double_t step) const override
	Compute distance from array of input points having directions specified by dirs. Store output in dists.

Double_t	DistFromOutside (const Double_t point, const Double_t dir, Int_t iact=1, Double_t step=TGeoShape::Big(), Double_t *safe=nullptr) const override
	Compute distance from outside point to surface of the trapezoid.

void	DistFromOutside_v (const Double_t points, const Double_t dirs, Double_t dists, Int_t vecsize, Double_t step) const override
	Compute distance from array of input points having directions specified by dirs. Store output in dists.

TGeoVolume *	Divide (TGeoVolume voldiv, const char divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step) override
	Divide this trapezoid shape belonging to volume "voldiv" into ndiv volumes called divname, from start position with the given step.

Double_t	GetAlpha1 () const

Double_t	GetAlpha2 () const

Double_t	GetBl1 () const

Double_t	GetBl2 () const

Double_t	GetH1 () const

Double_t	GetH2 () const

TGeoShape *	GetMakeRuntimeShape (TGeoShape mother, TGeoMatrix mat) const override
	In case shape has some negative parameters, these have to be computed in order to fit the mother.

Double_t	GetPhi () const

Double_t	GetTheta () const

Double_t	GetTl1 () const

Double_t	GetTl2 () const

TClass *	IsA () const override

Double_t	Safety (const Double_t *point, Bool_t in=kTRUE) const override
	Computes the closest distance from given point to this shape.

void	Safety_v (const Double_t points, const Bool_t inside, Double_t *safe, Int_t vecsize) const override
	Compute safe distance from each of the points in the input array.

void	SavePrimitive (std::ostream &out, Option_t *option="") override
	Save a primitive as a C++ statement(s) on output stream "out".

void	SetDimensions (Double_t *param) override
	Set all arb8 params in one step.

void	Streamer (TBuffer &) override
	Stream an object of class TGeoManager.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TGeoArb8
	TGeoArb8 ()
	Default constructor.

	TGeoArb8 (const char name, Double_t dz, Double_t vertices=nullptr)
	Named constructor.

	TGeoArb8 (Double_t dz, Double_t *vertices=nullptr)
	Constructor.

	~TGeoArb8 () override
	Destructor.

Double_t	Capacity () const override
	Computes capacity of the shape in [length^3].

void	ComputeBBox () override
	Computes bounding box for an Arb8 shape.

void	ComputeNormal (const Double_t point, const Double_t dir, Double_t *norm) override
	Compute normal to closest surface from POINT.

void	ComputeNormal_v (const Double_t points, const Double_t dirs, Double_t *norms, Int_t vecsize) override
	Compute the normal for an array o points so that norm.dot.dir is positive Input: Arrays of point coordinates and directions + vector size Output: Array of normal directions.

void	ComputeTwist ()
	Computes tangents of twist angles (angles between projections on XY plane of corresponding -dz +dz edges).

Bool_t	Contains (const Double_t *point) const override
	Test if point is inside this shape.

void	Contains_v (const Double_t points, Bool_t inside, Int_t vecsize) const override
	Check the inside status for each of the points in the array.

Double_t	DistToPlane (const Double_t point, const Double_t dir, Int_t ipl, Bool_t in) const
	Computes distance to plane ipl :

Double_t	GetAxisRange (Int_t iaxis, Double_t &xlo, Double_t &xhi) const override
	Get shape range on a given axis.

void	GetBoundingCylinder (Double_t *param) const override
	Fill vector param[4] with the bounding cylinder parameters.

Int_t	GetByteCount () const override

Double_t	GetClosestEdge (const Double_t point, Double_t vert, Int_t &isegment) const
	Get index of the edge of the quadrilater represented by vert closest to point.

Double_t	GetDz () const

Int_t	GetFittingBox (const TGeoBBox parambox, TGeoMatrix mat, Double_t &dx, Double_t &dy, Double_t &dz) const override
	Fills real parameters of a positioned box inside this arb8. Returns 0 if successful.

Bool_t	GetPointsOnFacet (Int_t, Int_t, Double_t *) const override
	Fills array with n random points located on the surface of indexed facet.

Double_t	GetTwist (Int_t iseg) const
	Get twist for segment I in range [0,3].

Double_t *	GetVertices ()

void	InspectShape () const override
	Prints shape parameters.

Bool_t	IsCylType () const override

Bool_t	IsTwisted () const

Double_t	SafetyToFace (const Double_t *point, Int_t iseg, Bool_t in) const
	Estimate safety to lateral plane defined by segment iseg in range [0,3] Might be negative: plane seen only from inside.

void	SetDz (Double_t dz)

void	SetPlaneVertices (Double_t zpl, Double_t *vertices) const
	Computes intersection points between plane at zpl and non-horizontal edges.

void	SetPoints (Double_t *points) const override
	Creates arb8 mesh points.

void	SetPoints (Float_t *points) const override
	Creates arb8 mesh points.

virtual void	SetVertex (Int_t vnum, Double_t x, Double_t y)
	Set values for a given vertex.

void	Sizeof3D () const override
	Fill size of this 3-D object.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TGeoBBox
	TGeoBBox ()
	Default constructor.

	TGeoBBox (const char name, Double_t dx, Double_t dy, Double_t dz, Double_t origin=nullptr)
	Constructor with shape name.

	TGeoBBox (Double_t *param)
	Constructor based on the array of parameters.

	TGeoBBox (Double_t dx, Double_t dy, Double_t dz, Double_t *origin=nullptr)
	Constructor where half-lengths are provided.

	~TGeoBBox () override
	Destructor.

Double_t	Capacity () const override
	Computes capacity of the shape in [length^3].

void	ComputeBBox () override
	Compute bounding box - nothing to do in this case.

void	ComputeNormal (const Double_t point, const Double_t dir, Double_t *norm) override
	Computes normal to closest surface from POINT.

void	ComputeNormal_v (const Double_t points, const Double_t dirs, Double_t *norms, Int_t vecsize) override
	Compute the normal for an array o points so that norm.dot.dir is positive Input: Arrays of point coordinates and directions + vector size Output: Array of normal directions.

Bool_t	Contains (const Double_t *point) const override
	Test if point is inside this shape.

void	Contains_v (const Double_t points, Bool_t inside, Int_t vecsize) const override
	Check the inside status for each of the points in the array.

Bool_t	CouldBeCrossed (const Double_t point, const Double_t dir) const override
	Decides fast if the bounding box could be crossed by a vector.

Int_t	DistancetoPrimitive (Int_t px, Int_t py) override
	Compute closest distance from point px,py to each corner.

const char *	GetAxisName (Int_t iaxis) const override
	Returns name of axis IAXIS.

Double_t	GetAxisRange (Int_t iaxis, Double_t &xlo, Double_t &xhi) const override
	Get range of shape for a given axis.

void	GetBoundingCylinder (Double_t *param) const override
	Fill vector param[4] with the bounding cylinder parameters.

const TBuffer3D &	GetBuffer3D (Int_t reqSections, Bool_t localFrame) const override
	Fills a static 3D buffer and returns a reference.

Int_t	GetByteCount () const override

virtual Double_t	GetDX () const

virtual Double_t	GetDY () const

virtual Double_t	GetDZ () const

virtual Double_t	GetFacetArea (Int_t index=0) const
	Get area in internal units of the facet with a given index.

Int_t	GetFittingBox (const TGeoBBox parambox, TGeoMatrix mat, Double_t &dx, Double_t &dy, Double_t &dz) const override
	Fills real parameters of a positioned box inside this one. Returns 0 if successful.

void	GetMeshNumbers (Int_t &nvert, Int_t &nsegs, Int_t &npols) const override
	Returns numbers of vertices, segments and polygons composing the shape mesh.

Int_t	GetNmeshVertices () const override

virtual const Double_t *	GetOrigin () const

Bool_t	GetPointsOnSegments (Int_t npoints, Double_t *array) const override
	Fills array with n random points located on the line segments of the shape mesh.

void	InspectShape () const override
	Prints shape parameters.

Bool_t	IsCylType () const override

virtual Bool_t	IsNullBox () const

Bool_t	IsValidBox () const override

TBuffer3D *	MakeBuffer3D () const override
	Creates a TBuffer3D describing this shape.

void	SetBoxDimensions (Double_t dx, Double_t dy, Double_t dz, Double_t *origin=nullptr)
	Set parameters of the box.

void	SetBoxPoints (Double_t *points) const
	Fill box vertices to an array.

void	SetPoints (Double_t *points) const override
	Fill box points.

void	SetPoints (Float_t *points) const override
	Fill box points.

void	SetSegsAndPols (TBuffer3D &buffer) const override
	Fills TBuffer3D structure for segments and polygons.

void	Sizeof3D () const override

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TGeoShape
	TGeoShape ()
	Default constructor.

	TGeoShape (const char *name)
	Default constructor.

	~TGeoShape () override
	Destructor.

virtual void	AfterStreamer ()

void	CheckShape (Int_t testNo, Int_t nsamples=10000, Option_t *option="")
	Test for shape navigation methods.

virtual void	ClearThreadData () const

virtual void	CreateThreadData (Int_t)

void	Draw (Option_t *option="") override
	Draw this shape.

void	ExecuteEvent (Int_t event, Int_t px, Int_t py) override
	Execute mouse actions on this shape.

Int_t	GetId () const

const char *	GetName () const override
	Get the shape name.

const char *	GetPointerName () const
	Provide a pointer name containing uid.

void	InvertShapeBit (UInt_t f)

virtual Bool_t	IsAssembly () const

virtual Bool_t	IsComposite () const

virtual Bool_t	IsReflected () const

Bool_t	IsRunTimeShape () const

Bool_t	IsValid () const

virtual Bool_t	IsVecGeom () const

void	Paint (Option_t *option="") override
	Paint this shape.

void	ResetShapeBit (UInt_t f)

void	SetId (Int_t id)

void	SetRuntime (Bool_t flag=kTRUE)

void	SetShapeBit (UInt_t f)

void	SetShapeBit (UInt_t f, Bool_t set)
	Equivalent of TObject::SetBit.

Int_t	ShapeDistancetoPrimitive (Int_t numpoints, Int_t px, Int_t py) const
	Returns distance to shape primitive mesh.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Bool_t	TestShapeBit (UInt_t f) const

Int_t	TestShapeBits (UInt_t f) const

Public Member Functions inherited from TNamed
	TNamed ()

	TNamed (const char name, const char title)

	TNamed (const TNamed &named)
	TNamed copy ctor.

	TNamed (const TString &name, const TString &title)

virtual	~TNamed ()
	TNamed destructor.

void	Clear (Option_t *option="") override
	Set name and title to empty strings ("").

TObject *	Clone (const char *newname="") const override
	Make a clone of an object using the Streamer facility.

Int_t	Compare (const TObject *obj) const override
	Compare two TNamed objects.

void	Copy (TObject &named) const override
	Copy this to obj.

virtual void	FillBuffer (char *&buffer)
	Encode TNamed into output buffer.

const char *	GetName () const override
	Returns name of object.

const char *	GetTitle () const override
	Returns title of object.

ULong_t	Hash () const override
	Return hash value for this object.

TClass *	IsA () const override

Bool_t	IsSortable () const override

void	ls (Option_t *option="") const override
	List TNamed name and title.

TNamed &	operator= (const TNamed &rhs)
	TNamed assignment operator.

void	Print (Option_t *option="") const override
	Print TNamed name and title.

virtual void	SetName (const char *name)
	Set the name of the TNamed.

virtual void	SetNameTitle (const char name, const char title)
	Set all the TNamed parameters (name and title).

virtual void	SetTitle (const char *title="")
	Set the title of the TNamed.

virtual Int_t	Sizeof () const
	Return size of the TNamed part of the TObject.

void	Streamer (TBuffer &) override
	Stream an object of class TObject.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TObject
	TObject ()
	TObject constructor.

	TObject (const TObject &object)
	TObject copy ctor.

virtual	~TObject ()
	TObject destructor.

void	AbstractMethod (const char *method) const
	Use this method to implement an "abstract" method that you don't want to leave purely abstract.

virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad.

virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action.

ULong_t	CheckedHash ()
	Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

virtual const char *	ClassName () const
	Returns name of class to which the object belongs.

virtual void	Delete (Option_t *option="")
	Delete this object.

virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs.

virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current selected pad with: `gROOT->SetSelectedPad(c1)`.

virtual void	Dump () const
	Dump contents of object on stdout.

virtual void	Error (const char method, const char msgfmt,...) const
	Issue error message.

virtual void	Execute (const char method, const char params, Int_t *error=nullptr)
	Execute method on this object with the given parameter string, e.g.

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=nullptr)
	Execute method on this object with parameters stored in the TObjArray.

virtual void	Fatal (const char method, const char msgfmt,...) const
	Issue fatal error message.

virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes.

virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes.

virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object.

virtual const char *	GetIconName () const
	Returns mime type name of object.

virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py).

virtual Option_t *	GetOption () const

virtual UInt_t	GetUniqueID () const
	Return the unique object id.

virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out.

Bool_t	HasInconsistentHash () const
	Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

virtual void	Info (const char method, const char msgfmt,...) const
	Issue info message.

virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname".

virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl.

virtual void	Inspect () const
	Dump contents of this object in a graphics canvas.

void	InvertBit (UInt_t f)

Bool_t	IsDestructed () const
	IsDestructed.

virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory).

virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

R__ALWAYS_INLINE Bool_t	IsOnHeap () const

R__ALWAYS_INLINE Bool_t	IsZombie () const

void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

virtual Bool_t	Notify ()
	This method must be overridden to handle object notification (the base implementation is no-op).

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete.

void	operator delete (void *, size_t)
	Operator delete for sized deallocation.

void	operator delete (void *ptr)
	Operator delete.

void	operator delete (void ptr, void vp)
	Only called by placement new when throwing an exception.

void	operator delete[] (void *, size_t)
	Operator delete [] for sized deallocation.

void	operator delete[] (void *ptr)
	Operator delete [].

void	operator delete[] (void ptr, void vp)
	Only called by placement new[] when throwing an exception.

void *	operator new (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz)

void *	operator new[] (size_t sz, void *vp)

TObject &	operator= (const TObject &rhs)
	TObject assignment operator.

virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list.

virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory.

virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list.

void	ResetBit (UInt_t f)

virtual void	SaveAs (const char filename="", Option_t option="") const
	Save this object in the file specified by filename.

void	SetBit (UInt_t f)

void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f.

virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object.

virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

virtual void	SysError (const char method, const char msgfmt,...) const
	Issue system error message.

R__ALWAYS_INLINE Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

virtual void	Warning (const char method, const char msgfmt,...) const
	Issue warning message.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory.

Static Public Member Functions
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TGeoArb8
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static void	GetPlaneNormal (Double_t p1, Double_t p2, Double_t p3, Double_t norm)
	Computes normal to plane defined by P1, P2 and P3.

static Bool_t	InsidePolygon (Double_t x, Double_t y, Double_t *pts)
	Finds if a point in XY plane is inside the polygon defines by PTS.

static Bool_t	IsSamePoint (const Double_t p1, const Double_t p2)

Static Public Member Functions inherited from TGeoBBox
static Bool_t	AreOverlapping (const TGeoBBox box1, const TGeoMatrix mat1, const TGeoBBox box2, const TGeoMatrix mat2) R__DEPRECATED(6
	Check if 2 positioned boxes overlap.

static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static Bool_t	Contains (const Double_t point, Double_t dx, Double_t dy, Double_t dz, const Double_t origin)
	Static method to check if point[3] is located inside a box of having dx, dy, dz as half-lengths.

static const char *	DeclFileName ()

static Double_t	DistFromInside (const Double_t point, const Double_t dir, Double_t dx, Double_t dy, Double_t dz, const Double_t *origin, Double_t stepmax=TGeoShape::Big())
	Compute distance from inside point to surface of the box.

static Double_t	DistFromOutside (const Double_t point, const Double_t dir, Double_t dx, Double_t dy, Double_t dz, const Double_t *origin, Double_t stepmax=TGeoShape::Big())
	Compute distance from outside point to surface of the box.

Static Public Member Functions inherited from TGeoShape
static Double_t	Big ()

static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static Double_t	ComputeEpsMch ()
	Compute machine round-off double precision error as the smallest number that if added to 1.0 is different than 1.0.

static const char *	DeclFileName ()

static Double_t	DistToPhiMin (const Double_t point, const Double_t dir, Double_t s1, Double_t c1, Double_t s2, Double_t c2, Double_t sm, Double_t cm, Bool_t in=kTRUE)
	compute distance from point (inside phi) to both phi planes. Return minimum.

static Double_t	EpsMch ()
	static function returning the machine round-off error

static TGeoMatrix *	GetTransform ()
	Returns current transformation matrix that applies to shape.

static Bool_t	IsCloseToPhi (Double_t epsil, const Double_t *point, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
	True if point is closer than epsil to one of the phi planes defined by c1,s1 or c2,s2.

static Bool_t	IsCrossingSemiplane (const Double_t point, const Double_t dir, Double_t cphi, Double_t sphi, Double_t &snext, Double_t &rxy)
	Compute distance from POINT to semiplane defined by PHI angle along DIR.

static Bool_t	IsInPhiRange (const Double_t *point, Double_t phi1, Double_t phi2)
	Static method to check if a point is in the phi range (phi1, phi2) [degrees].

static Bool_t	IsSameWithinTolerance (Double_t a, Double_t b)
	Check if two numbers differ with less than a tolerance.

static Bool_t	IsSegCrossing (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Double_t x3, Double_t y3, Double_t x4, Double_t y4)
	Check if segments (A,B) and (C,D) are crossing, where: A(x1,y1), B(x2,y2), C(x3,y3), D(x4,y4)

static void	NormalPhi (const Double_t point, const Double_t dir, Double_t *norm, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
	Static method to compute normal to phi planes.

static Double_t	SafetyPhi (const Double_t *point, Bool_t in, Double_t phi1, Double_t phi2)
	Static method to compute safety w.r.t a phi corner defined by cosines/sines of the angles phi1, phi2.

static Double_t	SafetySeg (Double_t r, Double_t z, Double_t r1, Double_t z1, Double_t r2, Double_t z2, Bool_t outer)
	Compute distance from point of coordinates (r,z) to segment (r1,z1):(r2,z2)

static void	SetTransform (TGeoMatrix *matrix)
	Set current transformation matrix that applies to shape.

static Double_t	Tolerance ()

Static Public Member Functions inherited from TNamed
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TObject
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static Longptr_t	GetDtorOnly ()
	Return destructor only flag.

static Bool_t	GetObjectStat ()
	Get status of object stat flag.

static void	SetDtorOnly (void *obj)
	Set destructor only flag.

static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable.

Protected Attributes
Double_t	fAlpha1

Double_t	fAlpha2

Double_t	fBl1

Double_t	fBl2

Double_t	fH1

Double_t	fH2

Double_t	fPhi

Double_t	fTheta

Double_t	fTl1

Double_t	fTl2

Protected Attributes inherited from TGeoArb8
Double_t	fDz {0}

Double_t *	fTwist {nullptr}

Double_t	fXY [8][2]
	[4] tangents of twist angles

Protected Attributes inherited from TGeoBBox
Double_t	fDX

Double_t	fDY

Double_t	fDZ

Double_t	fOrigin [3]

Protected Attributes inherited from TGeoShape
UInt_t	fShapeBits

Int_t	fShapeId

Protected Attributes inherited from TNamed
TString	fName

TString	fTitle

Additional Inherited Members
Public Types inherited from TGeoShape
enum	EShapeType { kBitMask32 = 0xffffffff , kGeoNoShape = 0 , kGeoBad = (1ULL << ( 0 )) , kGeoRSeg = (1ULL << ( 1 )) , kGeoPhiSeg = (1ULL << ( 2 )) , kGeoThetaSeg = (1ULL << ( 3 )) , kGeoVisX = (1ULL << ( 4 )) , kGeoVisY = (1ULL << ( 5 )) , kGeoVisZ = (1ULL << ( 6 )) , kGeoRunTimeShape = (1ULL << ( 7 )) , kGeoInvalidShape = (1ULL << ( 8 )) , kGeoTorus = (1ULL << ( 9 )) , kGeoBox = (1ULL << ( 10 )) , kGeoPara = (1ULL << ( 11 )) , kGeoSph = (1ULL << ( 12 )) , kGeoTube = (1ULL << ( 13 )) , kGeoTubeSeg = (1ULL << ( 14 )) , kGeoCone = (1ULL << ( 15 )) , kGeoConeSeg = (1ULL << ( 16 )) , kGeoPcon = (1ULL << ( 17 )) , kGeoPgon = (1ULL << ( 18 )) , kGeoArb8 = (1ULL << ( 19 )) , kGeoEltu = (1ULL << ( 20 )) , kGeoTrap = (1ULL << ( 21 )) , kGeoCtub = (1ULL << ( 22 )) , kGeoTrd1 = (1ULL << ( 23 )) , kGeoTrd2 = (1ULL << ( 24 )) , kGeoComb = (1ULL << ( 25 )) , kGeoClosedShape = (1ULL << ( 26 )) , kGeoXtru = (1ULL << ( 27 )) , kGeoParaboloid = (1ULL << ( 28 )) , kGeoHalfSpace = (1ULL << ( 29 )) , kGeoHype = (1ULL << ( 30 )) , kGeoSavePrimitive = (1ULL << ( 20 )) }

Public Types inherited from TObject
enum	{ kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 , kBitMask = 0x00ffffff }

enum	{ kSingleKey = (1ULL << ( 0 )) , kOverwrite = (1ULL << ( 1 )) , kWriteDelete = (1ULL << ( 2 )) }

enum	EDeprecatedStatusBits { kObjInCanvas = (1ULL << ( 3 )) }

enum	EStatusBits { kCanDelete = (1ULL << ( 0 )) , kMustCleanup = (1ULL << ( 3 )) , kIsReferenced = (1ULL << ( 4 )) , kHasUUID = (1ULL << ( 5 )) , kCannotPick = (1ULL << ( 6 )) , kNoContextMenu = (1ULL << ( 8 )) , kInvalidObject = (1ULL << ( 13 )) }

Public Attributes inherited from TGeoBBox
static Bool_t DO NOT USE !The overlap detection does not work for all	cases

static Bool_t	DEPRECATED

Protected Types inherited from TGeoArb8
enum	EGeoArb8Type { kArb8Trap = (1ULL << ( 27 )) , kArb8Tra = (1ULL << ( 28 )) }

Protected Types inherited from TObject
enum	{ kOnlyPrepStep = (1ULL << ( 3 )) }

Protected Member Functions inherited from TGeoArb8
	TGeoArb8 (const TGeoArb8 &)=delete

void	CopyTwist (Double_t *twist=nullptr)
	Copy twist values from source array.

TGeoArb8 &	operator= (const TGeoArb8 &)=delete

Protected Member Functions inherited from TGeoBBox
	TGeoBBox (const TGeoBBox &)=delete

void	FillBuffer3D (TBuffer3D &buffer, Int_t reqSections, Bool_t localFrame) const override
	Fills the supplied buffer, with sections in desired frame See TBuffer3D.h for explanation of sections, frame etc.

TGeoBBox &	operator= (const TGeoBBox &)=delete

Protected Member Functions inherited from TGeoShape
Int_t	GetBasicColor () const
	Get the basic color (0-7).

void	SetOnBoundary (Bool_t)

void	TransformPoints (Double_t *points, UInt_t NbPoints) const
	Tranform a set of points (LocalToMaster)

Protected Member Functions inherited from TObject
virtual void	DoError (int level, const char location, const char fmt, va_list va) const
	Interface to ErrorHandler (protected).

void	MakeZombie ()

#include <TGeoArb8.h>

Inheritance diagram for TGeoTrap:

[legend]

Constructor & Destructor Documentation

◆ TGeoTrap() [1/4]

TGeoTrap::TGeoTrap ( )

Default ctor.

Definition at line 1392 of file TGeoArb8.cxx.

◆ TGeoTrap() [2/4]

TGeoTrap::TGeoTrap	(	Double_t	dz,
		Double_t	theta,
		Double_t	phi )

Constructor providing just a range in Z, theta and phi.

Definition at line 1403 of file TGeoArb8.cxx.

◆ TGeoTrap() [3/4]

TGeoTrap::TGeoTrap	(	Double_t	dz,
		Double_t	theta,
		Double_t	phi,
		Double_t	h1,
		Double_t	bl1,
		Double_t	tl1,
		Double_t	alpha1,
		Double_t	h2,
		Double_t	bl2,
		Double_t	tl2,
		Double_t	alpha2 )

Normal constructor.

Definition at line 1414 of file TGeoArb8.cxx.

◆ TGeoTrap() [4/4]

TGeoTrap::TGeoTrap	(	const char *	name,
		Double_t	dz,
		Double_t	theta,
		Double_t	phi,
		Double_t	h1,
		Double_t	bl1,
		Double_t	tl1,
		Double_t	alpha1,
		Double_t	h2,
		Double_t	bl2,
		Double_t	tl2,
		Double_t	alpha2 )

Constructor with name.

Definition at line 1459 of file TGeoArb8.cxx.

◆ ~TGeoTrap()

TGeoTrap::~TGeoTrap ( )

override

Destructor.

Definition at line 1509 of file TGeoArb8.cxx.

Member Function Documentation

◆ Class()

static TClass * TGeoTrap::Class ( )

static

Returns: TClass describing this class

◆ Class_Name()

static const char * TGeoTrap::Class_Name ( )

static

Returns: Name of this class

◆ Class_Version()

static constexpr Version_t TGeoTrap::Class_Version ( )

inlinestaticconstexpr

Returns: Version of this class

Definition at line 146 of file TGeoArb8.h.

◆ DeclFileName()

static const char * TGeoTrap::DeclFileName ( )

inlinestatic

Returns: Name of the file containing the class declaration

Definition at line 146 of file TGeoArb8.h.

◆ DistFromInside()

Double_t TGeoTrap::DistFromInside	(	const Double_t *	point,
		const Double_t *	dir,
		Int_t	iact = 1,
		Double_t	step = TGeoShape::Big(),
		Double_t *	safe = nullptr ) const

overridevirtual

Compute distance from inside point to surface of the trapezoid.

Reimplemented from TGeoArb8.

Definition at line 1515 of file TGeoArb8.cxx.

◆ DistFromInside_v()

void TGeoTrap::DistFromInside_v	(	const Double_t *	points,
		const Double_t *	dirs,
		Double_t *	dists,
		Int_t	vecsize,
		Double_t *	step ) const

overridevirtual

Compute distance from array of input points having directions specified by dirs. Store output in dists.

Reimplemented from TGeoArb8.

Definition at line 1947 of file TGeoArb8.cxx.

◆ DistFromOutside()

Double_t TGeoTrap::DistFromOutside	(	const Double_t *	point,
		const Double_t *	dir,
		Int_t	iact = 1,
		Double_t	step = TGeoShape::Big(),
		Double_t *	safe = nullptr ) const

overridevirtual

Compute distance from outside point to surface of the trapezoid.

Reimplemented from TGeoArb8.

Definition at line 1576 of file TGeoArb8.cxx.

◆ DistFromOutside_v()

void TGeoTrap::DistFromOutside_v	(	const Double_t *	points,
		const Double_t *	dirs,
		Double_t *	dists,
		Int_t	vecsize,
		Double_t *	step ) const

overridevirtual

Compute distance from array of input points having directions specified by dirs. Store output in dists.

Reimplemented from TGeoArb8.

Definition at line 1957 of file TGeoArb8.cxx.

◆ Divide()

TGeoVolume * TGeoTrap::Divide	(	TGeoVolume *	voldiv,
		const char *	divname,
		Int_t	iaxis,
		Int_t	ndiv,
		Double_t	start,
		Double_t	step )

overridevirtual

Divide this trapezoid shape belonging to volume "voldiv" into ndiv volumes called divname, from start position with the given step.

Only Z divisions are supported. For Z divisions just return the pointer to the volume to be divided. In case a wrong division axis is supplied, returns pointer to volume that was divided.

Reimplemented from TGeoArb8.

Definition at line 1707 of file TGeoArb8.cxx.

◆ GetAlpha1()

Double_t TGeoTrap::GetAlpha1 ( ) const

inline

Definition at line 135 of file TGeoArb8.h.

◆ GetAlpha2()

Double_t TGeoTrap::GetAlpha2 ( ) const

inline

Definition at line 139 of file TGeoArb8.h.

◆ GetBl1()

Double_t TGeoTrap::GetBl1 ( ) const

inline

Definition at line 133 of file TGeoArb8.h.

◆ GetBl2()

Double_t TGeoTrap::GetBl2 ( ) const

inline

Definition at line 137 of file TGeoArb8.h.

◆ GetH1()

Double_t TGeoTrap::GetH1 ( ) const

inline

Definition at line 132 of file TGeoArb8.h.

◆ GetH2()

Double_t TGeoTrap::GetH2 ( ) const

inline

Definition at line 136 of file TGeoArb8.h.

◆ GetMakeRuntimeShape()

TGeoShape * TGeoTrap::GetMakeRuntimeShape	(	TGeoShape *	mother,
		TGeoMatrix *	mat ) const

overridevirtual

In case shape has some negative parameters, these have to be computed in order to fit the mother.

Reimplemented from TGeoArb8.

Definition at line 1754 of file TGeoArb8.cxx.

◆ GetPhi()

Double_t TGeoTrap::GetPhi ( ) const

inline

Definition at line 131 of file TGeoArb8.h.

◆ GetTheta()

Double_t TGeoTrap::GetTheta ( ) const

inline

Definition at line 130 of file TGeoArb8.h.

◆ GetTl1()

Double_t TGeoTrap::GetTl1 ( ) const

inline

Definition at line 134 of file TGeoArb8.h.

◆ GetTl2()

Double_t TGeoTrap::GetTl2 ( ) const

inline

Definition at line 138 of file TGeoArb8.h.

◆ IsA()

TClass * TGeoTrap::IsA ( ) const

inlineoverridevirtual

Returns: TClass describing current object

Reimplemented from TGeoArb8.

Definition at line 146 of file TGeoArb8.h.

◆ Safety()

Double_t TGeoTrap::Safety	(	const Double_t *	point,
		Bool_t	in = kTRUE ) const

overridevirtual

Computes the closest distance from given point to this shape.

Reimplemented from TGeoArb8.

Definition at line 1804 of file TGeoArb8.cxx.

◆ Safety_v()

void TGeoTrap::Safety_v	(	const Double_t *	points,
		const Bool_t *	inside,
		Double_t *	safe,
		Int_t	vecsize ) const

overridevirtual

Compute safe distance from each of the points in the input array.

Input: Array of point coordinates, array of statuses for these points, size of the arrays Output: Safety values

Reimplemented from TGeoArb8.

Definition at line 1969 of file TGeoArb8.cxx.

◆ SavePrimitive()

void TGeoTrap::SavePrimitive	(	std::ostream &	out,
		Option_t *	option = "" )

overridevirtual

Save a primitive as a C++ statement(s) on output stream "out".

Reimplemented from TGeoArb8.

Definition at line 1869 of file TGeoArb8.cxx.

◆ SetDimensions()

void TGeoTrap::SetDimensions ( Double_t * param )

overridevirtual

Set all arb8 params in one step.

param[0] = dz
param[1] = theta
param[2] = phi
param[3] = h1
param[4] = bl1
param[5] = tl1
param[6] = alpha1
param[7] = h2
param[8] = bl2
param[9] = tl2
param[10] = alpha2

Reimplemented from TGeoArb8.

Definition at line 1904 of file TGeoArb8.cxx.

◆ Streamer()

void TGeoTrap::Streamer ( TBuffer & R__b )

overridevirtual

Stream an object of class TGeoManager.

Reimplemented from TGeoArb8.

◆ StreamerNVirtual()

void TGeoTrap::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 146 of file TGeoArb8.h.

Member Data Documentation

◆ fAlpha1

Double_t TGeoTrap::fAlpha1

protected

Definition at line 104 of file TGeoArb8.h.

◆ fAlpha2

Double_t TGeoTrap::fAlpha2

protected

Definition at line 108 of file TGeoArb8.h.

◆ fBl1

Double_t TGeoTrap::fBl1

protected

Definition at line 102 of file TGeoArb8.h.

◆ fBl2

Double_t TGeoTrap::fBl2

protected

Definition at line 106 of file TGeoArb8.h.

◆ fH1

Double_t TGeoTrap::fH1

protected

Definition at line 101 of file TGeoArb8.h.

◆ fH2

Double_t TGeoTrap::fH2

protected

Definition at line 105 of file TGeoArb8.h.

◆ fPhi

Double_t TGeoTrap::fPhi

protected

Definition at line 100 of file TGeoArb8.h.

◆ fTheta

Double_t TGeoTrap::fTheta

protected

Definition at line 99 of file TGeoArb8.h.

◆ fTl1

Double_t TGeoTrap::fTl1

protected

Definition at line 103 of file TGeoArb8.h.

◆ fTl2

Double_t TGeoTrap::fTl2

protected

Definition at line 107 of file TGeoArb8.h.

Libraries for TGeoTrap:

[legend]

The documentation for this class was generated from the following files:

geom/geom/inc/TGeoArb8.h
geom/geom/src/TGeoArb8.cxx
