THelix has two different constructors.

If a particle with charge q passes through a point (x,y,z) with momentum (px,py,pz) with magnetic field B along an axis (nx,ny,nz), this helix can be constructed like:

THelix p(x,y,z, px,py,pz, q*B, nx,ny,nz);

(nx,ny,nz) defaults to (0,0,1).

TRangeDynCast

ROOT::Detail::TRangeCast< T, true > TRangeDynCast

TRangeDynCast is an adapter class that allows the typed iteration through a TCollection.

Definition TCollection.h:358

p

winID h TVirtualViewer3D TVirtualGLPainter p

Definition TGWin32VirtualGLProxy.cxx:51

q

float * q

Definition THbookFile.cxx:89

ROOT::Detail::TRangeCast

Definition TCollection.h:311

THelix

THelix has two different constructors.

Definition THelix.h:23

y

Double_t y[n]

Definition legend1.C:17

x

Double_t x[n]

Definition legend1.C:17

A helix in its own frame can be defined with a pivotal point (x0,y0,z0), the velocity at that point (vx0,vy0,vz0), and an angular frequency w. Combining vx0 and vy0 to a transverse velocity vt0 one can parametrize the helix as:

x(t) = x0 - vt0 / w * sin(-w * t + phi0)
y(t) = y0 + vt0 / w * cos(-w * t + phi0)
z(t) = z0 + vz0 * t

The second constructor has 6 parameters,

Example:

THelix pl1(xyz, v, w, range, rtype, axis);

v

@ v

Definition rootcling_impl.cxx:3687

where:

xyz : array of initial position
v : array of initial velocity
w : angular frequency
range: helix range
rtype: kHelixZ specifies allowed drawing range in helix Z direction, i.e., along B field. kLabZ specifies drawing range in lab frame. kHelixX, kHelixY, kLabX, kLabY, kUnchanged ... etc can also be specified
axis : helix axis

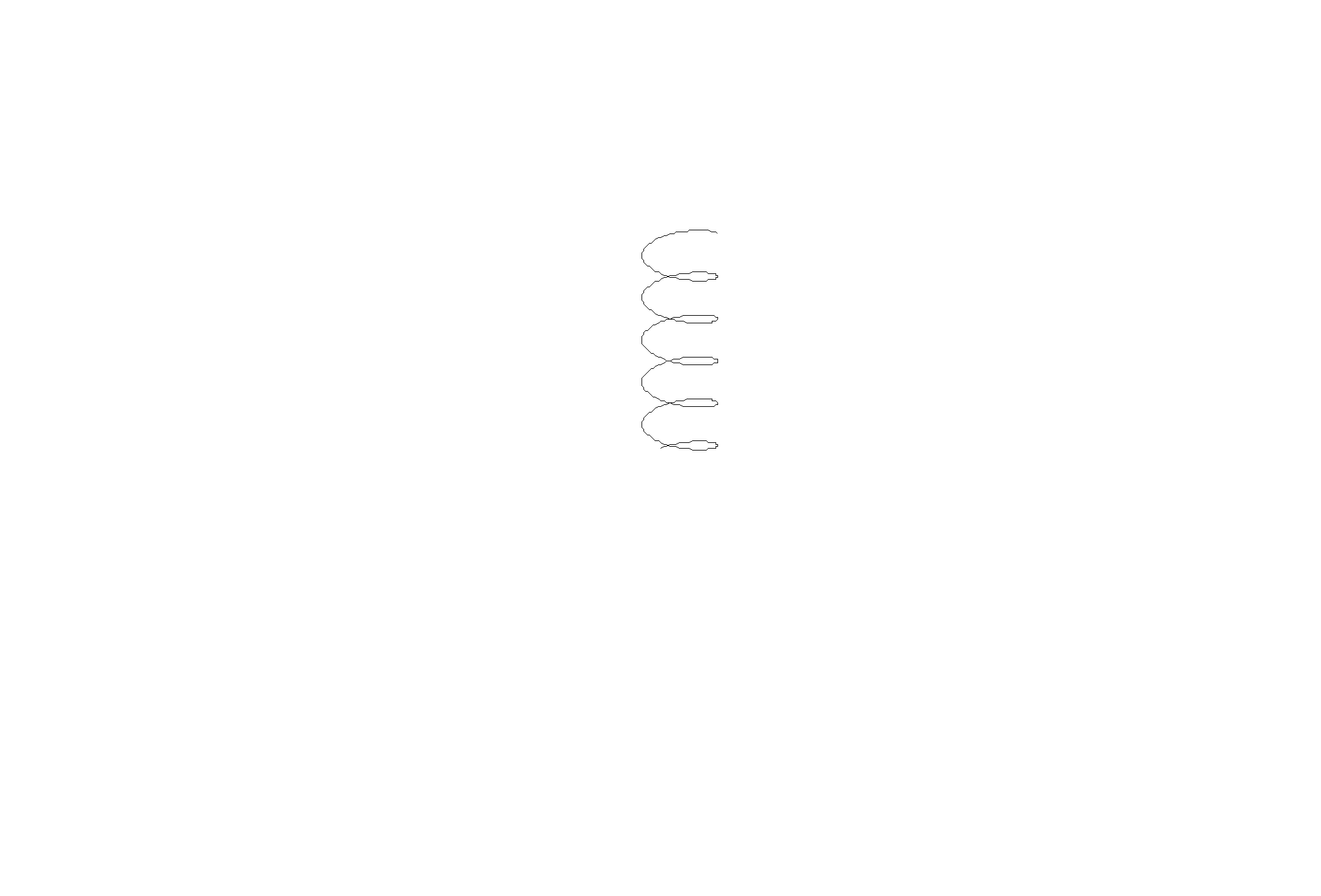

Example constructing a helix with several default values and drawing it:

{
   TCanvas* helix_example_c1 = new TCanvas("helix_example_c1");
   TView *view = TView::CreateView(1);
   view->SetRange(-1,-1,-1,1,1,1);
   THelix *helix = new THelix(0., 0., 0., 1., 0., 0.3, 10.);
   helix->Draw();
}

This initializes a helix with its axis in Z direction (rtype=kHelixZ).

Definition at line 23 of file THelix.h.

Public Member Functions
	THelix ()
	Helix default constructor.

	THelix (const THelix &helix)
	Helix copy constructor.

	THelix (Double_t const xyz, Double_t const v, Double_t w, Double_t const range=nullptr, EHelixRangeType rtype=kHelixZ, Double_t const axis=nullptr)
	Helix normal constructor.

	THelix (Double_t x, Double_t y, Double_t z, Double_t vx, Double_t vy, Double_t vz, Double_t w)
	Helix normal constructor.

	~THelix () override
	Helix destructor.

void	Copy (TObject &helix) const override
	Copy this helix to obj.

void	Draw (Option_t *option="") override
	Draw this helix with its current attributes.

Option_t *	GetOption () const override

TClass *	IsA () const override

void	Print (Option_t *option="") const override
	Dump this helix with its attributes.

void	SavePrimitive (std::ostream &out, Option_t *option="") override
	Save primitive as a C++ statement(s) on output stream out.

virtual void	SetAxis (Double_t const *axis)
	Set a new axis for the helix. This will make a new rotation matrix.

virtual void	SetAxis (Double_t x, Double_t y, Double_t z)
	Set axis.

void	SetHelix (Double_t const xyz, Double_t const v, Double_t w, Double_t const range=nullptr, EHelixRangeType type=kUnchanged, Double_t const axis=nullptr)
	Set all helix parameters.

void	SetOption (Option_t *option="") override

virtual void	SetRange (Double_t *range, EHelixRangeType rtype=kHelixZ)
	Set a new range for the helix. This will remake the polyline.

virtual void	SetRange (Double_t r1, Double_t r2, EHelixRangeType rtype=kHelixZ)
	Set range.

void	Streamer (TBuffer &) override
	Stream an object of class THelix.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TPolyLine3D
	TPolyLine3D ()
	3-D polyline default constructor.

	TPolyLine3D (const TPolyLine3D &polylin)
	3-D polyline copy ctor.

	TPolyLine3D (Int_t n, Double_t const p, Option_t option="")
	3-D polyline normal constructor.

	TPolyLine3D (Int_t n, Double_t const x, Double_t const y, Double_t const z, Option_t option="")
	3-D polyline normal constructor.

	TPolyLine3D (Int_t n, Float_t const p, Option_t option="")
	3-D polyline normal constructor.

	TPolyLine3D (Int_t n, Float_t const x, Float_t const y, Float_t const z, Option_t option="")
	3-D polyline normal constructor.

	TPolyLine3D (Int_t n, Option_t *option="")
	3-D polyline normal constructor with initialization to 0.

	~TPolyLine3D () override
	3-D polyline destructor.

void	Copy (TObject &polyline) const override
	Copy polyline to polyline obj.

Int_t	DistancetoPrimitive (Int_t px, Int_t py) override
	Compute distance from point px,py to a 3-D polyline.

void	Draw (Option_t *option="") override
	Draw this 3-D polyline with its current attributes.

virtual void	DrawPolyLine (Int_t n, Float_t p, Option_t option="")
	Draw 3-D polyline with new coordinates.

void	ExecuteEvent (Int_t event, Int_t px, Int_t py) override
	Execute action corresponding to one event.

Int_t	GetLastPoint () const

Int_t	GetN () const

Option_t *	GetOption () const override

Float_t *	GetP () const

TClass *	IsA () const override

void	ls (Option_t *option="") const override
	List this 3-D polyline.

virtual Int_t	Merge (TCollection *list)
	Merge polylines in the collection in this polyline.

TPolyLine3D &	operator= (const TPolyLine3D &polylin)
	assignment operator

void	Paint (Option_t *option="") override
	Paint a TPolyLine3D.

void	Print (Option_t *option="") const override
	Dump this 3-D polyline with its attributes on stdout.

void	SavePrimitive (std::ostream &out, Option_t *option="") override
	Save primitive as a C++ statement(s) on output stream.

virtual Int_t	SetNextPoint (Double_t x, Double_t y, Double_t z)
	Set point following LastPoint to x, y, z.

virtual void	SetPoint (Int_t point, Double_t x, Double_t y, Double_t z)
	Set point n to x, y, z.

virtual void	SetPolyLine (Int_t n, Double_t p, Option_t option="")
	Re-initialize polyline with n points from p.

virtual void	SetPolyLine (Int_t n, Float_t p, Option_t option="")
	Re-initialize polyline with n points from p.

virtual void	SetPolyLine (Int_t n, Option_t *option="")
	Re-initialize polyline with n points (0,0,0).

virtual Int_t	Size () const

void	Streamer (TBuffer &) override
	Stream a 3-D polyline object.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TObject
	TObject ()
	TObject constructor.

	TObject (const TObject &object)
	TObject copy ctor.

virtual	~TObject ()
	TObject destructor.

void	AbstractMethod (const char *method) const
	Use this method to implement an "abstract" method that you don't want to leave purely abstract.

virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad.

virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action.

ULong_t	CheckedHash ()
	Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

virtual const char *	ClassName () const
	Returns name of class to which the object belongs.

virtual void	Clear (Option_t *="")

virtual TObject *	Clone (const char *newname="") const
	Make a clone of an object using the Streamer facility.

virtual Int_t	Compare (const TObject *obj) const
	Compare abstract method.

virtual void	Delete (Option_t *option="")
	Delete this object.

virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs.

virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current selected pad with: `gROOT->SetSelectedPad(c1)`.

virtual void	Dump () const
	Dump contents of object on stdout.

virtual void	Error (const char method, const char msgfmt,...) const
	Issue error message.

virtual void	Execute (const char method, const char params, Int_t *error=nullptr)
	Execute method on this object with the given parameter string, e.g.

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=nullptr)
	Execute method on this object with parameters stored in the TObjArray.

virtual void	Fatal (const char method, const char msgfmt,...) const
	Issue fatal error message.

virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes.

virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes.

virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object.

virtual const char *	GetIconName () const
	Returns mime type name of object.

virtual const char *	GetName () const
	Returns name of object.

virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py).

virtual const char *	GetTitle () const
	Returns title of object.

virtual UInt_t	GetUniqueID () const
	Return the unique object id.

virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out.

virtual ULong_t	Hash () const
	Return hash value for this object.

Bool_t	HasInconsistentHash () const
	Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

virtual void	Info (const char method, const char msgfmt,...) const
	Issue info message.

virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname".

virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl.

virtual void	Inspect () const
	Dump contents of this object in a graphics canvas.

void	InvertBit (UInt_t f)

Bool_t	IsDestructed () const
	IsDestructed.

virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory).

virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

R__ALWAYS_INLINE Bool_t	IsOnHeap () const

virtual Bool_t	IsSortable () const

R__ALWAYS_INLINE Bool_t	IsZombie () const

void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

virtual Bool_t	Notify ()
	This method must be overridden to handle object notification (the base implementation is no-op).

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete.

void	operator delete (void *, size_t)
	Operator delete for sized deallocation.

void	operator delete (void *ptr)
	Operator delete.

void	operator delete (void ptr, void vp)
	Only called by placement new when throwing an exception.

void	operator delete[] (void *, size_t)
	Operator delete [] for sized deallocation.

void	operator delete[] (void *ptr)
	Operator delete [].

void	operator delete[] (void ptr, void vp)
	Only called by placement new[] when throwing an exception.

void *	operator new (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz)

void *	operator new[] (size_t sz, void *vp)

TObject &	operator= (const TObject &rhs)
	TObject assignment operator.

virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list.

virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory.

virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list.

void	ResetBit (UInt_t f)

virtual void	SaveAs (const char filename="", Option_t option="") const
	Save this object in the file specified by filename.

void	SetBit (UInt_t f)

void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f.

virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object.

virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

virtual void	SysError (const char method, const char msgfmt,...) const
	Issue system error message.

R__ALWAYS_INLINE Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

virtual void	Warning (const char method, const char msgfmt,...) const
	Issue warning message.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory.

Public Member Functions inherited from TAttLine
	TAttLine ()
	AttLine default constructor.

	TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth)
	AttLine normal constructor.

virtual	~TAttLine ()
	AttLine destructor.

void	Copy (TAttLine &attline) const
	Copy this line attributes to a new TAttLine.

Int_t	DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
	Compute distance from point px,py to a line.

virtual Color_t	GetLineColor () const
	Return the line color.

virtual Style_t	GetLineStyle () const
	Return the line style.

virtual Width_t	GetLineWidth () const
	Return the line width.

virtual void	Modify ()
	Change current line attributes if necessary.

virtual void	ResetAttLine (Option_t *option="")
	Reset this line attributes to default values.

virtual void	SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
	Save line attributes as C++ statement(s) on output stream out.

virtual void	SetLineAttributes ()
	Invoke the DialogCanvas Line attributes.

virtual void	SetLineColor (Color_t lcolor)
	Set the line color.

virtual void	SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
	Set a transparent line color.

virtual void	SetLineStyle (Style_t lstyle)
	Set the line style.

virtual void	SetLineWidth (Width_t lwidth)
	Set the line width.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TAtt3D
	TAtt3D ()

virtual	~TAtt3D ()

virtual void	Sizeof3D () const
	Set total size of this 3D object (used by X3D interface).

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Static Public Member Functions
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TPolyLine3D
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static void	DrawOutlineCube (TList outline, Double_t rmin, Double_t *rmax)
	Draw cube outline with 3d polylines.

Static Public Member Functions inherited from TObject
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static Longptr_t	GetDtorOnly ()
	Return destructor only flag.

static Bool_t	GetObjectStat ()
	Get status of object stat flag.

static void	SetDtorOnly (void *obj)
	Set destructor only flag.

static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable.

Static Public Member Functions inherited from TAttLine
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TAtt3D
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Protected Member Functions
Double_t	FindClosestPhase (Double_t phi0, Double_t cosine)
	Finds the closest phase to phi0 that gives cos(phase) = cosine.

THelix &	operator= (const THelix &)
	assignment operator

void	SetRotMatrix ()
	Set the rotational matrix according to the helix axis.

Protected Member Functions inherited from TObject
virtual void	DoError (int level, const char location, const char fmt, va_list va) const
	Interface to ErrorHandler (protected).

void	MakeZombie ()

Protected Attributes
Double_t	fAxis [3]

Double_t	fPhi0

Double_t	fRange [2]

TRotMatrix *	fRotMat

Double_t	fVt

Double_t	fVz

Double_t	fW

Double_t	fX0

Double_t	fY0

Double_t	fZ0

Protected Attributes inherited from TPolyLine3D
Int_t	fLastPoint {-1}
	The index of the last filled point.

Int_t	fN {0}
	Number of points.

TString	fOption
	options

Float_t *	fP {nullptr}
	[3*fN] Array of 3-D coordinates (x,y,z)

Protected Attributes inherited from TAttLine
Color_t	fLineColor
	Line color.

Style_t	fLineStyle
	Line style.

Width_t	fLineWidth
	Line width.

Static Protected Attributes
static Int_t	fgMinNSeg =5

Additional Inherited Members
Public Types inherited from TObject
enum	{ kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 , kBitMask = 0x00ffffff }

enum	{ kSingleKey = (1ULL << ( 0 )) , kOverwrite = (1ULL << ( 1 )) , kWriteDelete = (1ULL << ( 2 )) }

enum	EDeprecatedStatusBits { kObjInCanvas = (1ULL << ( 3 )) }

enum	EStatusBits { kCanDelete = (1ULL << ( 0 )) , kMustCleanup = (1ULL << ( 3 )) , kIsReferenced = (1ULL << ( 4 )) , kHasUUID = (1ULL << ( 5 )) , kCannotPick = (1ULL << ( 6 )) , kNoContextMenu = (1ULL << ( 8 )) , kInvalidObject = (1ULL << ( 13 )) }

Protected Types inherited from TObject
enum	{ kOnlyPrepStep = (1ULL << ( 3 )) }

#include <THelix.h>

Inheritance diagram for THelix:

[legend]

Constructor & Destructor Documentation

◆ THelix() [1/4]

THelix::THelix ( )

Helix default constructor.

Definition at line 121 of file THelix.cxx.

◆ THelix() [2/4]

THelix::THelix	(	Double_t	x,
		Double_t	y,
		Double_t	z,
		Double_t	vx,
		Double_t	vy,
		Double_t	vz,
		Double_t	w )

Helix normal constructor.

Definition at line 134 of file THelix.cxx.

◆ THelix() [3/4]

THelix::THelix	(	Double_t const *	xyz,
		Double_t const *	v,
		Double_t	w,
		Double_t const *	range = nullptr,
		EHelixRangeType	rtype = kHelixZ,
		Double_t const *	axis = nullptr )

Helix normal constructor.

Definition at line 156 of file THelix.cxx.

◆ THelix() [4/4]

THelix::THelix ( const THelix & helix )

Helix copy constructor.

Definition at line 236 of file THelix.cxx.

◆ ~THelix()

THelix::~THelix ( )

override

Helix destructor.

Definition at line 227 of file THelix.cxx.

Member Function Documentation

◆ Class()

static TClass * THelix::Class ( )

static

Returns: TClass describing this class

◆ Class_Name()

static const char * THelix::Class_Name ( )

static

Returns: Name of this class

◆ Class_Version()

static constexpr Version_t THelix::Class_Version ( )

inlinestaticconstexpr

Returns: Version of this class

Definition at line 69 of file THelix.h.

◆ Copy()

void THelix::Copy ( TObject & helix ) const

overridevirtual

Copy this helix to obj.

Reimplemented from TObject.

Definition at line 246 of file THelix.cxx.

◆ DeclFileName()

static const char * THelix::DeclFileName ( )

inlinestatic

Returns: Name of the file containing the class declaration

Definition at line 69 of file THelix.h.

◆ Draw()

void THelix::Draw ( Option_t * option = "" )

overridevirtual

Draw this helix with its current attributes.

Reimplemented from TObject.

Definition at line 281 of file THelix.cxx.

◆ FindClosestPhase()

Double_t THelix::FindClosestPhase	(	Double_t	phi0,
		Double_t	cosine )

protected

Finds the closest phase to phi0 that gives cos(phase) = cosine.

Definition at line 598 of file THelix.cxx.

◆ GetOption()

Option_t * THelix::GetOption ( ) const

inlineoverridevirtual

Reimplemented from TObject.

Definition at line 57 of file THelix.h.

◆ IsA()

TClass * THelix::IsA ( ) const

inlineoverridevirtual

Returns: TClass describing current object

Reimplemented from TObject.

Definition at line 69 of file THelix.h.

◆ operator=()

THelix & THelix::operator= ( const THelix & hx )

protected

assignment operator

Definition at line 203 of file THelix.cxx.

◆ Print()

void THelix::Print ( Option_t * option = "" ) const

overridevirtual

Dump this helix with its attributes.

Reimplemented from TObject.

Definition at line 290 of file THelix.cxx.

◆ SavePrimitive()

void THelix::SavePrimitive	(	std::ostream &	out,
		Option_t *	option = "" )

overridevirtual

Save primitive as a C++ statement(s) on output stream out.

Reimplemented from TObject.

Definition at line 299 of file THelix.cxx.

◆ SetAxis() [1/2]

void THelix::SetAxis ( Double_t const * axis )

virtual

Set a new axis for the helix. This will make a new rotation matrix.

Definition at line 323 of file THelix.cxx.

◆ SetAxis() [2/2]

void THelix::SetAxis	(	Double_t	x,
		Double_t	y,
		Double_t	z )

virtual

Set axis.

Definition at line 348 of file THelix.cxx.

◆ SetHelix()

void THelix::SetHelix	(	Double_t const *	xyz,
		Double_t const *	v,
		Double_t	w,
		Double_t const *	range = nullptr,
		EHelixRangeType	type = kUnchanged,
		Double_t const *	axis = nullptr )

Set all helix parameters.

Definition at line 83 of file THelix.cxx.

◆ SetOption()

void THelix::SetOption ( Option_t * option = "" )

inlineoverridevirtual

Reimplemented from TPolyLine3D.

Definition at line 60 of file THelix.h.

◆ SetRange() [1/2]

void THelix::SetRange	(	Double_t *	range,
		EHelixRangeType	rtype = kHelixZ )

virtual

Set a new range for the helix. This will remake the polyline.

Definition at line 358 of file THelix.cxx.

◆ SetRange() [2/2]

void THelix::SetRange	(	Double_t	r1,
		Double_t	r2,
		EHelixRangeType	rtype = kHelixZ )

virtual

Set range.

Definition at line 551 of file THelix.cxx.

◆ SetRotMatrix()

void THelix::SetRotMatrix ( )

protected

Set the rotational matrix according to the helix axis.

Definition at line 569 of file THelix.cxx.

◆ Streamer()

void THelix::Streamer ( TBuffer & R__b )

overridevirtual

Stream an object of class THelix.

Reimplemented from TObject.

Definition at line 621 of file THelix.cxx.

◆ StreamerNVirtual()

void THelix::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 69 of file THelix.h.

Member Data Documentation

◆ fAxis

Double_t THelix::fAxis[3]

protected

Definition at line 33 of file THelix.h.

◆ fgMinNSeg

Int_t THelix::fgMinNSeg =5

staticprotected

Definition at line 42 of file THelix.h.

◆ fPhi0

Double_t THelix::fPhi0

protected

Definition at line 30 of file THelix.h.

◆ fRange

Double_t THelix::fRange[2]

protected

Definition at line 35 of file THelix.h.

◆ fRotMat

TRotMatrix* THelix::fRotMat

protected

Definition at line 34 of file THelix.h.

◆ fVt

Double_t THelix::fVt

protected

Definition at line 29 of file THelix.h.

◆ fVz

Double_t THelix::fVz

protected

Definition at line 31 of file THelix.h.

◆ fW

Double_t THelix::fW

protected

Definition at line 32 of file THelix.h.

◆ fX0

Double_t THelix::fX0

protected

Definition at line 26 of file THelix.h.

◆ fY0

Double_t THelix::fY0

protected

Definition at line 27 of file THelix.h.

◆ fZ0

Double_t THelix::fZ0

protected

Definition at line 28 of file THelix.h.

Libraries for THelix:

[legend]

The documentation for this class was generated from the following files:

graf3d/g3d/inc/THelix.h
graf3d/g3d/src/THelix.cxx

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Constructor & Destructor Documentation

◆ THelix() [1/4]

◆ THelix() [2/4]

◆ THelix() [3/4]

◆ THelix() [4/4]

◆ ~THelix()

Member Function Documentation

◆ Class()

◆ Class_Name()

◆ Class_Version()

◆ Copy()

◆ DeclFileName()

◆ Draw()

◆ FindClosestPhase()

◆ GetOption()

◆ IsA()

◆ operator=()

◆ Print()

◆ SavePrimitive()

◆ SetAxis() [1/2]

◆ SetAxis() [2/2]

◆ SetHelix()

◆ SetOption()

◆ SetRange() [1/2]

◆ SetRange() [2/2]

◆ SetRotMatrix()

◆ Streamer()

◆ StreamerNVirtual()

Member Data Documentation

◆ fAxis

◆ fgMinNSeg

◆ fPhi0

◆ fRange

◆ fRotMat

◆ fVt

◆ fVz

◆ fW

◆ fX0

◆ fY0

◆ fZ0
