df010_trivialDataSource.py File Reference

Detailed Description

View in nbviewer Open in SWAN
Use the "trivial data source", an example data source implementation.

This tutorial illustrates how use the RDataFrame in combination with a RDataSource. In this case we use a RTrivialDS, which is nothing more than a simple generator: it does not interface to any existing dataset. The RTrivialDS has a single column, col0, which has value n for entry n.

Note that RTrivialDS is only a demo data source implementation and superior alternatives typically exist for production use (e.g. constructing an empty RDataFrame as RDataFrame(nEntries)).

import ROOT
# Create the data frame
MakeTrivialDataFrame = ROOT.RDF.MakeTrivialDataFrame
nEvents = 128
d_s = MakeTrivialDataFrame(nEvents)
# Now we have a regular RDataFrame: the ingestion of data is delegated to
# the RDataSource. At this point everything works as before.

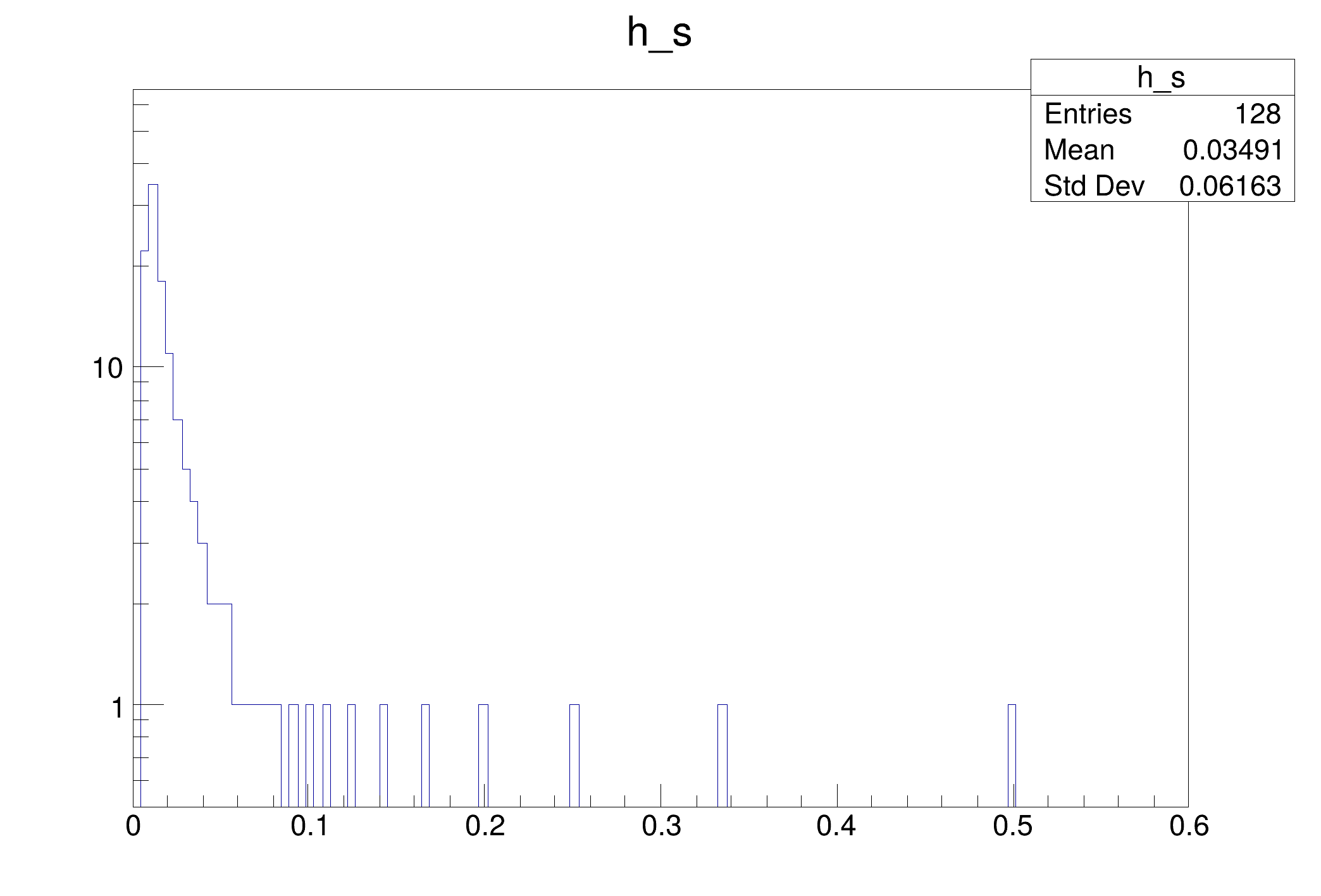

h_s = d_s.Define("x", "1./(1. + col0)").Histo1D(("h_s", "h_s", 128, 0, .6), "x")
c = ROOT.TCanvas()
c.SetLogy()
h_s.Draw()
c.SaveAs("df010_trivialDataSource.png")
print("Saved figure to df010_trivialDataSource.png")
Date
September 2017
Author
Danilo Piparo (CERN)

Definition in file df010_trivialDataSource.py.
